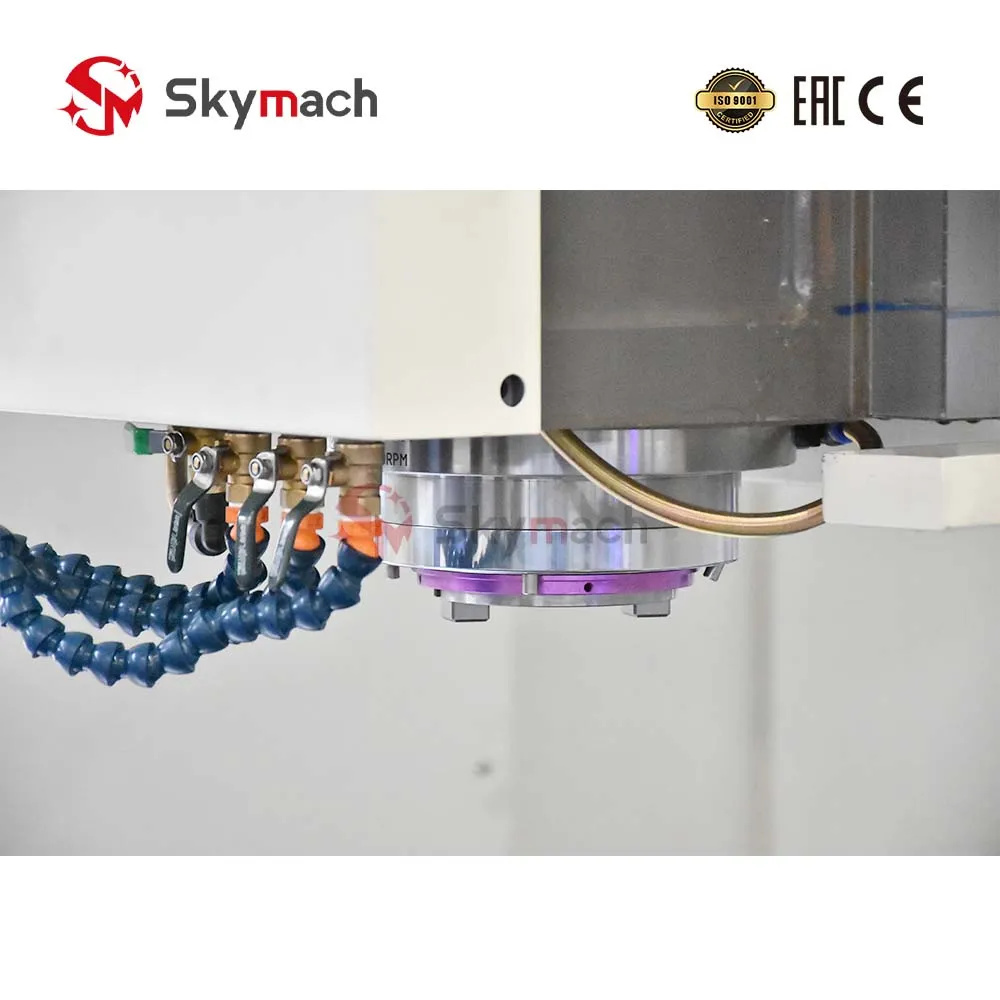

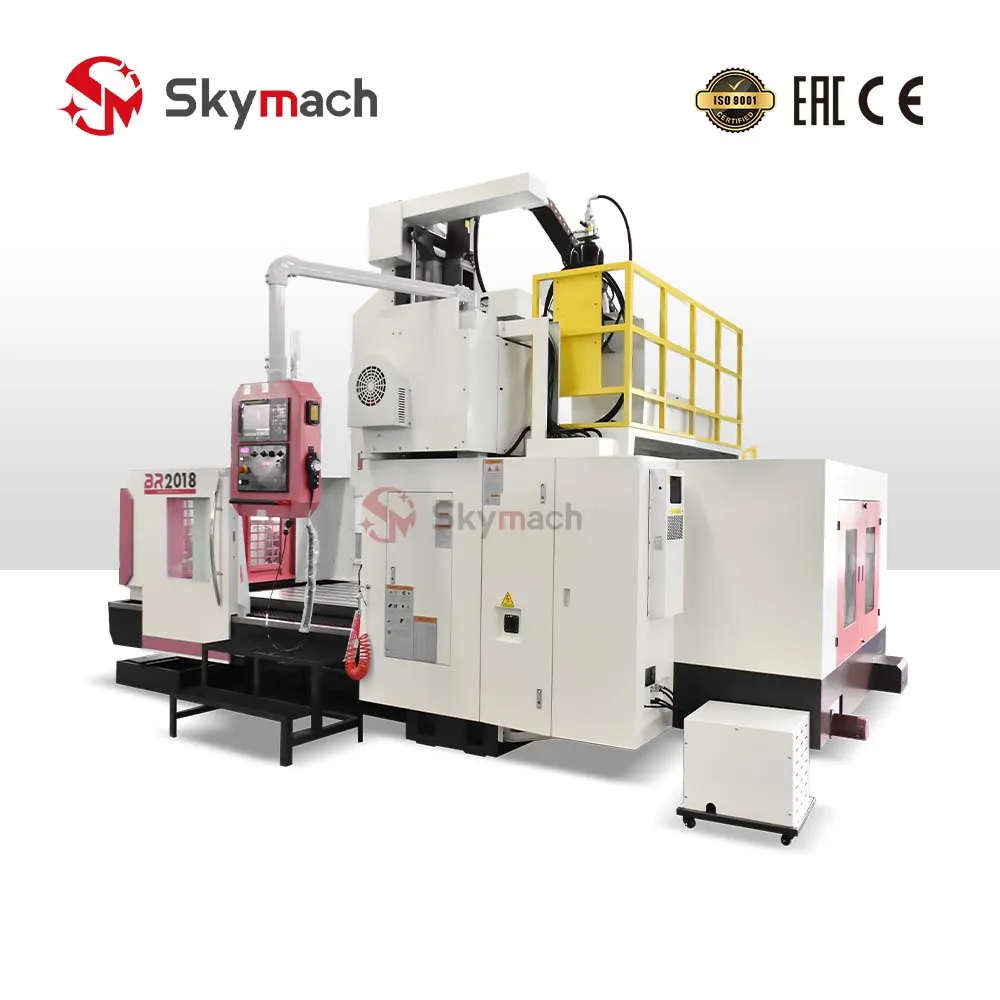

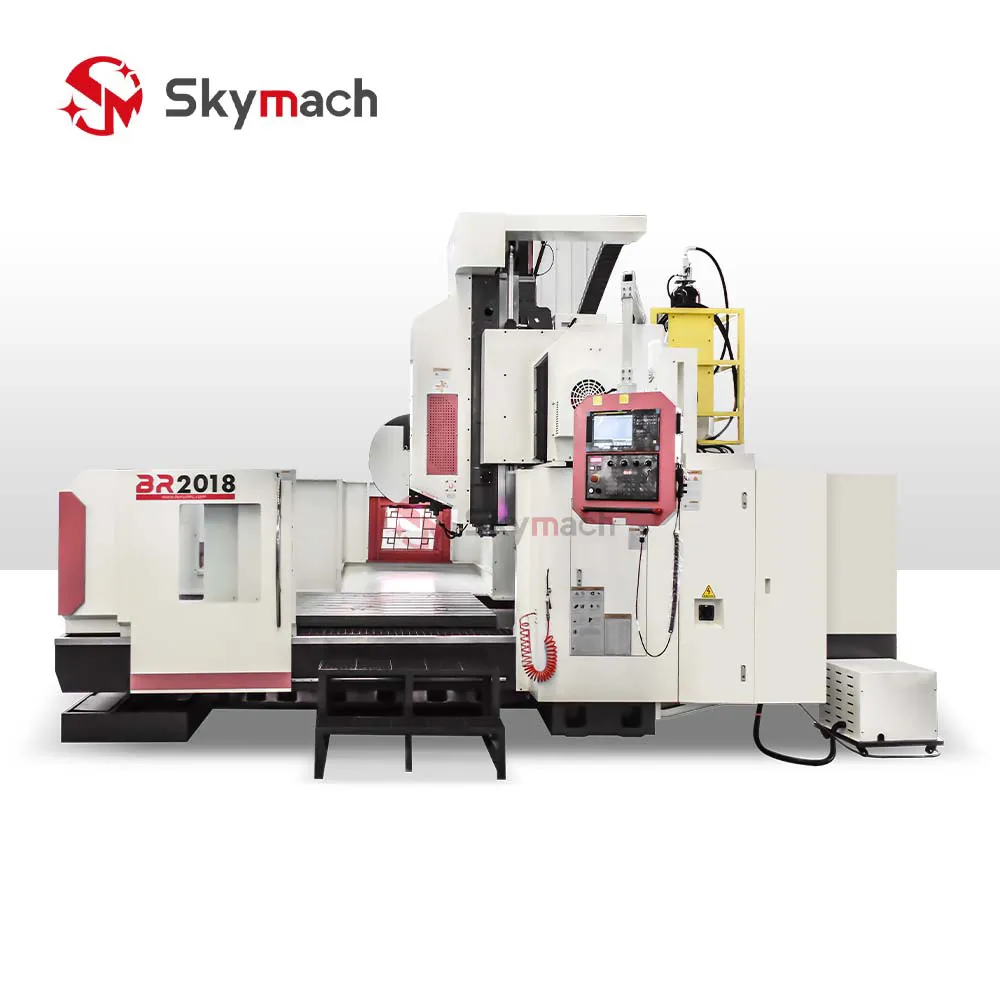

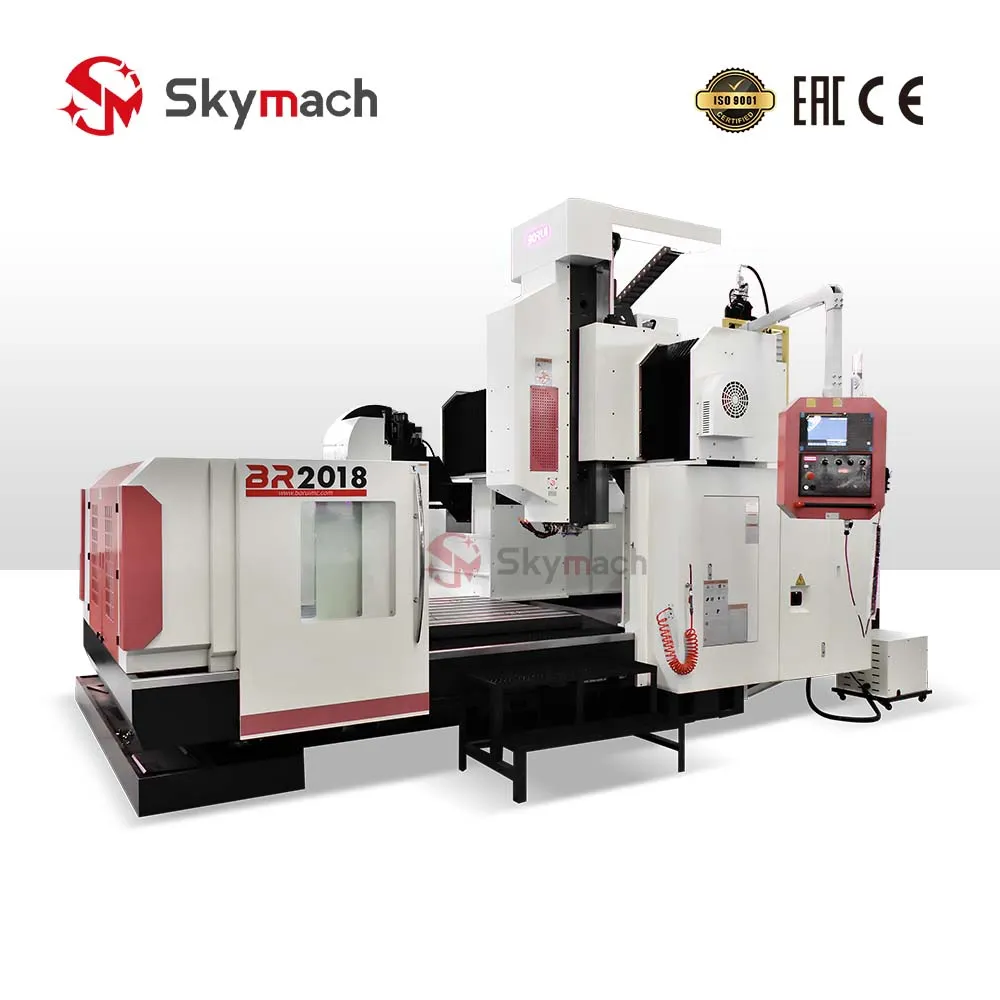

The Skymach BR2018 CNC Gantry Machining Center is an upgraded heavy-duty double-column bridge machining center featuring an extra-wide 1,600 mm worktable, 1,800 mm gantry portal width, and 2,000 mm Y-axis cross travel. Built on an ultra-heavy HT300 cast iron foundation weighing 15.5 t (15,500 kg), the BR2018 combines heavy 55mm linear roller rails on X and Y axes with induction-hardened rectangular box ways on the Z-axis, powered by a high-torque 22 kW BT50 spindle drive.
Comprehensive Machining Capabilities
- Wide-Format Heavy Milling: The 1,600 mm wide worktable easily accommodates large multi-cavity injection molds, stamping die shoes, and large chassis parts without overhang.
- Extreme Roughing Rigidity: Z-axis induction-hardened box ways with hand-scraped Turcite-B lining absorb heavy cutting shocks during high-feed face milling and deep pocketing.
- ZF Reduction Gearbox Compatibility: Optional German ZF 2-speed reduction gearbox (4:1 ratio) provides colossal torque output at low RPMs for machining hardened tool steels and titanium alloys.
Key Engineering Highlights

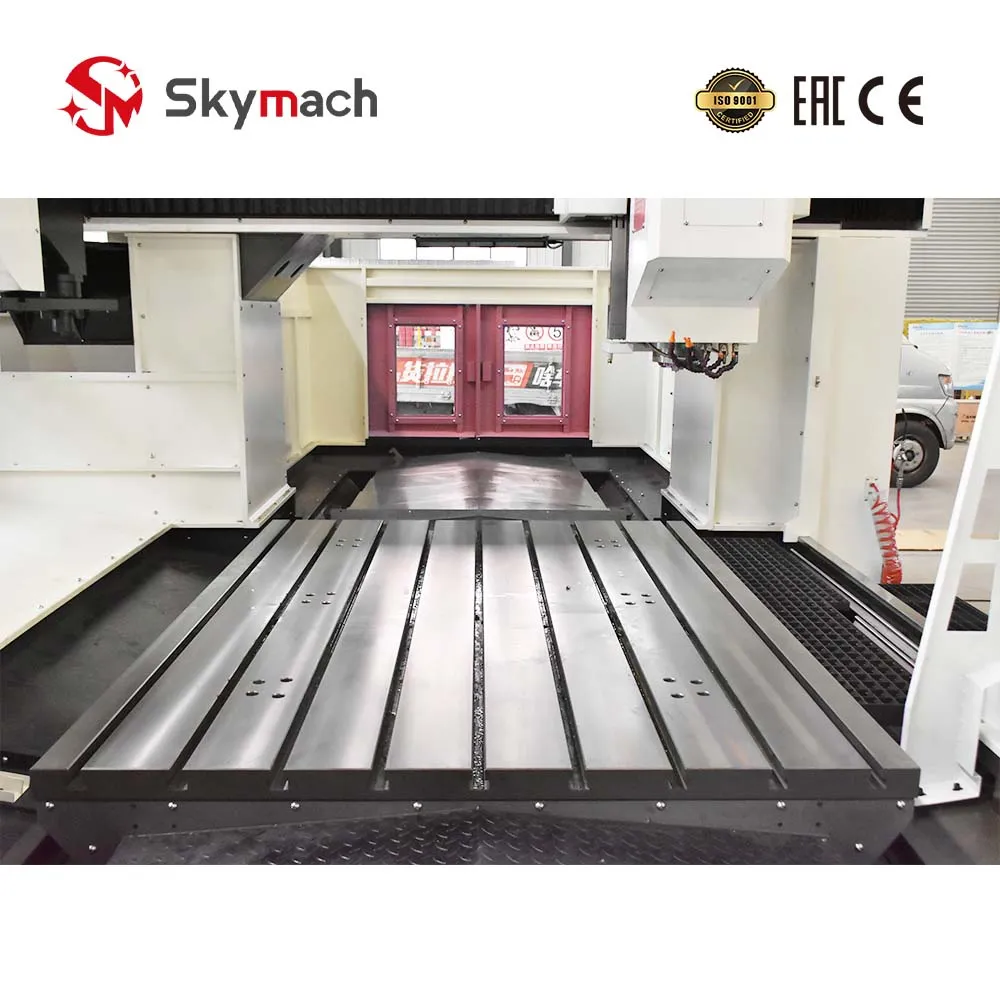

- 1600mm Wide High-Payload Worktable: Supports massive workpieces up to 4.0 t (4,000 kg) with 7 continuous 22mm T-slots.
- Monolithic HT300 Cast Bridge: Heavily ribbed portal door bridge and base structure eliminate dynamic deformation under severe cutting loads.
- Hydraulic Counterbalance System: Counterbalances the heavy vertical ram to ensure smooth micro-stepping and prevent ball screw backlash.
Technical Parameters
| Model | BR2018 |
|---|---|
| Table Size (W x L) | 1600 x 2200 mm |
| X Axis Travel | 2,200 |
| Y Axis Travel | 2,000 |
| Z Axis Travel | 800 mm |
| Max. Worktable Load | 4.0 t (4,000 kg) |
| Gantry Inner Width / Passing Height | 1,800 mm / 1,160 mm |
| Spindle Nose to Table Surface | 250 - 1,050 mm |
| Worktable T-Slots | 7-22 x 200 mm |
| Spindle Specification | BT50 / Φ190 mm (6,000 RPM) |
| Main Motor Power | 22 kW High-Torque Motor |
| Spindle Transmission | Belt Drive 1.5:1 (Optional ZF 2-Speed Gearbox 4:1 / Gear Head 4.4:1) |
| Guideway Structure (X/Y/Z) | X/Y: Heavy 55mm Roller Linear Rails | Z: Hardened Rectangular Box Way |
| Ball Screw Specifications (X/Y/Z) | X: Φ63x10, Y: Φ50x10, Z: Φ50x10 mm |
| Servo Motor Torque (X/Y/Z) | X: 38 N.m, Y: 30 N.m, Z: 30 N.m (Direct Connection) |
| Rapid / Cutting Feed Speed | 16 m/min / 10 m/min |
| Counterbalance System | Manual Hydraulic Balancing (Opt. Auto Hydraulic Balancing) |
| Overall Dimensions (L x W x H) | 5500 x 3800 x 3700 mm |
| Machine Net Weight | 15.5 t (15,500 kg) |
