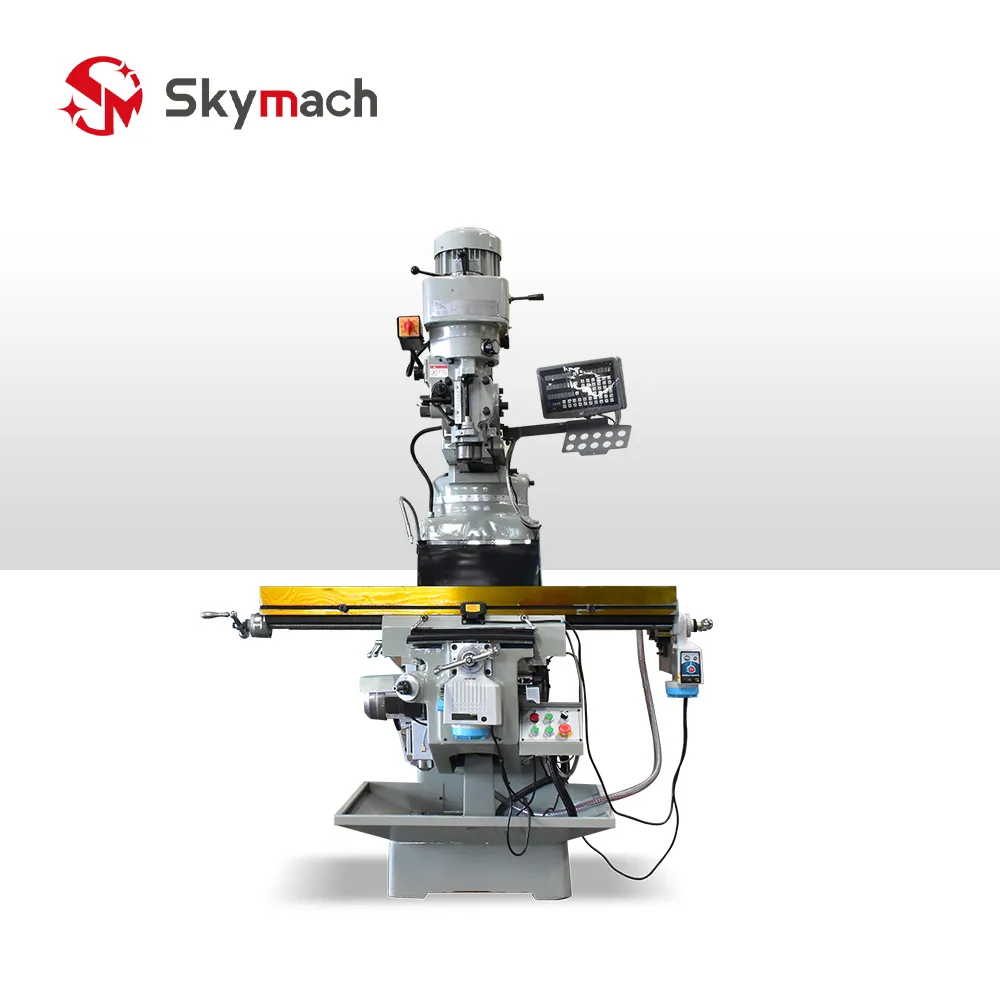

4H (X6325) Turret Milling Machine
4H turret milling machine with 1270×254mm table, R8 spindle (ISO40 optional), 65–4500rpm. Bridgeport-type knee mill factory direct. Get a quote.
Learn More about 4H (X6325) Turret Milling MachineCNC Machine Tools & Metalworking Equipment

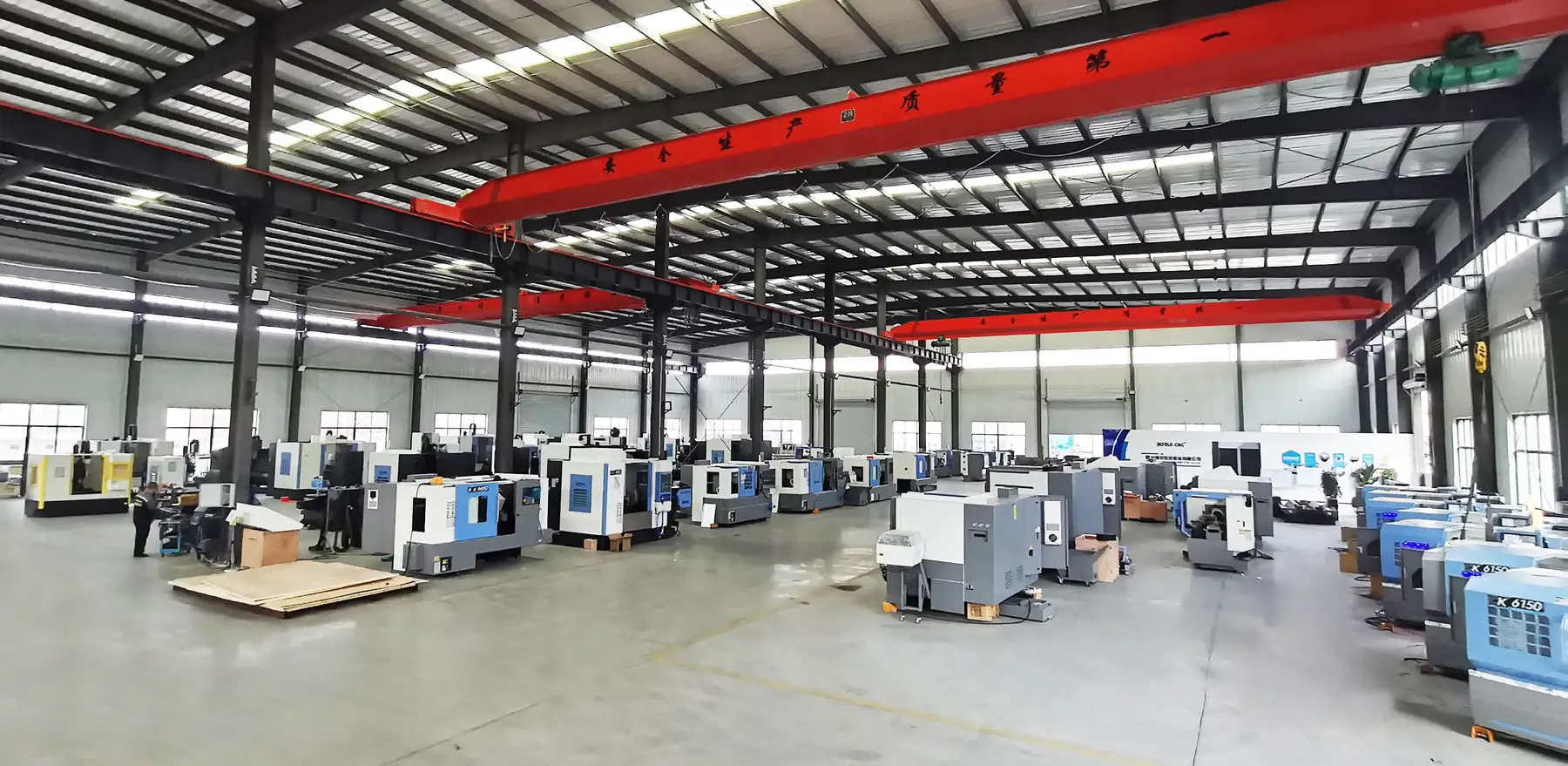

Direct from our Shandong manufacturing plant since 2015. CE-certified CNC lathes, machining centers, milling and sawing machines exported to 100+ countries.
CE & ISO 9001:201510,000+ ㎡ Own FactoryExported to 100+ Countries30-Day Standard Dispatch12 Months Warranty
Browse the CNC Machine Tool Catalog
85 machines available — page 1 of 4

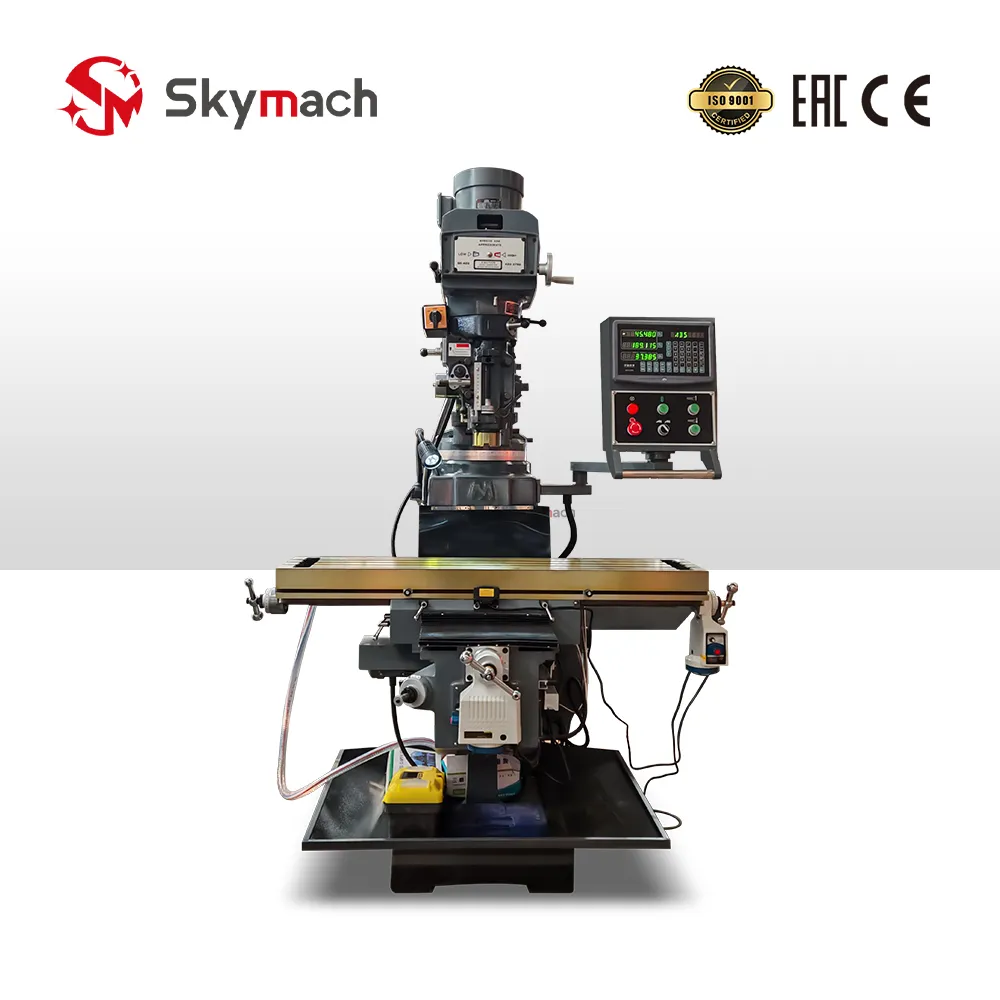

5H (X6330) Vertical Turret Milling Machine
5H (X6330) vertical milling machine: turret knee mill with 1370×305mm table & 810mm X-travel, R8 spindle. Factory direct. Request a quote.
Learn More about 5H (X6330) Vertical Turret Milling Machine

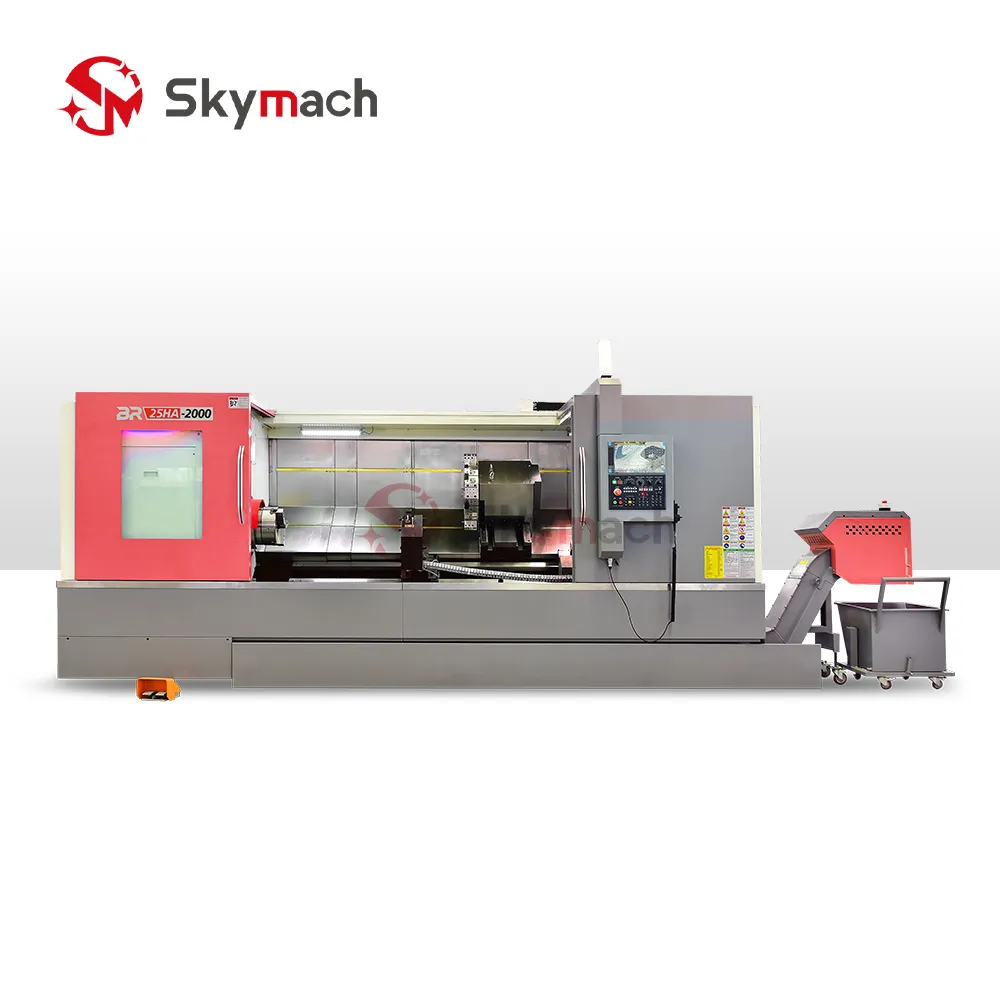

BR-25H-2000 High-Precision Heavy-Duty Hard Rail Slant Bed CNC Lathe
High-precision heavy-duty 30° monolithic slant bed CNC lathe machine featuring 2,240 mm max processing length, hand-scraped hardened box ways (Hard Way), 2,500 RPM A2-8 spindle (Φ87mm bore, Φ75mm bar capacity), 15/18.5 kW motor, 10/12-inch chuck, NC125/SH125 10T/12T turret, and heavy MT5 tailstock with 2,285 mm travel.
Learn More about BR-25H-2000 High-Precision Heavy-Duty Hard Rail Slant Bed CNC Lathe

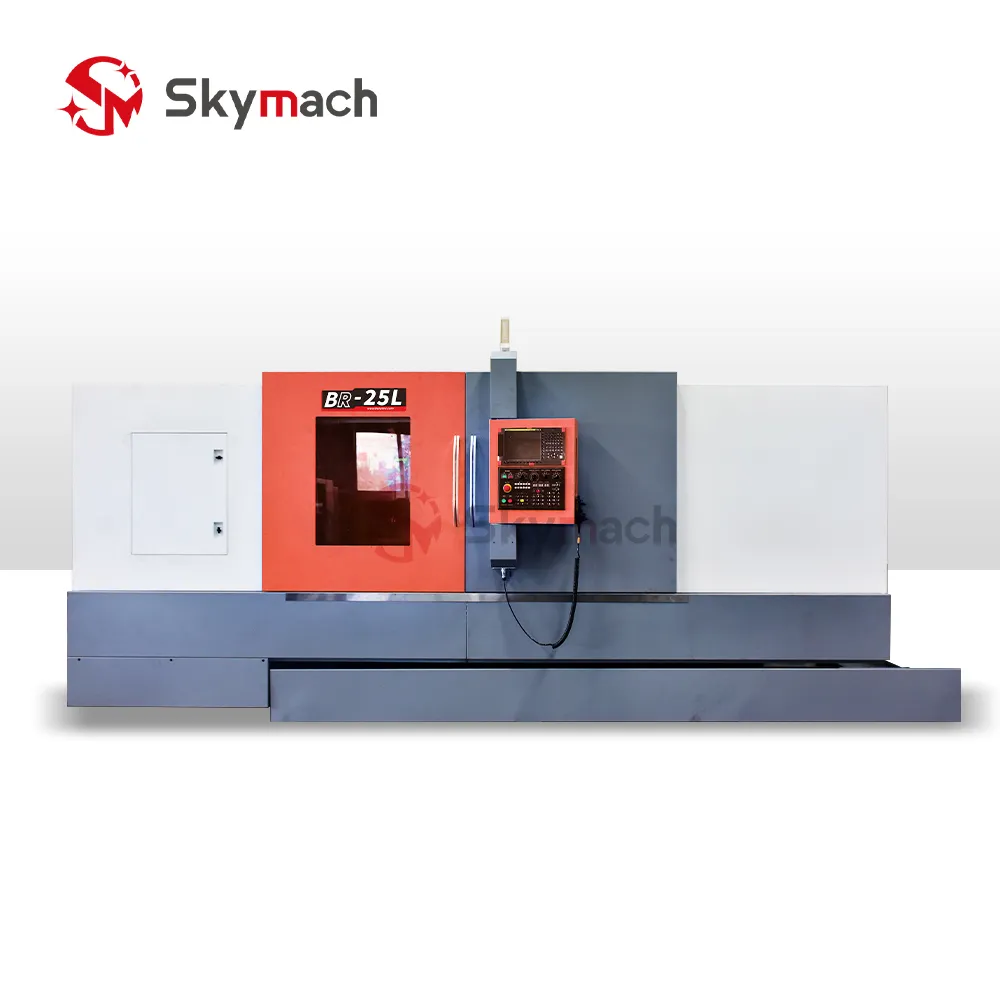

BR-25L-750 High-Precision Linear Guide Slant Bed CNC Lathe
High-precision 30° slant bed CNC lathe machine featuring 45/45 precision linear guideways on an integrated HT300 cast bed, 2,500 RPM A2-8 spindle (Φ87mm bore, Φ75mm bar capacity), 15/18.5 kW motor, 10/12-inch chuck, NC125/SH125 10T/12T turret, and MT5 tailstock for high-speed precision turning.
Learn More about BR-25L-750 High-Precision Linear Guide Slant Bed CNC Lathe

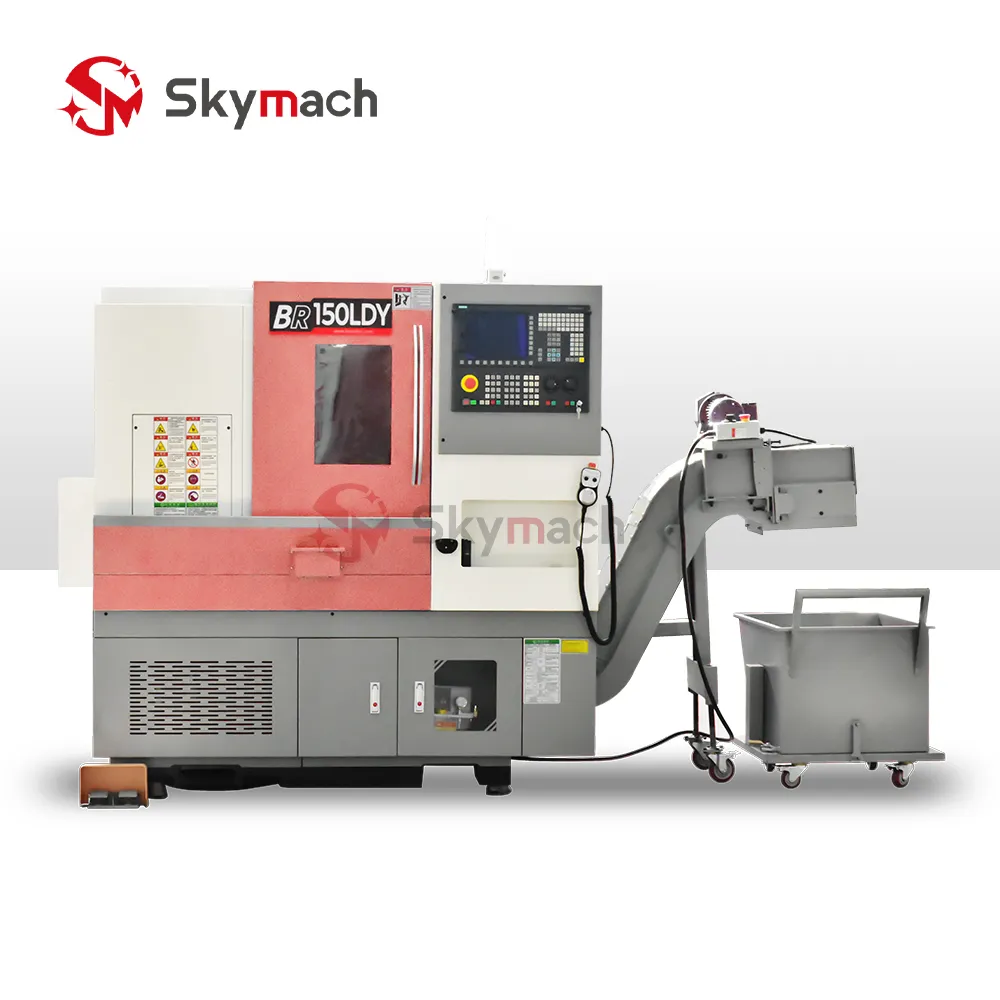

BR-150DY Compact Slant Bed CNC Turn-Mill Center
Compact precision 30° slant bed CNC turn-mill center featuring Y-axis control (60mm / ±30mm), BMT40/ER20 live tooling power turret (3,000 RPM, 2.5 kW), 4,500 RPM A2-5 spindle (Φ56mm bore, Φ45mm bar capacity), and 5.5-7.5 kW drive for complete multi-tasking mill-turn parts.
Learn More about BR-150DY Compact Slant Bed CNC Turn-Mill Center

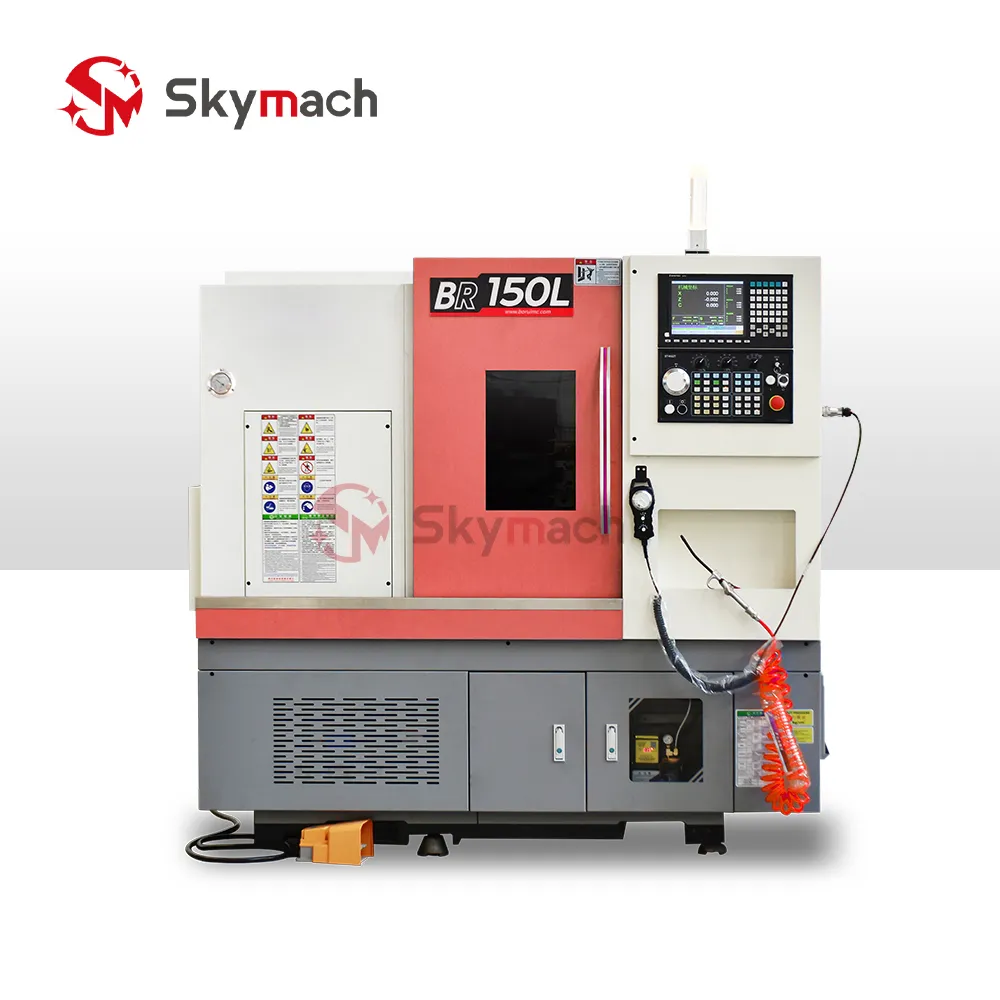

BR-150L Compact Precision Slant Bed CNC Lathe
Compact precision 30° slant bed CNC lathe machine featuring an A2-5 spindle with 4,500 RPM (Φ56mm bore, Φ45mm bar capacity), 5.5-7.5 kW motor, SH80-825-280 12T tool turret, 35/35 linear guideways, and side/rear chip discharge for automated high-speed turning lines.
Learn More about BR-150L Compact Precision Slant Bed CNC Lathe

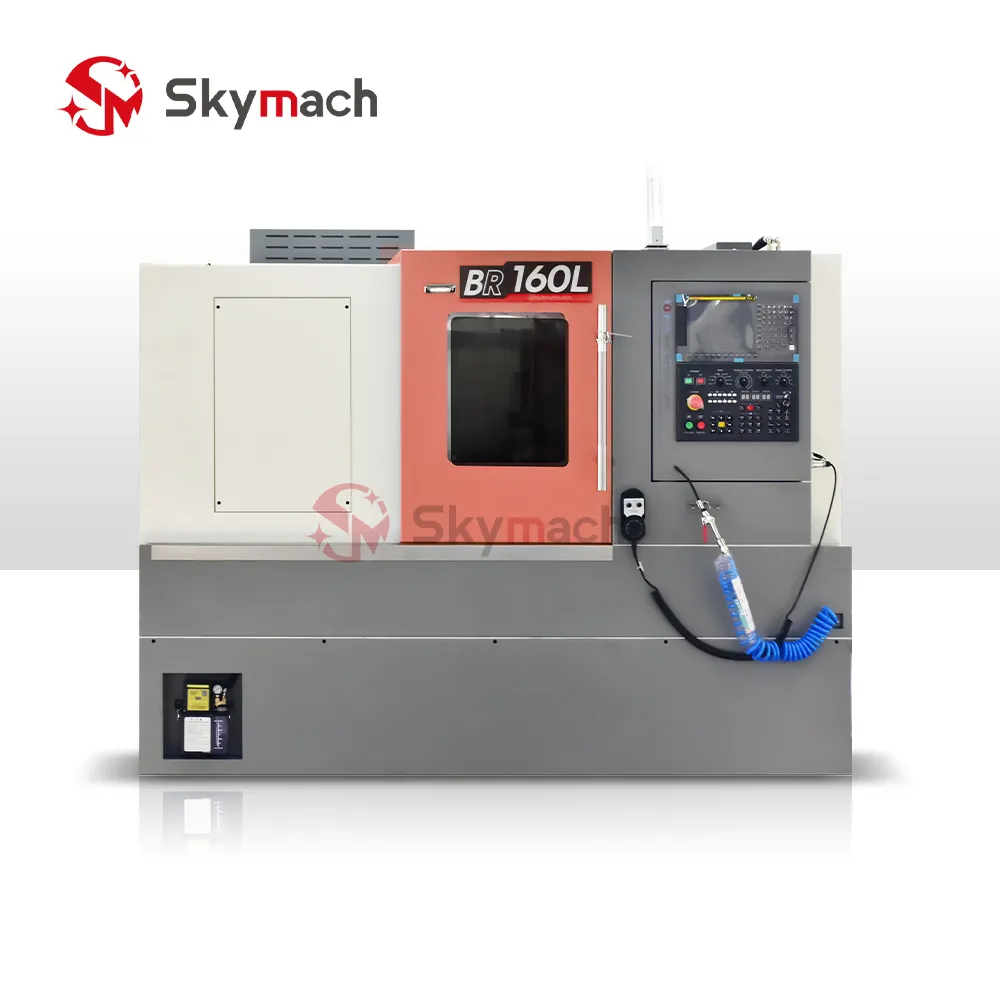

BR-160L High-Precision Linear Guide Slant Bed CNC Lathe
High-precision 30° slant bed CNC lathe featuring high-speed 4,500 RPM A2-5 spindle (Φ56mm bore, Φ46mm bar capacity), 7.5 kW motor, 35/35 precision linear guideways, 80825 8T/10T/12T turret, and MT4 tailstock on an integrated HT300 cast iron base.
Learn More about BR-160L High-Precision Linear Guide Slant Bed CNC Lathe

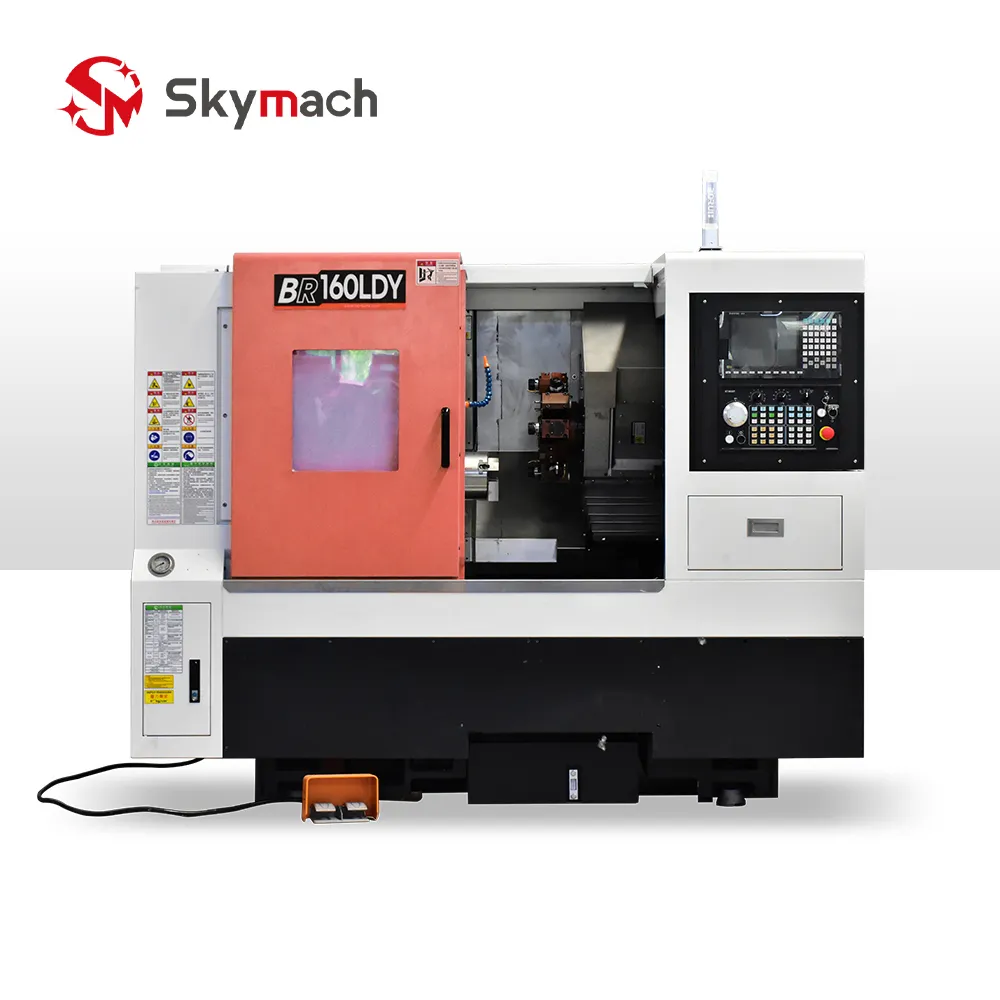

BR-160LDY Precision Slant Bed CNC Turn-Mill Center with Y-Axis
Precision 30° slant bed CNC turn-mill center featuring Y-axis travel (60mm / ±30mm), 12T BMT40/ER20 live tooling power turret (3,000 RPM, 2.5 kW), 4,500 RPM A2-5 spindle (Φ56mm bore, Φ45mm bar capacity), 7.5 kW motor, Φ500mm swing over bed, 35/35/25 linear guides, and MT4 tailstock on an integrated HT300 cast bed.
Learn More about BR-160LDY Precision Slant Bed CNC Turn-Mill Center with Y-Axis

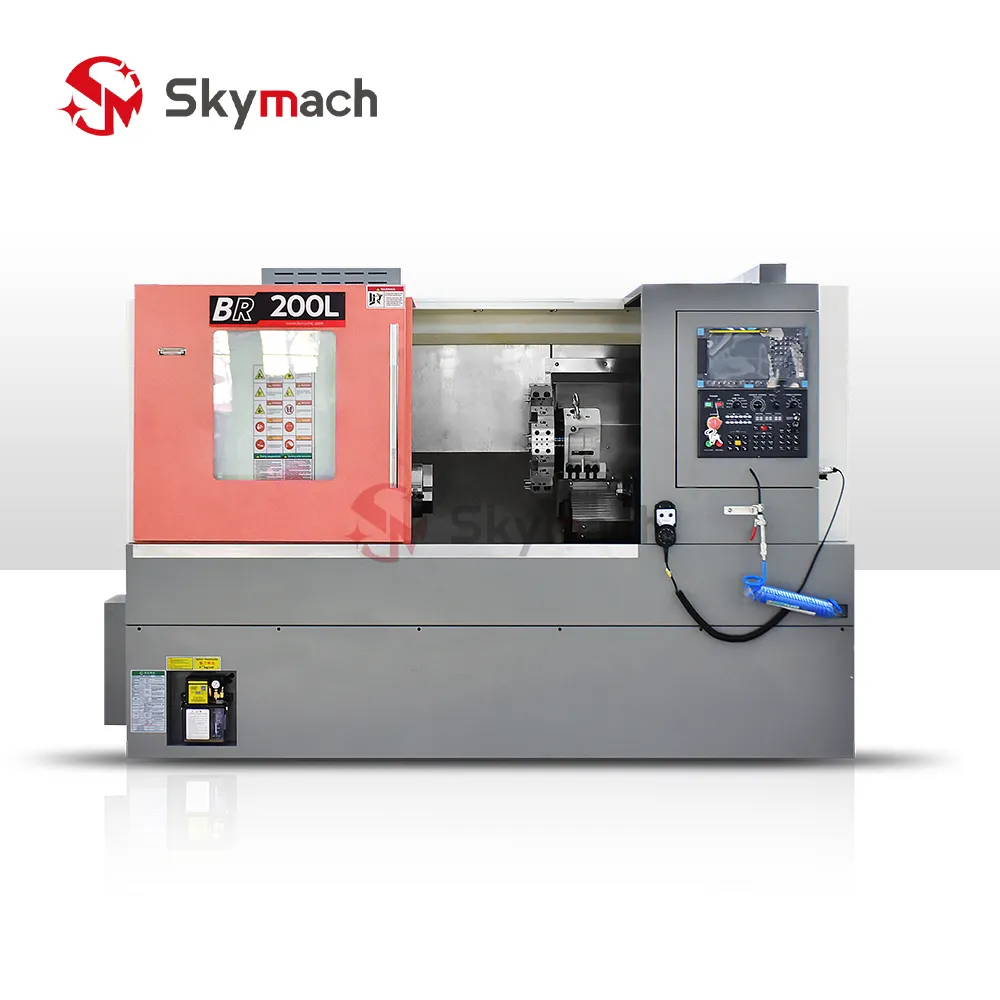

BR-200L High-Precision Linear Way Slant Bed CNC Lathe
High-precision 30° slant bed CNC lathe machine built with wide 45/45 precision linear guideways on an integrated HT300 cast bed, featuring a 4,000 RPM A2-6 spindle (8-inch chuck, Φ66mm bore, Φ52mm bar capacity), 11 kW motor, H100 8T/10T/12T tool turret, and MT4 tailstock for heavy, high-speed turning.
Learn More about BR-200L High-Precision Linear Way Slant Bed CNC Lathe

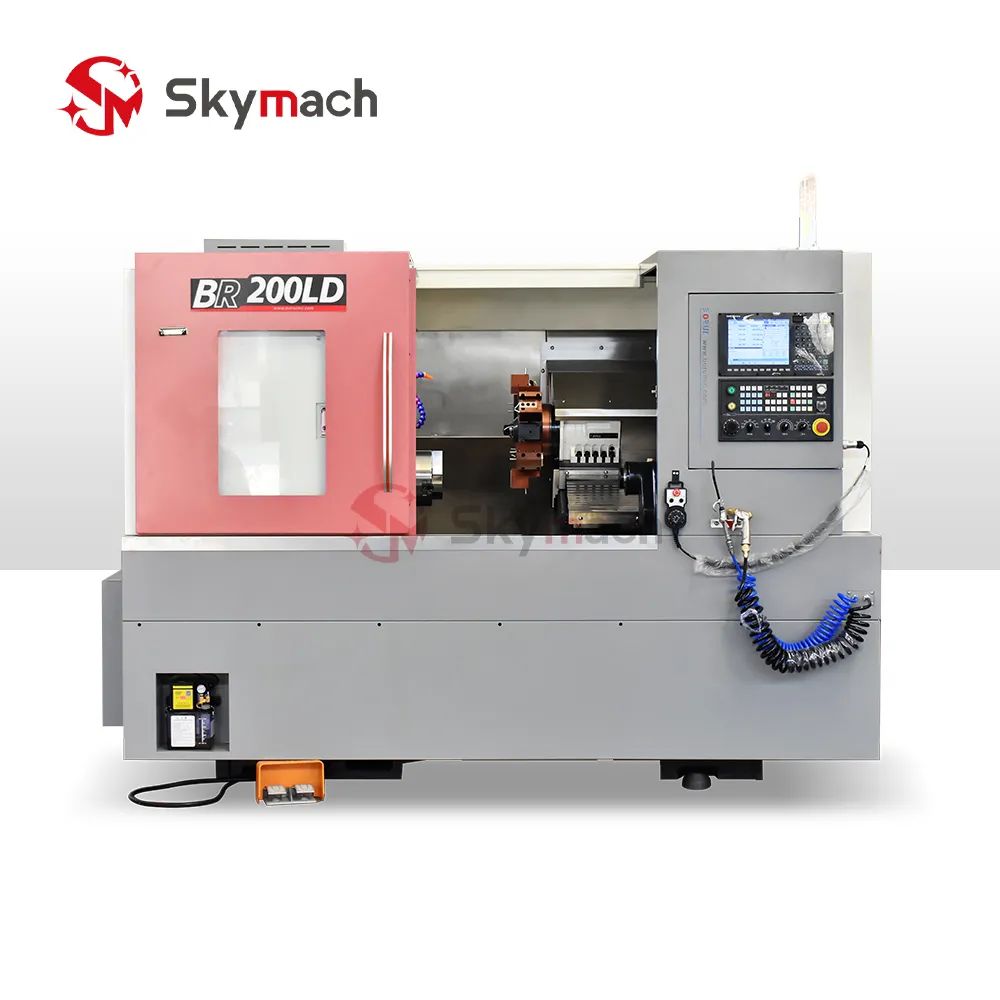

BR-200LD Precision Slant Bed CNC Lathe with BMT55 Power Turret
Precision 30° slant bed CNC turning center featuring a BMT55/ER25 12T live tooling power turret (1:1 ratio), 4,000 RPM A2-6 spindle (8-inch chuck, Φ66mm bore, Φ52mm bar capacity), 11 kW motor, heavy 45/45 linear guideways, and MT4 tailstock on an integrated HT300 cast base.
Learn More about BR-200LD Precision Slant Bed CNC Lathe with BMT55 Power Turret

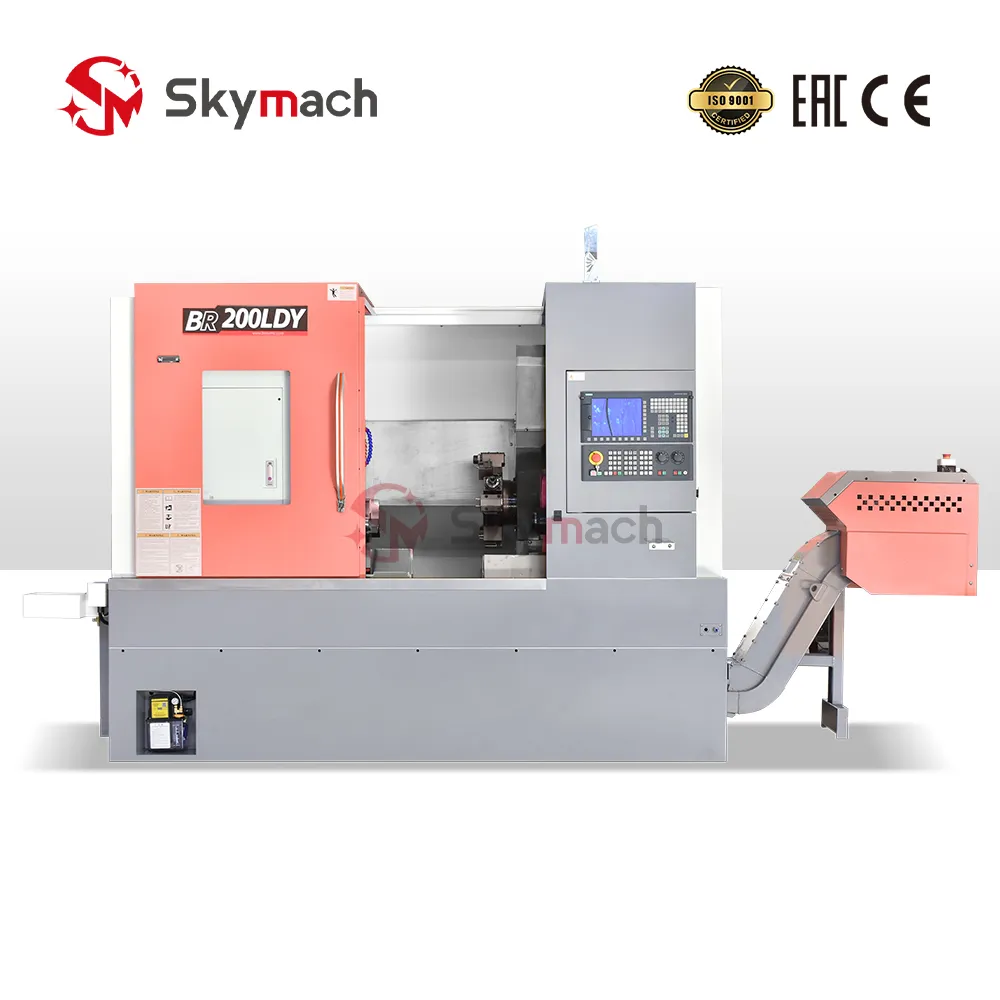

BR-200LDY Precision Slant Bed CNC Turn-Mill Center with Y-Axis
High-precision 30° slant bed CNC turn-mill center featuring Y-axis travel (60mm / ±30mm, hard rail), 12T BMT45/ER25 live tooling power turret (3,000 RPM, 2.5 kW, 1:1 ratio), 4,000 RPM A2-6 spindle (8-inch chuck, Φ66mm bore, Φ52mm bar capacity), 11 kW motor, heavy 45/45 linear guideways, and MT4 tailstock on an integrated HT300 cast bed.
Learn More about BR-200LDY Precision Slant Bed CNC Turn-Mill Center with Y-Axis

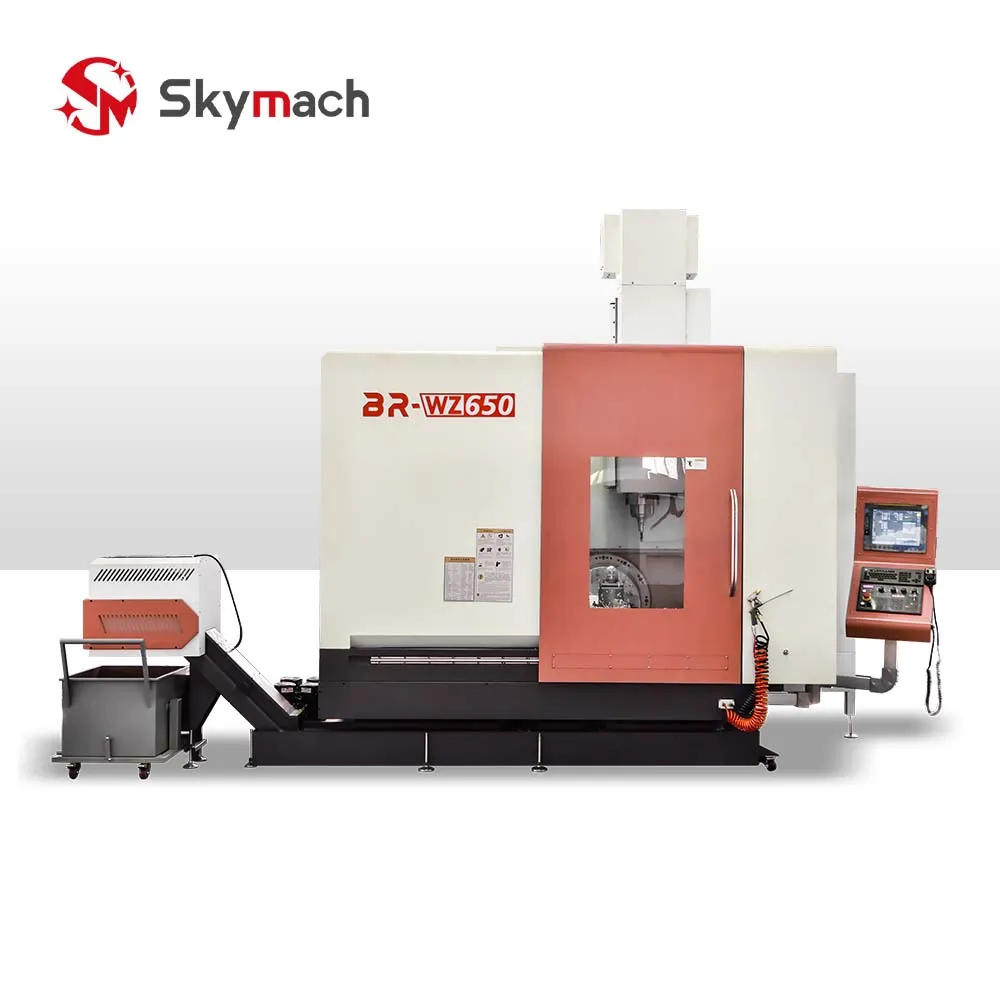

5-Axis CNC Vertical Machining Center
High-precision bullhead ram-type 5-axis simultaneous vertical CNC machining center featuring an integrated Φ650 mm tilting rotary table, 15,000 RPM direct-drive BT40 spindle, 45# roller linear guideways, and 24-tool disc ATC engineered for impellers, blisks, turbine blades, and complex aerospace 5-axis components.
Learn More about 5-Axis CNC Vertical Machining Center

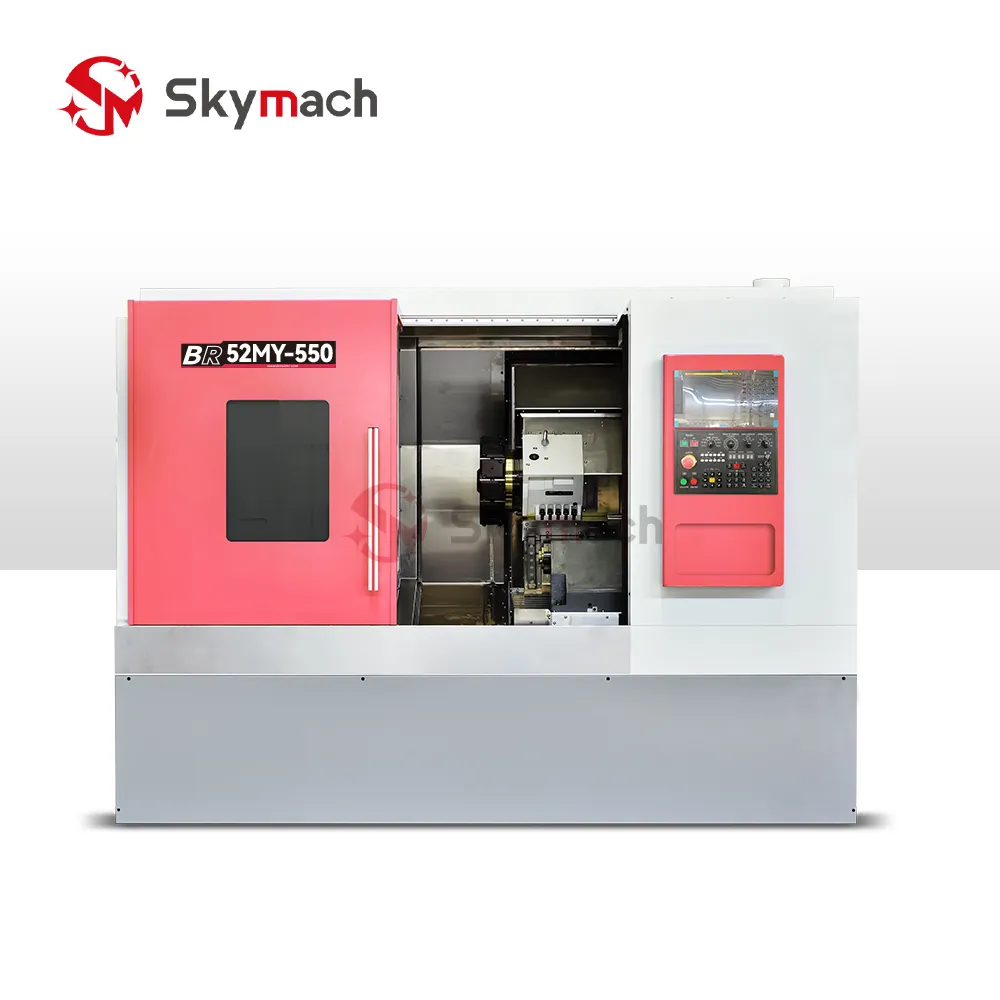

BR52MY-550 Compensation Y-Axis Slant Bed CNC Turn-Mill Compound Lathe
High-precision 30° monolithic HT300 slant bed CNC turn-mill compound lathe featuring compensation Y-axis control (+58/-58mm), 4,500 RPM A2-6 spindle (8-inch chuck, Φ66mm bore, Φ52mm bar capacity), BMT45/BMT55 live tooling turret, heavy roller guideways (X/Y: 35 roller, Z: 45 roller), and programmable servo tailstock for high-accuracy multi-tasking turning and milling.
Learn More about BR52MY-550 Compensation Y-Axis Slant Bed CNC Turn-Mill Compound Lathe

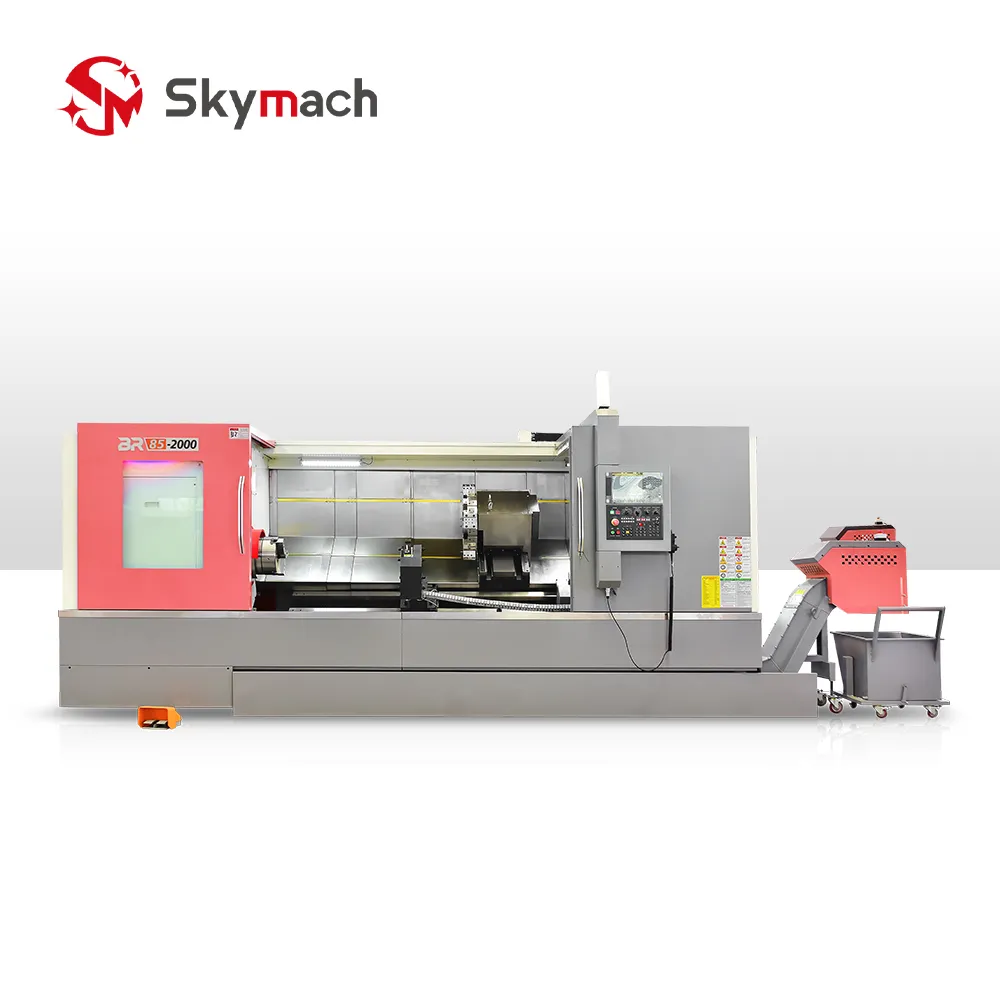

BR85 Large-Sized Slant Bed CNC Lathe
Heavy-duty large-sized slant bed CNC lathe machine featuring Φ850 mm swing over bed, Φ720 mm max turning diameter, A2-11 high-rigidity spindle with Φ106 mm bore (Φ90 mm bar capacity), 22-30 kW high-torque motor (580 N.m), 12-station heavy tool turret (Φ480 mm disc), 15"/18"/21" hydraulic chuck, MT6 heavy tailstock (Φ160 mm sleeve), and center distances up to 5,100 mm.
Learn More about BR85 Large-Sized Slant Bed CNC Lathe

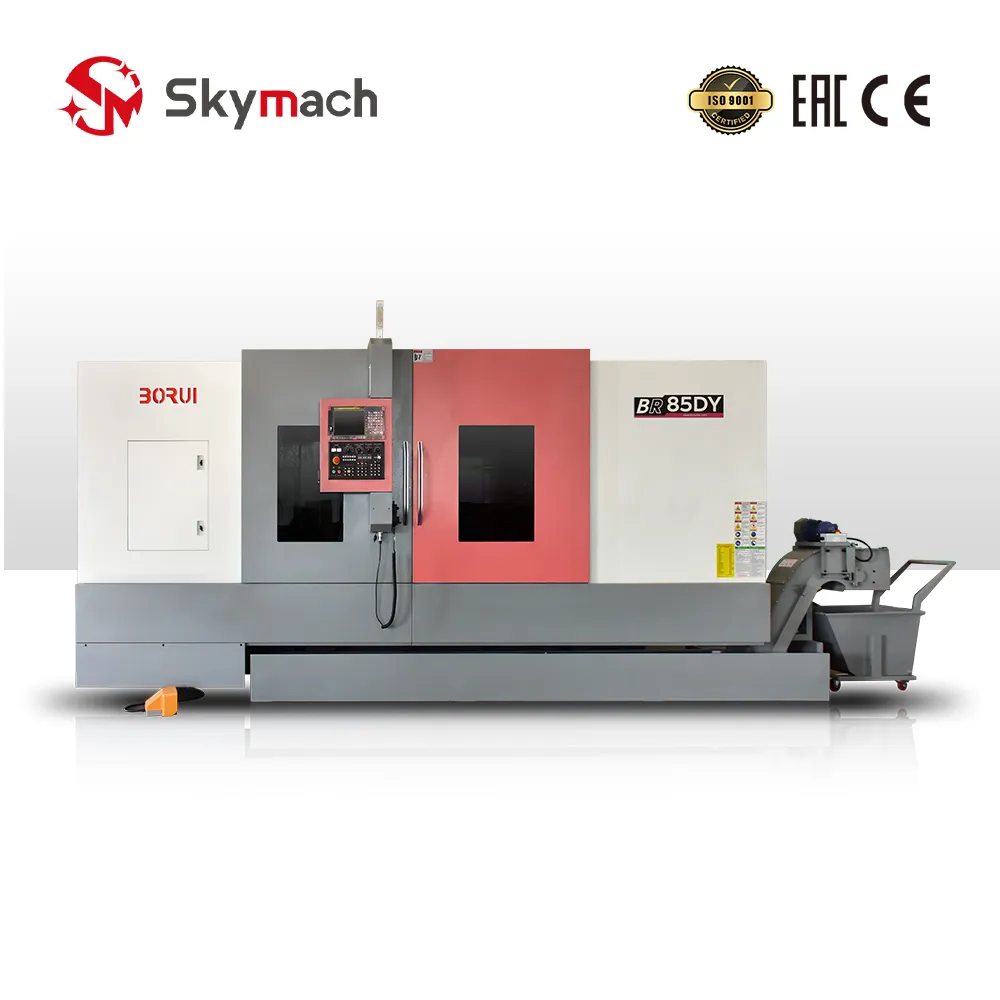

BR85DY Large-Sized Slant Bed CNC Turning Center with Y-Axis
High-end large-sized slant bed CNC turning center featuring an orthogonal Y-axis (150 mm / ±75 mm stroke), 12-station BMT65 live tooling power turret (5.5 kW motor, ER40 collets) for complex off-center milling, drilling, and tapping in a single setup, Φ850 mm swing over bed, Φ700 mm max turning diameter, A2-11 spindle with Φ106 mm bore (580 N.m torque), 15"/18"/21" hydraulic chuck, MT6 heavy tailstock, and center distances up to 5,100 mm.
Learn More about BR85DY Large-Sized Slant Bed CNC Turning Center with Y-Axis

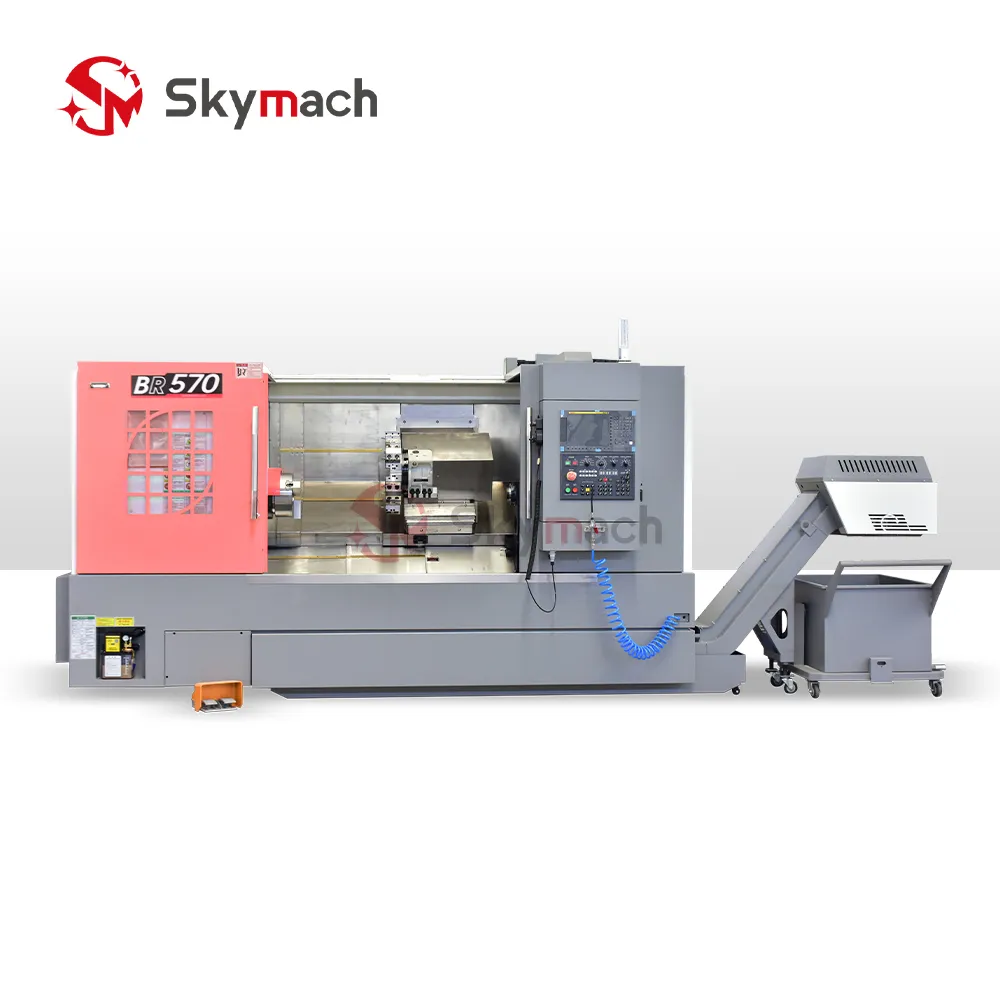

BR570 High-Precision Slant Bed CNC Lathe
High-precision 30° monolithic HT300 slant bed CNC lathe machine featuring CLT-100-12T hydraulic servo turret (100mm center height), 4,200/3,500 RPM spindle (A2-6 8" / A2-8 10"), 11-15 kW motor, heavy 45/45 linear guideways, Φ560mm swing over bed, and MT5 tailstock with up to 1,500mm turning length.
Learn More about BR570 High-Precision Slant Bed CNC Lathe

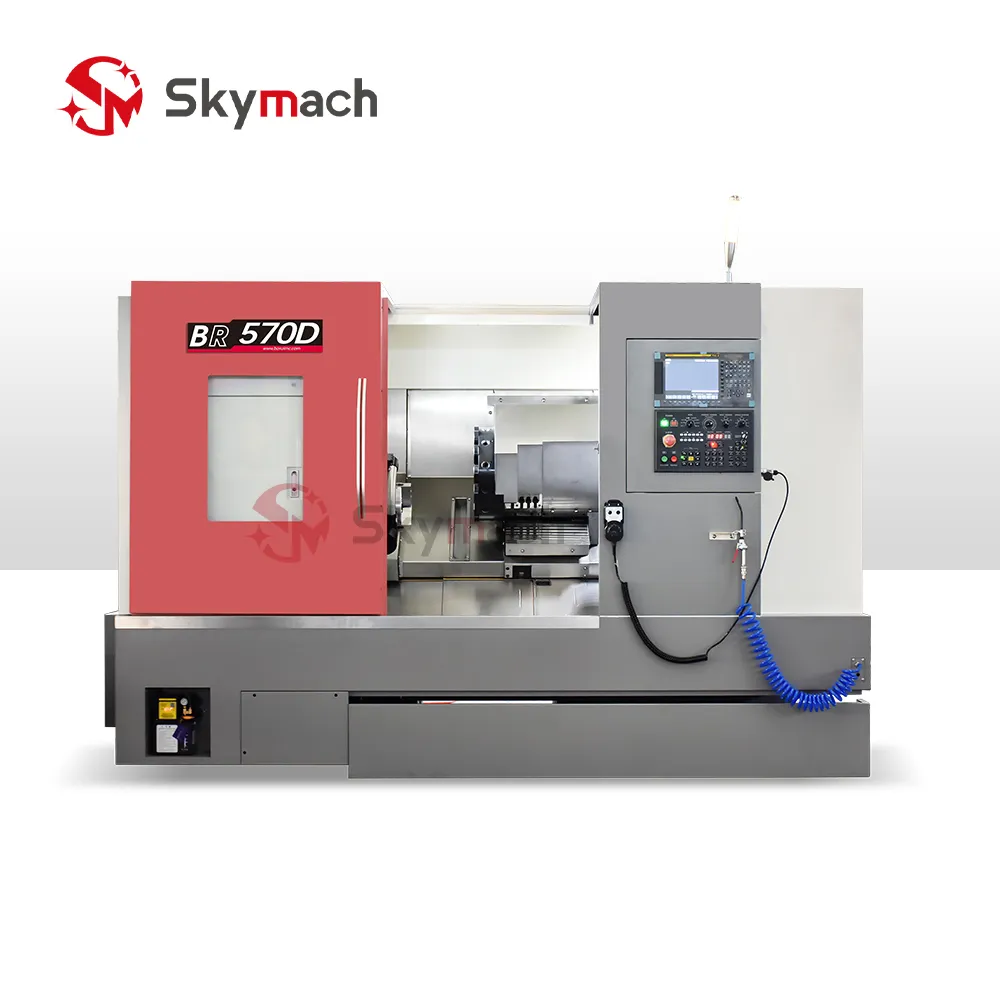

BR570D Precision Slant Bed CNC Turning Center with BMT55 Power Turret
High-precision 30° monolithic HT300 slant bed CNC turning center equipped with 12T BMT55 live tooling power turret, 4,200/3,500 RPM spindle (A2-6 8" / A2-8 10"), 11-15 kW motor, heavy 45/45 linear guideways, Φ650mm swing over bed, and MT5 tailstock for high-efficiency turning, radial milling, and cross-drilling.
Learn More about BR570D Precision Slant Bed CNC Turning Center with BMT55 Power Turret

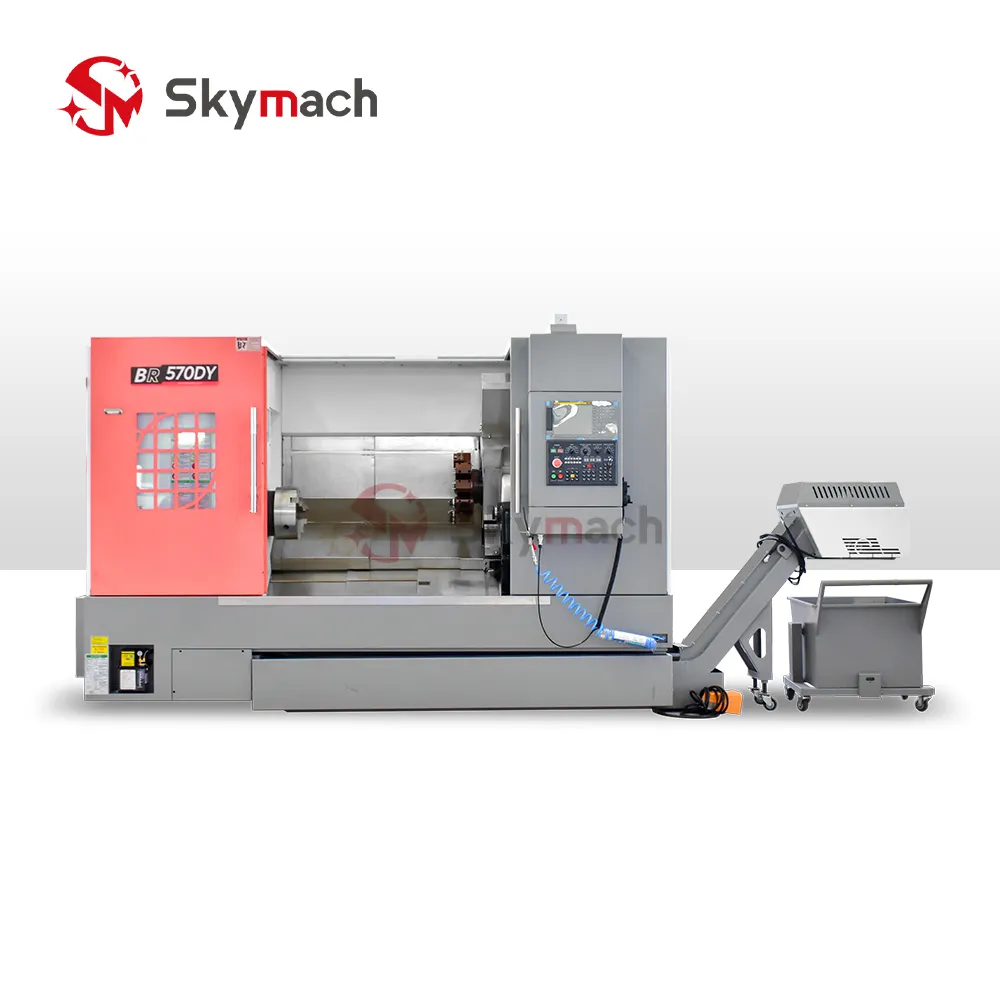

BR570DY Precision Slant Bed CNC Turn-Mill Center with Y-Axis
High-precision 30° monolithic HT300 slant bed CNC turn-mill center featuring true orthogonal Y-axis travel (90mm / ±45mm), 12T BMT55 live tooling power turret (170mm center height), 4,200/3,500 RPM spindle (A2-6 8" / A2-8 10"), 11-15 kW motor, heavy 45/45 linear guideways, and MT5 tailstock with up to 1,500mm turning length.
Learn More about BR570DY Precision Slant Bed CNC Turn-Mill Center with Y-Axis

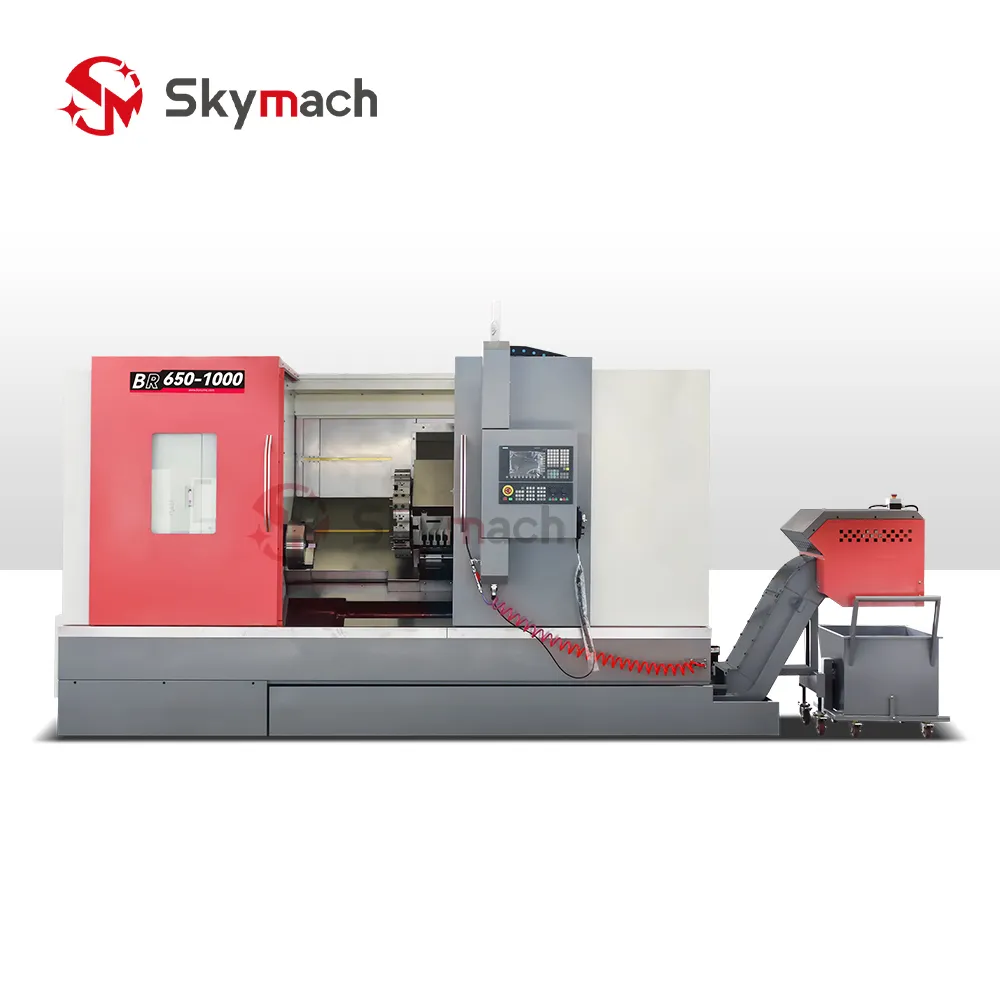

BR650 CNC Slant Bed Lathe Machine
Heavy-duty 45° slant bed CNC lathe machine featuring an A2-8 spindle with Φ87mm bore (Φ72mm bar capacity), 2,600 RPM speed, 11-15 kW motor, standard 10-inch hydraulic chuck (opt 12-inch), 12T hydraulic/servo turret, and MT#5 heavy tailstock for precision machining of shafts, valves, and automotive components.
Learn More about BR650 CNC Slant Bed Lathe Machine

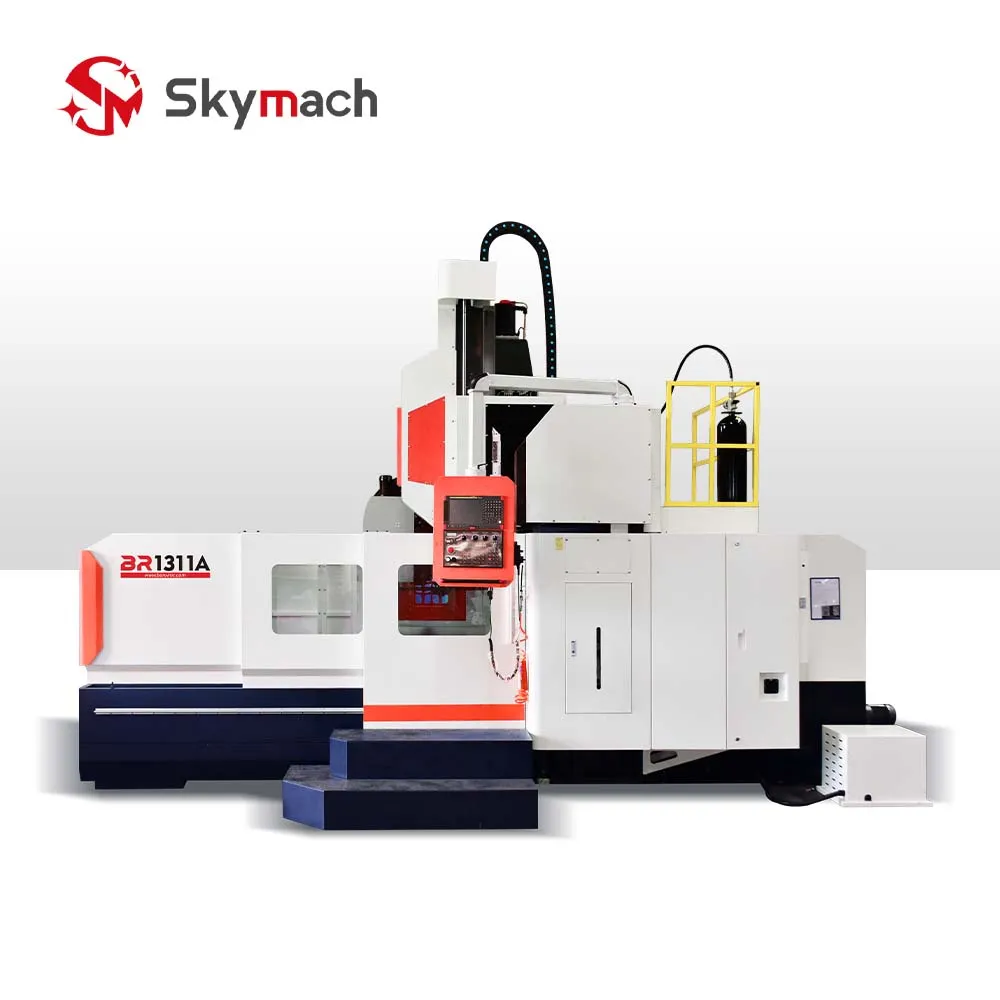

BR1311A CNC Gantry Machining Center
Precision bridge-type CNC gantry machining center featuring a monolithic casting frame, heavy-duty 45mm roller linear guideways, dual nitrogen balance cylinders on Z-axis, and 1300 x 1100 mm worktable for die & mold machining and aerospace components.
Learn More about BR1311A CNC Gantry Machining Center

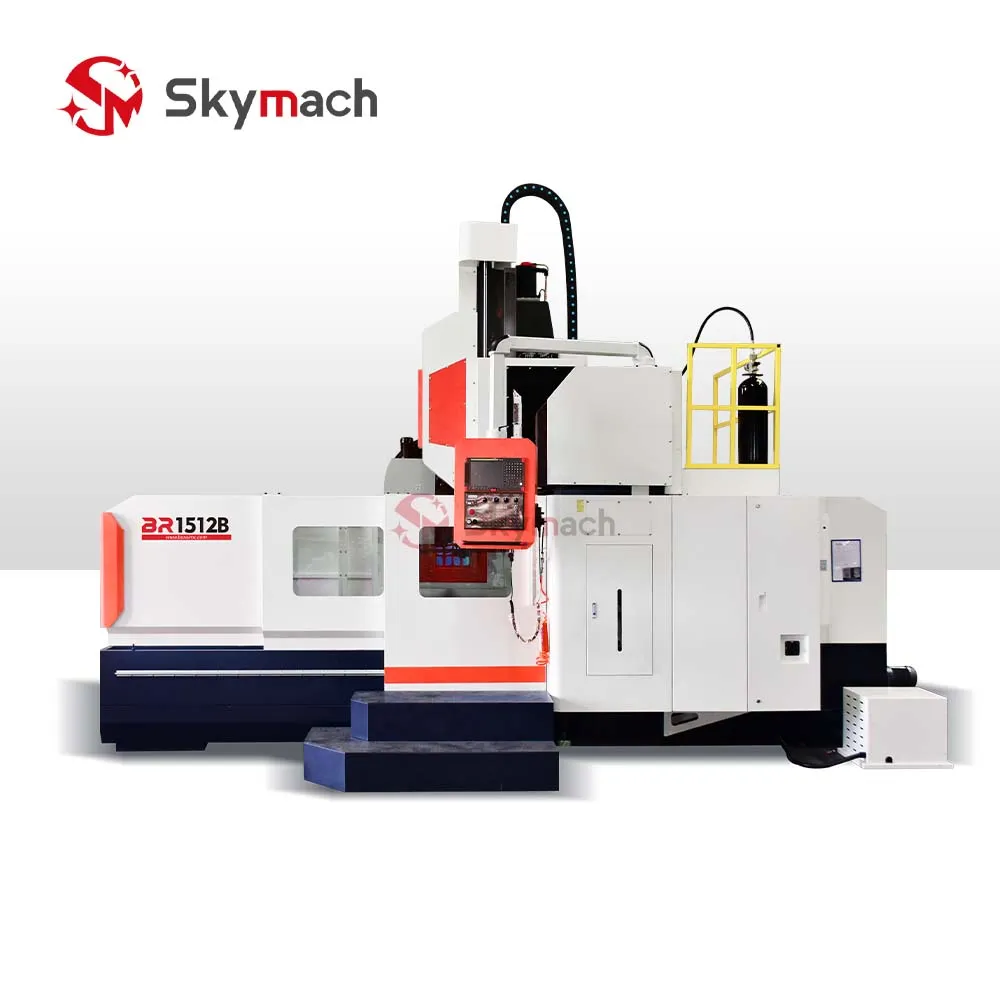

BR1512B CNC Gantry Machining Center
Heavy-duty bridge-type CNC gantry machining center featuring a monolithic casting frame, Z-axis 8-slider reinforced ram, dual nitrogen counterbalance cylinders, and heavy worktable capacity up to 3.5 t (3,500 kg) for large mold bases and precision heavy machinery.
Learn More about BR1512B CNC Gantry Machining Center

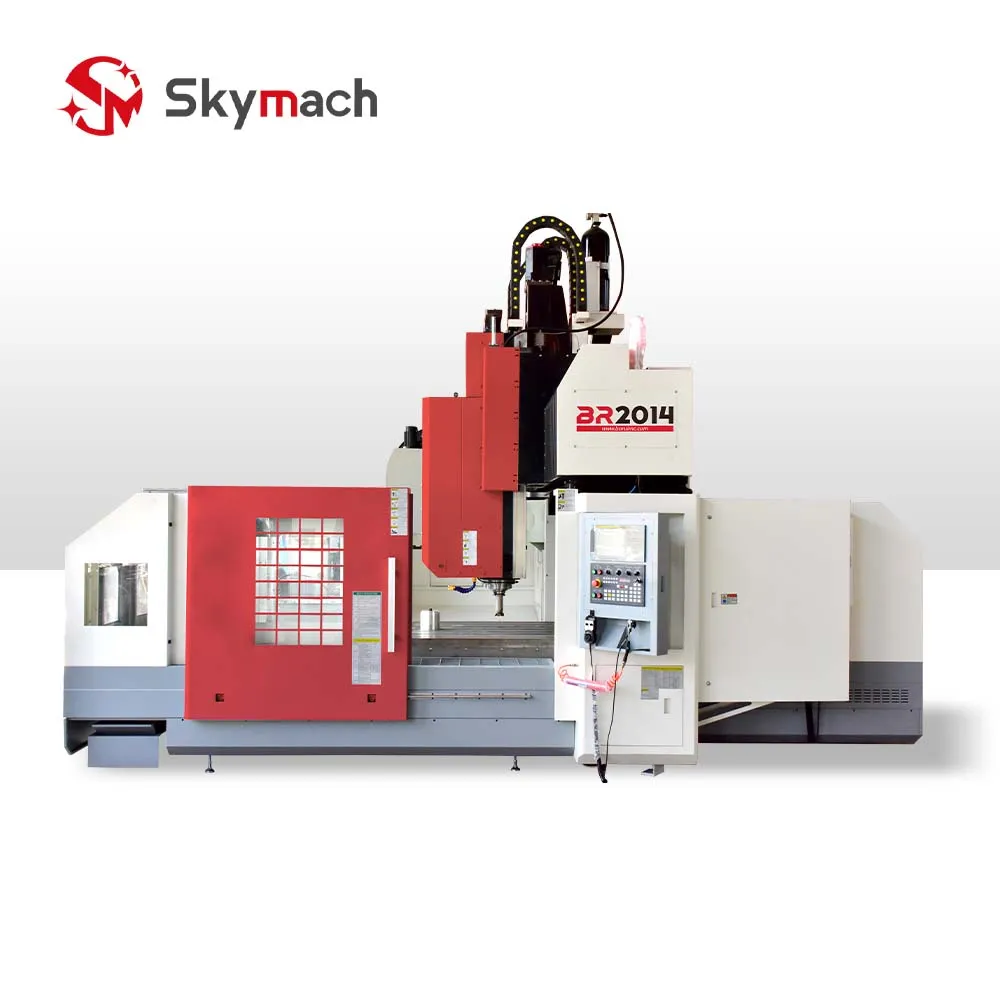

BR2014 CNC Gantry Machining Center
Heavy-duty CNC gantry machining center featuring high-rigidity Z-axis hardened box ways, 22 kW heavy spindle with ZF gearbox option, hydraulic counterbalance system, and monolithic cast portal frame for heavy mold making and roughing.
Learn More about BR2014 CNC Gantry Machining Center

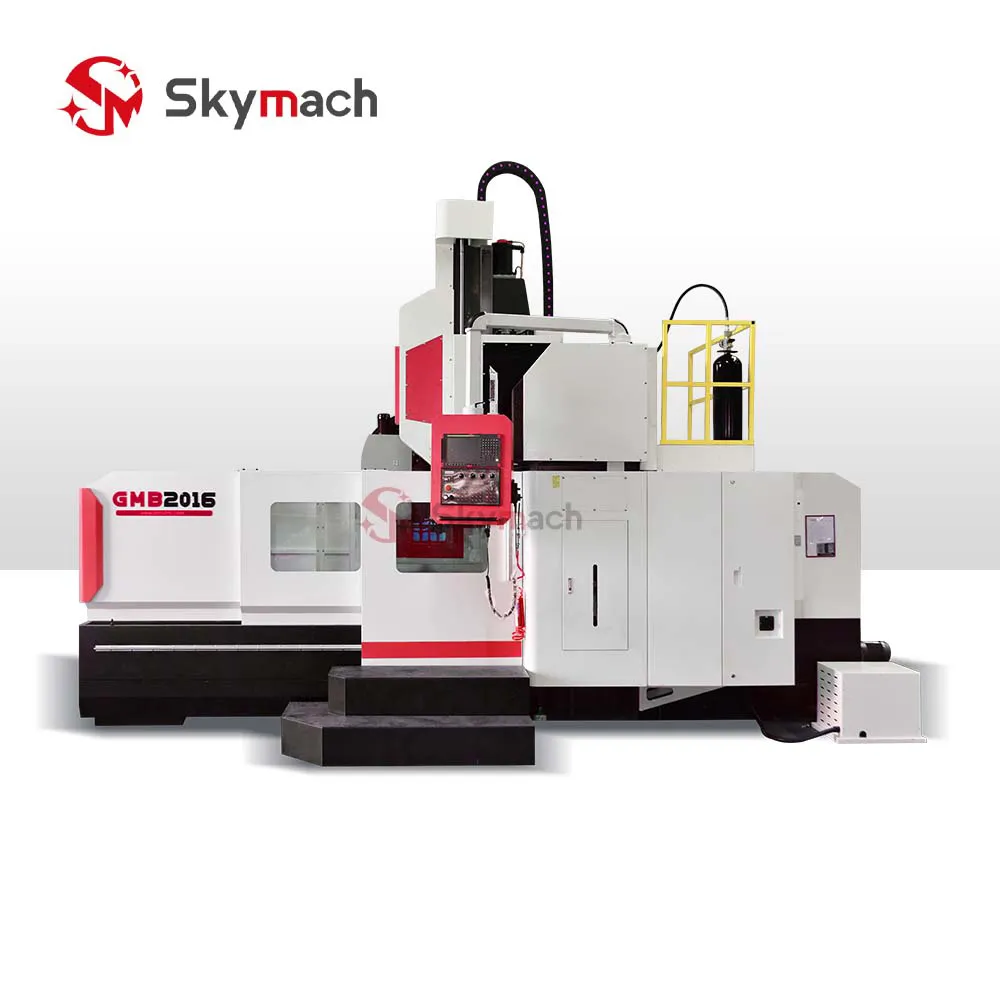

BR2016 CNC Gantry Machining Center
Heavy-duty double-column CNC gantry machining center engineered with monolithic casting bed, Z-axis 4-guideway reinforced ram, dual nitrogen counterbalance cylinders, and heavy BT50 spindle for extra-large mold manufacturing and heavy machinery.
Learn More about BR2016 CNC Gantry Machining Center

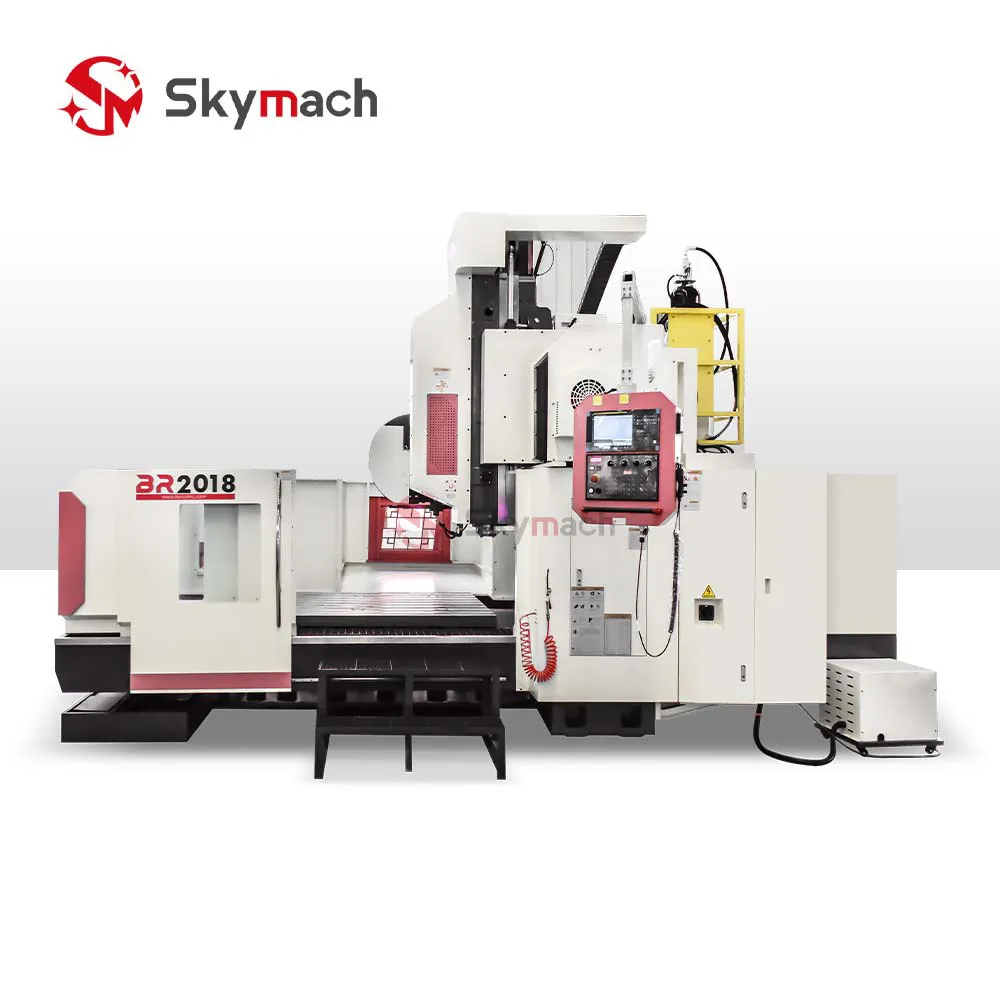

BR2018 CNC Gantry Machining Center
Extra-wide 1600mm table CNC gantry machining center with 1800mm portal width, 2000mm Y-axis travel, Z-axis hardened box ways, heavy 55mm roller rails, 22 kW high-torque spindle with ZF gearbox option, and hydraulic counterbalance for heavy stamping dies and injection molds.
Learn More about BR2018 CNC Gantry Machining CenterTechnical Sizing Guide
Machine Selection & Configuration Matrix
Key technical parameters and structural specifications to evaluate before requesting a machine tool quotation.
1. Part Dimensions & Required Working Envelope
Machining capacity must accommodate maximum part outer diameter (OD), inner bore, overall length, and tool turret clearance:
Small Turned Parts (OD ≤ 50 mm, Length ≤ 200 mm)
Recommended: Gang-tool or compact slant bed CNC lathes (6-inch chuck, A2-5 spindle nose).
Ideal for high-speed batch turning of hydraulic fittings, brass inserts, automotive pins, and precision bushings.
Medium Shafts & Prismatic Parts (OD 50–400 mm, Length ≤ 1000 mm)
Recommended: 8-inch / 10-inch chuck slant bed turning centers or BT40 Vertical Machining Centers (VMC 850 / VMC 1060).
Standard production workhorse for pump bodies, flanges, motor shafts, and transmission components.
Heavy Cylinders, Pipes & Large Dies (OD 400–1000+ mm, Length up to 3000+ mm)
Recommended: Flat Bed CNC Lathes with oversized spindle bores (Ø 130–225 mm) or Bridge-Type Gantry Milling Centers.
Engineered for oilfield OCTG pipe threading, large rolling mill rolls, and large stamping die tooling.
Sizing Note: Ensure the machine working travel provides at least 15–20% clearance beyond the maximum workpiece length to allow unobstructed boring bar retraction and tailstock quill movement.
2. CNC Control System Options & Compatibility
We integrate factory-authorized CNC controllers to match your shop standard, programming workflow, and maintenance requirements:
| CNC Controller | Core Features & Specifications | Primary Applications |
|---|---|---|
| FANUC 0i-TF / 0i-MF Plus (Japan) | High MTBF reliability, global service support network, standard ISO G-code, Manual Guide i conversational support. | Automotive Tier-1/Tier-2 suppliers, aerospace parts, and multi-shift continuous production. |
| Siemens 828D / 808D (Germany) | Advanced 80-bit surface smoothing algorithms, ShopMill / ShopTurn graphical programming, dynamic look-ahead. | Precision die/mold cavities, 3D surface milling, toolroom prototyping. |
| GSK 988TA / 25i (China) | Cost-effective, robust hardware architecture, fast local component replacement, standard 2-axis/3-axis control. | General job shops, replacement of manual lathes, budget-conscious manufacturing. |
| Syntec 22TB / 220MA (Taiwan) | Intuitive touch GUI, multi-channel synchronization, C-axis live tooling support, flexible macro programming. | Turn-mill centers, 4-axis rotary indexing tables, custom turnkey automation. |
3. Slant Bed vs. Flat Bed Lathe Architecture
Slant Bed CNC Lathes (30° / 45° Casting)
- Monolithic Triangular Base: Shorter cutting force loop for high dynamic rigidity and minimal thermal deformation.
- Direct Chip Fall: Hot chips drop naturally into the rear chain conveyor without collecting on bedways.
- Linear Roller Guides: Rapid traverse speeds of 24–30 m/min for reduced non-cutting cycle times.
- Application: High-volume batch production, automated bar feeding, and live tooling (turn-mill).
Flat Bed CNC Lathes (Horizontal Bedways)
- Wide Induction-Hardened Box Ways: High load carrying capacity and vibration dampening for heavy interrupted cuts.
- Overhead Crane Access: Open horizontal bed layout allows overhead crane loading of long, heavy workpieces.
- Big Spindle Bore Options: Spindle through-holes from Ø 82 mm up to Ø 225 mm for pipe and shaft pass-through.
- Application: Oil country tubular goods (OCTG) threading, maintenance shaft turning, and single-piece jobbing.
4. Technical Specification Checklist Before Ordering
Spindle Drive & Torque Range
Direct-drive spindles (10,000–12,000 RPM) suit aluminum and high-speed finishing; 2-speed geared headstocks or high-kW spindle motors are required for tough steel and cast iron roughing.
Guideway Construction
Linear roller guideways provide rapid acceleration for molds and production batch parts; hardened box ways (hard rails) absorb heavy cutting vibrations on rough forgings.
Coolant & Chip Evacuation
For deep-hole drilling and cavity milling, 20–70 bar through-spindle coolant (CTS) is essential. High-volume chips require an automatic hinge or scraper-type conveyor.
Plant Utilities & Crane Capacity
Verify workshop 3-phase power supply (380V / 220V / 480V at 50/60Hz), dry pneumatic air supply (0.6–0.8 MPa), and crane lifting capacity for safe unloading.
Direct Factory FAQ
Commercial & Technical Questions
Direct answers regarding export terms, delivery lead times, spare parts support, and customization services.
What is your Minimum Order Quantity (MOQ)?
MOQ is 1 set. All machines include seaworthy export packaging, factory quality inspection reports, standard maintenance toolboxes, and technical documentation regardless of order size.
What are your standard production and delivery lead times?
Standard catalog machines (VMC series, flat bed CNC lathes) ship within 30 days. Custom configurations—such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables—typically ship within 60 days.
What shipping terms and trade documentation do you provide?
We quote FOB (Qingdao / Shanghai ports) by default, and provide CIF, CFR, or DDP door-to-door quotations upon request. We supply complete export documentation including Bill of Lading, Commercial Invoice, Packing List, Certificate of Origin (CO, Form E), and CE compliance certificates.
How are warranty claims and spare parts handled?
All machines carry a 12-month standard warranty covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Genuine replacement components are stocked in our warehouse and dispatched via DHL/FedEx Express within 48 hours.
Can you configure machine tools based on specific part drawings?
Yes. Send your 2D/3D part drawings (PDF, STEP, DXF). Our application engineering team will calculate cycle times and recommend the optimal machine model, chuck size, spindle power, and tooling layout for your target production volume.
Do you provide on-site machine commissioning and operator training?
Every machine ships with comprehensive English manuals, circuit diagrams, and video setup guides. We also dispatch certified factory service engineers internationally for on-site leveling, laser calibration, and operator programming training upon request.
