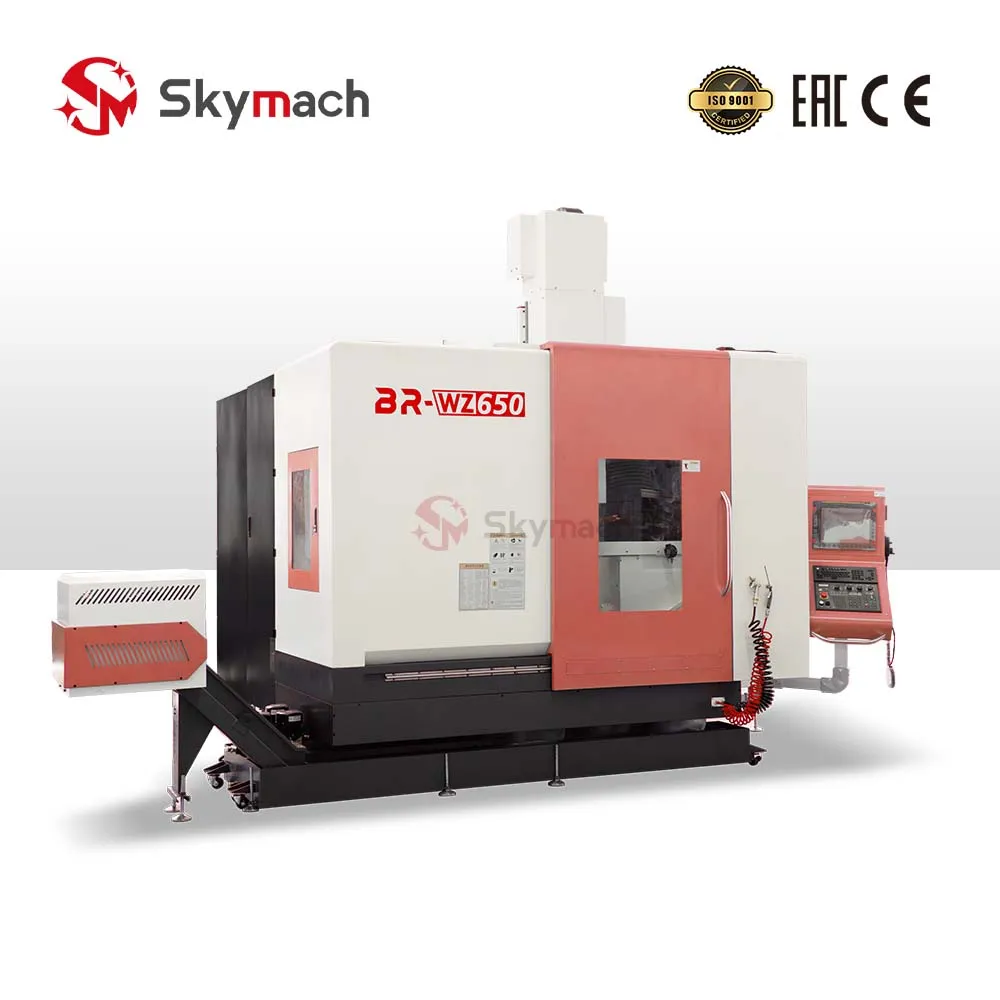

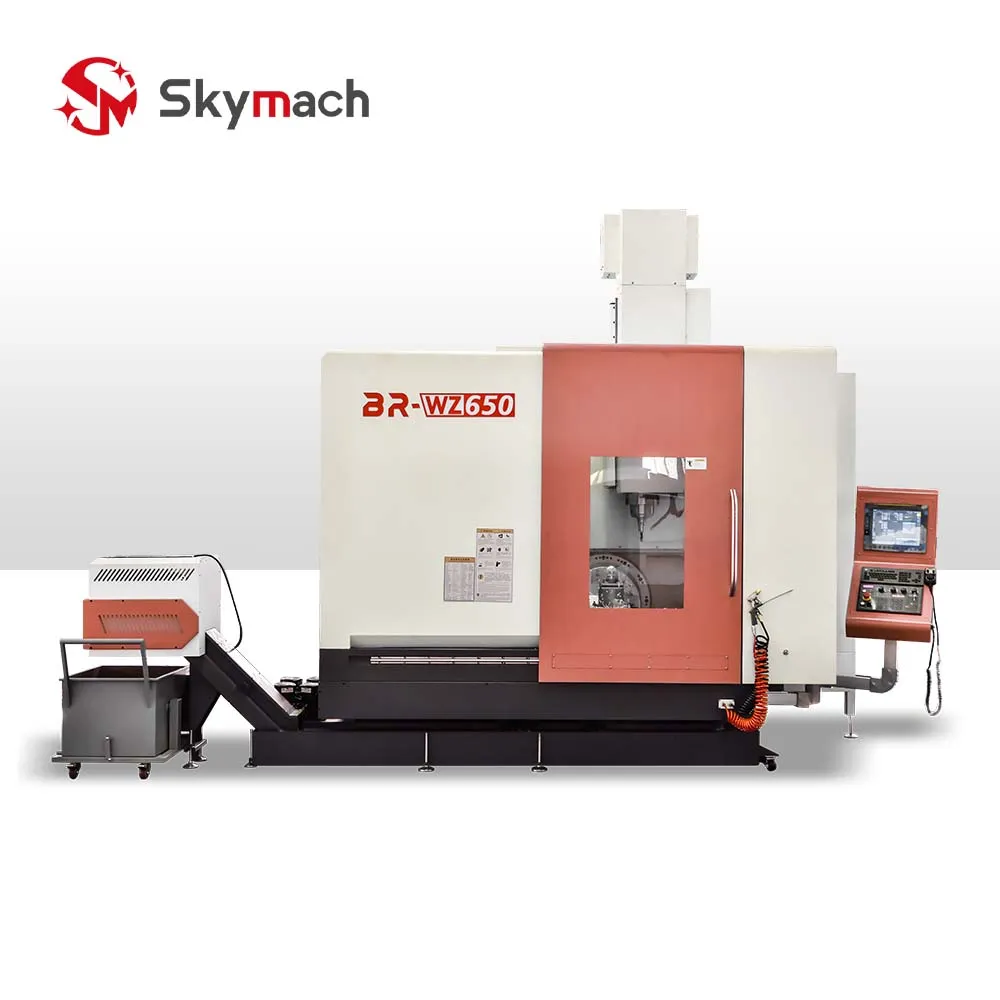

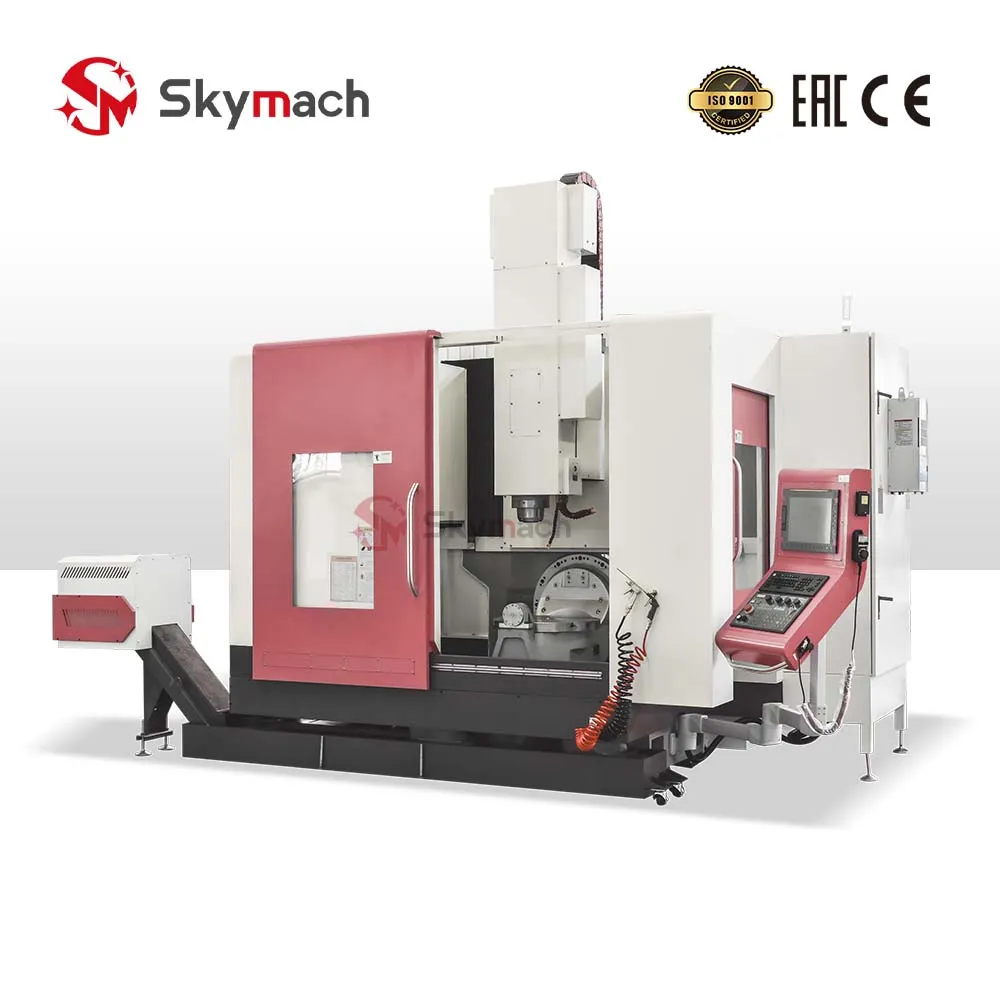

Looking for an industrial-grade 5 axis CNC machine for sale? The Skymach BR-WZ650B 5-Axis CNC Vertical Machining Center is a high-precision, high-efficiency bullhead ram-type simultaneous five axis CNC machine engineered for continuous milling of complex multi-curved aerospace impellers, blisks, aircraft brackets, turbine rotors, and injection molds. Built with an integrated Φ650 mm direct-drive tilting rotary table and a 15,000 RPM direct-drive spindle, it provides factory-direct reliability with competitive 5 axis CNC machine price quotations and turnkey engineering support.
Comprehensive Machining Capabilities
- 5-Axis Simultaneous Complex Contouring: Single-setup 5-axis machining eliminates multi-clamping positioning errors and reduces tooling setup cycles on complex geometric surfaces.

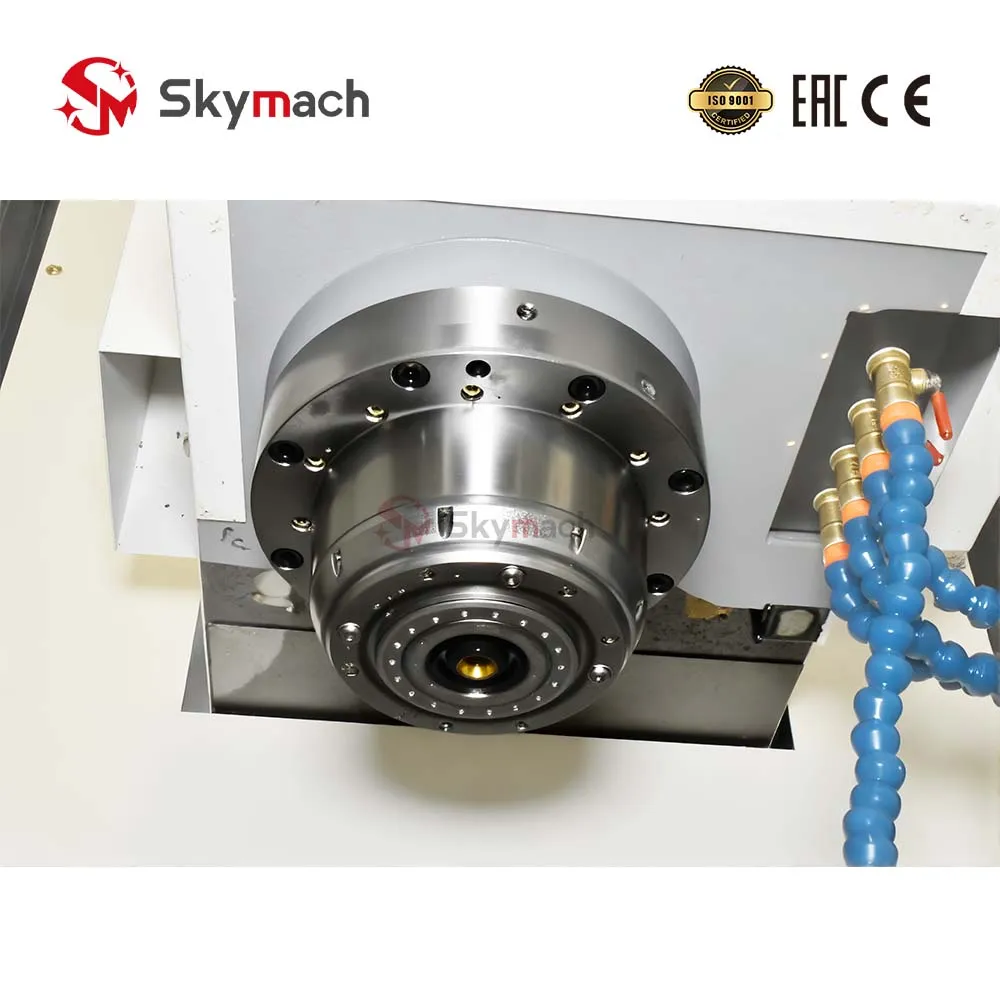

- High-Speed Precision Milling: 15,000 RPM direct-drive spindle (optional 20,000 RPM motorized spindle) delivers outstanding surface finishes and rapid cycle times on aluminum alloys, titanium, and stainless steels.
- Bullhead Ram Architecture: The rigid bullhead ram structure provides symmetrical thermal and dynamic stiffness, ensuring micron-level accuracy during high-speed multi-axis interpolation.
Key Engineering Highlights

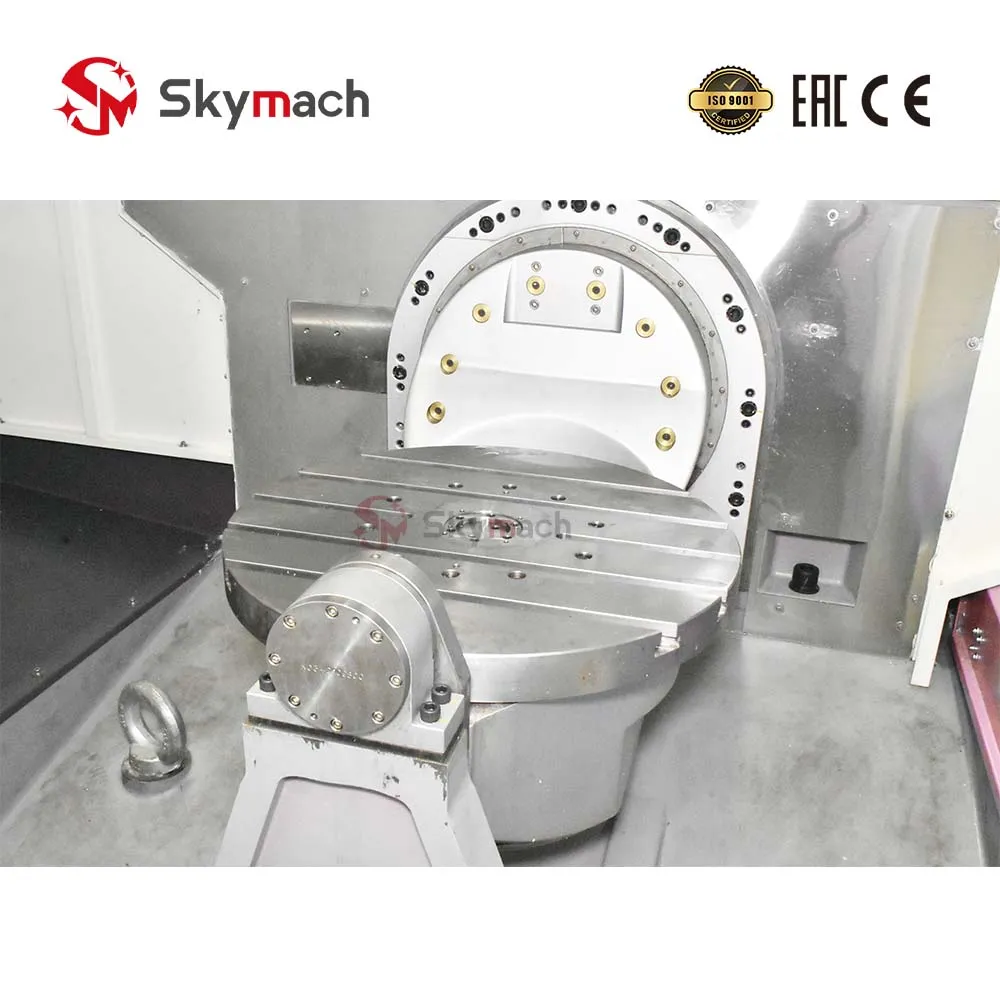

- Integrated Φ650 mm 5-Axis Tilting Rotary Table: Features high-torque direct drive/harmonic systems for smooth, high-precision indexing and continuous contouring under loads up to 300 kg.
- 45# Heavy-Duty Roller Rails: Preloaded roller linear guideways across all 3 linear axes deliver exceptional vibration damping and rigidity.
- Compact & Rigid Footprint: 7.5-ton heavily ribbed cast iron foundation absorbs cutting forces and isolates external vibration.
Technical Parameters
| Model | BR-WZ650B |
|---|---|
| Machine Type | Bullhead Ram 5-Axis Vertical Machining Center |
| Worktable Diameter | Φ650 mm (5-Axis Tilting Rotary Table) |
| X Axis Travel | 800 mm (Left: 500 mm, Right: 320 mm) |
| Y Axis Travel | 520 mm |
| Z Axis Travel | 500 mm |
| Spindle Nose to Table Surface | 150 - 650 mm |
| Spindle Center to Column Guideway | 187 mm |
| Worktable T-Slots | 8-14 x 45° (Divergence Form) |
| Max. Worktable Load | Horizontal: 300 kg / Vertical: 180 kg |
| Spindle Specification | BT40 / Φ150 mm Direct Drive (Opt. Electric Spindle) |
| Spindle Speed | 15,000 RPM (Optional 20,000 RPM) |
| Main Spindle Power | 9 / 15 kW |
| Guideway Specification (X/Y/Z) | 45# Heavy Roller Linear Guideways |
| Ball Screw Specification (X/Y/Z) | 4012 / 4012 / 4012 mm |
| Rapid Traverse Feed (X/Y/Z) | 24 / 24 / 24 m/min (Direct-Drive Servos 22 N.m) |
| Tool Magazine Capacity | 24 Tools (BT40 Disc Type / Opt. Chain Type) |
| Machine Net Weight | 7,500 kg (7.5 t including 5-Axis Turntable) |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
