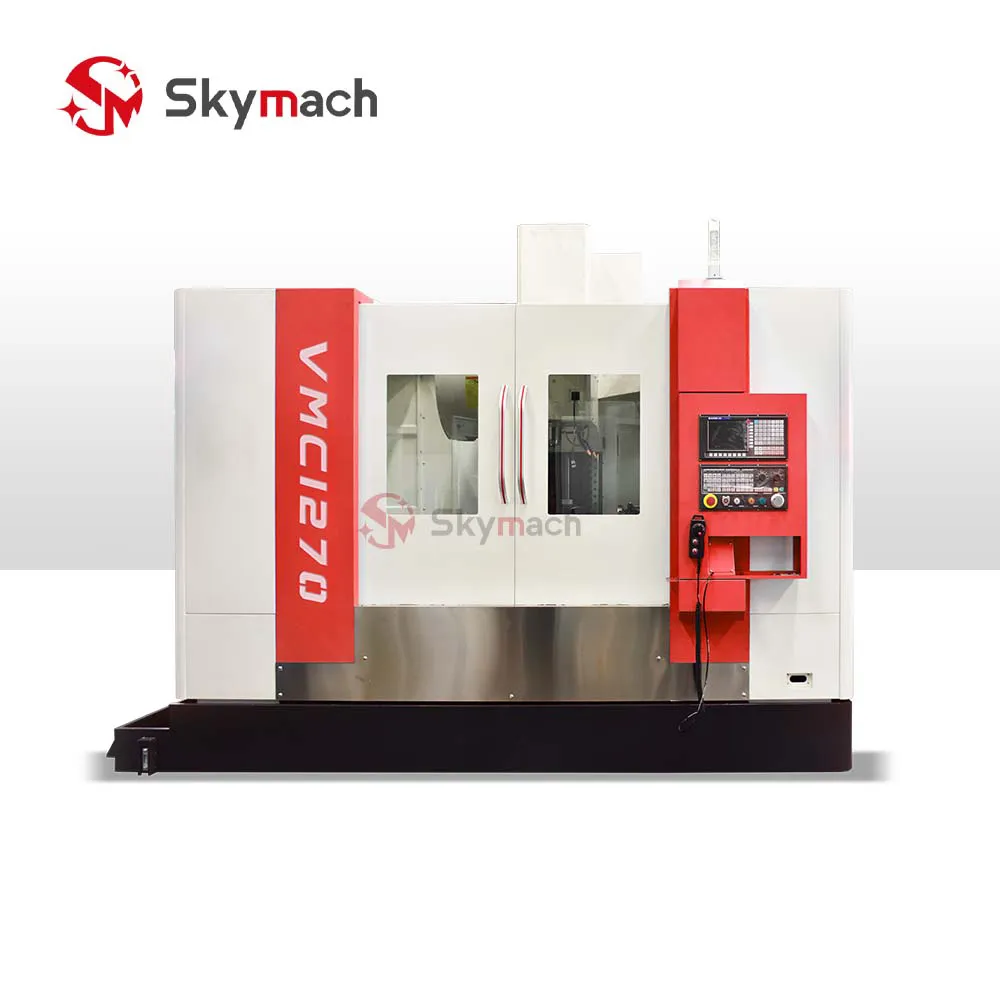

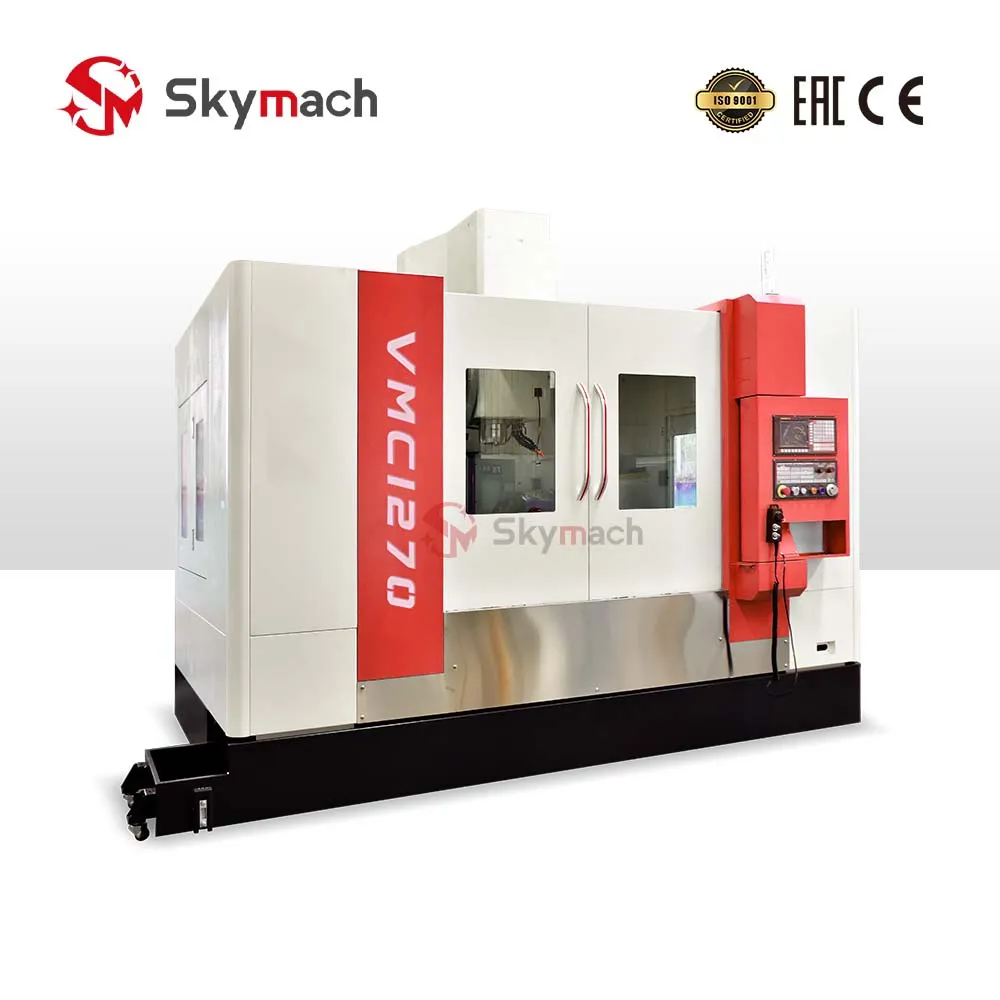

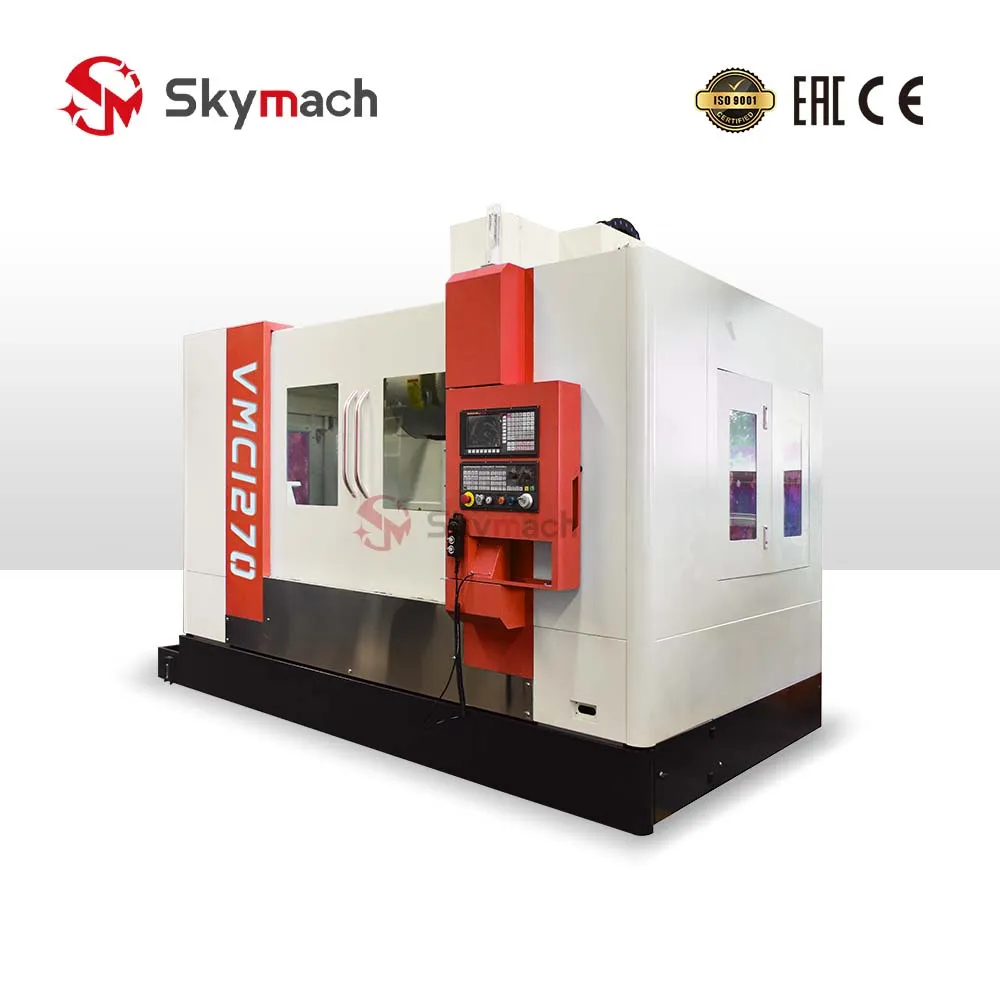

The Skymach VMC1270 CNC Vertical Machining Center is built for heavy-duty metal removal, large mold cavity fabrication, and precision mechanical component manufacturing. Constructed on a thermally annealed HT300 resin sand cast base with wide double-column support, the VMC1270 offers exceptional cutting stability, damping capacity, and micro-inch positioning accuracy.
Comprehensive Machining Capabilities
- Heavy Roughing & Precision Finishing: Optimized for heavy face milling, deep cavity pocketing, deep hole drilling, and synchronized rigid tapping.
- Large Mold & Die Manufacturing: Exceptional rigidity and thermal stability for machining automotive stamping dies, plastic injection molds, and forging tooling.
- Configurable Guide Ways & Spindles: Available in high-speed 3-axis linear roller guideways (BT40 / 8,000 RPM) or heavy-duty 2-linear 1-box hard way (BT50 / 6,000 RPM / 15-18.5 kW) configurations.
Key Engineering Highlights
- High-Power Taiwan Spindle: 11/15 kW (or optional 15/18.5 kW BT50) spindle motor delivering high torque at both low and high speeds.
- Rigid Monolithic HT300 Casting: Symmetrically rib-reinforced bed and column structure dampens harmonic vibration during high-feed milling.

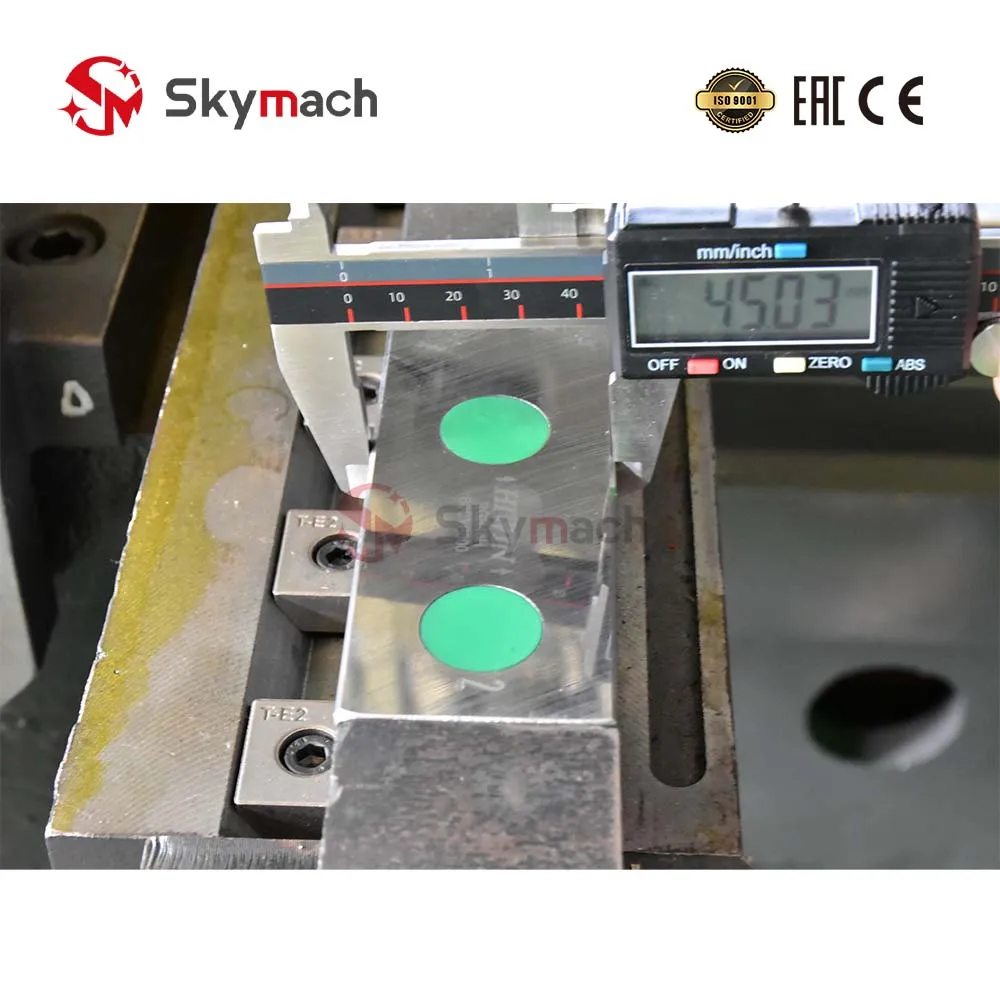

- High-Dynamic Motion: Preloaded precision ball screws and roller linear guideways ensure rapid traverse rates up to 24/24/18 m/min and positioning accuracy of ±0.0075 mm (JIS).
Technical Parameters
| Model | VMC1270 |
|---|---|

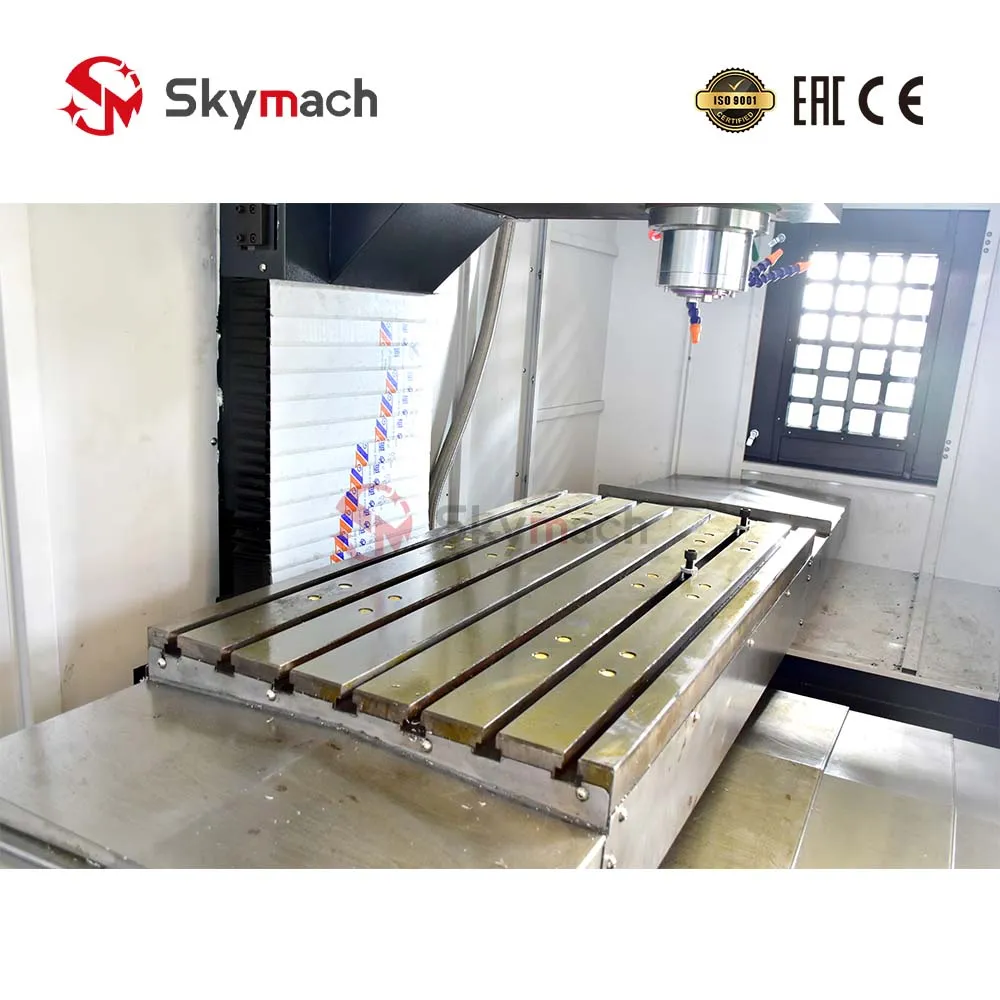

| Table Size | 1260 x 700 mm |
| X/Y/Z Axis Travel | 1200 / 700 / 700 mm |
| Max. Worktable Load | 1,000 kg (Opt. 1,200 kg) |
| T-Slot Specification | 5-18 x 130 mm |
| Spindle Speed | 8,000 RPM (Opt. 6,000 RPM BT50) |
| Spindle Taper | BT40 (Φ150 mm) / Optional BT50 |
| Main Motor Power | 11 / 15 kW (Opt. 15 / 18.5 kW) |
| Spindle Nose to Table Surface | 100 - 800 mm |
| Spindle Center to Column Surface | 750 mm (780 mm BT50) |
| Rapid Traverse Feed (X/Y/Z) | 24 / 24 / 18 m/min |
| Cutting Feed Speed | 1 - 6,000 mm/min |
| Guide Rail Type | 3-Axis Linear Roller Rail (Opt. 2-Linear 1-Box Hard Rail) |
| Tool Magazine Capacity | 24 Tools (Disc type) |
| Positioning Accuracy | ±0.0075 mm (JIS) |
| Repeat Positioning Accuracy | ±0.005 mm (JIS) |
| Overall Dimensions (L x W x H) | 3400 x 2900 x 3000 mm |
| Machine Weight | 8,000 kg (Standard) / 10,000 kg (Heavy Duty) |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
