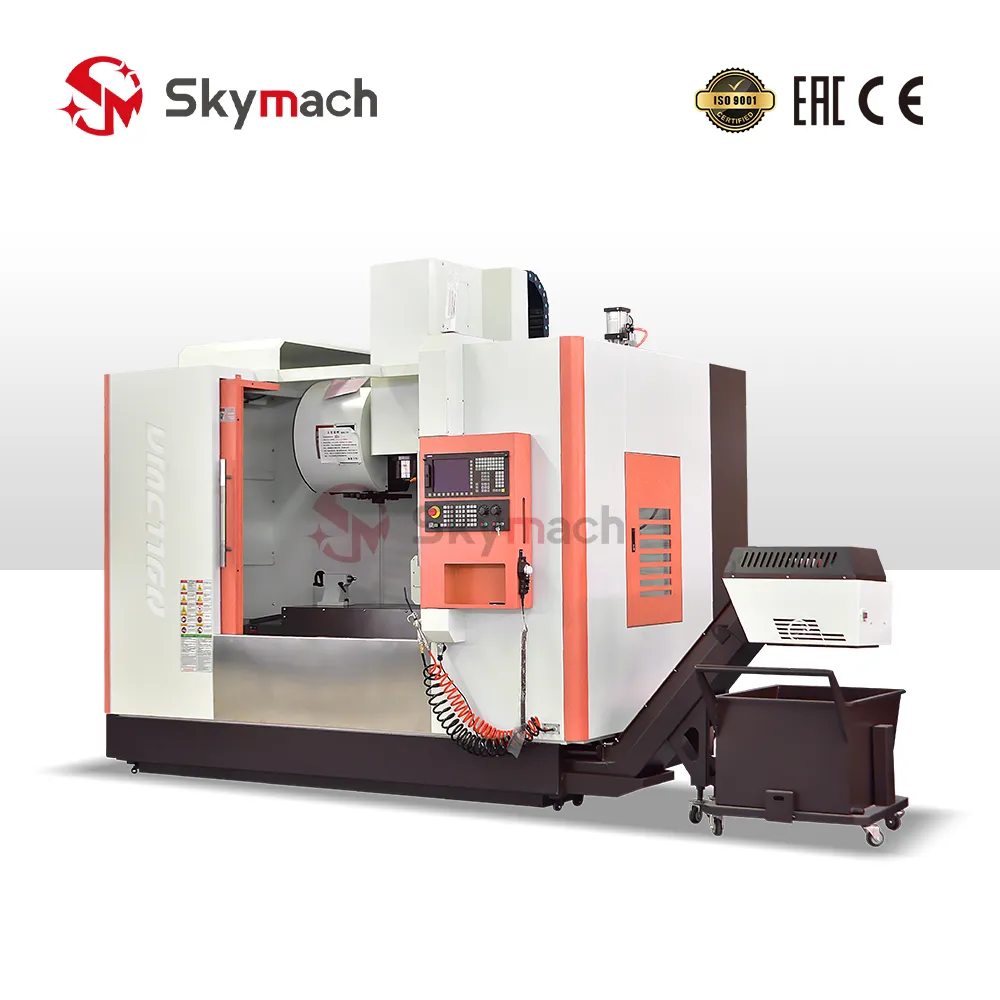

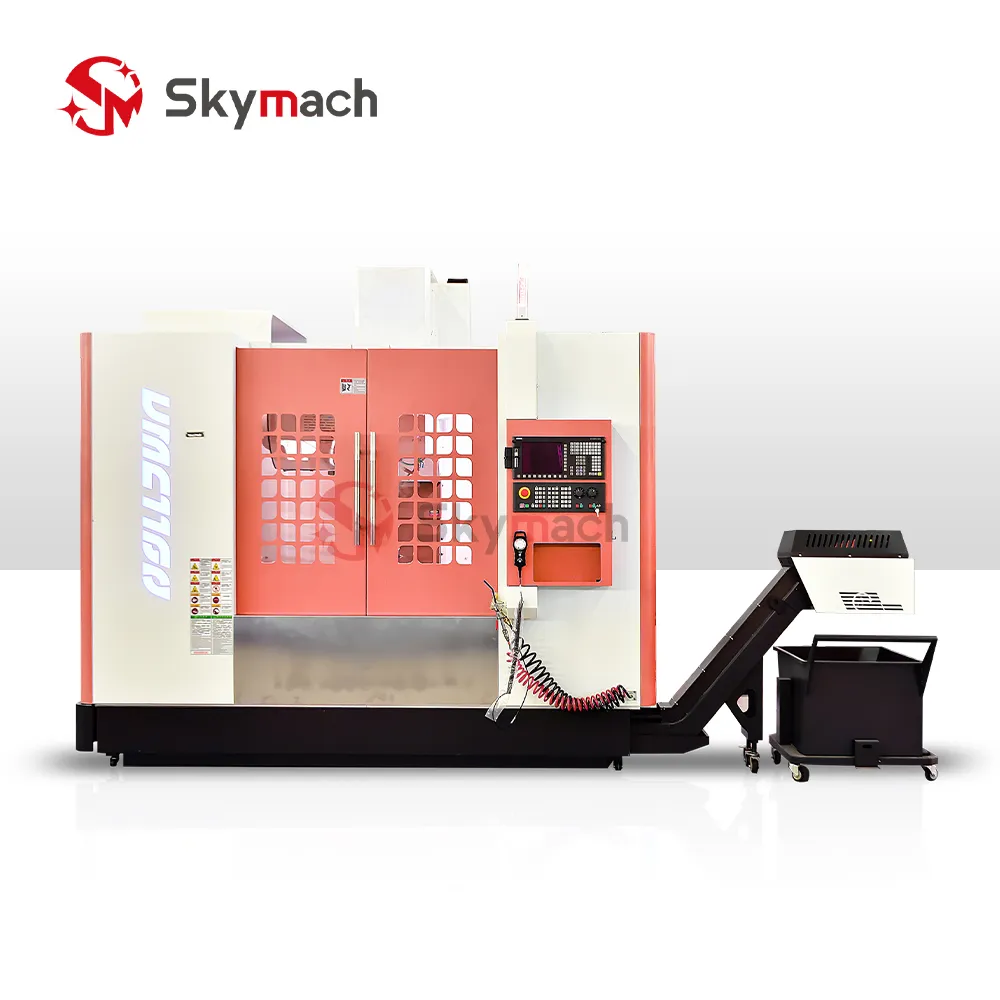

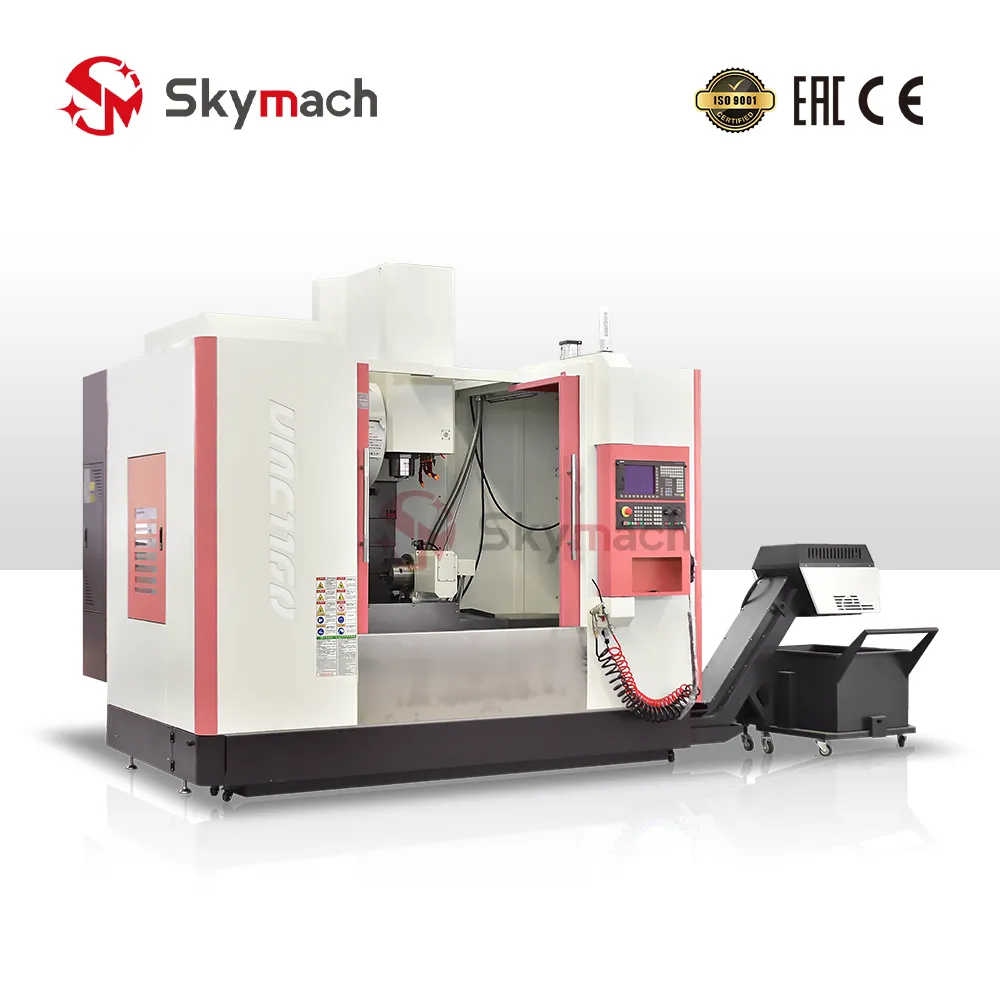

The Skymach VMC1160 CNC Vertical Machining Center is engineered for large-envelope component machining, heavy-duty metal removal, and complex 3D mold manufacturing. Built upon a stress-relieved HT300 resin sand casting with wide column spans, the VMC1160 effortlessly handles milling, boring, drilling, and rigid tapping from roughing to mirror finishing.
Comprehensive Machining Capabilities
- Heavy-Duty & Precision Machining: Optimized for continuous heavy milling on steel forgings, cast iron housings, and aerospace-grade aluminum.
- Large Mold & Die Cavities: Superior geometric rigidity and micron-level motion control for deep cavity molds, stamping dies, and automotive parts.

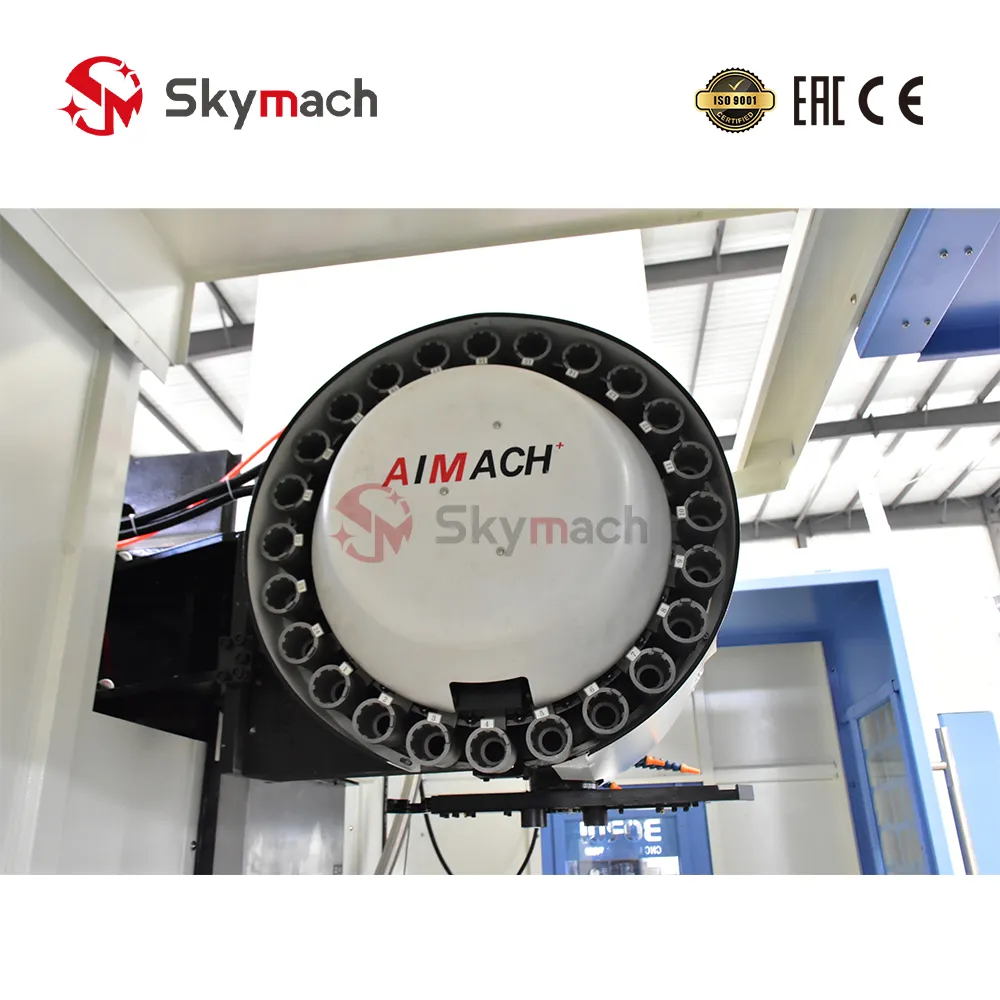

- High Efficiency Batch Production: Rapid traverse rates of 24 m/min paired with a 24-tool disc ATC ensure minimal non-cutting idle times.
Key Engineering Highlights

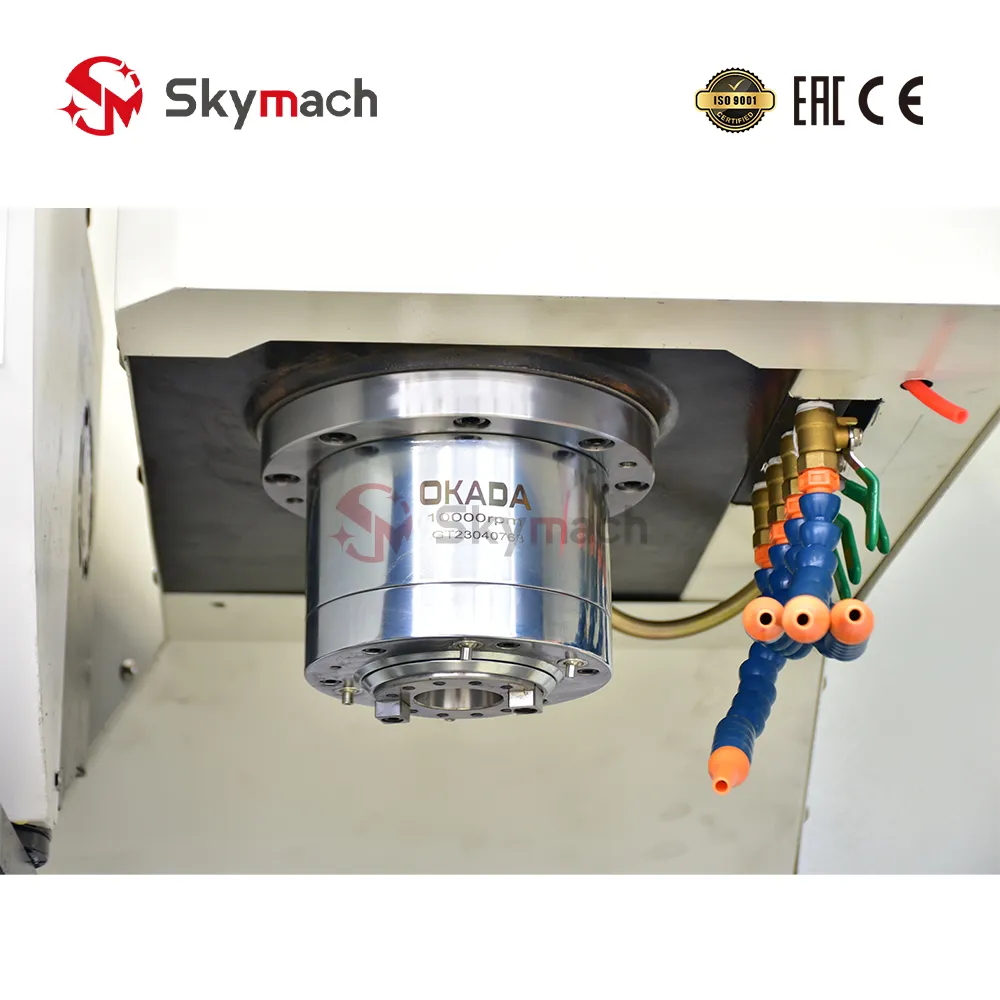

- Taiwan High-Power BT40 Spindle: High-torque 11 / 15 kW spindle motor with dynamic balancing and pneumatic cylinder unclamping.
- Solid Resin Sand Castings: Premium HT300 bed with internal ribbing for outstanding vibration dampening and thermal stability.
- Precision Motion System: Precision ground ball screws and preloaded linear roller guideways ensure positioning accuracy of ±0.0075 mm (JIS) and repeatability of ±0.005 mm (JIS).
Technical Parameters
| Model | VMC1160 |
|---|---|
| Table Size | 1200 x 600 mm |
| X/Y/Z Axis Travel | 1100 / 600 / 600 mm |
| Max. Worktable Load | 800 kg |
| T-Slot Specification | 5-18 x 120 mm |
| Spindle Speed | 8,000 RPM |
| Spindle Taper | BT40 (Φ150 mm) |
| Main Motor Power | 11 / 15 kW |
| Spindle Nose to Table Surface | 120 - 720 mm |
| Spindle Center to Column Surface | 650 mm |
| Rapid Traverse Feed (X/Y/Z) | 24 / 24 / 20 m/min |
| Cutting Feed Speed | 1 - 10,000 mm/min |
| Tool Magazine Capacity | 24 Tools (Arm/Disc type) |
| Positioning Accuracy | ±0.0075 mm (JIS) |
| Repeat Positioning Accuracy | ±0.005 mm (JIS) |
| Overall Dimensions (L x W x H) | 2600 x 2300 x 2580 mm |
| Machine Weight | 6,000 kg |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
