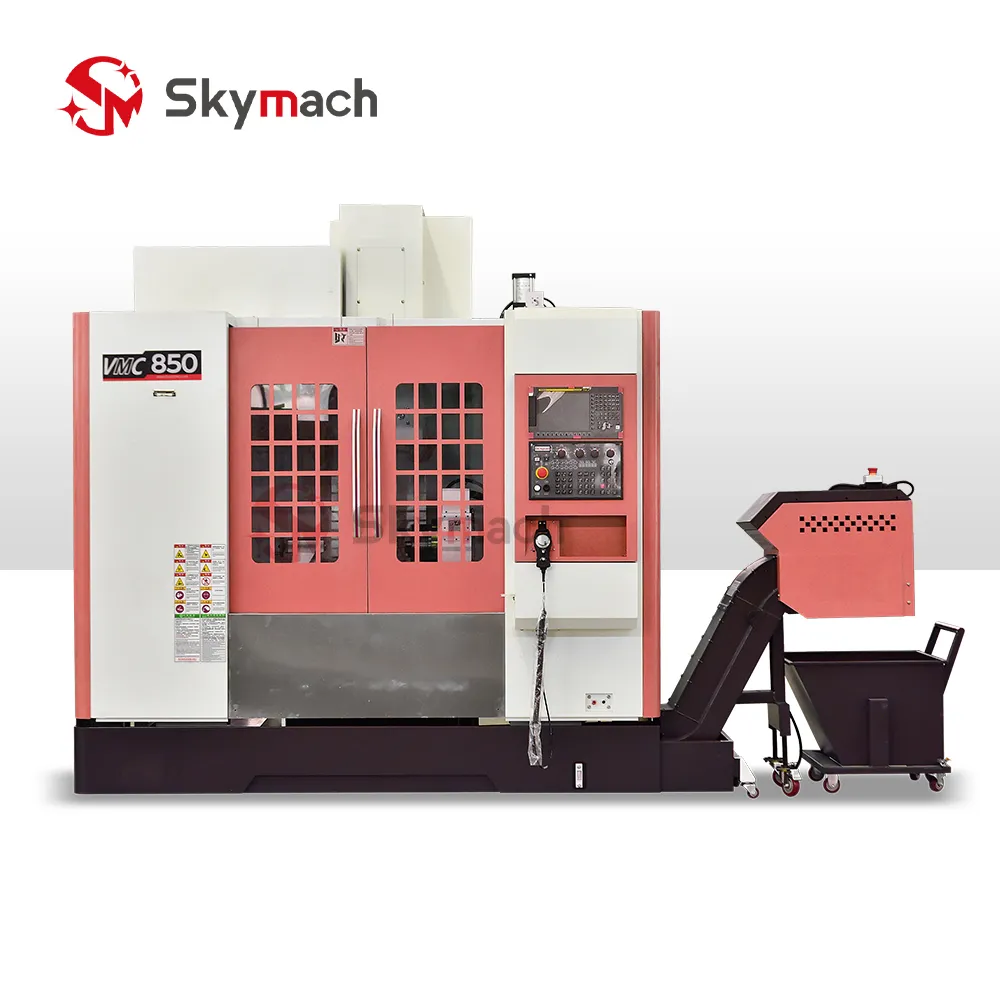

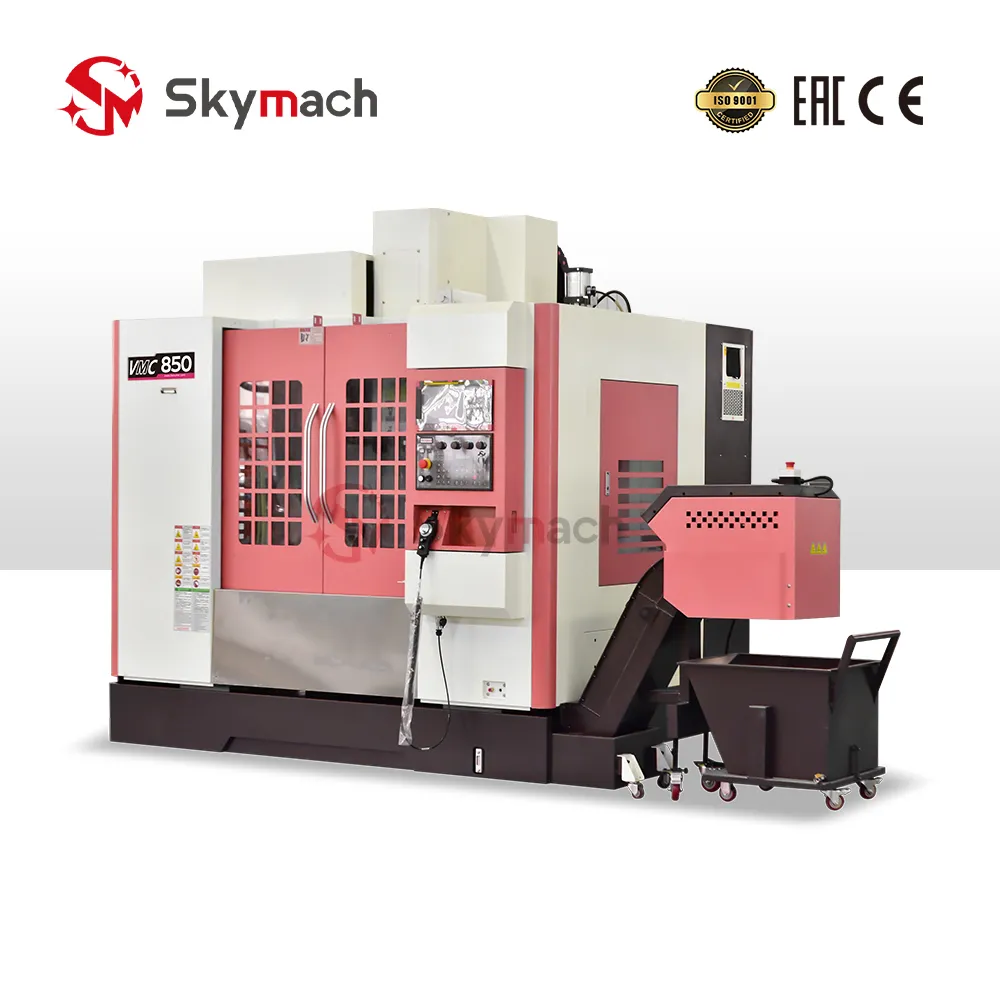

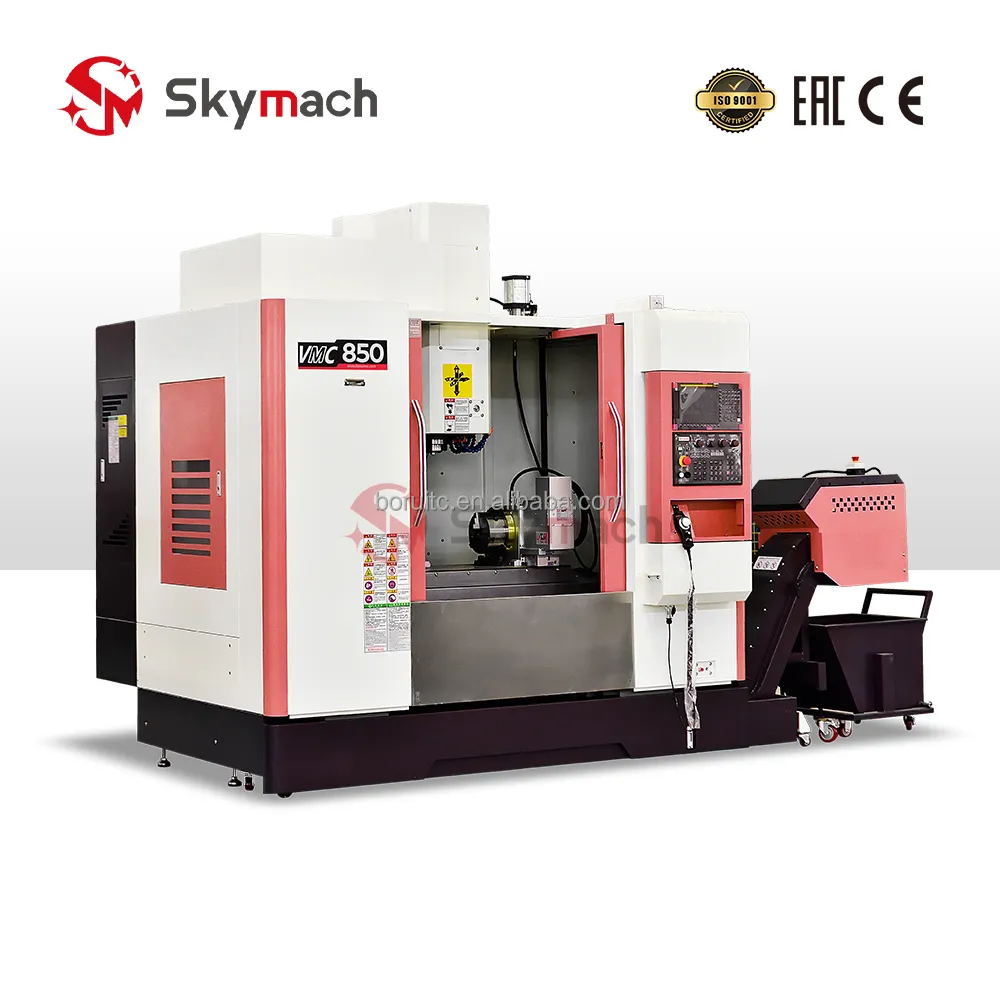

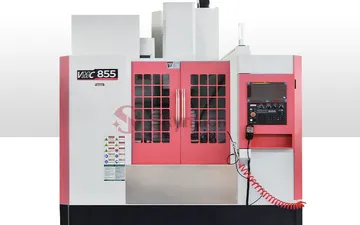

The Skymach VMC850 CNC Vertical Machining Center is built for heavy-duty metal cutting, mold cavity machining, and precision component fabrication. Engineered with a stress-relieved HT300 cast-iron structure, high-speed Taiwan spindle, and high-rigidity linear guideways, the VMC850 handles everything from high-removal rough milling to mirror-finish surface contouring.
Comprehensive Machining Capabilities
- Multi-Process Machining: Smooth execution of high-efficiency face milling, end milling, deep pocketing, high-speed drilling, boring, and rigid tapping.
- Mold & Die Contouring: Micro-pitch 3D surface interpolation delivering smooth contours on tool steel, aluminum, brass, and alloy materials.
- High Production Throughput: 24 m/min rapid traverse rates on X, Y, and Z axes combined with fast ATC cycles minimize non-cutting time.
Key Engineering Advantages

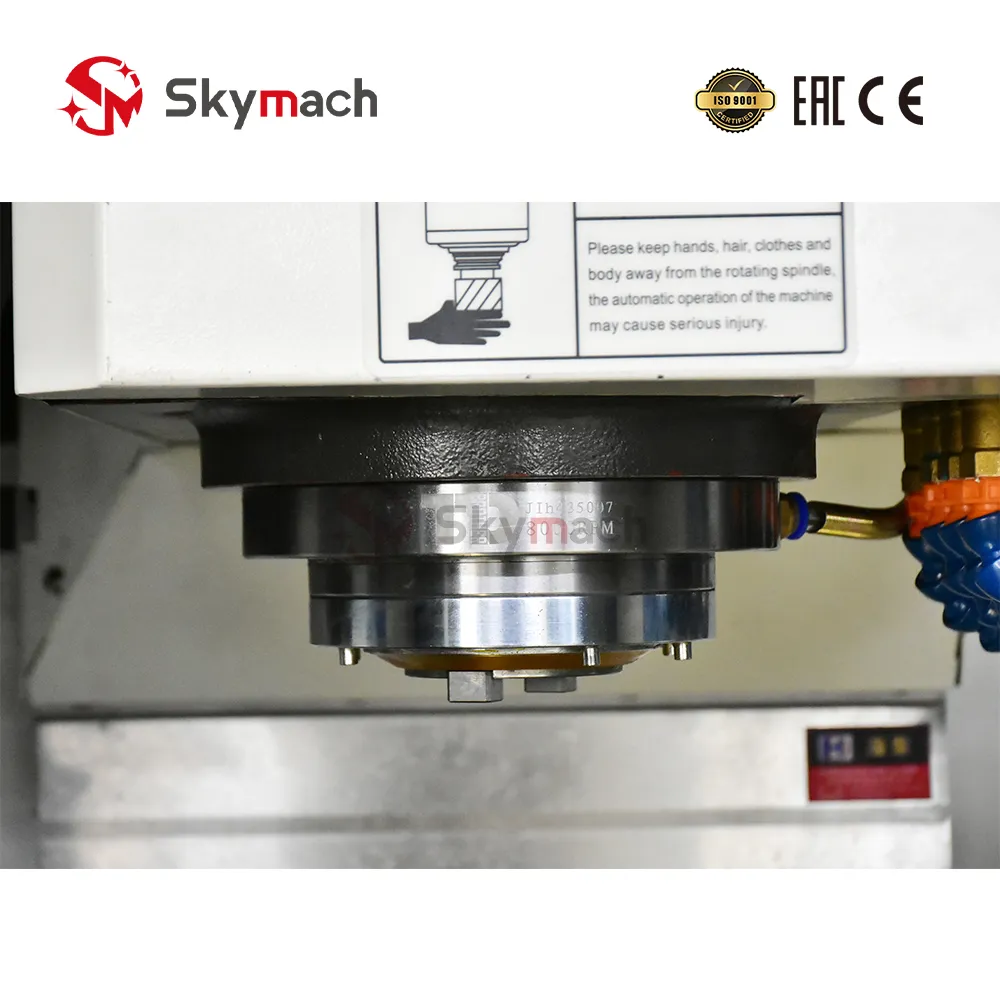

- Taiwan Precision BT40 Spindle: High-torque 7.5 kW spindle motor with dynamic balancing and pneumatic cylinder unclamping.
- Rigid Resin Sand Casting: Annealed heavy base and wide column effectively dampen cutting vibrations under heavy load.
- High-Dynamic Motion Control: Precision preloaded ball screws and linear guideways deliver positioning accuracy of ±0.005 mm and repeatability of ±0.003 mm.
Technical Parameters
| Model | VMC850 |
|---|---|
| Table Size | 1000 x 500 mm |
| X/Y/Z Axis Travel | 800 / 500 / 500 mm |
| Max. Worktable Load | 500 kg |
| T-Slot Specification | 3-18 x 90 mm |
| Spindle Speed | 8,000 RPM |
| Spindle Taper | BT40 (Φ140 mm) |
| Main Motor Power | 7.5 kW |
| Spindle Nose to Table Surface | 140 - 640 mm |
| Spindle Center to Column Surface | 550 mm |
| Rapid Traverse Feed (X/Y/Z) | 24 / 24 / 24 m/min |
| Cutting Feed Speed | 1 - 10,000 mm/min |
| 3-Axis Servo Motor Power | 2 / 2 / 3 kW |

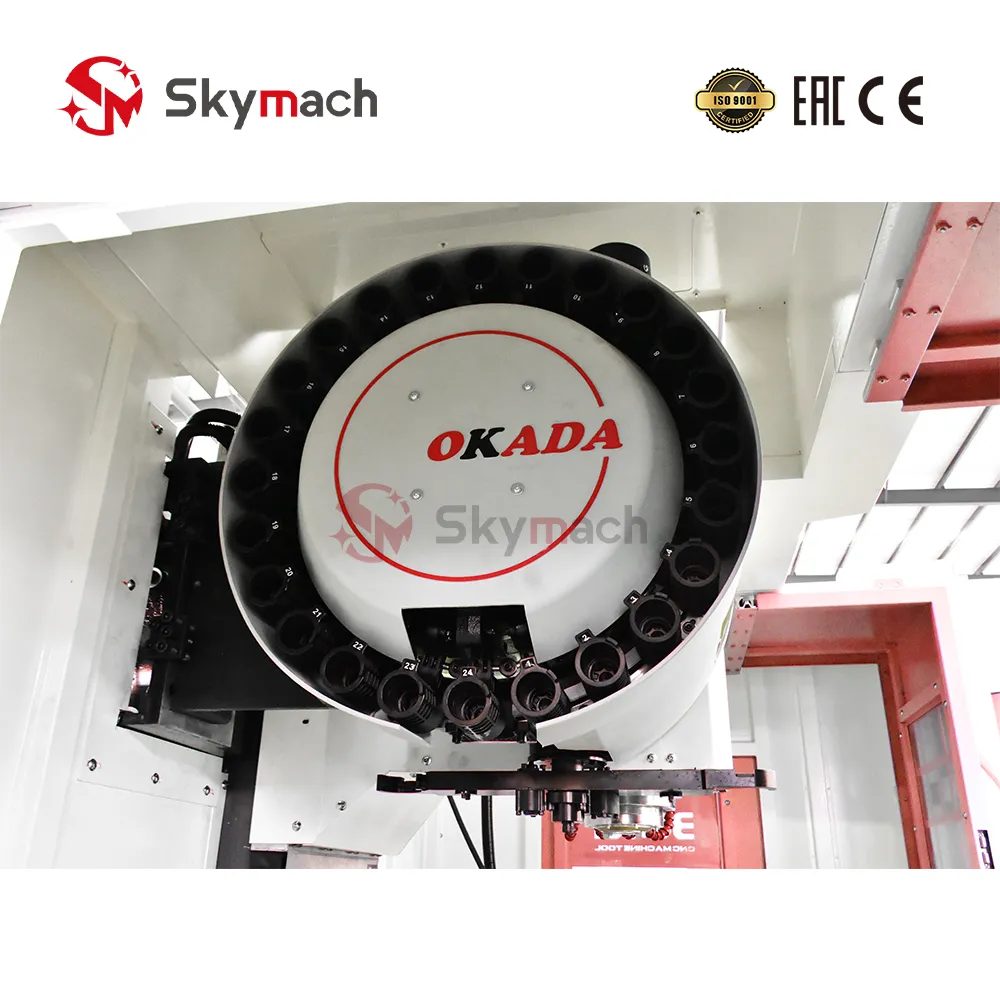

| Tool Magazine Capacity | 24 Tools (Arm/Disc type) |
| Positioning Accuracy | ±0.005 mm |
| Repeat Positioning Accuracy | ±0.003 mm |
| Overall Dimensions (L x W x H) | 2550 x 2200 x 2530 mm |
| Machine Weight | 5,000 kg |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
