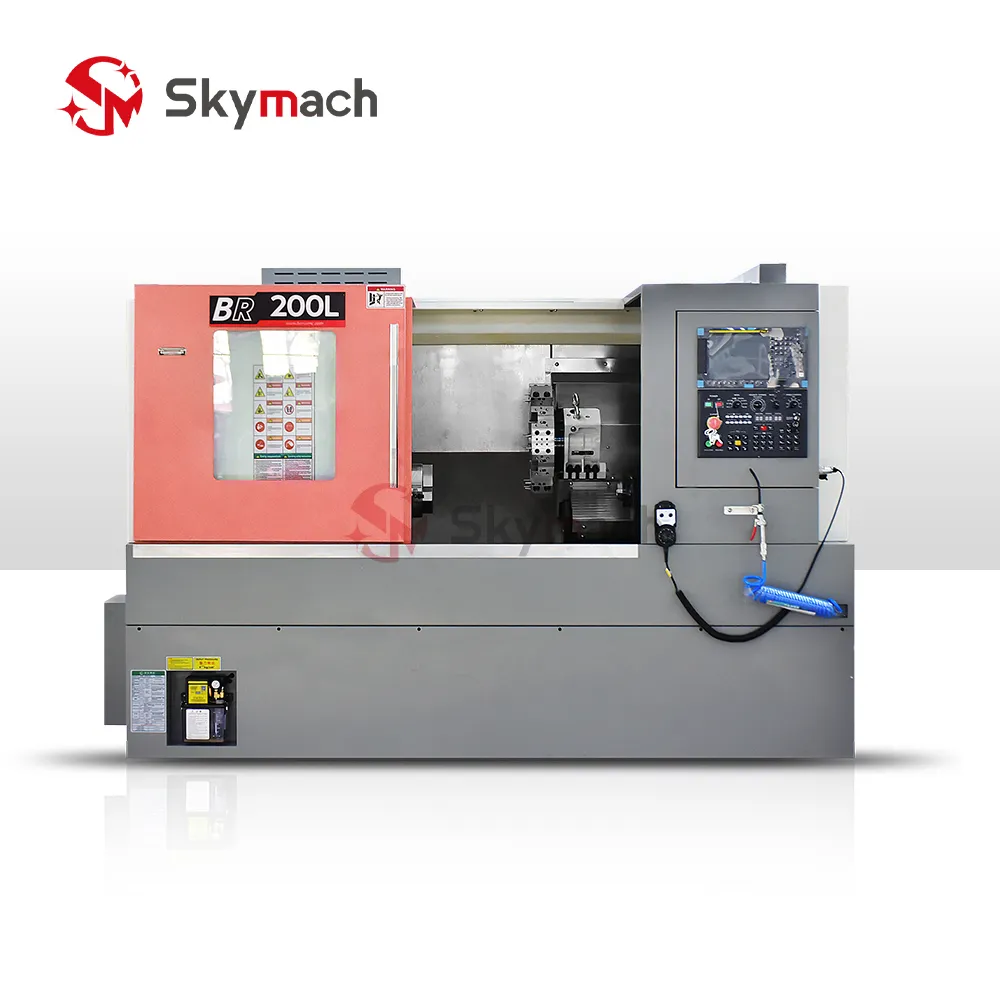

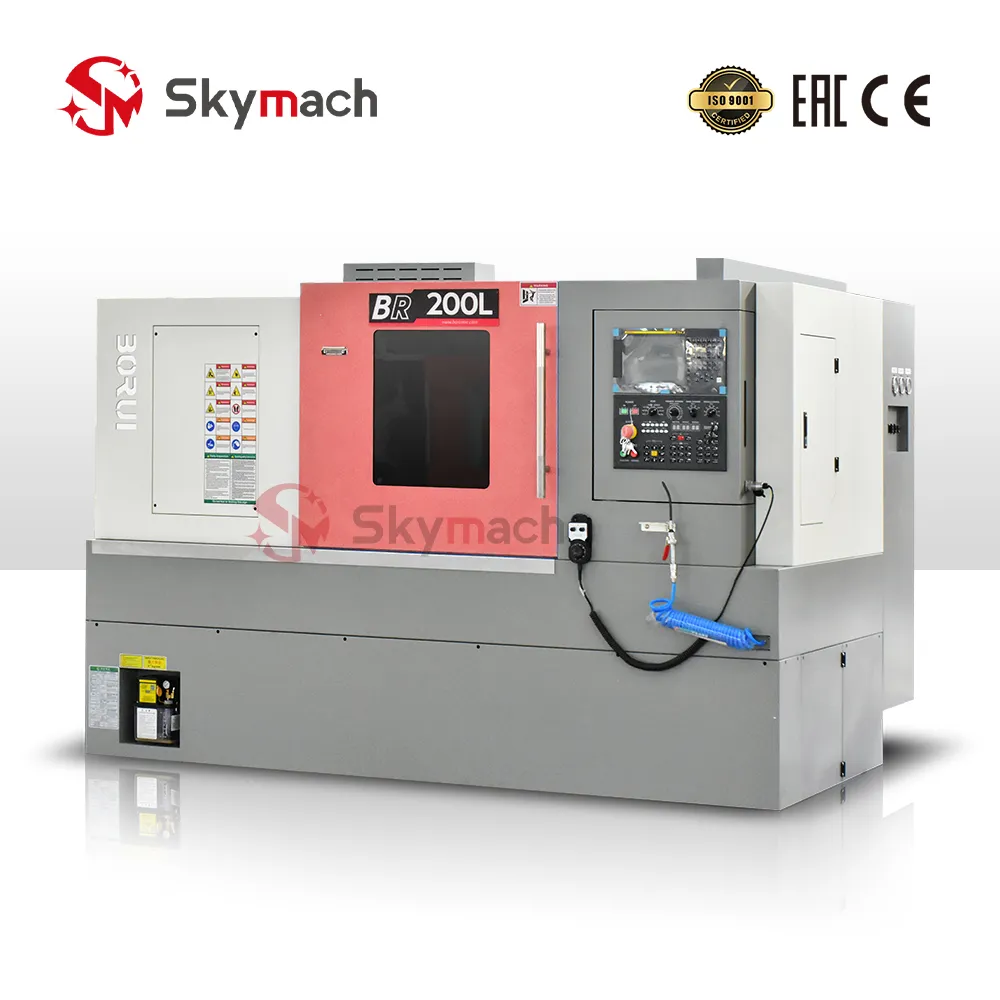

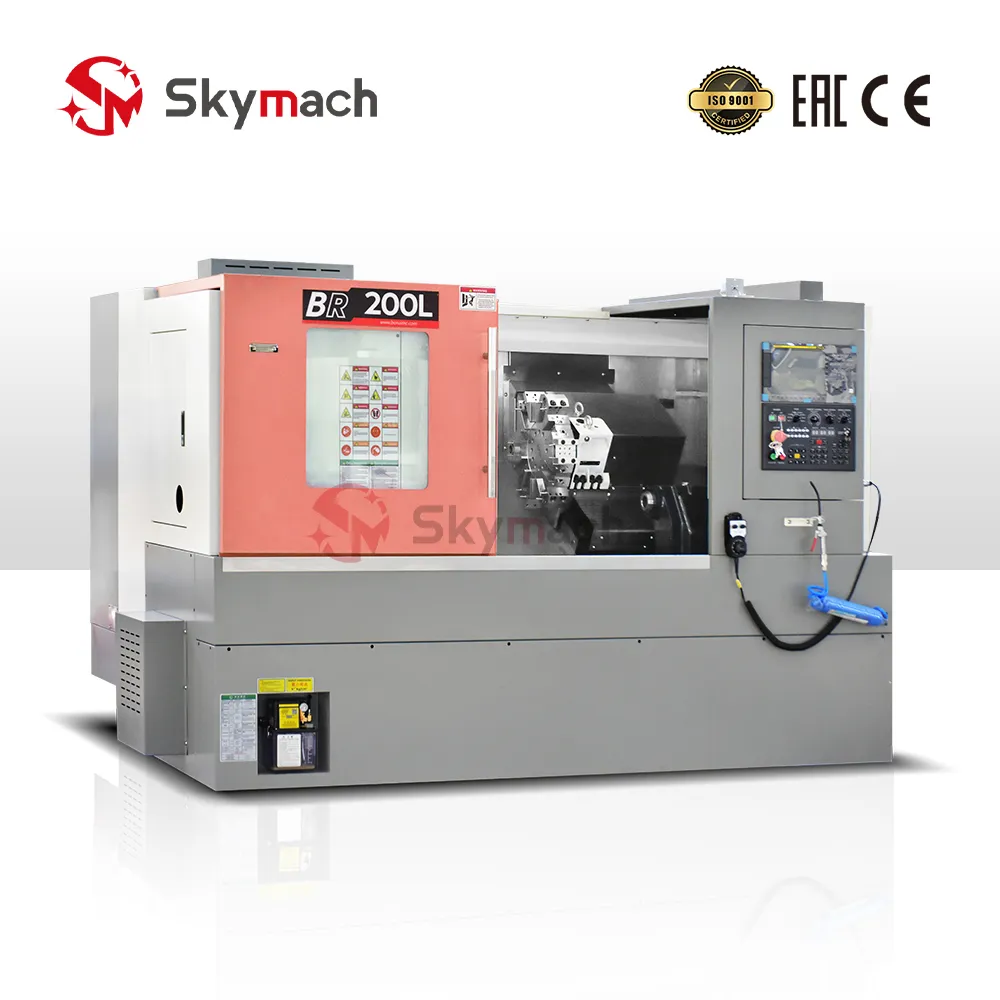

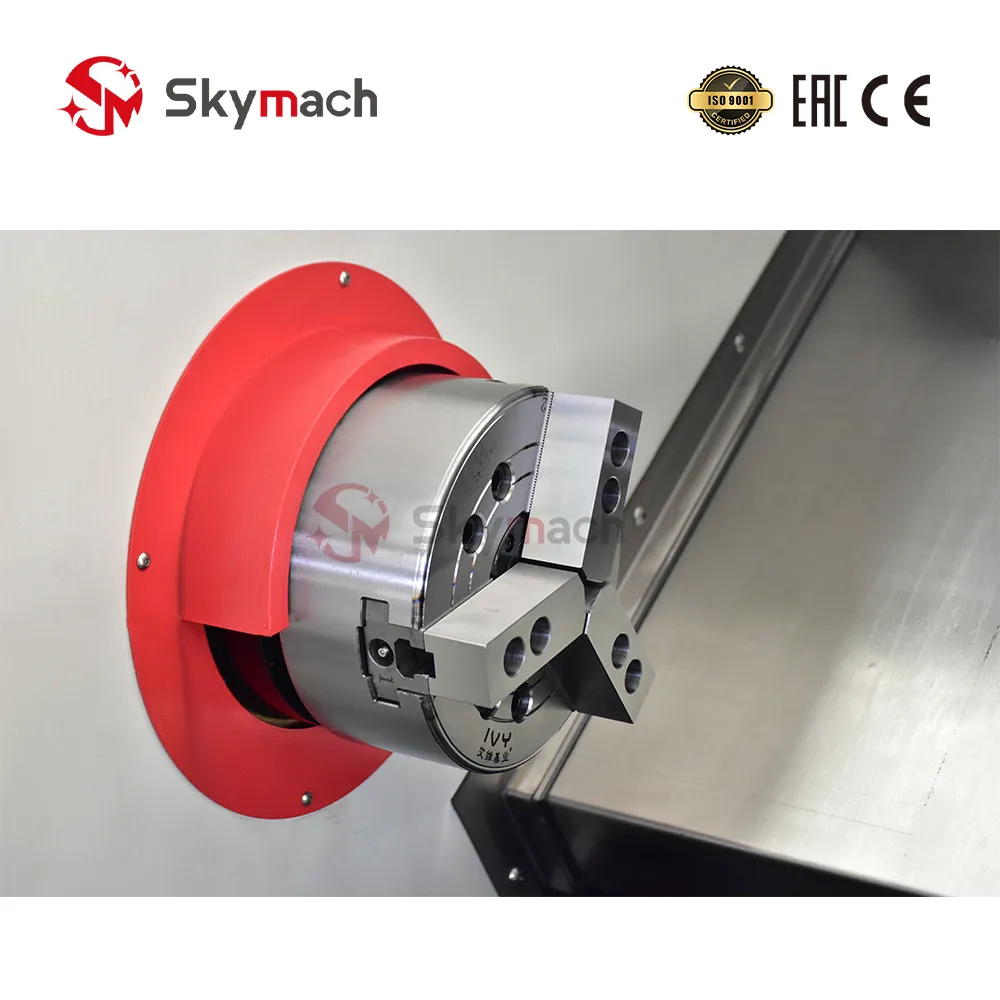

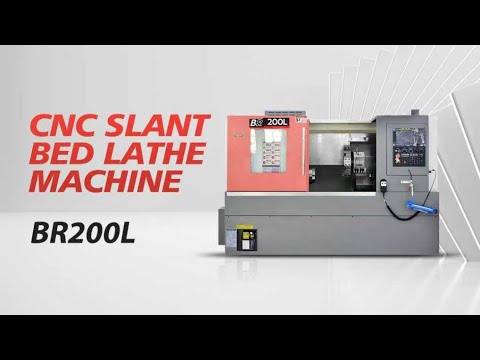

The Skymach BR-200L High-Precision Linear Way Slant Bed CNC Lathe is built on a 30° monolithic HT300 cast iron bed outfitted with heavy 45/45 precision linear guideways, an A2-6 spindle (4,000 RPM, Φ52 mm bar capacity), and an H100 8T/10T/12T tool turret. Designed with a coplanar horizontal spindle-box and tailstock layout, the BR-200L delivers tremendous cutting stiffness, vibration damping, and precision turning performance.
Comprehensive Machining Capabilities
- Heavy 45/45 Linear Guideways: Massive 45mm linear guideways on X and Z axes provide smooth low-friction travel with high dynamic rigidity.
- High-Power Spindle Drive: 11 kW motor running up to 4,000 RPM delivers strong low-speed torque for rough turning and high-speed precision for finishing.
- Longer 540 mm Machining Length: Accommodates medium shafts, transmission components, flanges, and precision fittings.
Key Engineering Highlights
- H100 High-Rigidity Turret: 100 mm center height tool turret provides rapid bi-directional tool changing and repeatable clamping accuracy.
- Heavy MT4 Tailstock: Φ80 mm heavy sleeve with 450 mm maximum travel provides rigid support for medium-length workpieces.
- Integrated HT300 Cast Bed: 30° inclined structure ensures unobstructed chip disposal and thermal balance.
Technical Parameters
| Max. Swing Diameter Over Bed | Φ560 mm |
|---|---|
| Max. Machining Diameter | Φ460 mm |
| Max. Swing Diameter Over Cross Slide | Φ200 mm |
| Max. Processing Length | 540 mm |
| Spindle End Type | A2-6 (8-inch) |
| Spindle Motor Power | 11 kW |
| Spindle Speed | 4000 rpm |
| Spindle Through Hole Diameter | Φ66 mm |
| Through the Bar Diameter | Φ52 mm |
| X / Z Axis Lead Screw Specifications | 3210 / 4010 |
| X / Z Axis Linear Guide Specifications | 45 / 45 |
| X / Z Axis Limit Travel | 230 / 610 mm |
| X / Z Axis Motor Torque | 11 N.m / 11 N.m |
| X / Z Axis Connection Type | Direct Connection |
| Turret | H100 |
| Tower Station | 8T / 10T / 12T |
| Turret Center Height Size | 100 mm |
| Sleeve Diameter | 80 mm |
| Sleeve Travel | 80 mm |
| Tailstock Max. Travel | 450 mm |
| Tailstock Sleeve Taper | MT4 |
| Bed Type and Inclination | Integrated / 30° |
| Machine Size (L * W * H) | 1730 x 1273 x 1328 mm |
