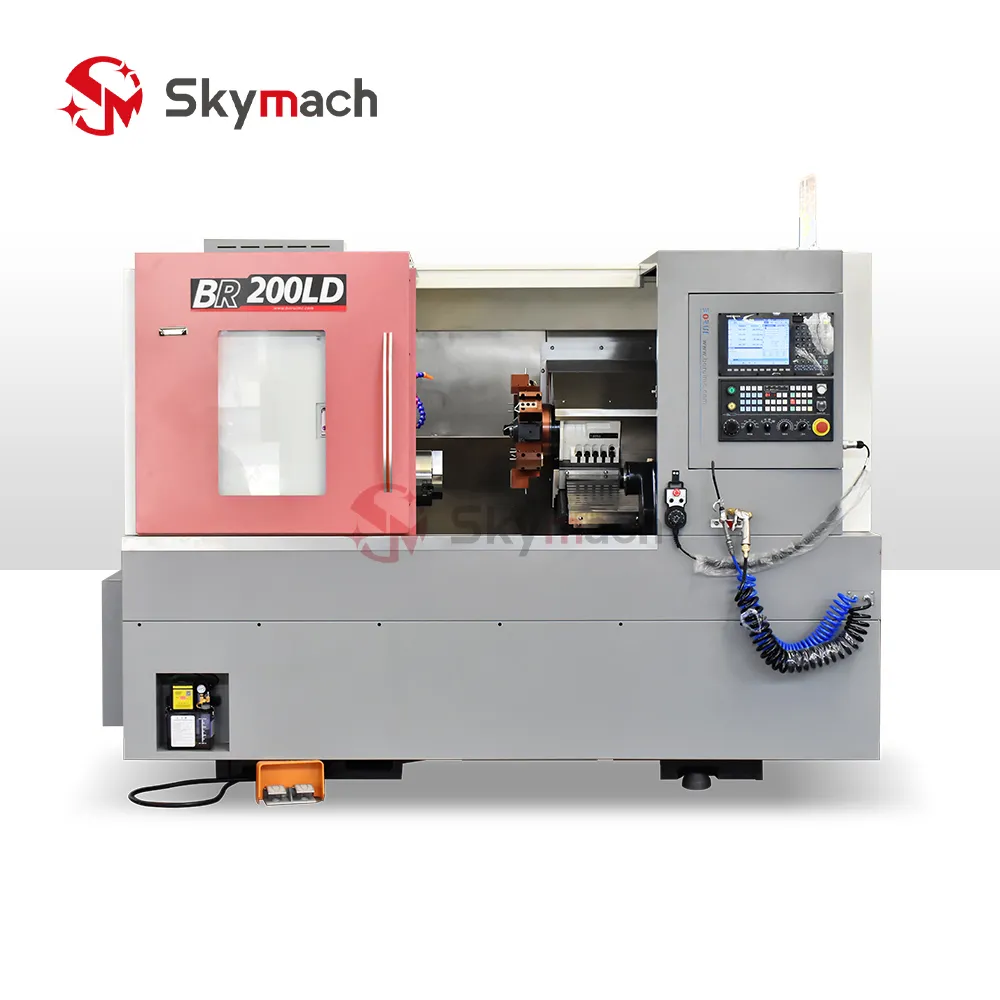

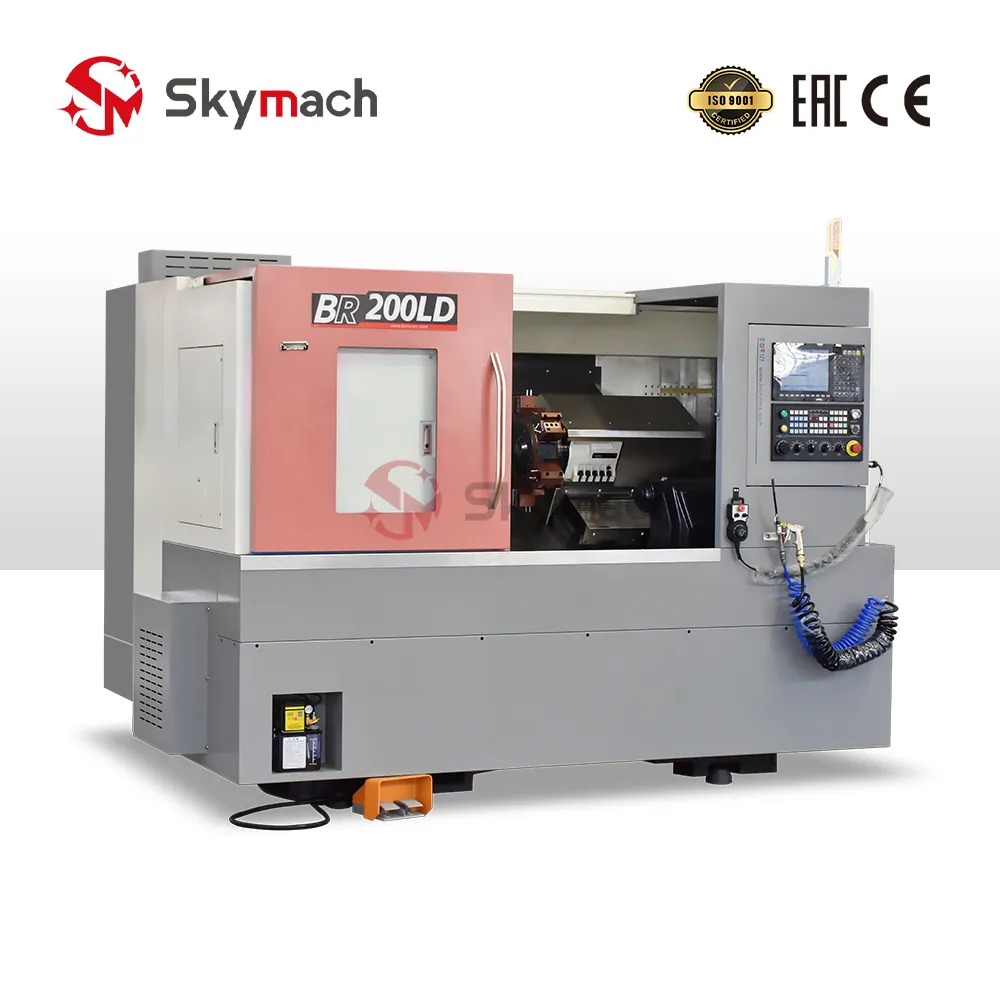

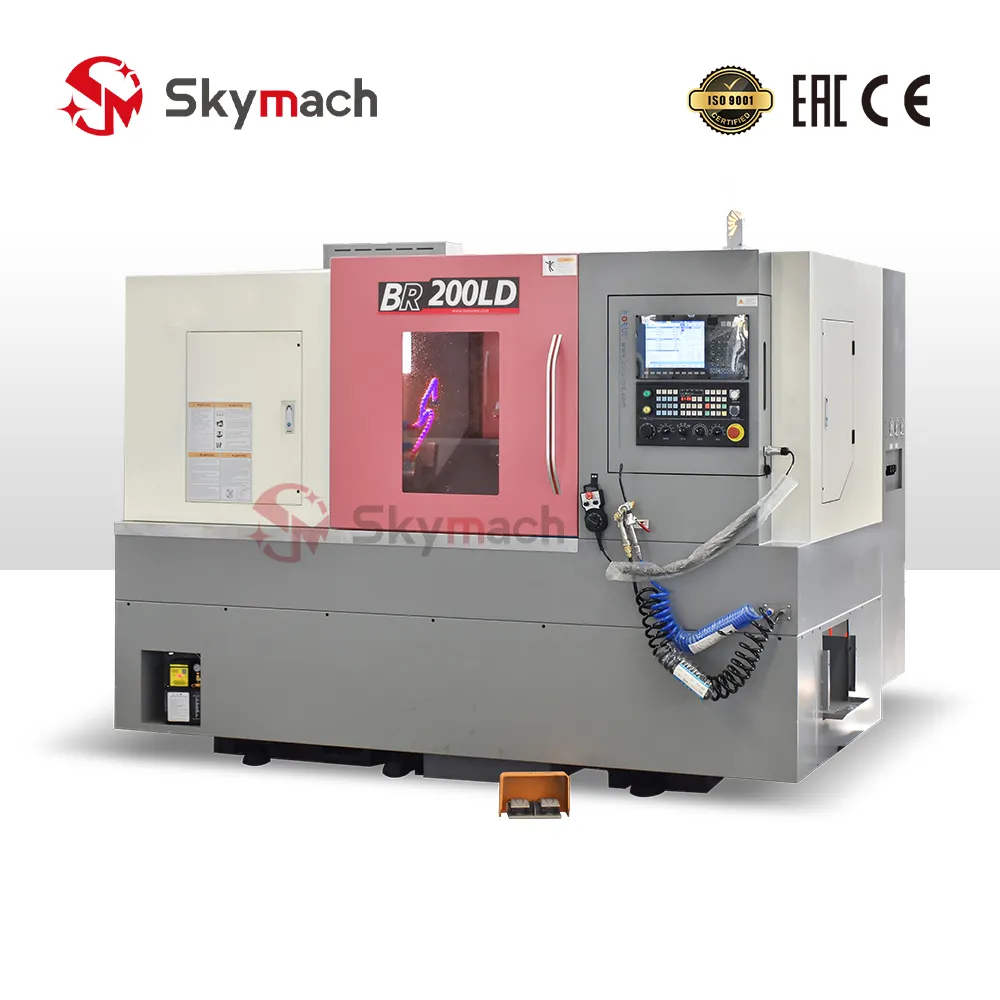

The Skymach BR-200LD Precision Slant Bed CNC Lathe features a 12-station BMT55/ER25 live tooling power turret (1:1 ratio) mounted on a 30° monolithic HT300 cast iron slant bed with heavy 45/45 linear guideways. Driven by an A2-6 high-speed spindle (4,000 RPM, Φ52 mm bar capacity), the BR-200LD combines robust turning with high-torque milling, drilling, and rigid tapping in a single clamping.
Comprehensive Machining Capabilities
- BMT55 Live Tooling Power: Direct 1:1 drive mechanism delivers full cutting power to radial and axial milling cutters and drill bits.
- Heavy 45/45 Linear Guideways: Massive 45mm linear guides provide superior structural damping against heavy interrupted cutting loads.
- High-Speed Spindle Drive: 11 kW drive spinning up to 4,000 RPM ensures high metal removal rates and fine mirror surface finishes.
Key Engineering Highlights
- 12T BMT55 Power Turret: 100 mm center height tool turret provides rapid tool change and repeatable indexing accuracy.
- Precision MT4 Tailstock: Φ80 mm heavy sleeve with 450 mm maximum bed stroke provides solid support for shaft workpieces.
- HT300 Monolithic Casting: Absorbs cutting harmonics and maintains long-term geometric precision.
Technical Parameters
| Max. Swing Diameter Over Bed | Φ660 mm |
|---|---|
| Max. Machining Diameter | Φ380 mm |
| Max. Swing Diameter Over Cross Slide | Φ200 mm |
| Max. Processing Length | 450 mm |
| Spindle End Type | A2-6 (8-inch) |
| Spindle Motor Power | 11 kW |
| Spindle Speed | 4000 rpm |
| Spindle Through Hole Diameter | Φ66 mm |
| Through the Bar Diameter | Φ52 mm |
| X / Z Axis Lead Screw Specifications | 3210 / 4010 |
| X / Z Axis Linear Guide Specifications | 45 / 45 |
| X / Z Axis Limit Travel | 230 / 610 mm |
| X / Z Axis Motor Torque | 11 N.m / 11 N.m |
| X / Z Axis Connection Type | Direct Connection |
| Turret | BMT55 / ER25 Power Turret |
| Tower Station | 12T |
| Transmission Ratio of Power Axis and Tool Apron | 1 : 1 |
| Turret Center Height Size | 100 mm |
| Sleeve Diameter | 80 mm |
| Sleeve Travel | 80 mm |
| Tailstock Max. Travel | 450 mm |
| Tailstock Sleeve Taper | MT4 |
| Bed Type and Inclination | Integrated / 30° |
| Machine Size (L * W * H) | 1730 x 1273 x 1328 mm |
