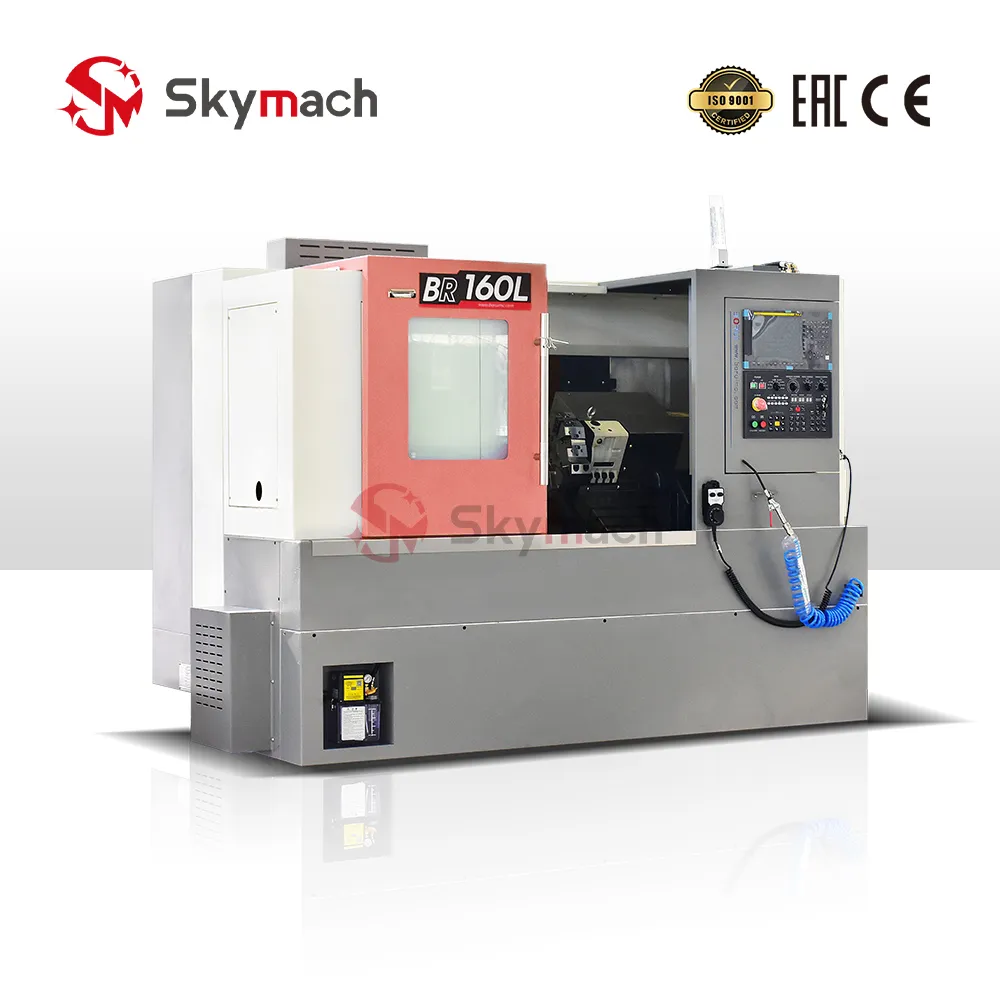

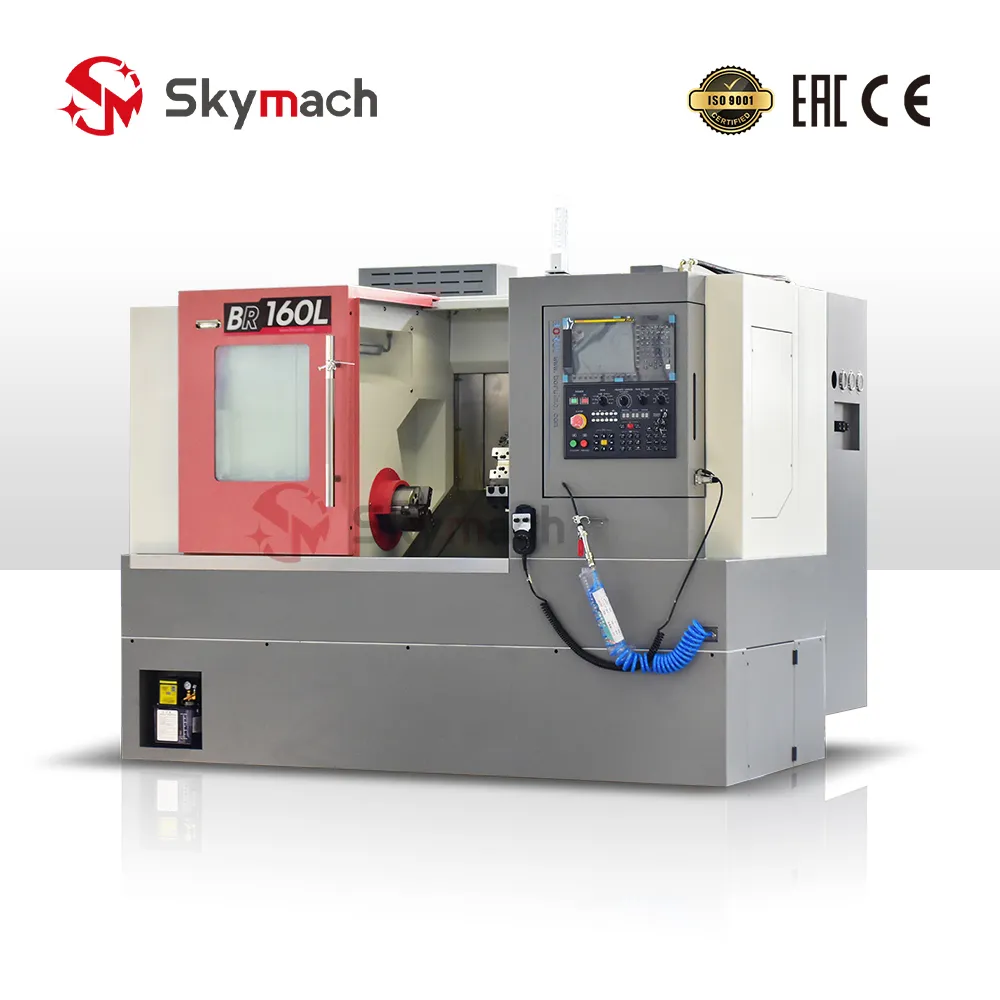

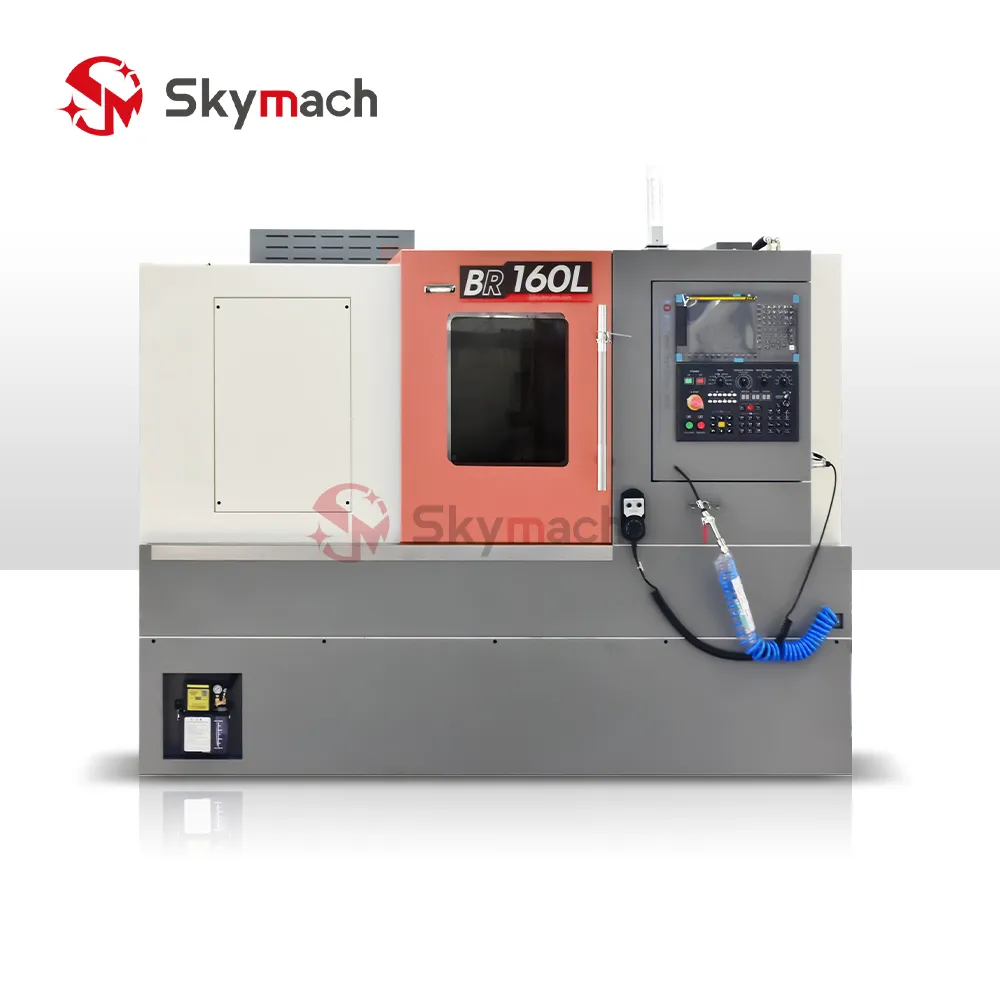

The Skymach BR-160L High-Precision Linear Guide Slant Bed CNC Lathe is built on a 30° integrated HT300 cast iron box bed and base, featuring an A2-5 high-speed spindle (4,500 RPM, Φ46 mm bar capacity), 35/35 precision linear guideways, and an 80825 8T/10T/12T tool turret. Designed with high dynamic stiffness, thermal stability, and low-friction motion, the BR-160L delivers exceptional turning efficiency, fine micro-finishes, and extended tool life.
Comprehensive Machining Capabilities
- High-Speed Precision Turning: 4,500 RPM spindle powered by 7.5 kW drive provides rapid metal removal and high surface quality on precision shafts and valves.
- Low-Friction Linear Motion: 35/35 preloaded linear guideways combined with direct-coupled 11 N.m servo motors provide agile acceleration and high positioning repeatability.
- Integrated Box Bed Structure: 30° monolithic HT300 cast base dampens cutting harmonics and channels chips directly into the evacuation zone.
Key Engineering Highlights

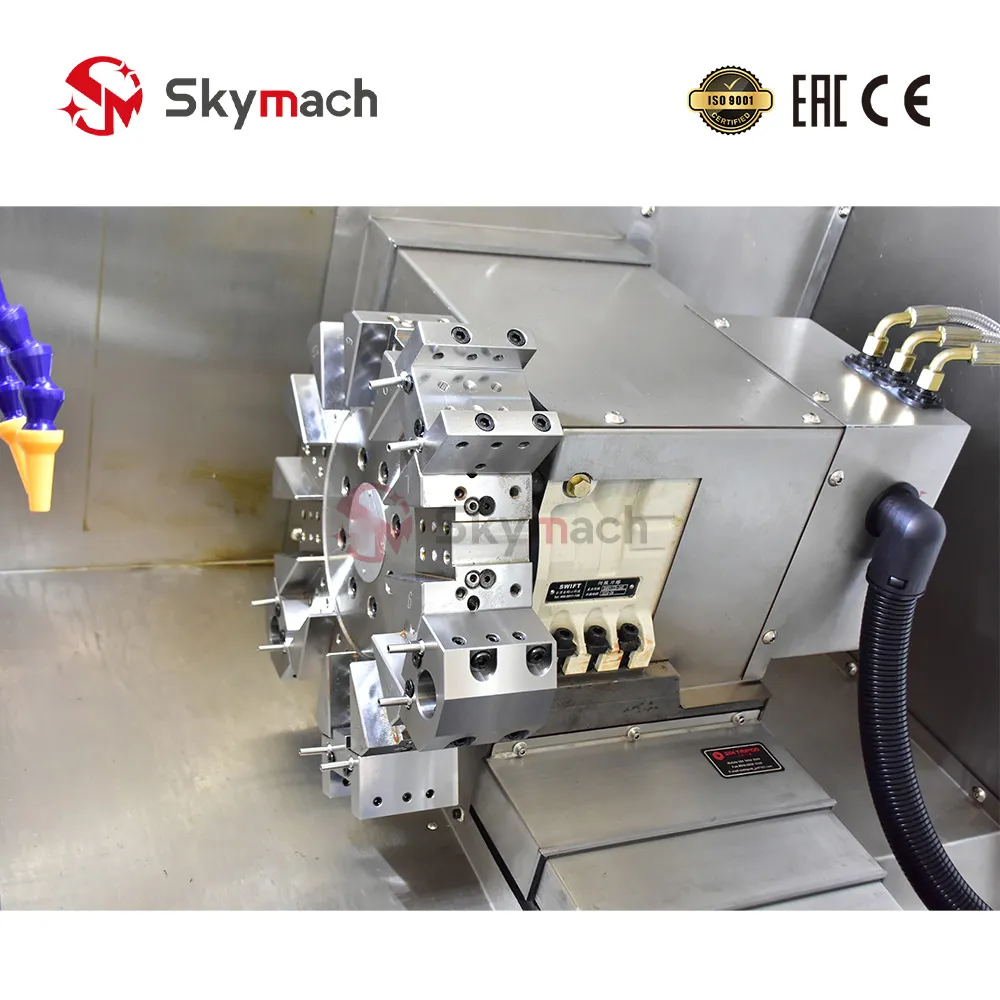

- 80825 Fast Indexing Turret: 80 mm center height tool turret supports 8, 10, or 12 tool positions.
- Precision MT4 Tailstock: Φ65 mm sleeve with 80 mm quill travel and 300 mm total stroke provides sturdy support for long parts.
- Compact Frame: Space-efficient 1730 x 1273 x 1328 mm design integrates easily into production lines.
Technical Parameters
| Max. Swing Diameter Over Bed | Φ460 mm |
|---|---|
| Max. Machining Diameter | Φ400 mm |
| Max. Swing Diameter Over Cross Slide | Φ200 mm |
| Max. Processing Length | 410 mm |
| Spindle End Type | A2-5 |
| Spindle Motor Power | 7.5 kW |
| Spindle Speed | 4500 rpm |
| Spindle Through Hole Diameter | Φ56 mm |
| Through the Bar Diameter | Φ46 mm |
| X / Z Axis Lead Screw Specification | 3210 / 3210 |
| X / Z Axis Linear Guide Specifications | 35 / 35 |
| X / Z Axis Limit Travel | 210 / 475 mm |
| X / Z Axis Motor Torque | 11 N.m / 11 N.m |
| X / Z Axis Connection Type | Direct Connection |
| Turret | 80825 |
| Tower Station | 8T / 10T / 12T |
| Turret Center Height Size | 80 mm |
| Sleeve Diameter | 65 mm |
| Sleeve Travel | 80 mm |
| Tailstock Max. Travel | 300 mm |
| Tailstock Sleeve Taper | MT4 |
| Bed Type and Inclination | Integrated / 30° |
| Machine Size (L * W * H) | 1730 x 1273 x 1328 mm |
