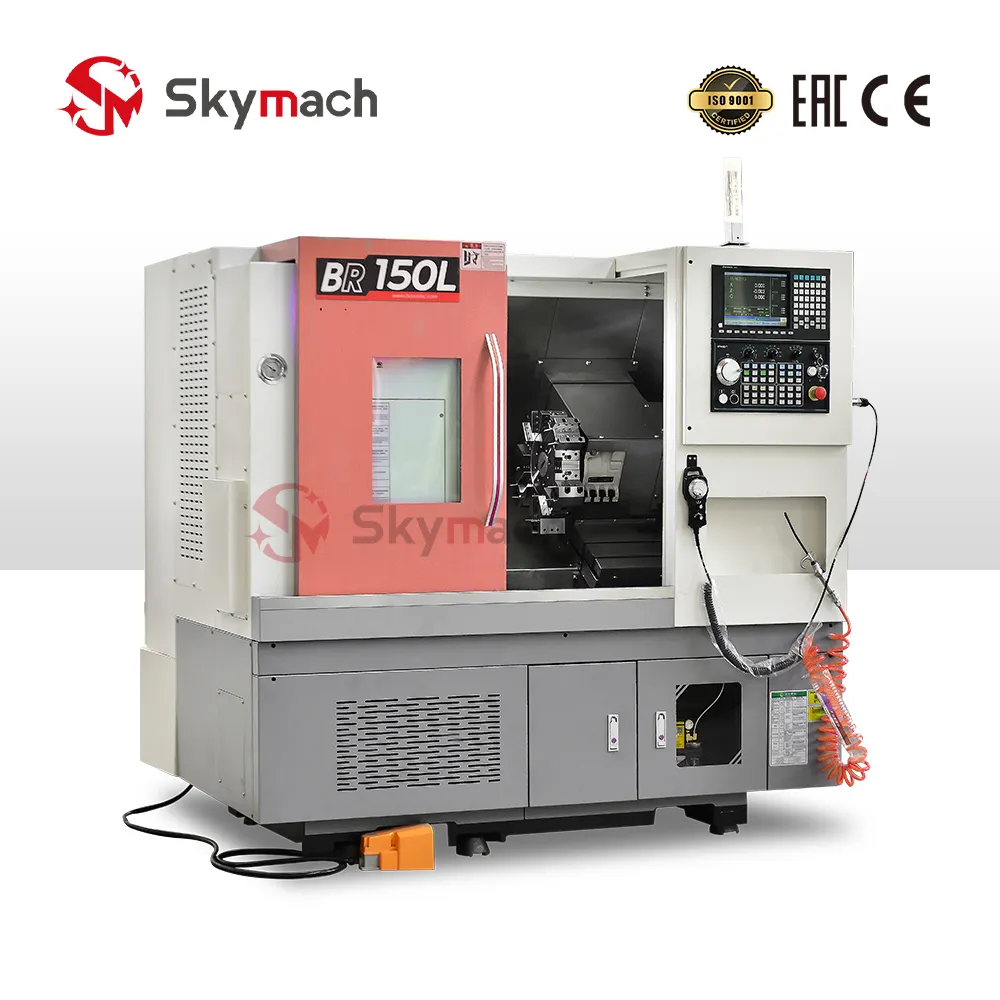

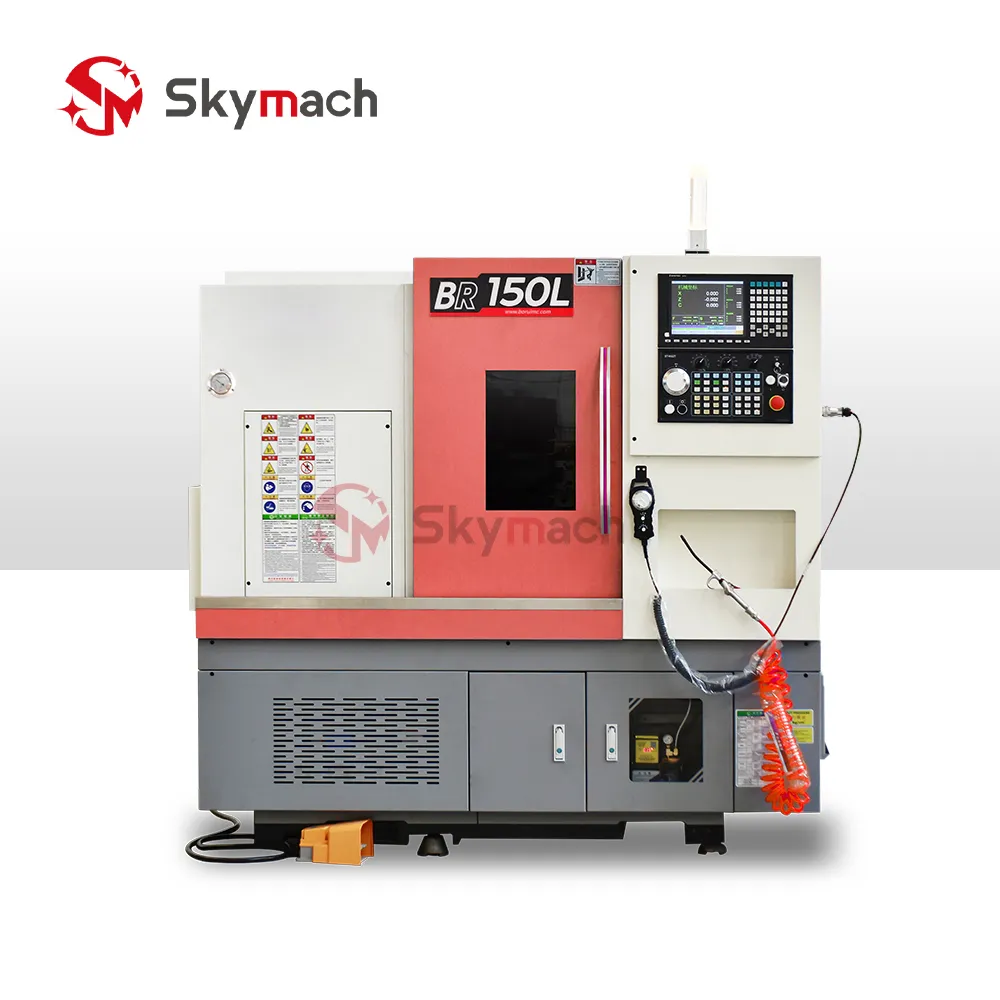

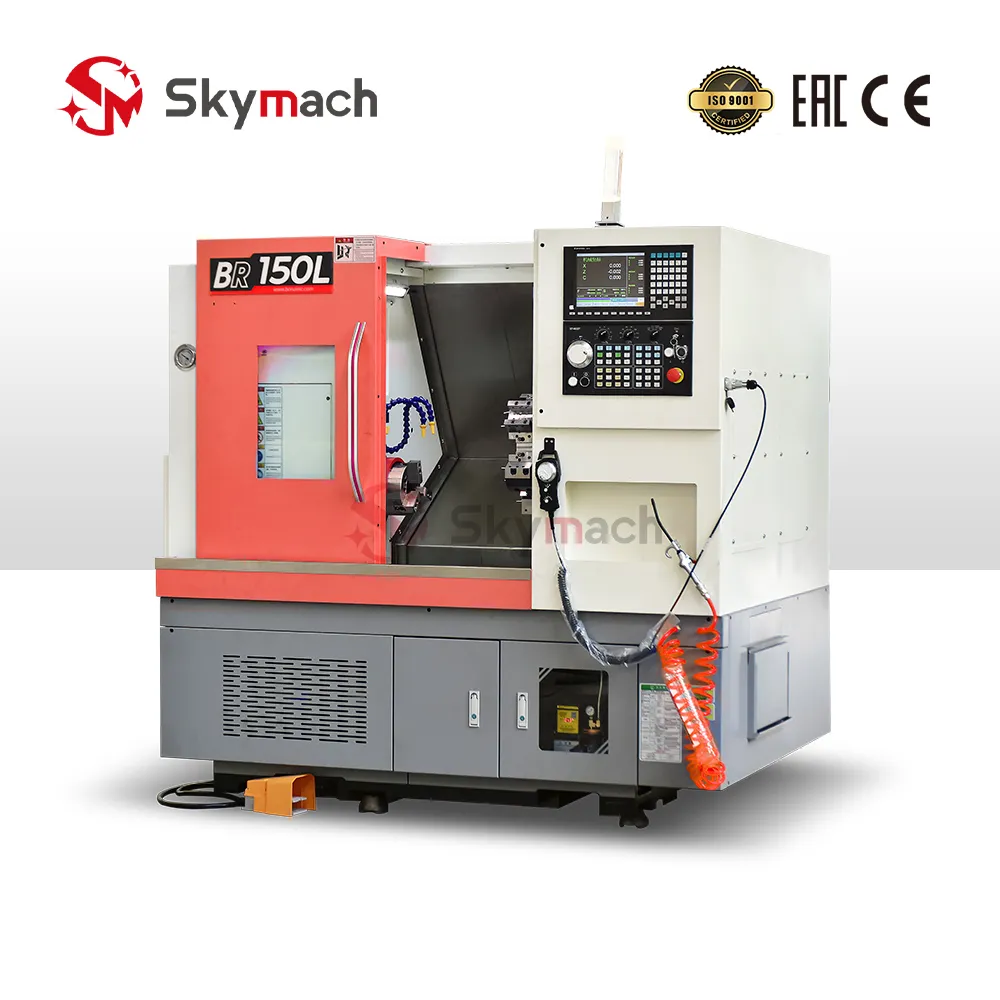

The Skymach BR-150L Compact Precision Slant Bed CNC Lathe is engineered on a 30° integrated HT300 cast iron bed and base, featuring an A2-5 high-speed spindle (4,500 RPM, Φ45 mm bar capacity), 35/35 precision linear guideways, and an SH80-825-280 12T tool turret. Designed with an ultra-compact footprint, the BR-150L supports both side and rear chip removal, making it an ideal building block for high-volume automated production lines of small precision shafts, electronic connectors, sanitary fittings, and automotive valves.
Comprehensive Machining Capabilities
- High-Speed Precision Turning: 4,500 RPM spindle driven by 5.5-7.5 kW motor delivers fast cycle times and mirror finishes on small diameter parts.
- Compact Multi-Machine Automation: Space-saving layout enables tight multi-machine factory cells and robotic gantry/arm integration.
- Fast 20 m/min Feeds: Preloaded 35mm linear guides paired with direct-drive 11 N.m servos ensure quick and accurate axis acceleration.
Key Engineering Highlights

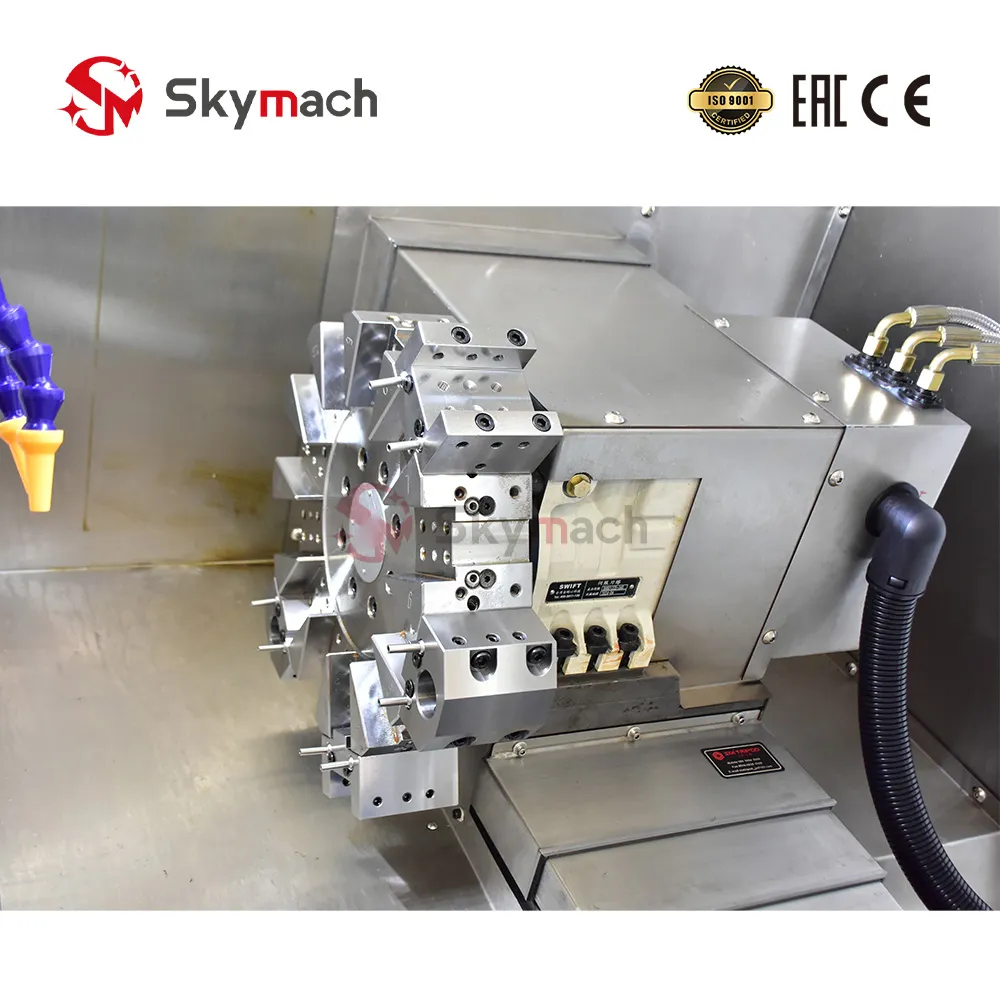

- 12T Servo Turret: 80 mm center height tool turret provides rapid bi-directional tool changing.
- Integrated HT300 Slant Casting: Monolithic 30° structure dampens vibration and directs chips cleanly away from the cutting zone.
- Multi-Point Centralized Lubrication: Ensures long-term mechanical accuracy and zero stick-slip motion.
Technical Parameters

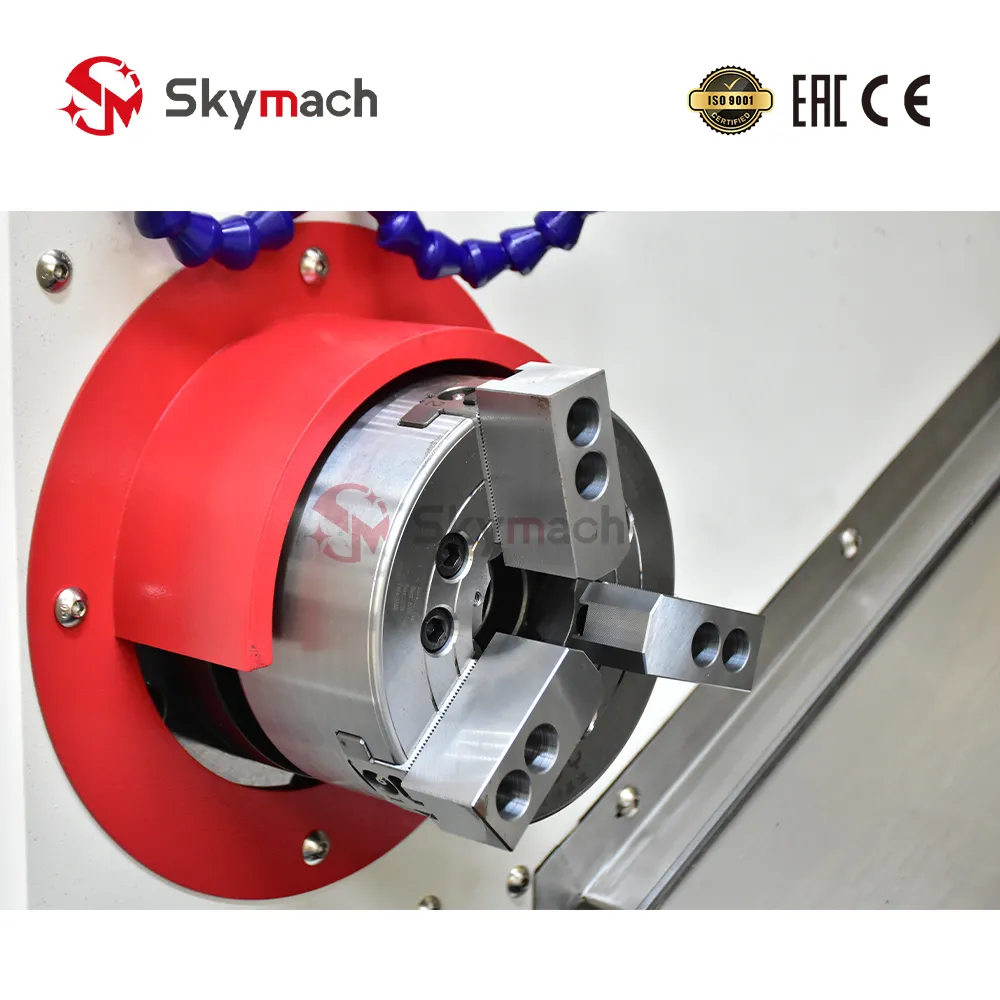

| Max. Swing Diameter Over Bed | Φ510 mm |
|---|---|
| Max. Machining Diameter | Φ250 mm |
| Max. Processing Diameter Over Cross Slide | Φ150 mm |
| Max. Processing Length | 260 mm |
| Spindle End Type | A2-5 (6-inch) |
| Optional Chuck (Special Configurations) | 10 inch (12 inch) |
| Main Motor Power | 5.5 - 7.5 kW |
| Max. Spindle Speed | 4500 rpm |
| Spindle Bore Diameter | Φ56 mm |
| Through the Bar Diameter | Φ45 mm |
| X / Z Axis Lead Screw Specification | 3208 / 3210 |
| X / Z Axis Linear Guide Specifications | 35 / 35 |
| X / Z Axis Limit Travel | 135 / 370 mm |
| X / Z Axis Motor Torque | 11 N.m / 11 N.m |
| X / Z Axis Connection Type | Direct Connection |
| Turret | SH80-825-280 |
| Tower Station | 12T |
| Turret Center Height | 80 mm |
| Bed Type and Inclination | Integrated / 30° |
| Machine Size (L * W * H) | 1430 x 1025 x 1380 mm |
