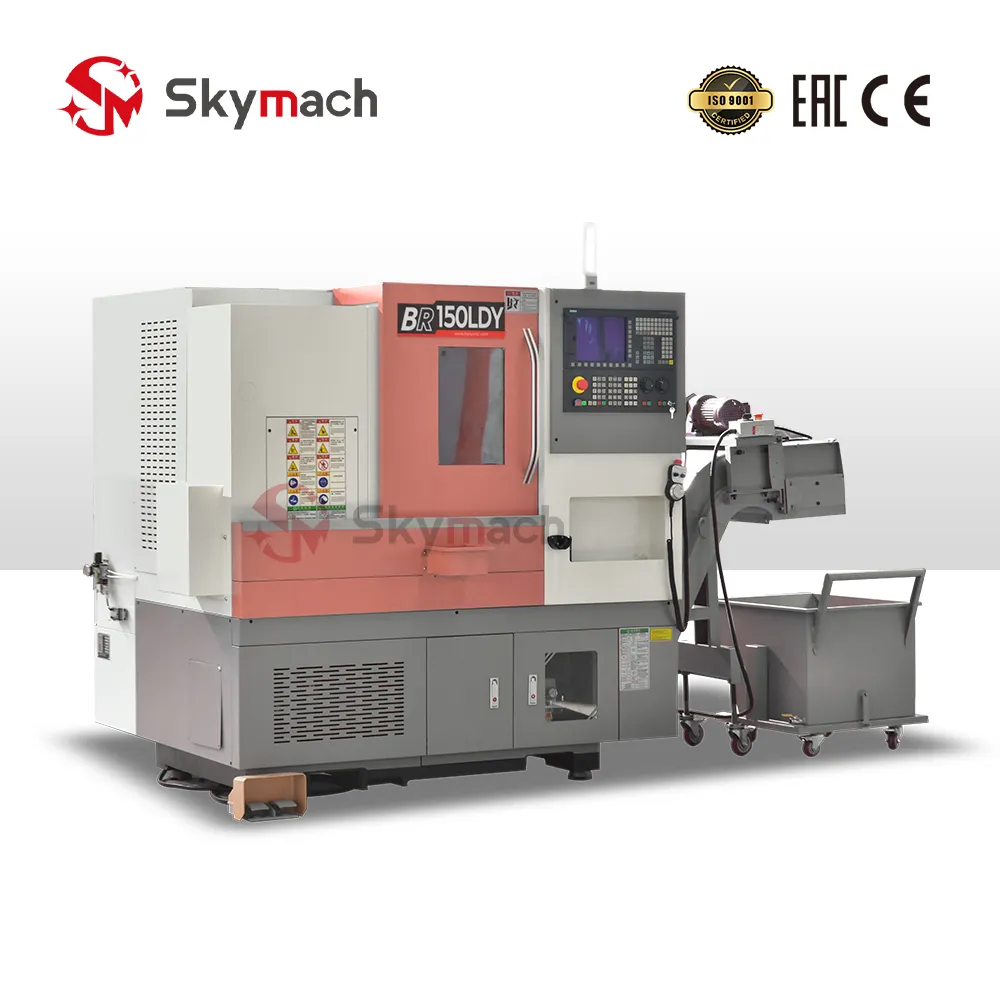

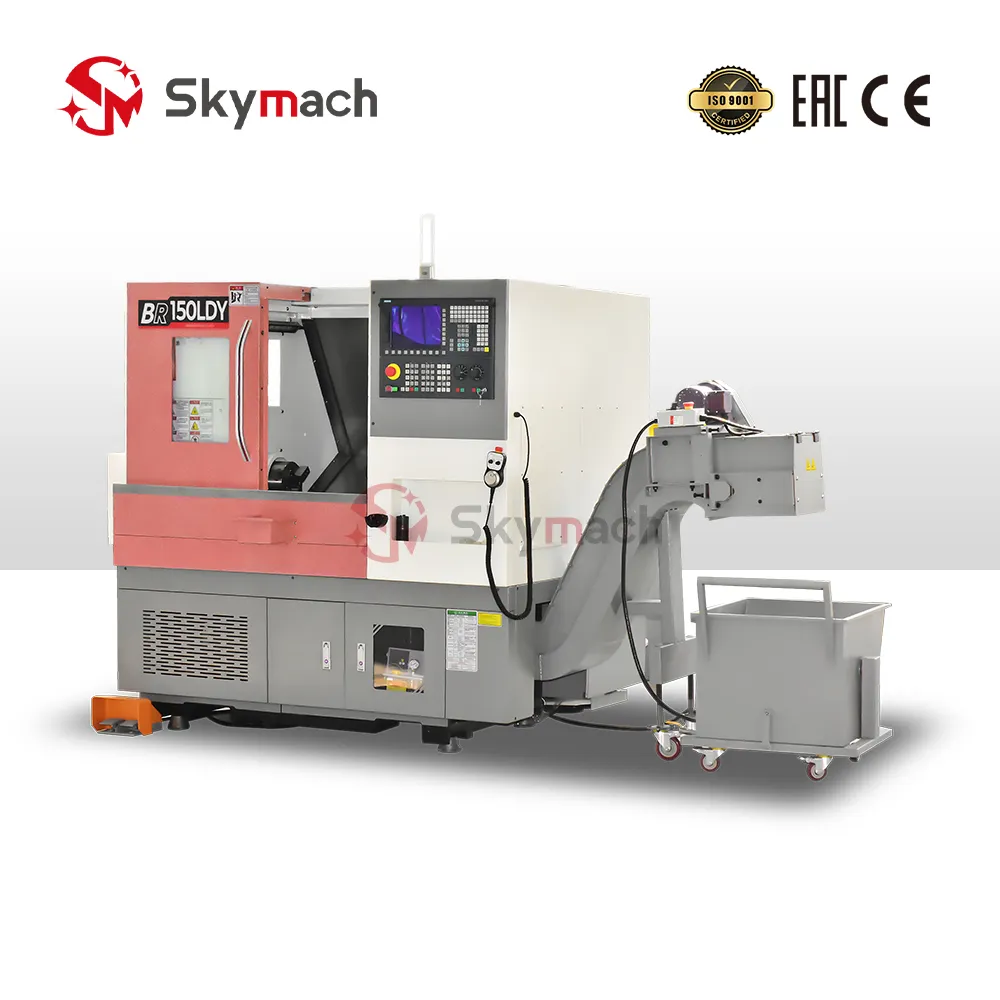

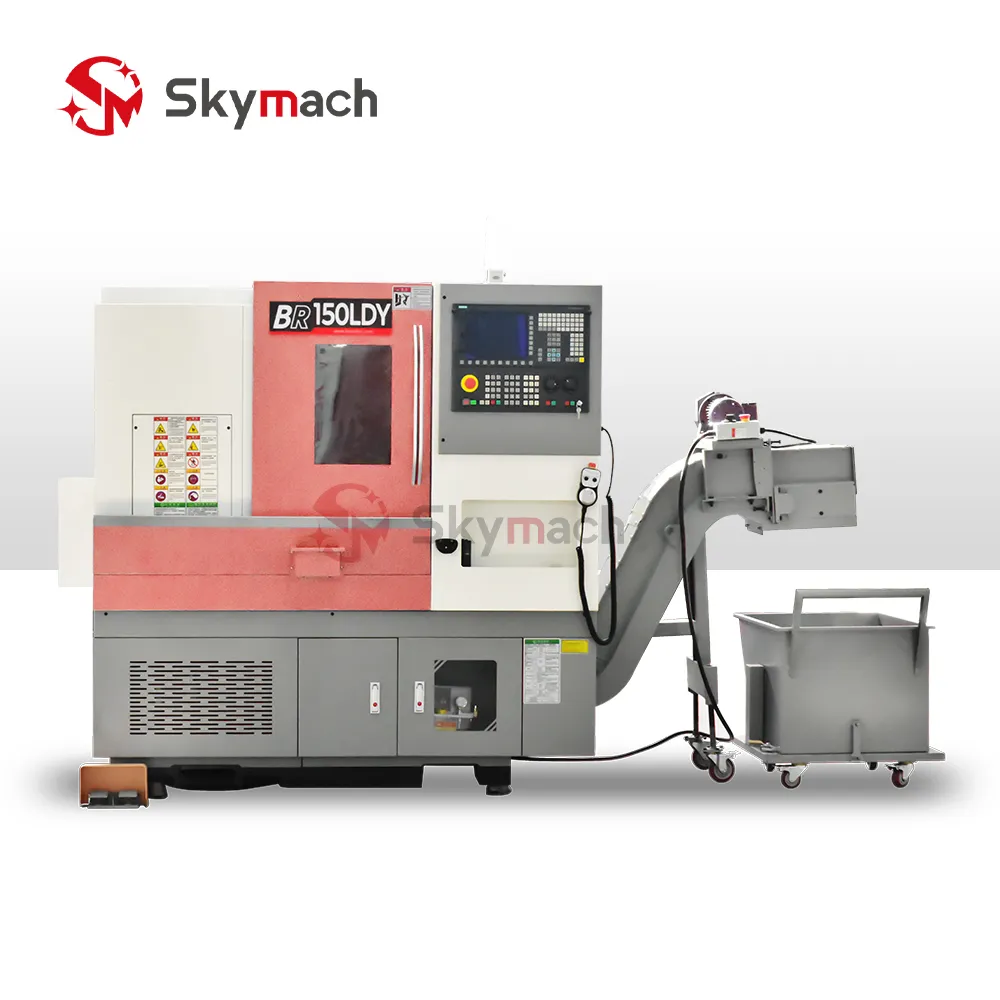

The Skymach BR-150DY Compact Slant Bed CNC Turn-Mill Center integrates an orthogonal Y-axis (60 mm / ±30 mm) and a 12T BMT40/ER20 live tooling power turret onto a 30° monolithic HT300 cast iron slant bed. Equipped with an A2-5 high-speed spindle (4,500 RPM, Φ45 mm bar capacity), the BR-150DY performs turning, off-center cross milling, drilling, slotting, and tapping in a single automated setup, eliminating secondary machining operations for complex precision components.
Comprehensive Machining Capabilities
- Single-Setup Turn-Mill Processing: Complete complex parts with milled flats, off-center cross holes, and axial/radial threads without part transfer.
- High-Dynamic Y-Axis Control: 60 mm total Y-axis stroke with direct-coupled servo drive enables true interpolation milling on cylindrical profiles.
- High-Speed Spindle & Live Tooling: 4,500 RPM main spindle paired with 3,000 RPM (2.5 kW) BMT40 rotary tooling delivers high metal removal and fine surface finishes.
Key Engineering Highlights

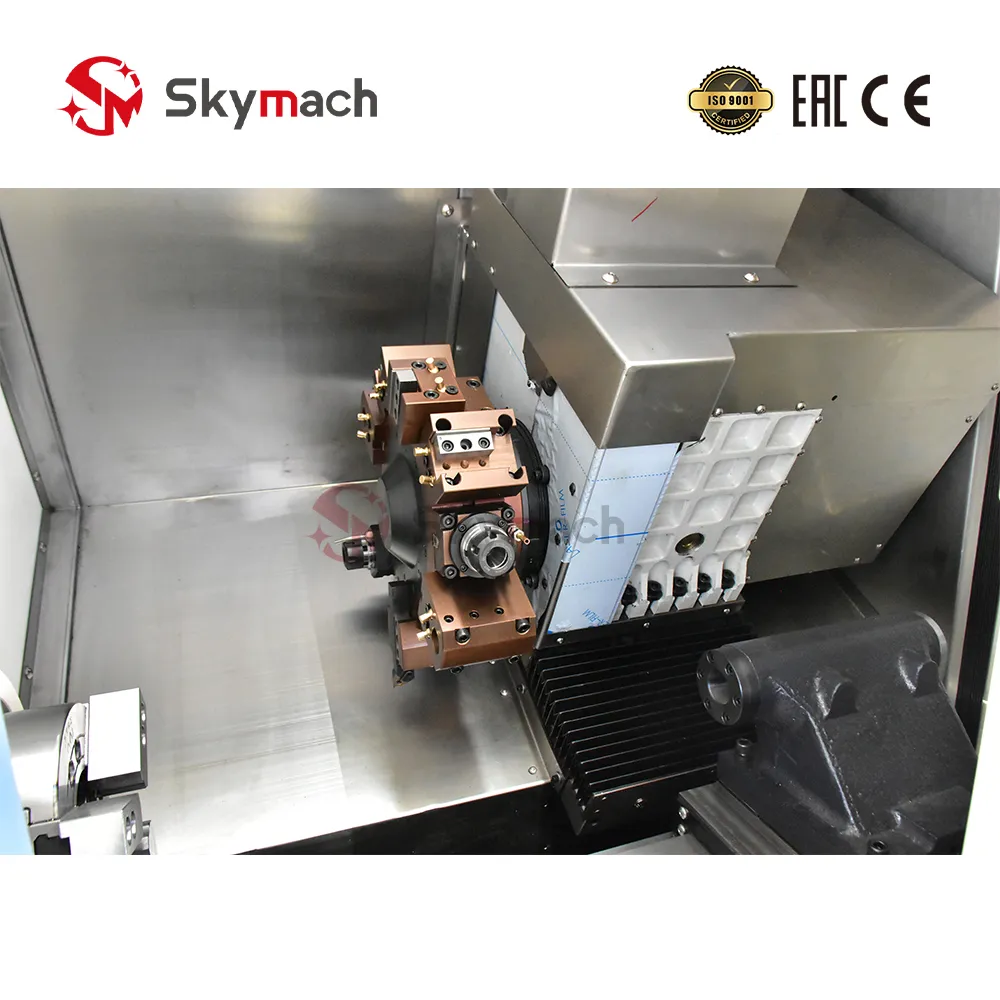

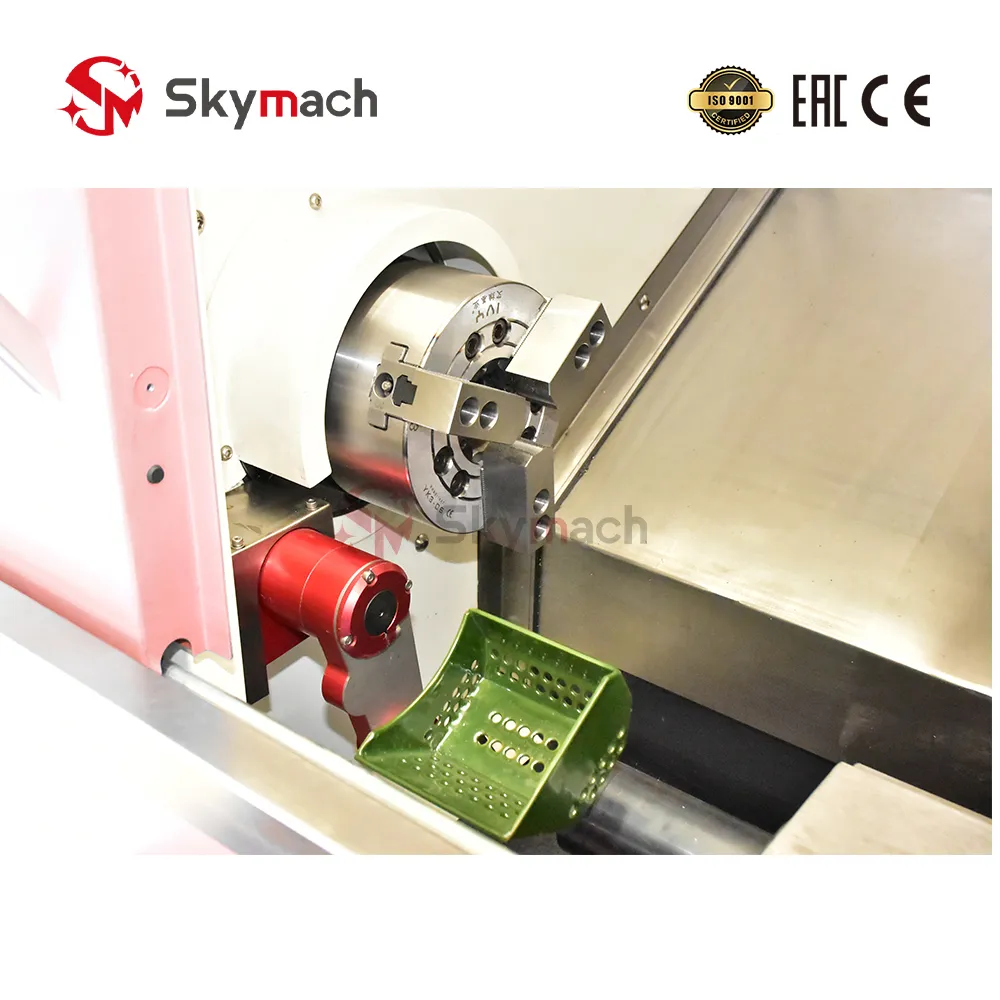

- 12T BMT40 Power Turret: Rigid 1:1 drive mechanism delivers high torque directly to rotary tools.
- Precision 35/35 & 25 Linear Guides: Low-friction linear motion ensures agile 20 m/min rapid feeds and precise contour tracking.
- Compact Footprint: Space-efficient 1430 x 1025 x 1470 mm frame fits seamlessly into automated production cells.
Technical Parameters
| Max. Swing Diameter Over Bed | Φ510 mm |
|---|---|
| Max. Machining Diameter | Φ250 mm |
| Max. Processing Diameter Over Cross Slide | Φ150 mm |
| Max. Processing Length | 235 mm |
| Spindle End Type | A2-5 (6-inch) |
| Optional Chuck (Special Configurations) | 10 inch (12 inch) |
| Main Motor Power | 5.5 - 7.5 kW |
| Max. Spindle Speed | 4500 rpm |
| Spindle Bore Diameter | Φ56 mm |
| Through the Bar Diameter | Φ45 mm |
| X / Z Axis Lead Screw Specification | 3208 / 3210 |
| Y Axis Lead Screw Specification | 2508 |
| X / Z Axis Linear Guide Specifications | 35 / 35 |
| Y Axis Linear Guide Specifications | 25 |
| X / Z Axis Limit Travel | 135 / 370 mm |
| Y Axis Limit Travel | 60 (±30) mm |
| X / Z Axis Motor Torque | 11 N.m / 11 N.m |
| Y Axis Motor Torque | 7 N.m |
| X / Z / Y Axis Connection Type | Direct Connection |
| Power Station Turret | Y-Axis Power Tower |
| Tower Station | 12T |
| Power Head Specification | BMT40 / ER20 |
| Power Head Speed | 3000 rpm |
| Power Head Motor Power | 2.5 kW |
| Power Head to Motor Ratio | 1 : 1 |
| Bed Type and Inclination | Integrated / 30° |
| Machine Size (L * W * H) | 1430 x 1025 x 1470 mm |
