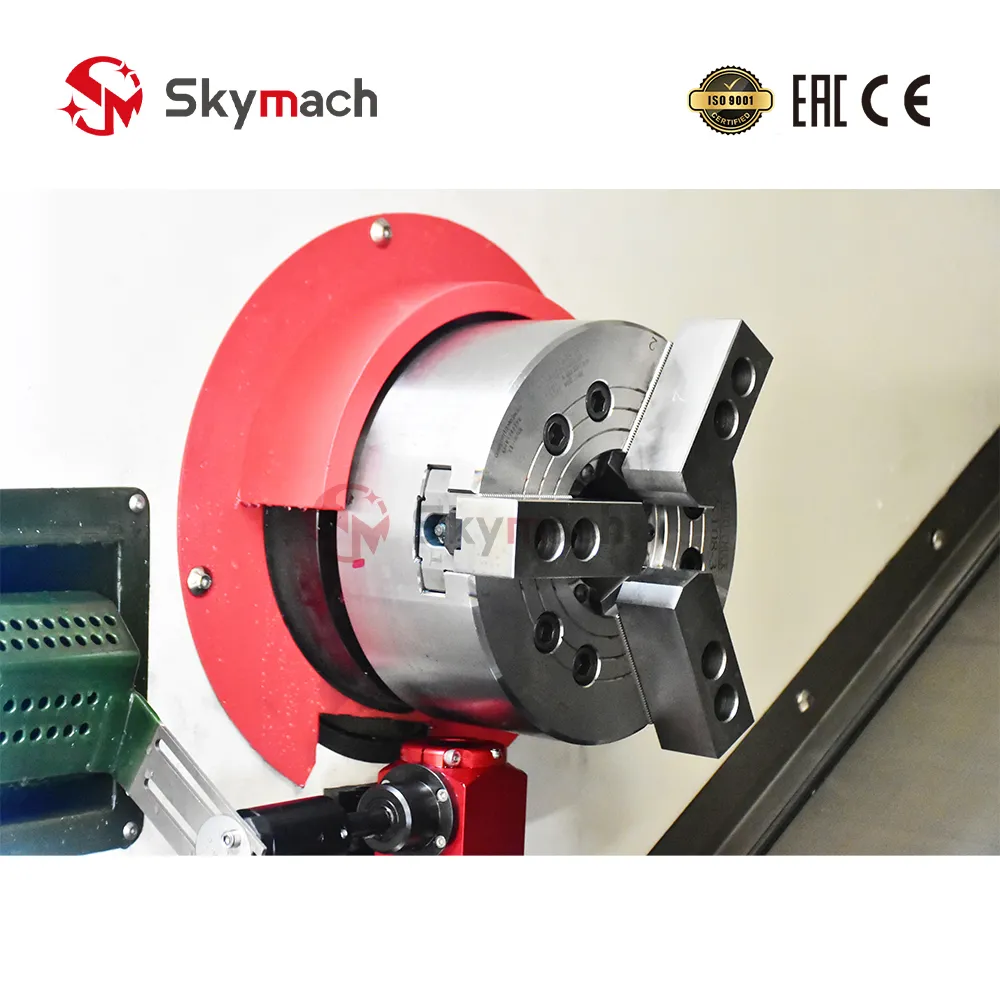

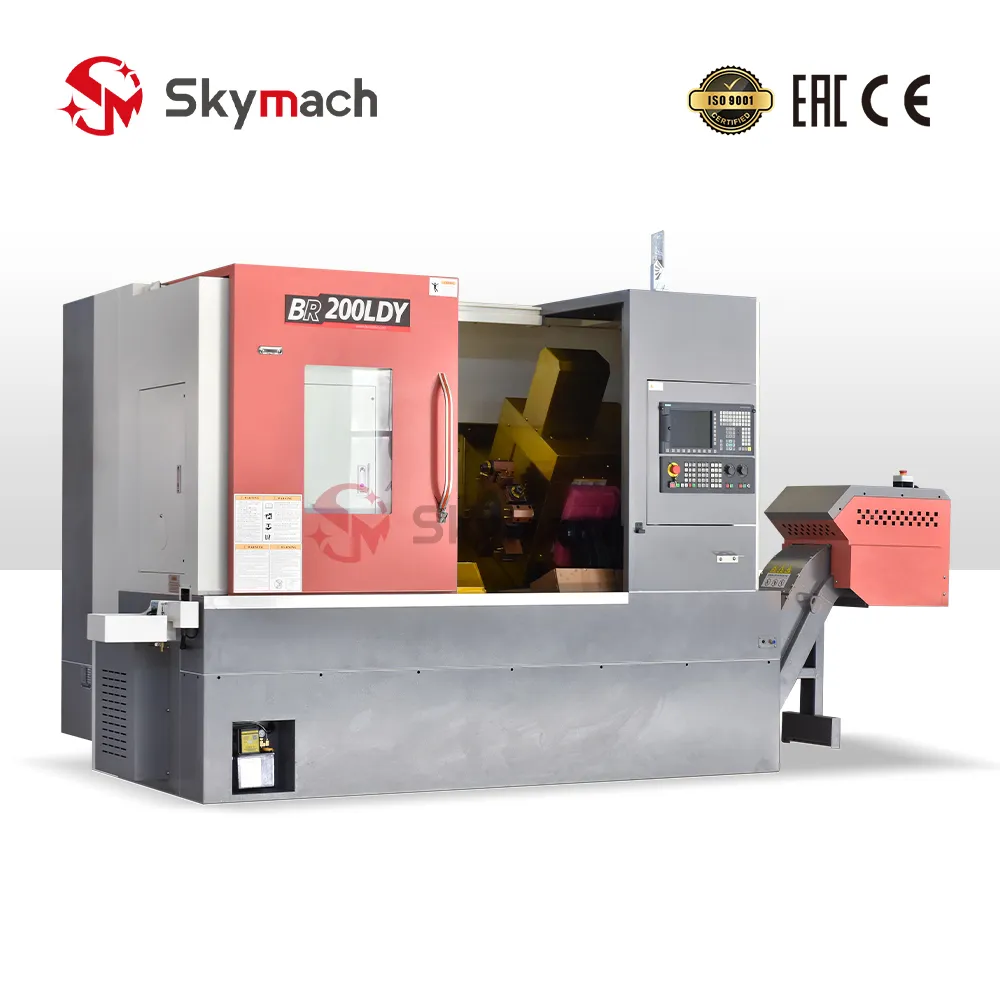

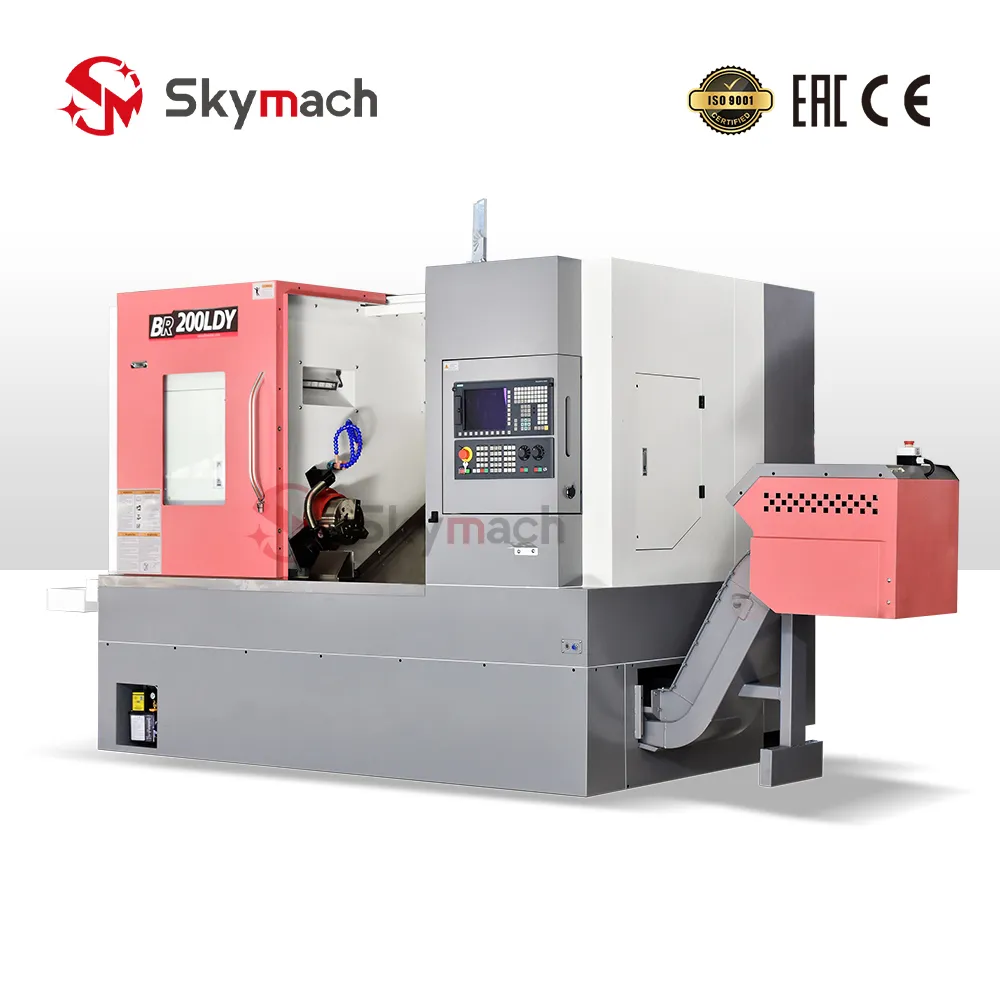

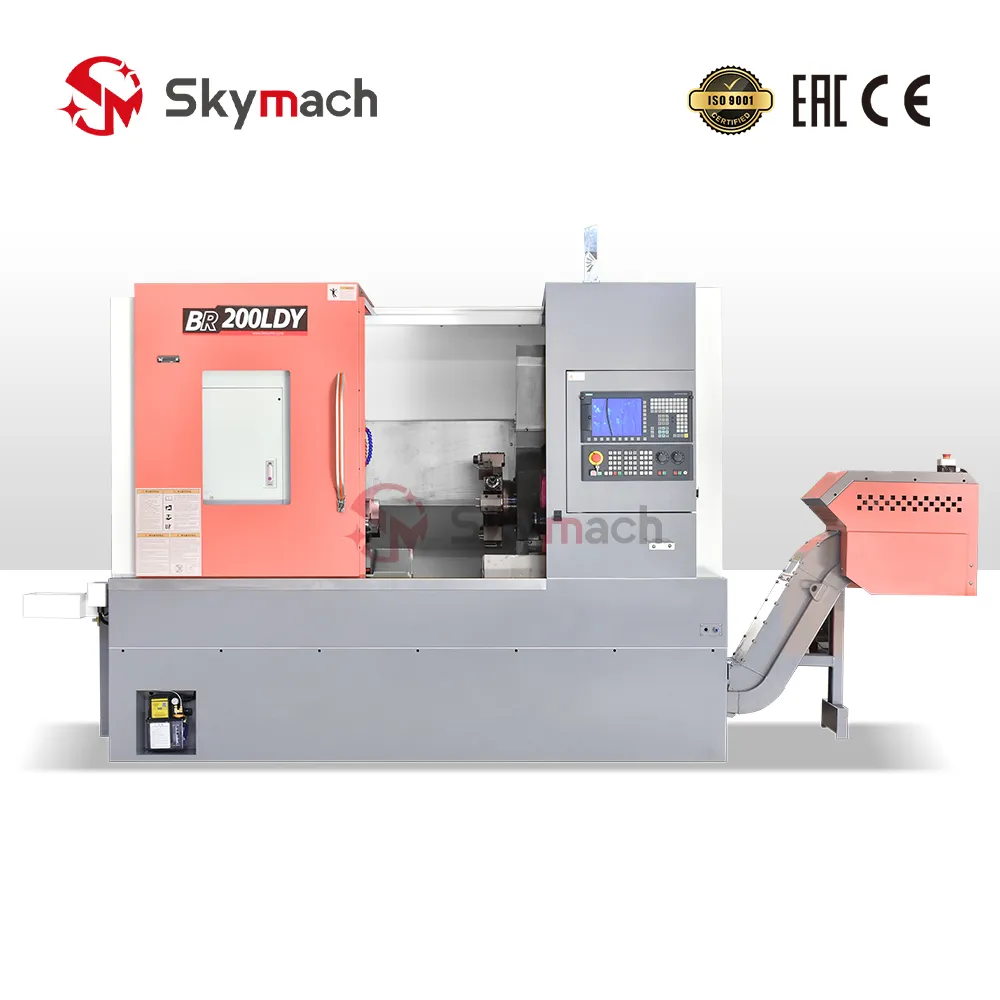

The Skymach BR-200LDY Precision Slant Bed CNC Turn-Mill Center combines full 4-axis multi-tasking capabilities with an orthogonal Y-axis (60 mm / ±30 mm travel on high-rigidity hard rails), a 12-station BMT45/ER25 live tooling power turret (3,000 RPM, 2.5 kW, 1:1 ratio), and a 4,000 RPM A2-6 spindle (8-inch chuck, Φ52 mm bar capacity). Built on a 30° monolithic HT300 cast iron slant bed with heavy 45/45 precision linear guideways, the BR-200LDY completes complex turning, off-center face milling, side slotting, cross-hole drilling, and rigid tapping in a single setup.
Comprehensive Turn-Mill Machining Capabilities
- True Orthogonal Y-Axis: 60 mm (±30 mm) Y-axis stroke supported by box-way hard rails enables high-accuracy off-center milling, flat cutting, and pitch-circle bolt hole drilling without part repositioning.

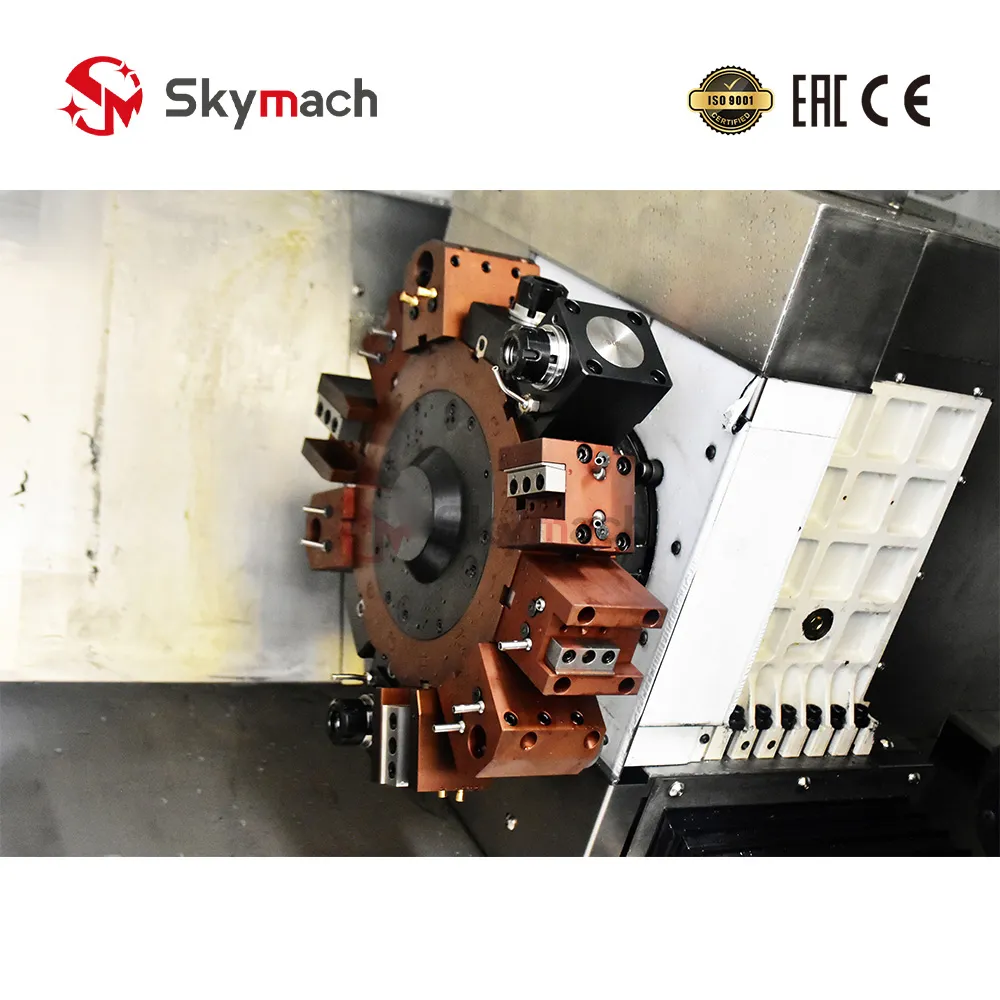

- BMT45 / ER25 Live Tooling Power Turret: Direct 1:1 drive mechanism delivers full 2.5 kW motor power at up to 3,000 RPM to axial and radial milling heads.
- Heavy 45/45 Linear Guideways: Massive 45mm linear rails on X and Z axes absorb heavy interrupted cutting forces, providing smooth, low-friction axis travel.
- Integrated HT300 30° Slant Bed: Coplanar horizontal headstock and tailstock layout delivers extreme dynamic stability and natural gravitational chip evacuation into the standard chip conveyor.
Technical Parameters
| Max. Swing Diameter Over Bed | Φ650 mm |
|---|---|
| Max. Machining Diameter | Φ420 mm |
| Max. Swing Diameter Over Cross Slide | Φ200 mm |
| Max. Processing Length | 450 mm |
| Spindle End Type | A2-6 (8") |
| Spindle Motor Power | 11 kW |
| Spindle Speed | 4000 rpm |
| Spindle Through Hole Diameter | Φ66 mm |
| Through the Bar Diameter | Φ52 mm |
| X / Z Axis Lead Screw Specifications | 3210 / 4010 |
| Y Axis Lead Screw Specification | 2108 |
| X / Z Axis Linear Guide Specifications | 45 / 45 |
| Y Axis Linear Guide Specification | Hard Rail (Box Way) |
| X / Z Axis Limit Travel | 230 / 610 mm |
| Y Axis Limit Travel | 60 (±30) mm |
| X / Z Axis Motor Torque | 11 N.m / 11 N.m |
| Y Axis Motor Torque | 11 N.m |
| X / Z / Y Axis Connection Type | Direct Connection |
| Power Tower | Y-Axis Power Tower |
| Tower Station | 12T |
| Power Head Specification | BMT45 / ER25 |
| Power Head Speed | 3000 rpm |
| Power Head Motor Power | 2.5 kW |
| Transmission Ratio of Power Axis and Tool Apron | 1 : 1 |
| Sleeve Diameter | 80 mm |
| Sleeve Travel | 80 mm |
| Tailstock Max. Travel | 450 mm |
| Tailstock Sleeve Taper | MT4 |
| Bed Type and Inclination | Integrated / 30° |
| Machine Size (L * W * H) | 1730 x 1273 x 1700 mm |
