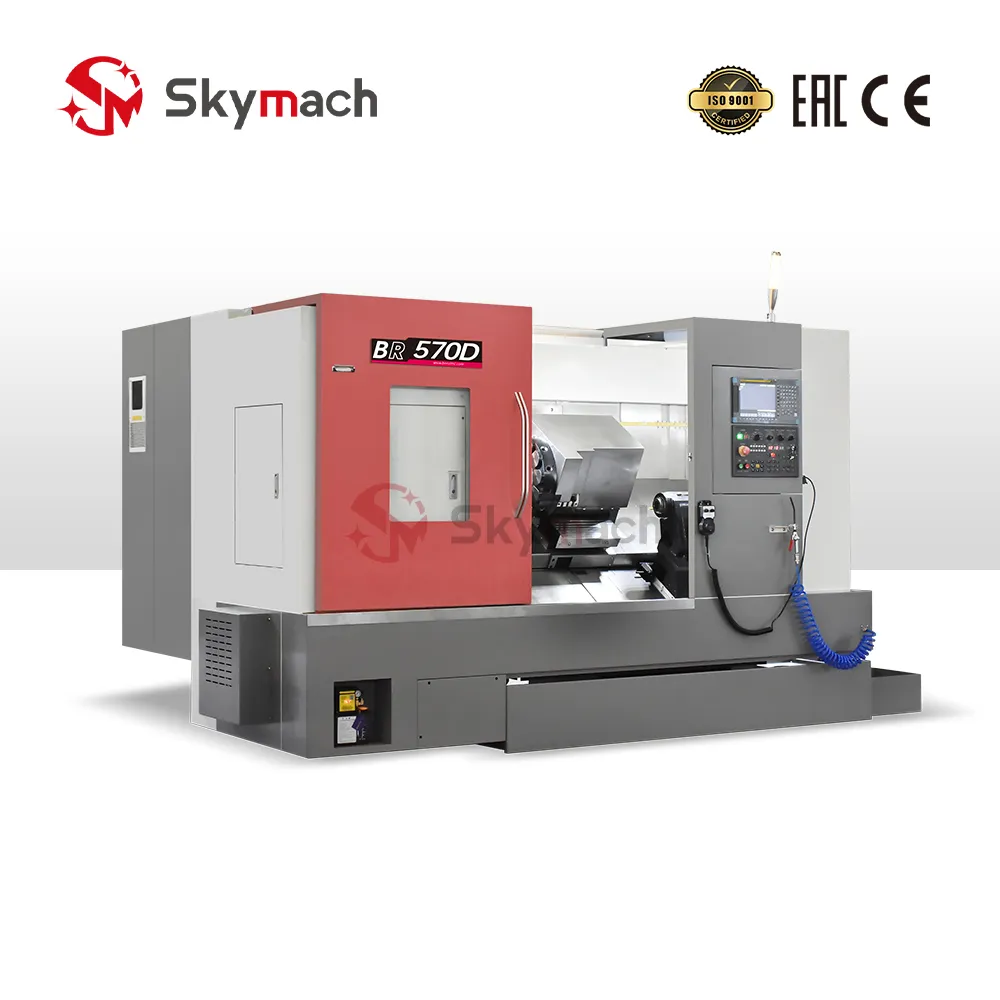

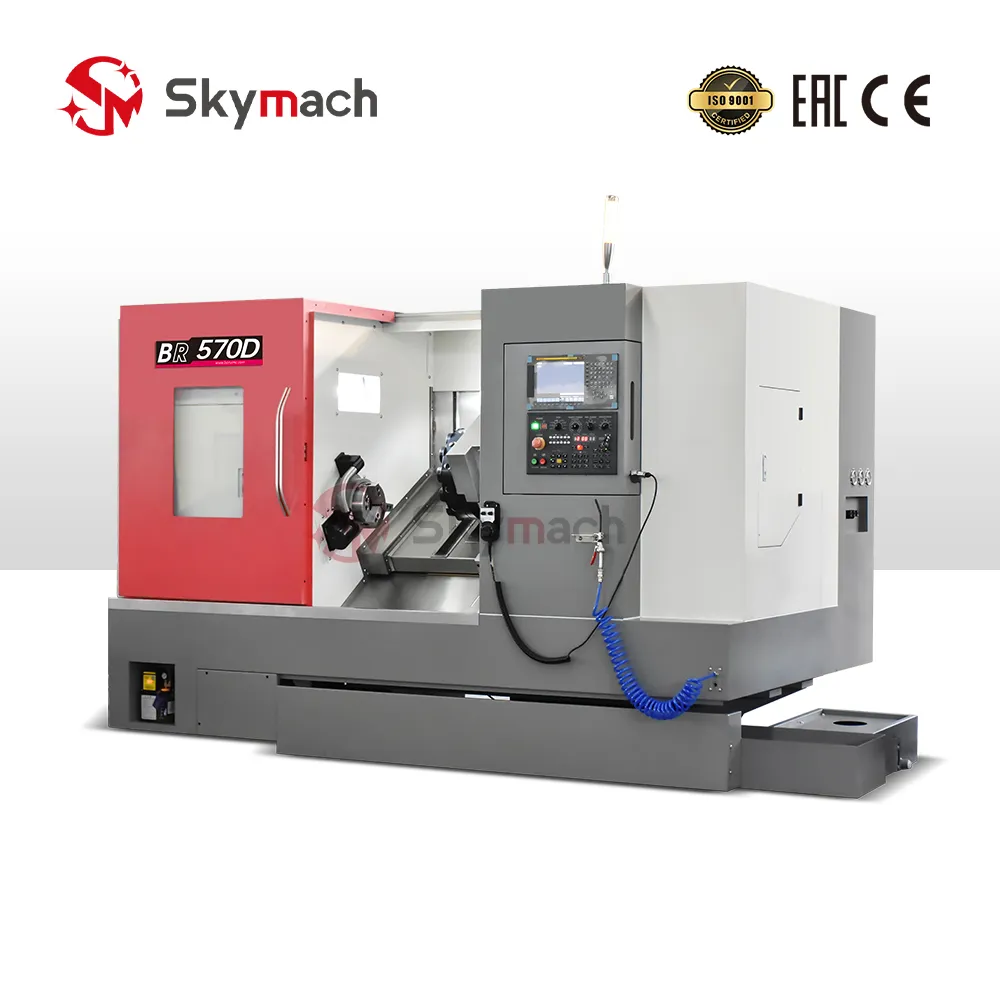

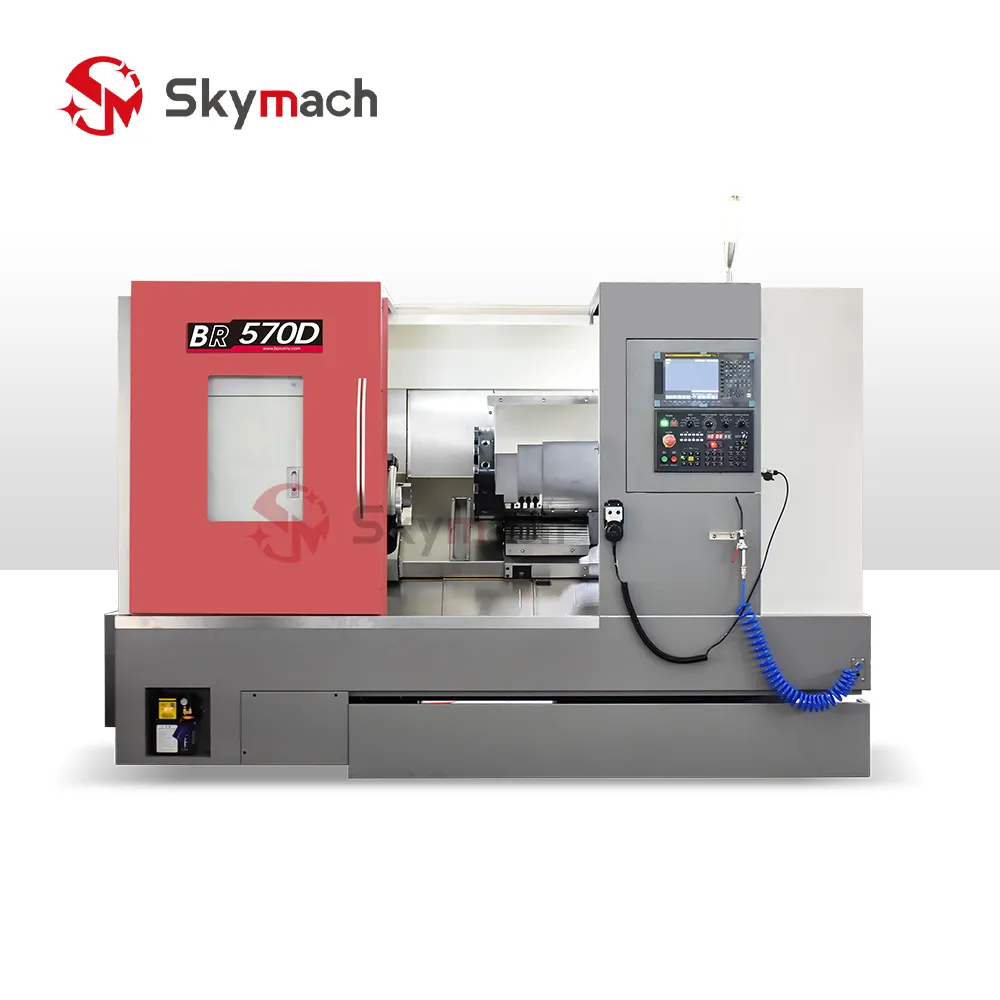

The Skymach BR570D Precision Slant Bed CNC Turning Center elevates turning productivity with a 12-station BMT55 live tooling power turret, built upon a rigid monolithic 30° HT300 cast iron slant bed with heavy 45/45 linear guideways. Featuring an enlarged Φ650 mm swing over bed and an 11-15 kW high-speed spindle (up to 4,200 RPM), the BR570D performs heavy-duty turning together with high-torque axial and radial milling, off-center cross-drilling, and rigid tapping in a single clamping.
Comprehensive Turn-Mill Capabilities

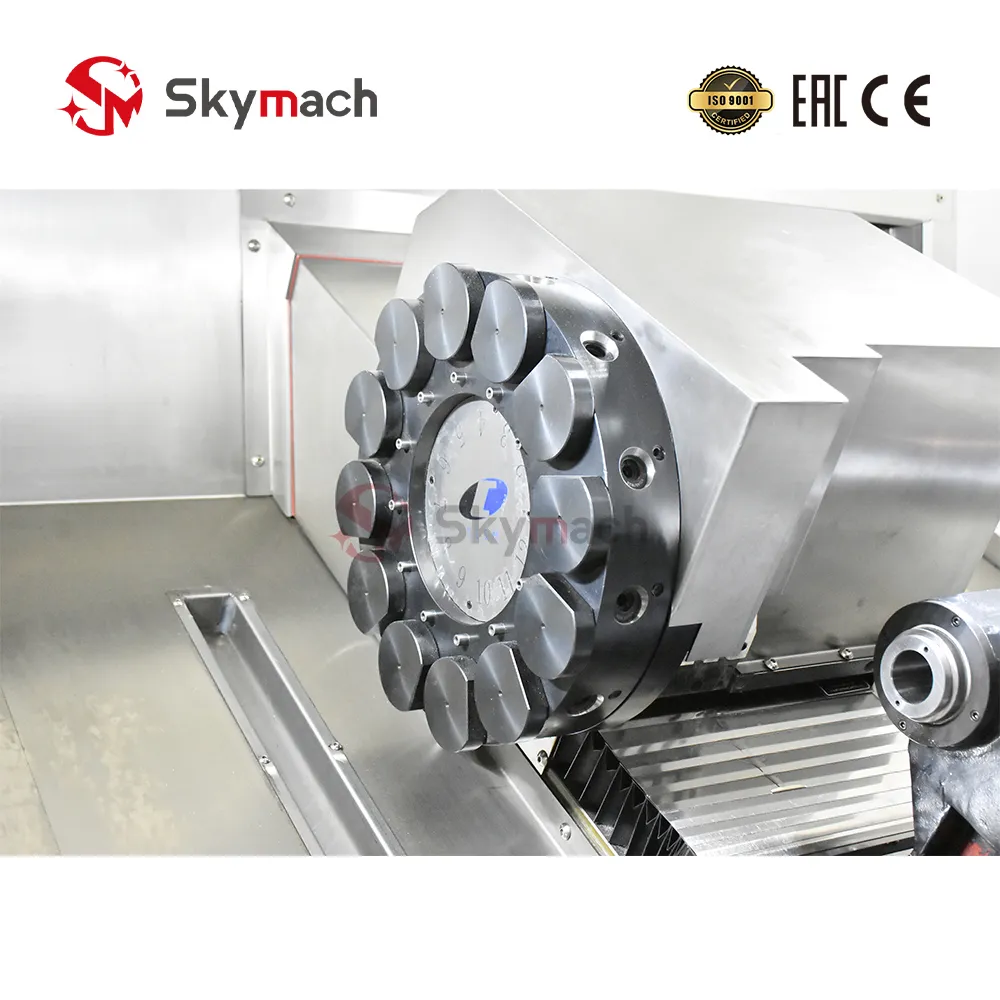

- BMT55 Live Tooling Power Turret: 12-station heavy-duty turret driven by a dedicated high-power servo motor delivers full cutting power to live rotary tools.
- Enlarged Φ650 mm Swing Over Bed: Accommodates large-diameter flanged parts, valve bodies, and forged fittings with generous clearance.

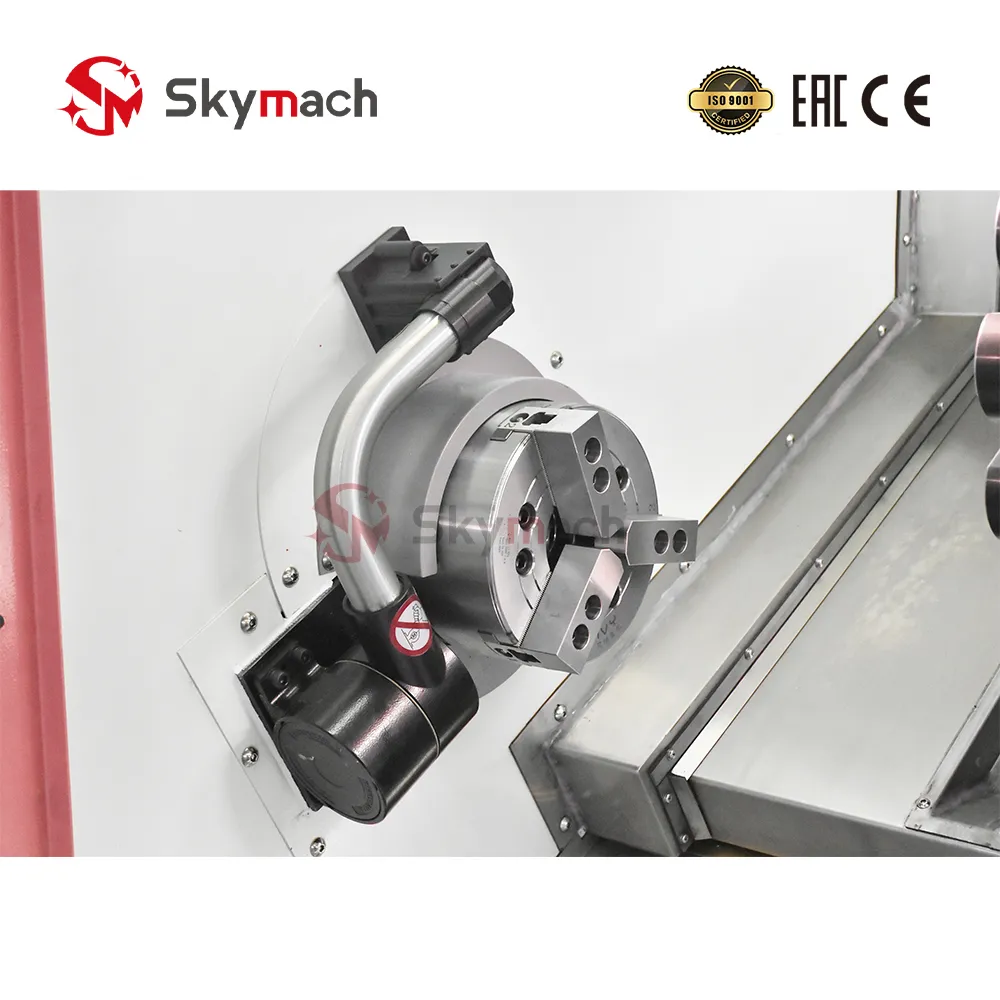

- High-Dynamic A2-6 / A2-8 Spindle: Dynamic balancing ensures vibration-free rotation at 4,200 RPM (A2-6) or 3,500 RPM (A2-8) with abundant torque.
- Monolithic 30° Slant Bed in HT300: Offers supreme dynamic stiffness, thermal stability, and natural gravitational chip flow directly to the chip conveyor.
Technical Parameters
| Max. Swing Diameter Over Bed | Φ650 mm |
|---|---|
| Max. Swing Diameter Over Slide | Φ380 mm |
| Max. Machining Diameter Over Tool Holder | Φ380 mm |
| Max. Processing Length | 480 / 700 / 950 mm |
| Spindle Nose Type (Optional Chuck Inch) | A2-6 (8") / A2-8 (10") |
| Recommended Spindle Motor Power | 11 - 15 kW |
| Spindle Maximum Speed | 4200 / 3500 rpm |
| Spindle Hole Diameter | Φ66 / Φ86 mm |
| Bar Diameter | Φ52 / Φ72 mm |
| X Axis Screw Specifications | 3210 |
| Z Axis Screw Specifications | 4010 |
| X Axis Limit Travel | 260 mm |
| Z Axis Limit Travel | 610 / 830 / 1050 mm |
| Recommended X / Z Axis Motor Torque | 11 N.m / 15 N.m |
| X / Z Axis Rail Specifications | 45 / 45 |
| X / Z Axis Connection Mode | Direct Connection |
| Turret | 12T Power Turret BMT55 |
| Recommended Turret Center Height Dimension | 100 / 170 / 170 mm |
| Sleeve Diameter | 80 mm |
| Sleeve Travel | 80 mm |
| Max. Travel of Tailstock | 500 / 750 / 1000 / 1500 mm |
| Tailstock Sleeve Tapered Hole | Morse 5# (MT5) |
| Bed Type and Inclination | Integrated / 30° |
| Machine Size (L * W * H) | 2800 / 3000 / 3360 / 3860 x 2100 x 2250 mm |
| Weight (Approx. Weight) | 3700 / 4200 / 5000 kg |
