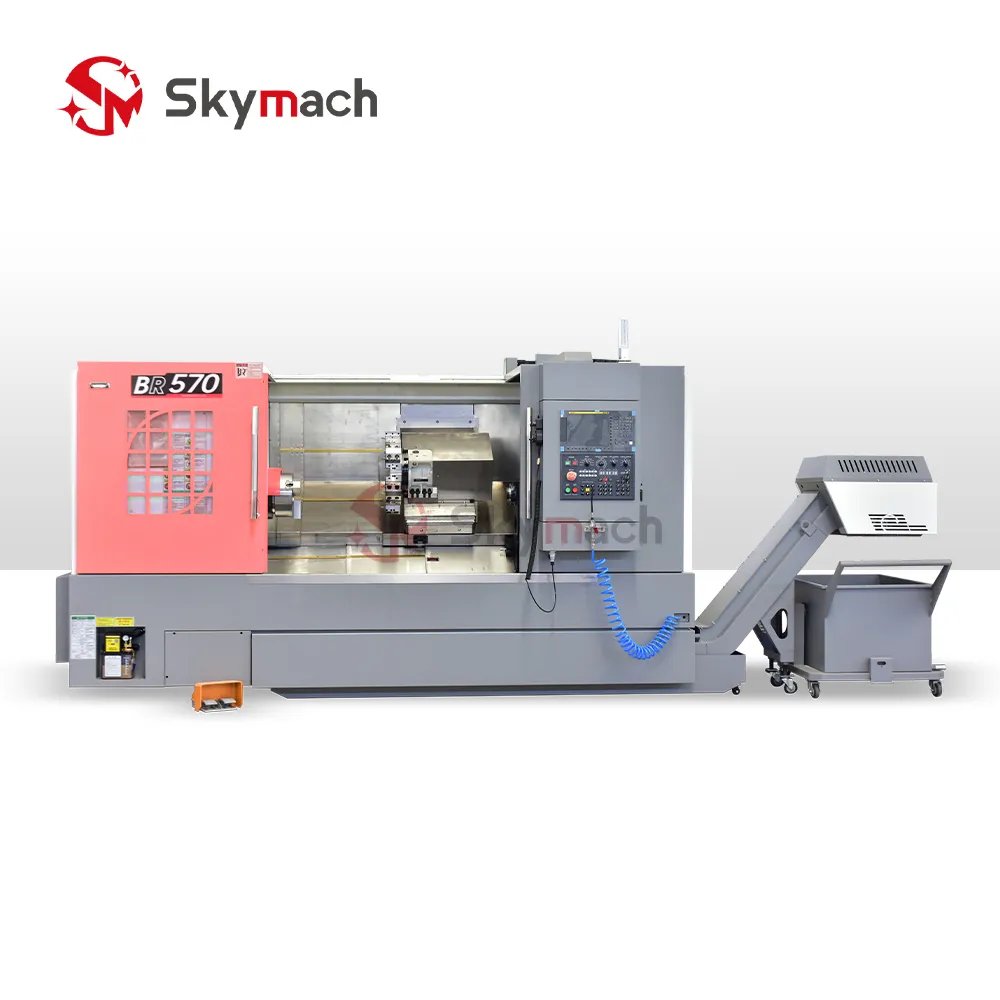

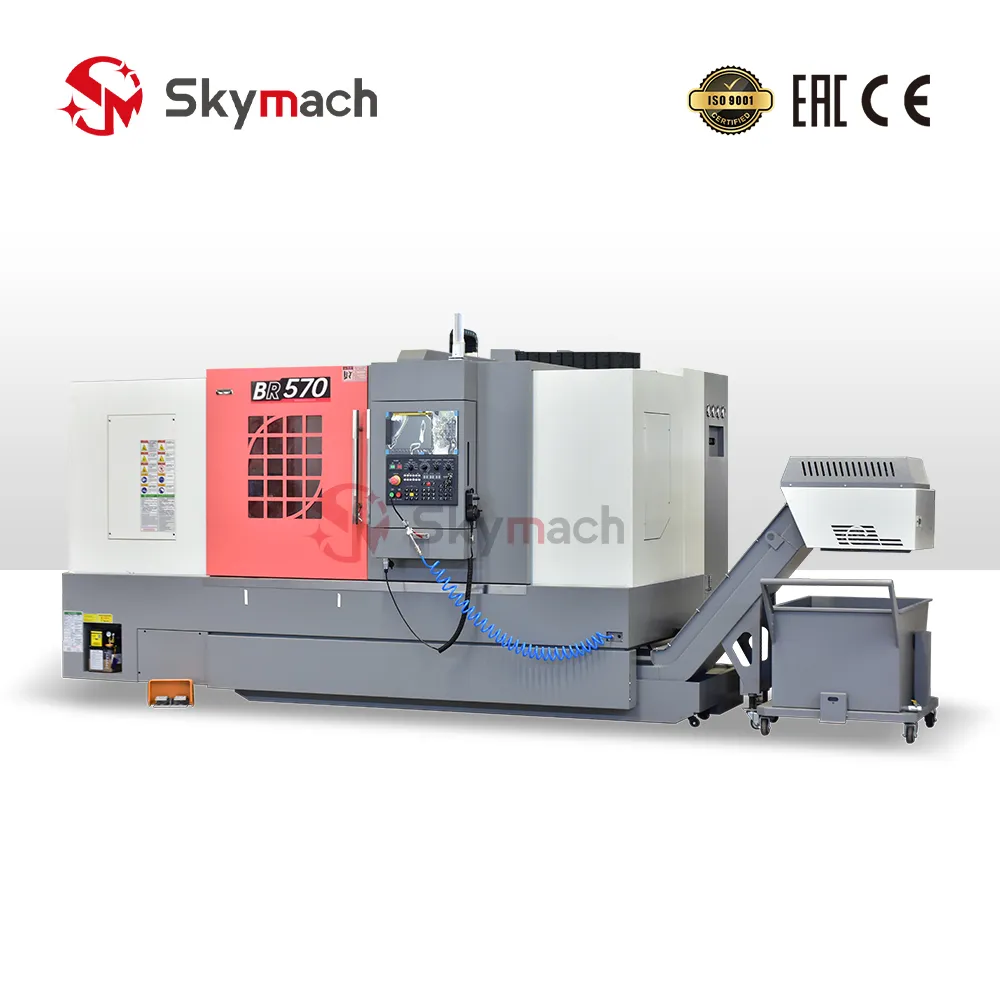

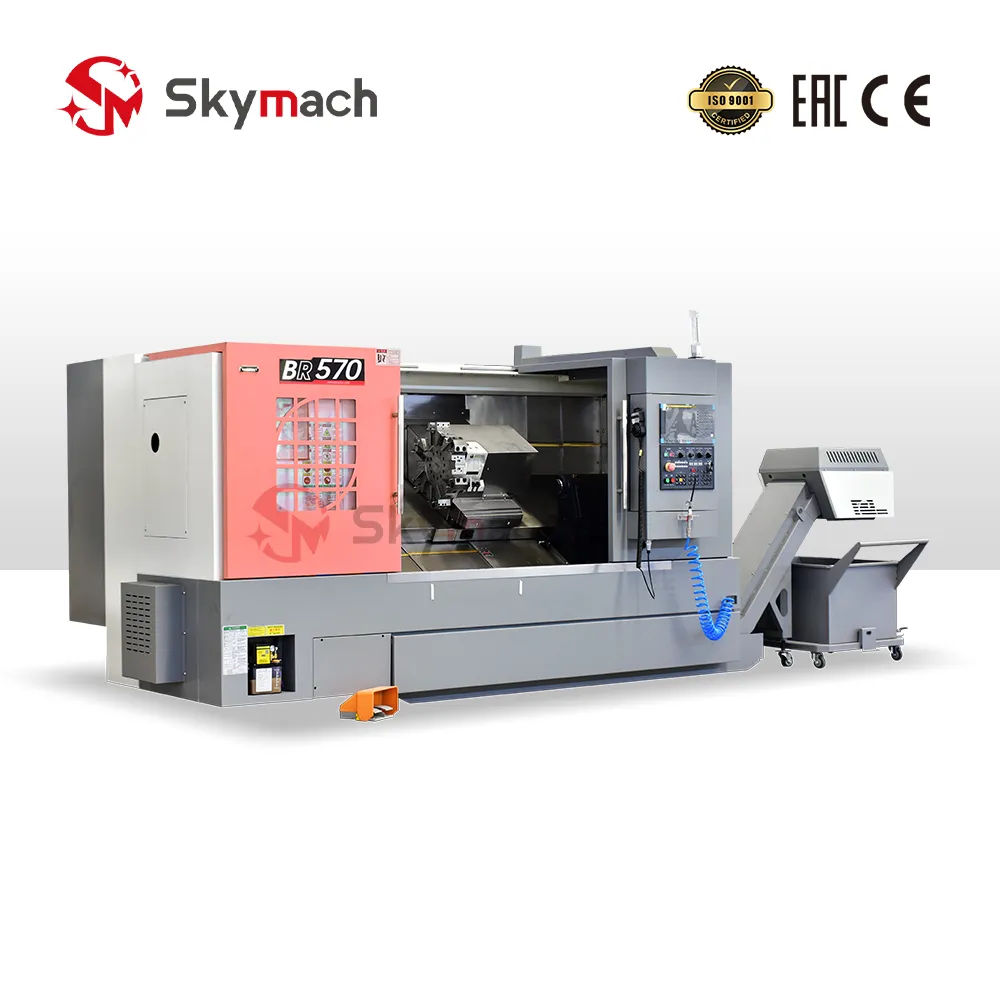

The Skymach BR570 High-Precision Slant Bed CNC Lathe is engineered on a monolithic 30° HT300 cast iron slant bed equipped with Taiwan heavy 45/45 precision linear guideways, a CLT-100-12T hydraulic servo tool turret (100 mm center height), and a dynamic balanced spindle (up to 4,200 RPM with 11-15 kW power). Offering maximum turning lengths from 480 mm up to 1,500 mm and a heavy MT5 tailstock, the BR570 provides high thermal stability, exceptional rigidity, and rapid chip flow for automotive, aerospace, pipe fitting, and machinery manufacturing.
Comprehensive Turning Capabilities
- Monolithic 30° Slant Bed: Integrated high-strength HT300 cast base dampens vibrations under heavy interrupted cuts and channels hot chips smoothly to the chip conveyor.

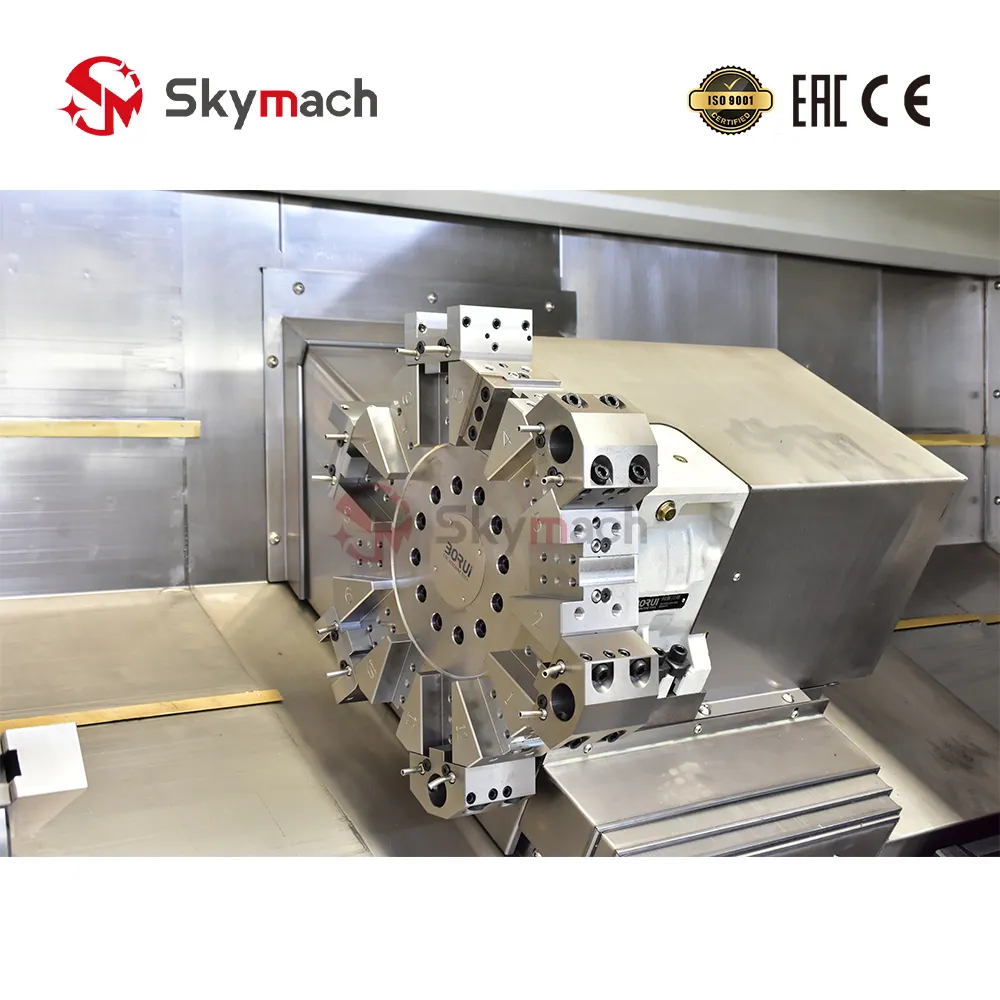

- CLT-100-12T Servo Turret: 12-station hydraulic servo indexing mechanism ensures ultra-fast tool changes, minimal non-cutting cycle times, and repeat accuracy.
- Dual Spindle Options: Choice of A2-6 (8-inch chuck, 4,200 RPM, Φ52 mm bar) or A2-8 (10-inch chuck, 3,500 RPM, Φ72 mm bar) to match exact machining requirements.
- Taiwan 45/45 Precision Linear Rails: Low-friction high-rigidity linear guideways with direct-drive servos provide precision contouring and 24 m/min rapid axis traversal.
Technical Parameters

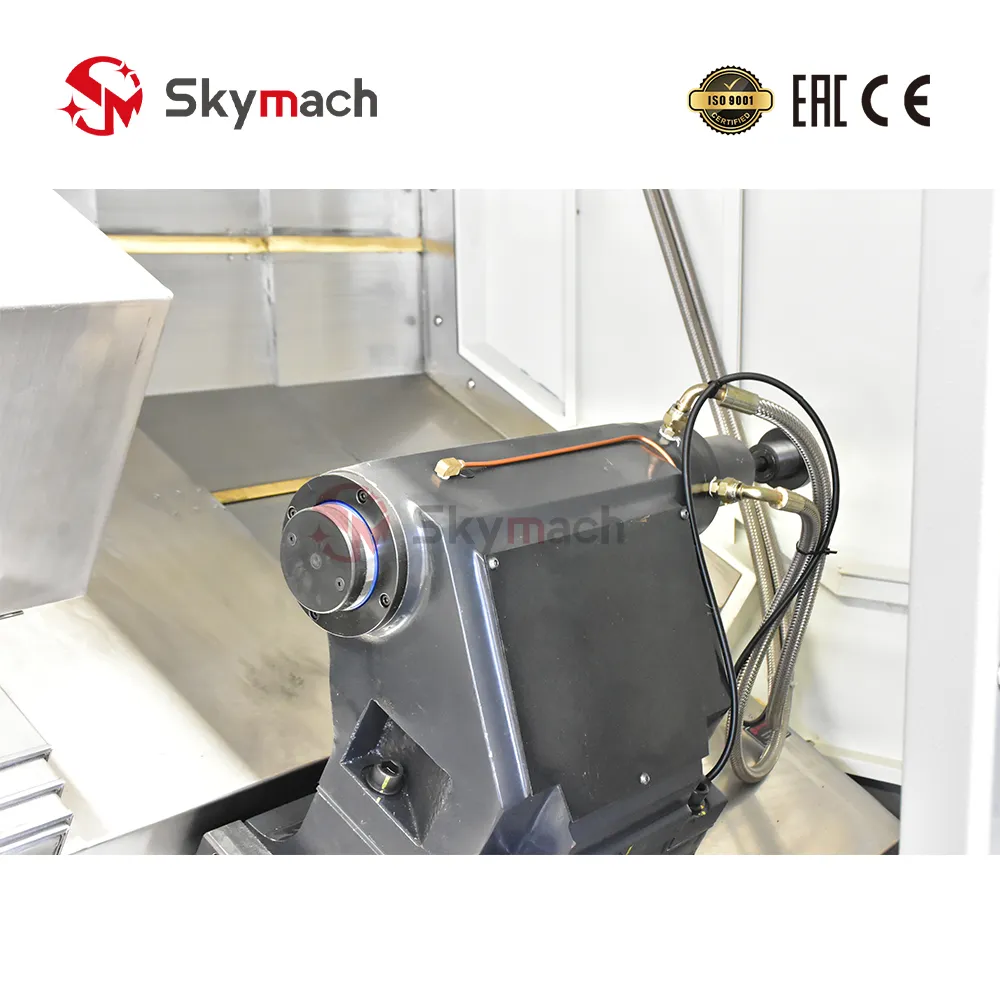

| Max. Swing Diameter Over Bed | Φ560 mm |
|---|---|
| Max. Swing Diameter Over Slide | Φ470 mm |
| Max. Machining Diameter Over Tool Holder | Φ330 mm |
| Max. Processing Length | 480 / 750 / 960 / 1500 mm |
| Spindle Nose Type (Optional Chuck Inch) | A2-6 (8") / A2-8 (10") |
| Recommended Spindle Motor Power | 11 - 15 kW |
| Spindle Maximum Speed | 4200 / 3500 rpm |
| Spindle Hole Diameter | Φ66 / Φ86 mm |
| Bar Diameter | Φ52 / Φ72 mm |
| X Axis Screw Specifications | 3210 |
| Z Axis Screw Specifications | 4010 |
| X Axis Limit Travel | 260 mm |
| Z Axis Limit Travel | 610 / 830 / 1050 / 1570 mm |
| Recommended X / Z Axis Motor Torque | 11 N.m / 11 N.m (11 N.m / 15 N.m) |
| X / Z Axis Rail Specifications | 45 / 45 |
| X / Z Axis Connection Mode | Direct Connection |
| Turret | CLT-100-12T 12-Station Hydraulic Servo Turret |
| Recommended Turret Center Height Dimension | 100 mm |
| Sleeve Diameter | 80 mm |
| Sleeve Travel | 80 mm |
| Max. Travel of Tailstock | 500 / 750 / 1000 / 1500 mm |
| Tailstock Sleeve Tapered Hole | Morse 5# (MT5) |
| Bed Type and Inclination | Integrated / 30° |
| Machine Size (L * W * H) | 2800 / 3000 / 3360 / 3860 x 2100 x 2250 mm |
| Weight (Approx. Weight) | 3700 / 4200 / 5000 / 5100 kg |
