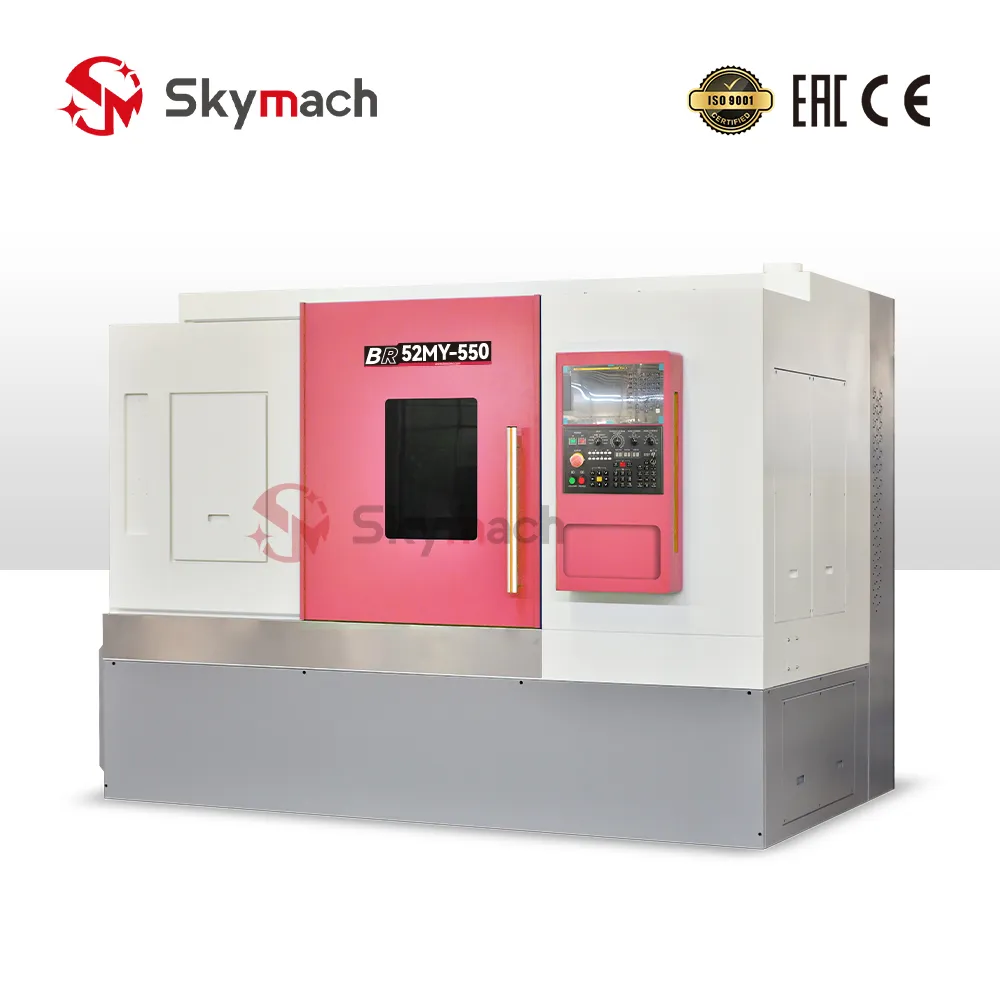

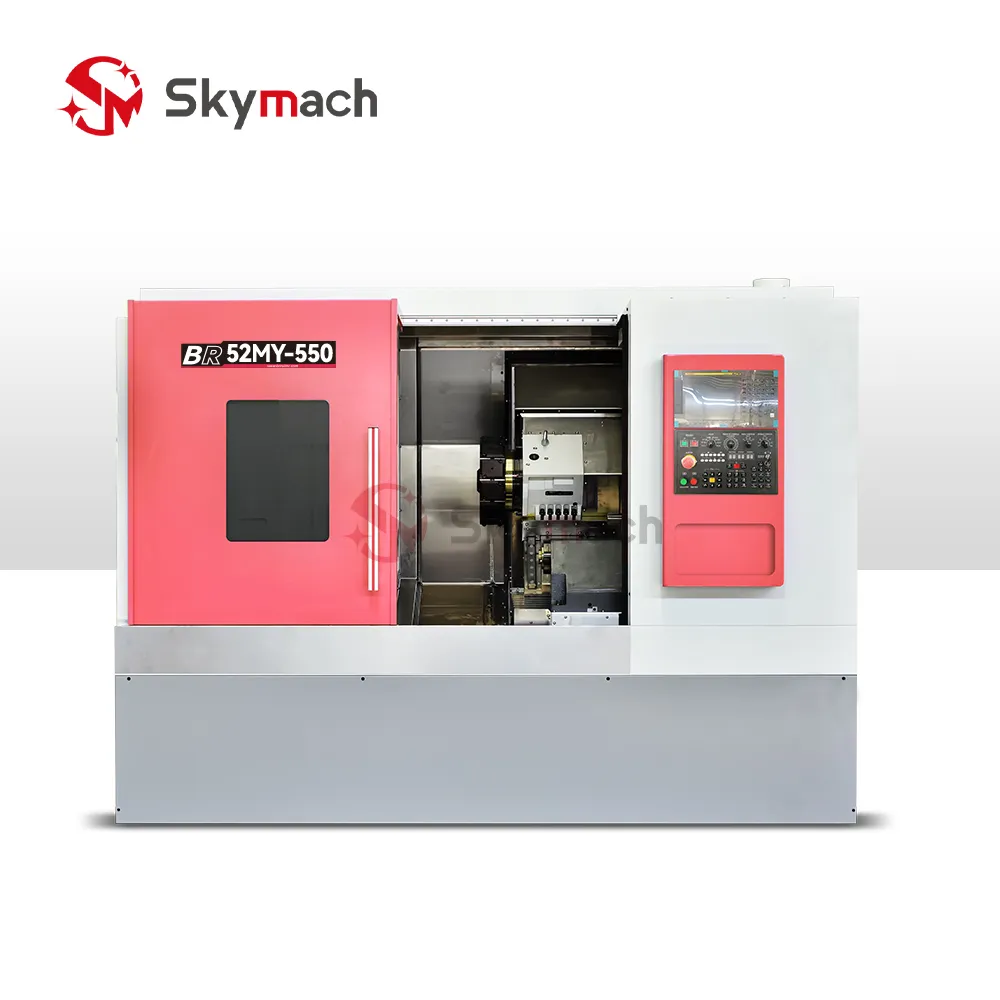

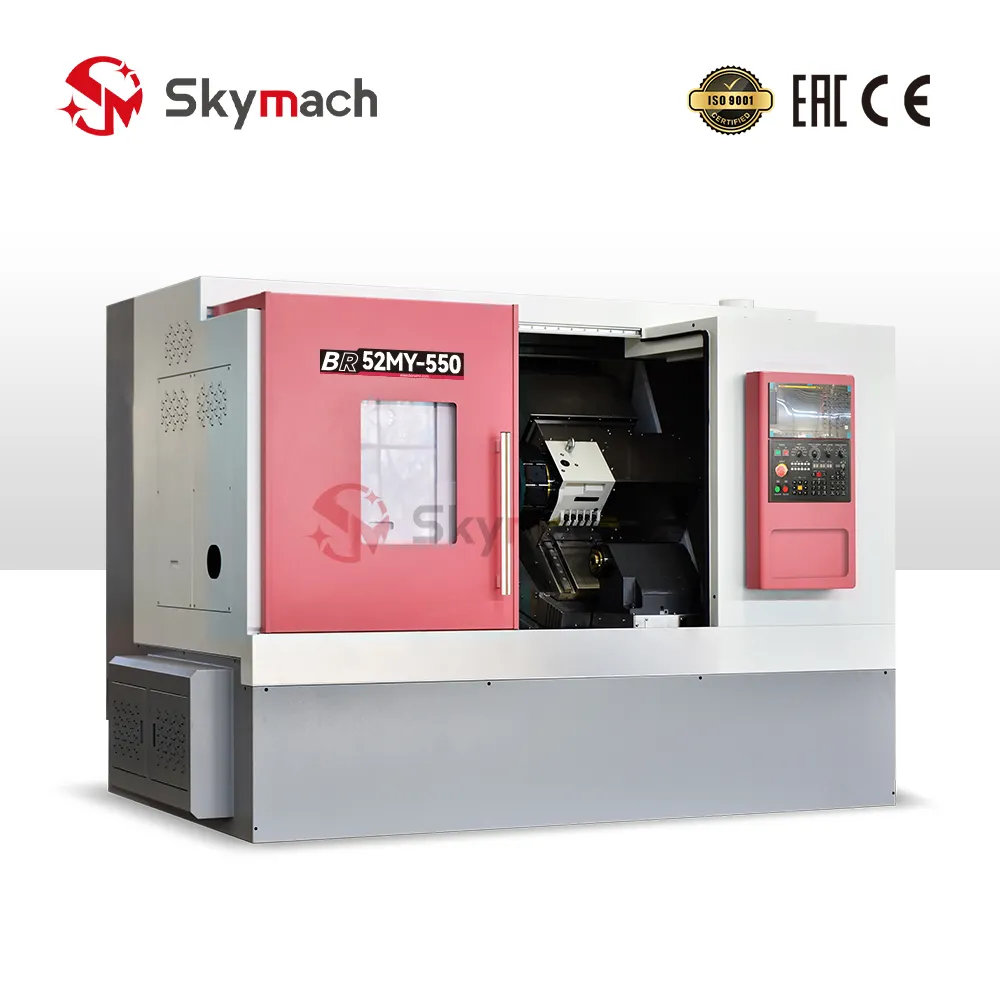

The Skymach BR52MY-550 Compensation Y-Axis Slant Bed CNC Turn-Mill Compound Lathe is built on a 30° monolithic HT300 cast iron slant bed equipped with compensation Y-axis travel (+58 mm / -58 mm), heavy-duty roller guideways (X/Y: 35 roller, Z: 45 roller), an A2-6 spindle (4,500 RPM, Φ52 mm bar capacity), and a BMT45 (15T) / BMT55 (12T) live tooling power turret. Engineered for high-efficiency multi-tasking, the BR52MY-550 combines turning, off-center milling, helical grooving, and tapping into a single automated cycle.
Comprehensive Machining Capabilities
- Compensation Y-Axis Flexibility: Full orthogonal Y-axis stroke up to 116 mm (+58/-58 mm) enables complex off-center pocket milling, radial drilling, and keyway slotting.

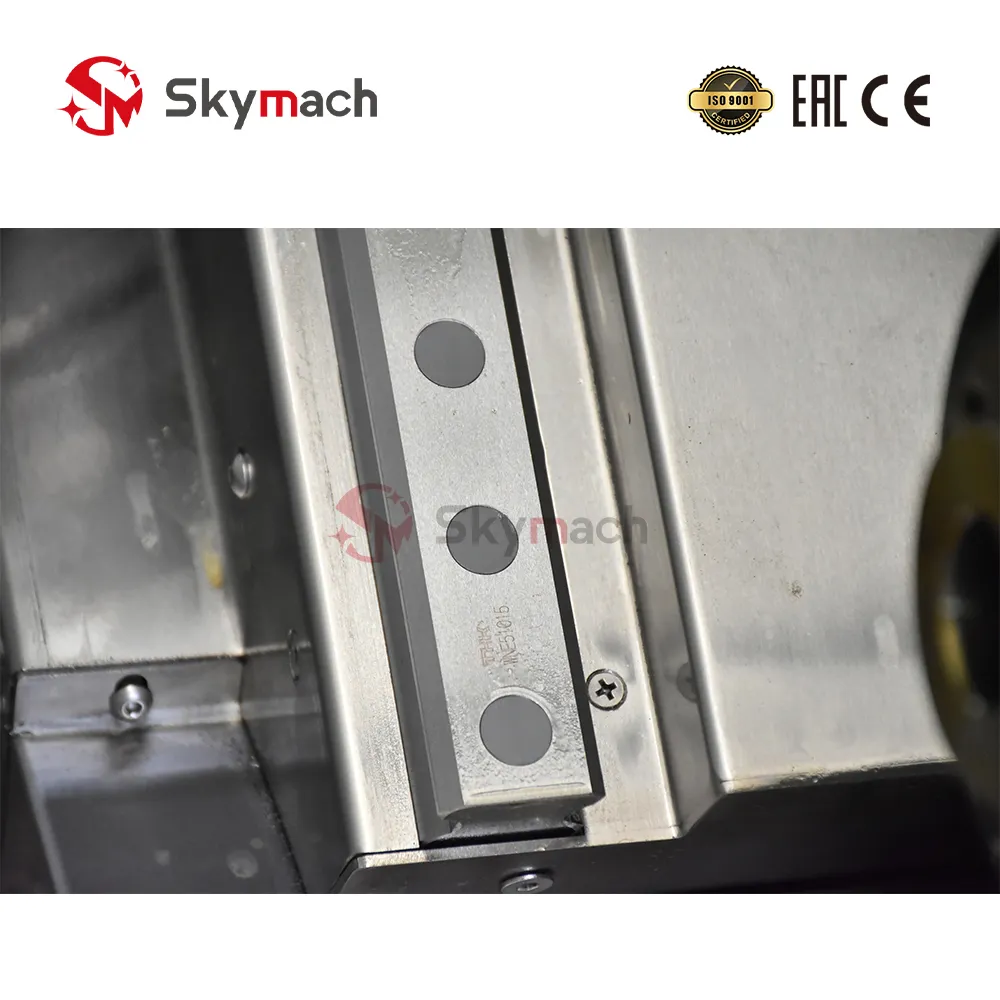

- Heavy Roller Guideway Rigidity: 35mm roller guides on X/Y and 45mm roller guides on Z axis provide exceptional dynamic stiffness and vibration damping.
- High-Speed A2-6 Spindle: 0 - 4,500 RPM spindle with 8YU timing belt drive delivers high torque at low speeds and fine surface finishing at high speeds.
Key Engineering Highlights

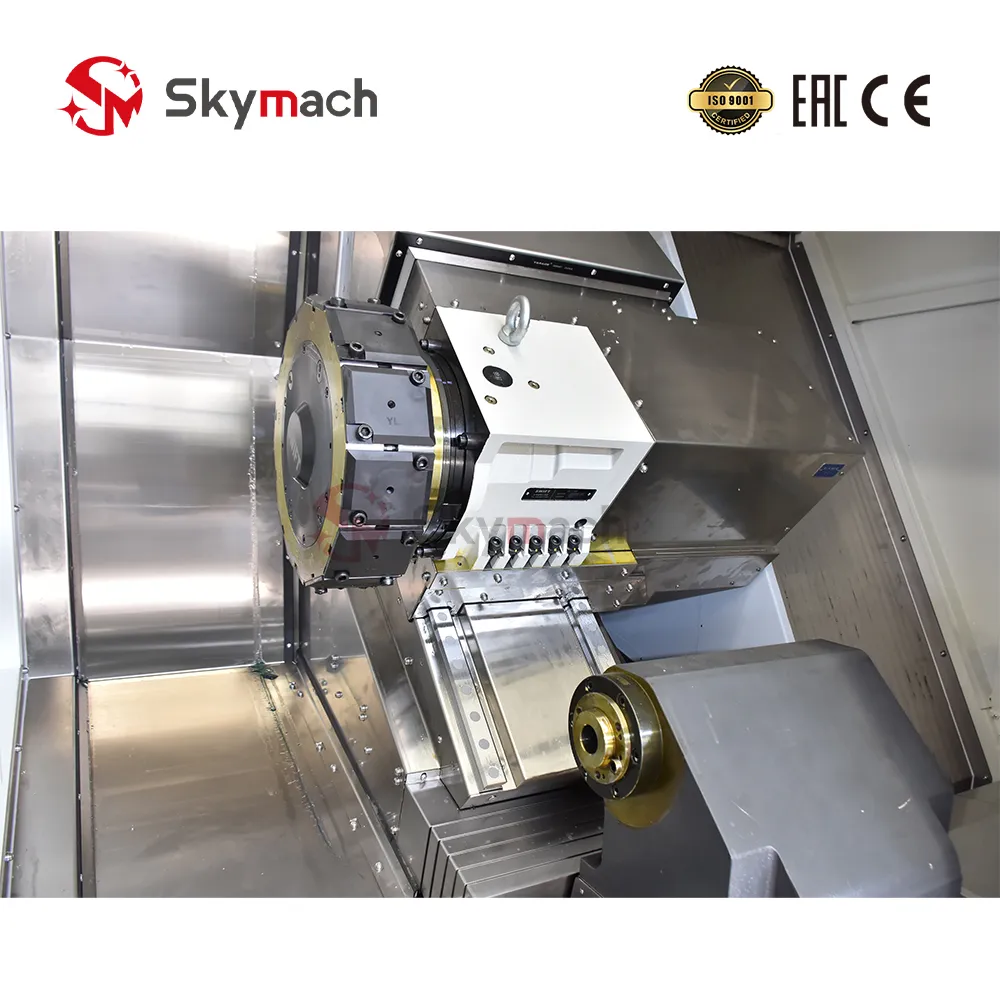

- Programmable Servo Tailstock: 500 mm travel servo-driven tailstock with MT4 center provides rigid, automated positioning for shaft machining.
- Ultra-Precise Motion: C3-grade preloaded ball screws and P4-grade bearings achieve repeat positioning accuracy of ±0.003 mm.
- HT300 Monolithic Cast Foundation: Dampens cutting harmonics and channels hot chips smoothly into the rear-discharge conveyor.
Technical Parameters
| Max. Swing Diameter Over Bed | 600 mm |
|---|---|
| Max. Machining Diameter (Disk Parts) | 300 mm |
| Max. Turning Length | 550 mm |
| Max. Milling Length | 620 mm |
| Minimum Distance From Jaw to Cutter | -70 mm |
| Max. Distance From Jaw to Cutter | 550 mm |
| Center Height of Countertop | 100 mm |
| Workbench Size | 488 x 388 mm |
| Spindle Structure | High rigidity integral mechanical spindle / electric spindle |
| Spindle Nose Type | A2-6 |
| Spindle Through Hole Diameter | Φ66 mm |
| Spindle Speed | 0 - 4500 rpm |
| Main Shaft Belt Tooth Profile | 8YU |
| Tip Model | Morse Taper MT 4 (fixed center) |
| Tailstock Structure | Servo Tailstock |
| Tailstock Travel | 500 mm |
| Max. Distance From Jaw to Tip | 630 mm |
| Feed Motor Flange | Model 130 / Model 174 |
| X / Y / Z / Tailstock Guide Model | X: 35 Roller / Y: 35 Roller / Z: 45 Roller / Tailstock: 35 Roller |
| X / Y / Z / Tailstock Screw Model | 3210-C3 |
| Screw Bearing | 2562-P4 |
| X-Axis Max. Travel (Cutter Size 330mm) | 260 mm (-110 mm to +150 mm) |
| Y-Axis Max. Travel | +58 ~ -50 mm (85mm center height) / +58 ~ -58 mm (100mm center height) |
| Z-Axis Max. Travel | 620 mm |
| Fast Positioning Speed (X / Y / Z / Tailstock) | X: ≤24 m/min | Y: ≤10 m/min | Z: ≤24 m/min | Tailstock: ≤10 m/min |
| Repeat Positioning Accuracy (X / Y / Z) | ±0.003 mm / ±0.003 mm / ±0.003 mm |
| Power Tool Turret | BMT45 (15 Position) / BMT55 (12 Position) |
