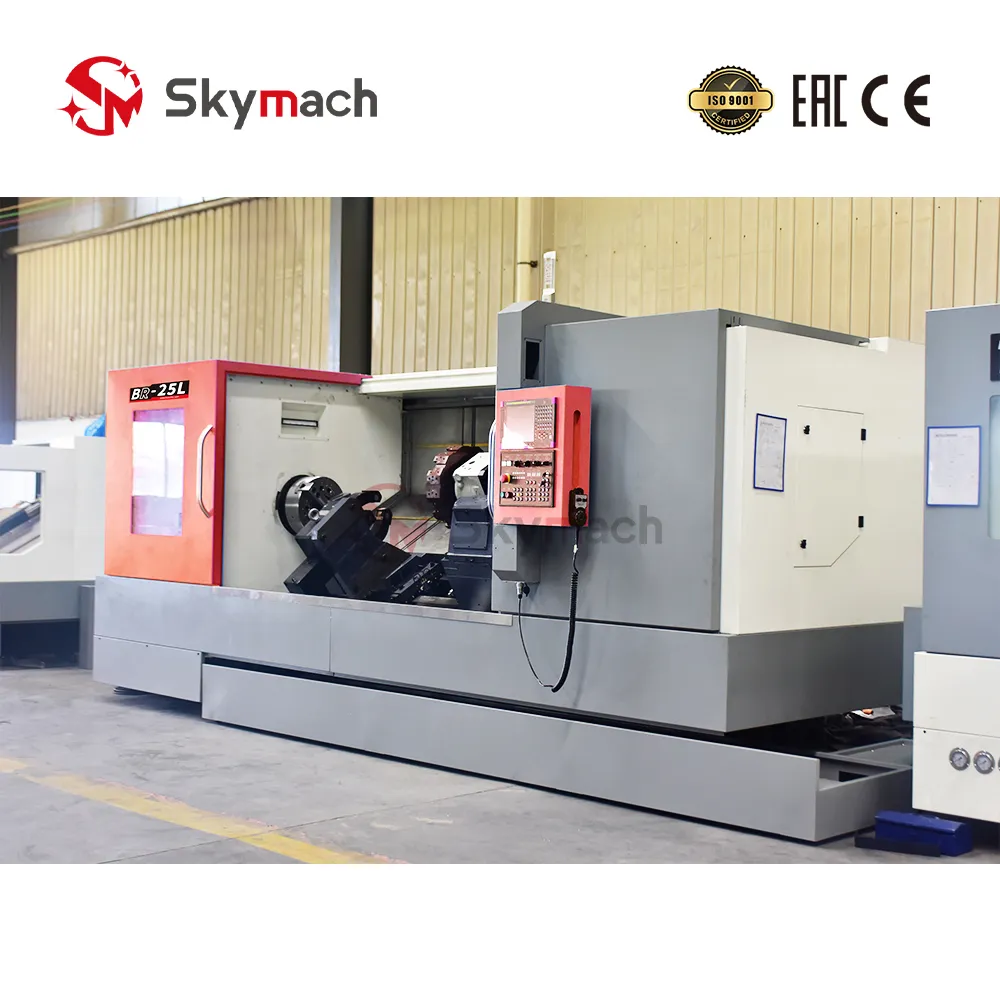

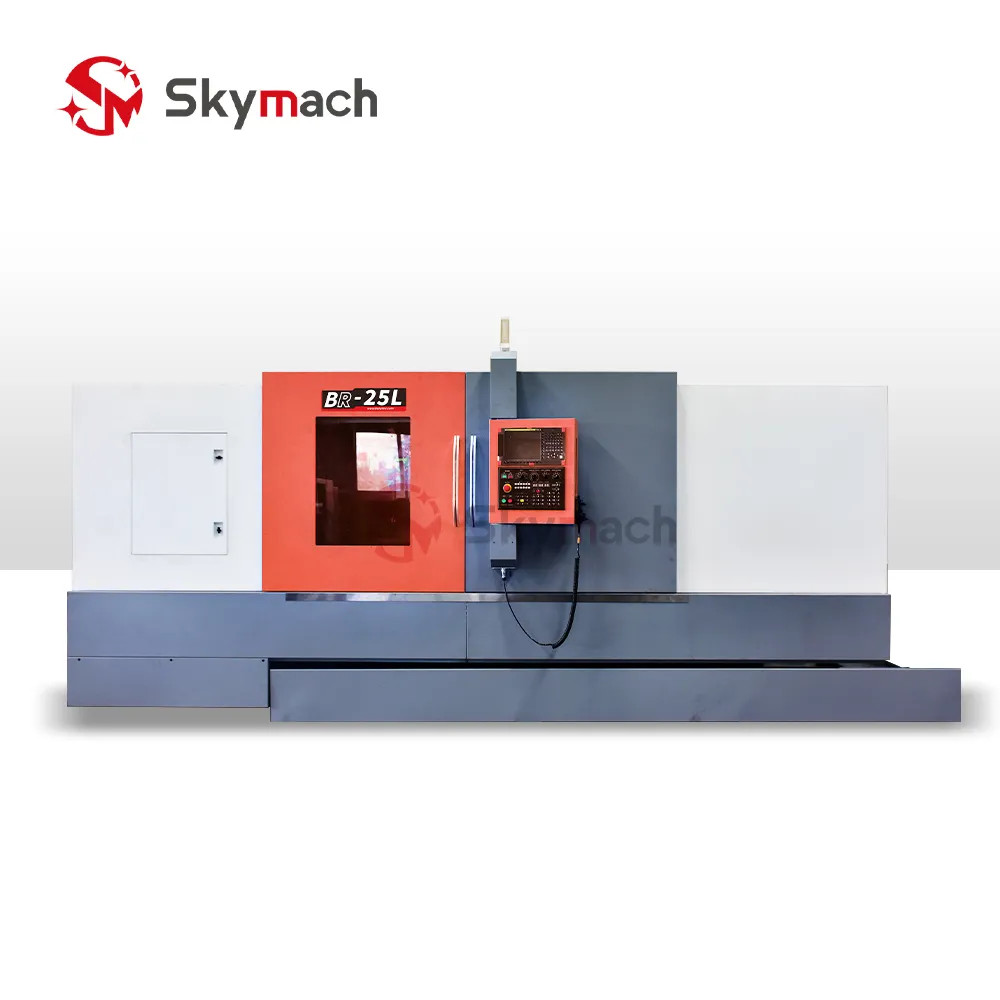

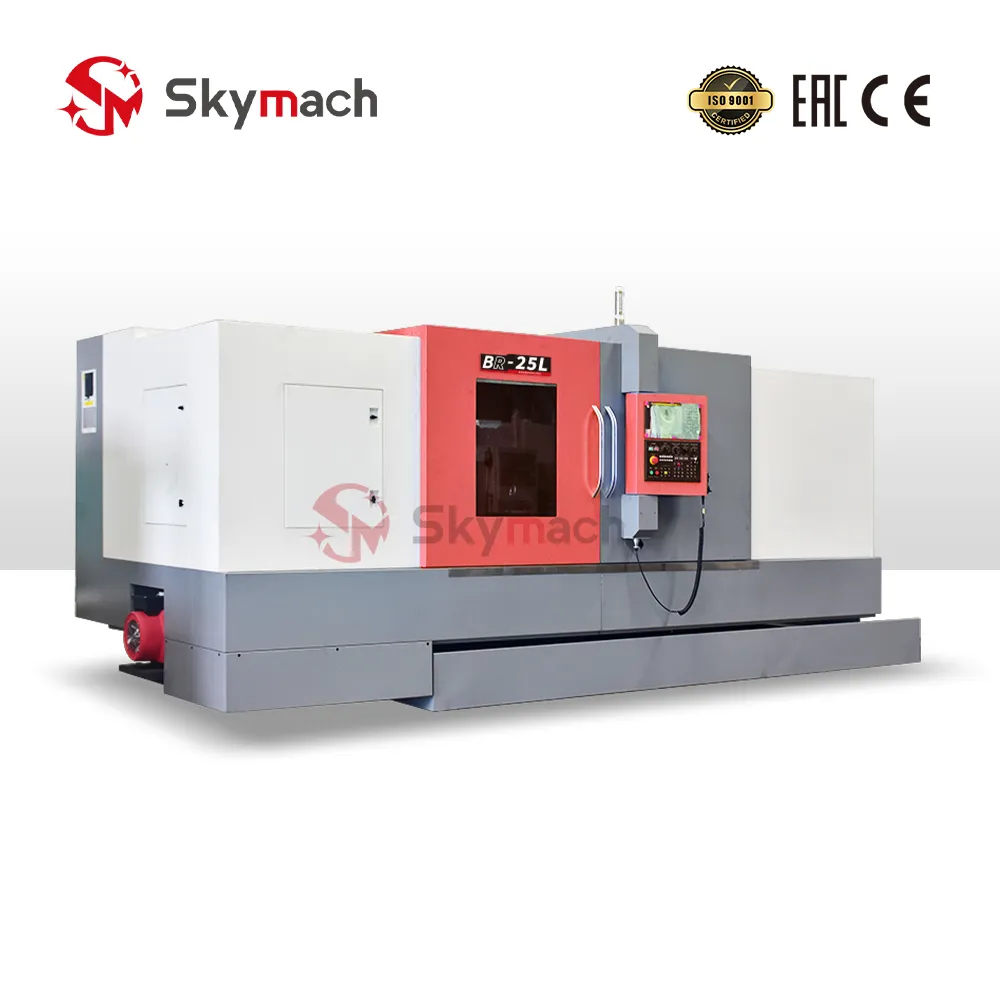

The Skymach BR-25L-750 High-Precision Linear Guide Slant Bed CNC Lathe is built on an integrated 30° monolithic HT300 cast iron bed equipped with heavy 45/45 precision linear guideways, an A2-8 high-torque spindle (2,500 RPM, Φ75 mm bar capacity), and an NC125/SH125 10T/12T tool turret. Designed with high dynamic responsiveness and vibration dampening, the BR-25L-750 excels in high-efficiency turning of large flanges, automotive shafts, hydraulic valve bodies, and precision machine components.
Comprehensive Machining Capabilities
- Heavy 45/45 Linear Guideways: Low-friction high-rigidity linear rails provide smooth axis motion, rapid 20 m/min feeds, and high contouring accuracy.
- High-Power Spindle Drive: 15/18.5 kW spindle motor delivers abundant low-end torque for heavy turning cuts and high-speed precision for finishing.
- Large Working Envelope: Φ830 mm swing over bed with 650 mm machining length handles large diameter workpieces with ease.
Key Engineering Highlights

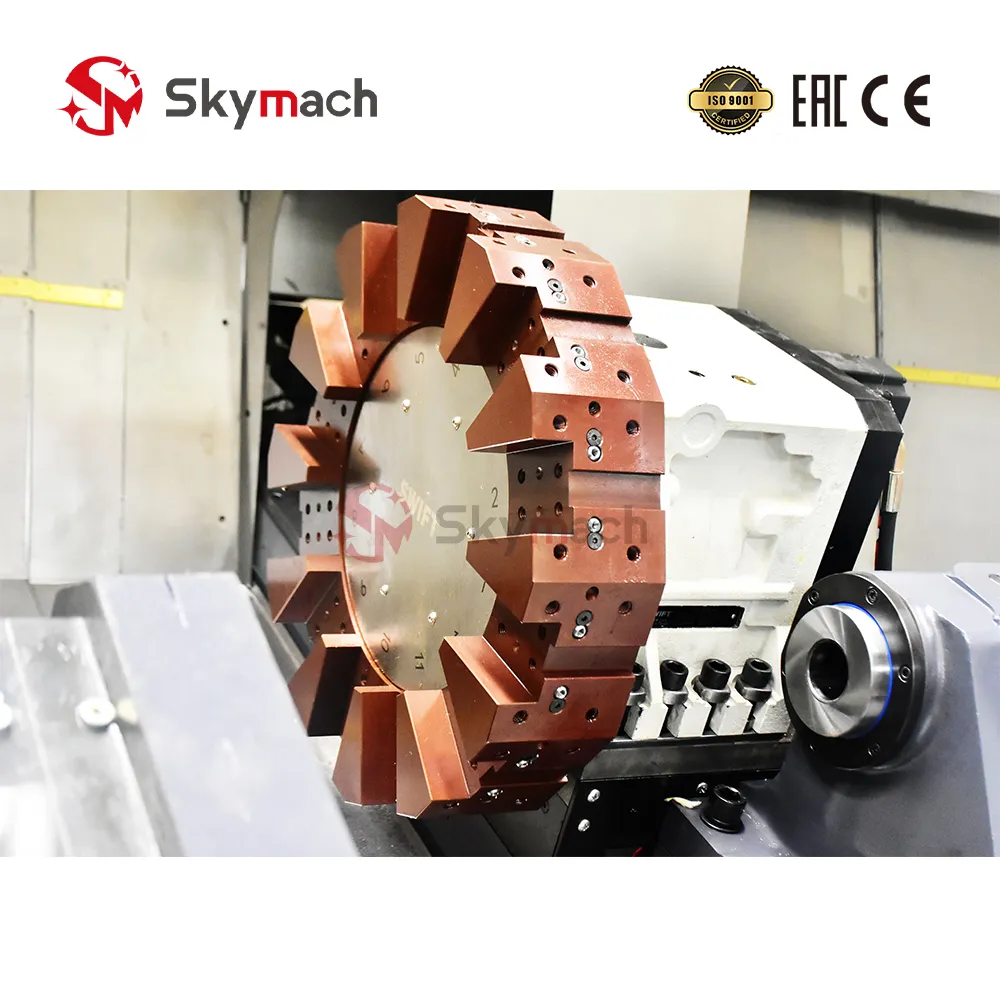

- NC125 / SH125 Turret: 125 mm center height tool turret provides rapid indexing and rigid tool clamping.
- Heavy MT5 Tailstock: Φ100 mm sleeve with 785 mm travel provides robust support for shaft machining.
- 30° Monolithic HT300 Casting: Direct chip evacuation design minimizes thermal buildup and maximizes structural rigidity.
Technical Parameters
| Max. Swing Diameter Over Bed | Φ830 mm |
|---|---|
| Max. Machining Diameter | Φ620 mm |
| Max. Swing Diameter Over Cross Slide | Φ460 mm |
| Max. Processing Length | 650 mm |
| Spindle End Type | A2-8 |
| Optional Chuck (Optional Accessories) | 10 inch (12 inch) |
| Spindle Motor Power | 15 / 18.5 kW |
| Spindle Speed | 2500 rpm |
| Spindle Bore | Φ87 mm |
| Through the Bar Diameter | Φ75 mm |
| X / Z Axis Lead Screw Specification | 4008 / 5010 |
| X / Z Axis Linear Guide Specifications | 45 / 45 |
| X / Z Axis Limit Travel | 330 mm / 930 mm |
| X / Z Axis Motor Torque | 22 N.m / 22 N.m |
| X / Z Axis Connection Type | Direct Connection |
| Turret (Special Configuration) | NC125, SH125 |
| Tower Station | 10T / 12T |
| Turret Center Height Size | 125 mm |
| Sleeve Diameter | 100 mm |
| Sleeve Travel | 80 mm |
| Tailstock Max. Travel | 785 mm |
| Tailstock Sleeve Taper | MT5 |
| Bed Type and Inclination | Integrated / 30° |
| Machine Size (L * W * H) | 2760 x 1510 x 1580 mm |
