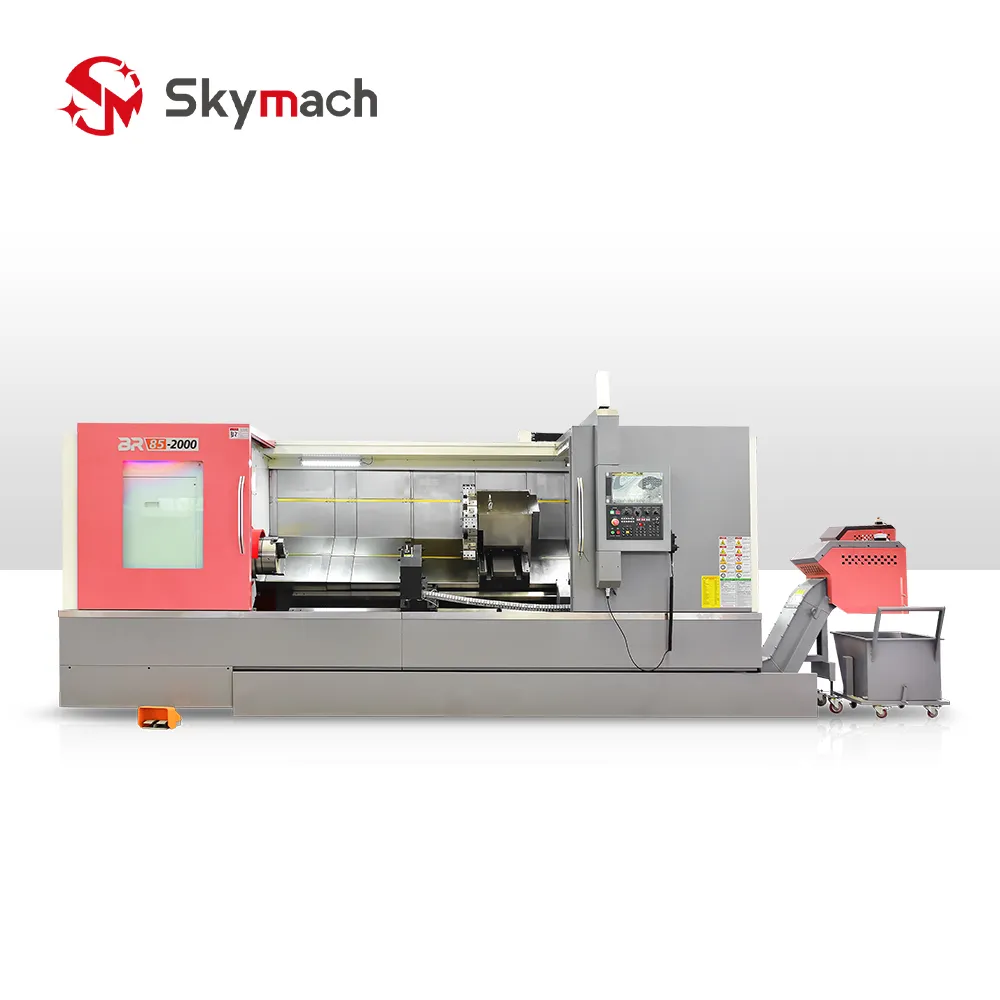

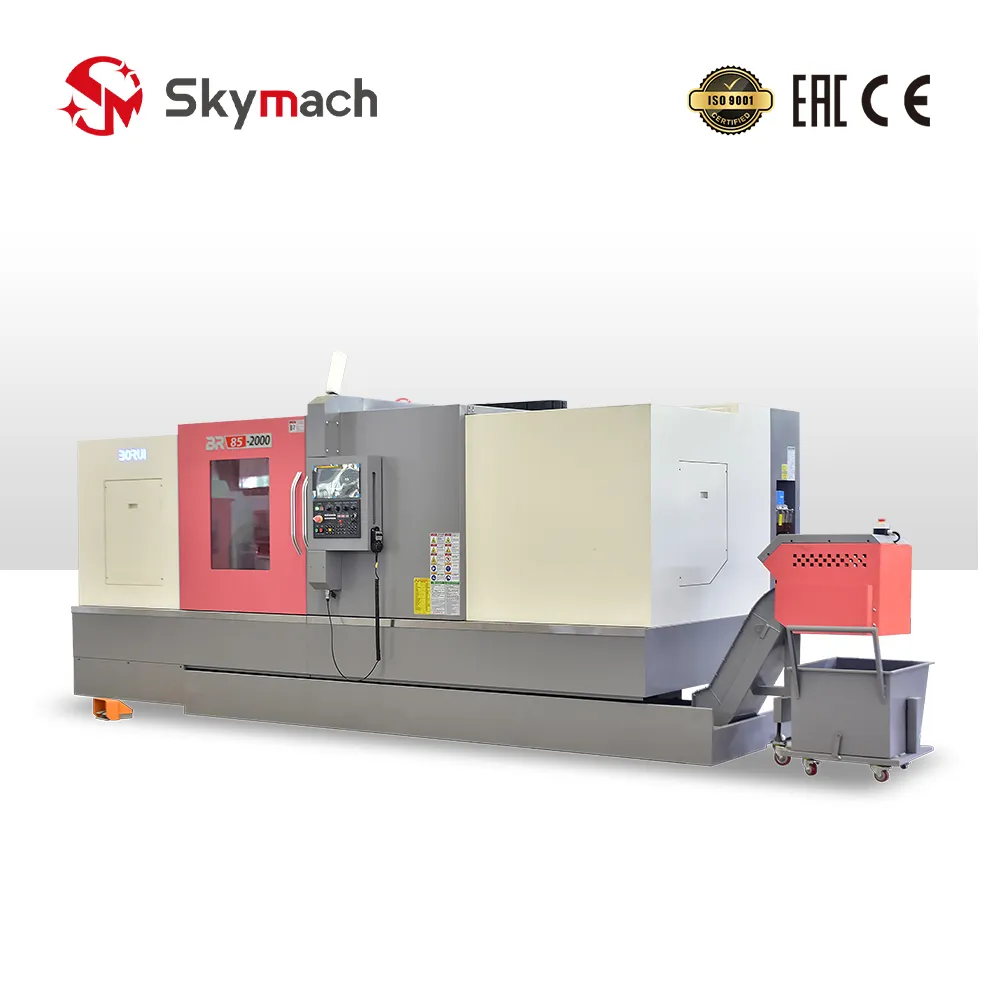

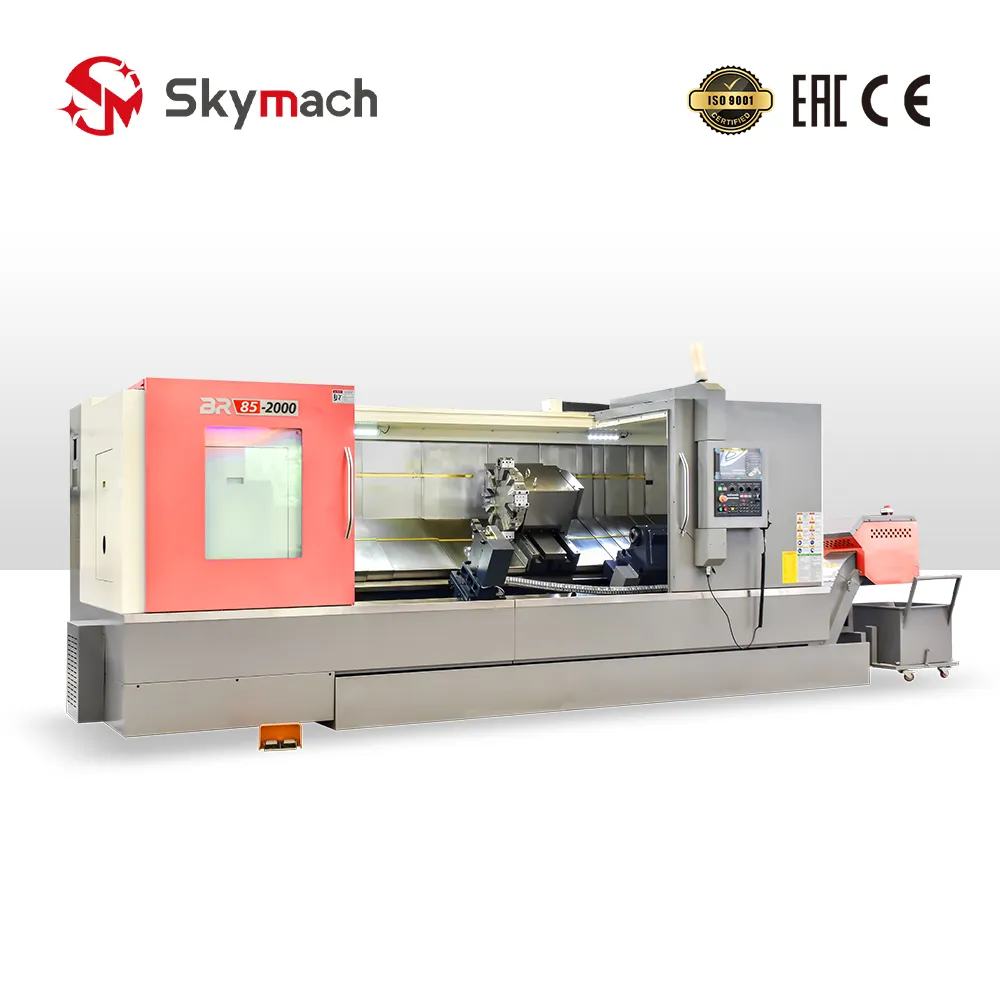

The Skymach BR85 Large-Sized Slant Bed CNC Lathe (BR-85) is an industrial-grade, heavy-duty CNC turning machine engineered for heavy shaft processing, large flange turning, oilfield pipe components, valve bodies, power generation rotors, and heavy machinery parts. Engineered with a monolithic HT300 cast iron slant bed, an A2-11 integrated high-rigidity spindle unit with Φ106 mm through-bore, and a 22-30 kW high-output motor generating 580 N.m of torque, the BR85 provides maximum metal removal rates while preserving micron-level accuracy.
Heavy-Duty Structural Rigidity
- Monolithic HT300 Cast Iron Bed: The machine base is cast in one piece from premium HT300 high-strength cast iron, providing substantial anti-vibration damping and minimizing torsional deflection under heavy intermittent cuts.
- Integrated High-Rigidity Assembled Spindle: Built with premium double-row cylindrical roller bearings and high-precision angular contact thrust bearings, the A2-11 spindle withstands immense axial and radial cutting forces up to 2,000 RPM.
- Continuous Bar & Billet Capacity: Φ106 mm through-spindle hole supports bar feeding up to Φ90 mm, while front-end chucking accommodates 15-inch, 18-inch, or 21-inch hydraulic power chucks.
Extended Machining Envelope
- Multi-Length Center Distances: Available with center distances of 1,100 mm, 1,600 mm, 2,100 mm, 3,100 mm, 4,100 mm, and 5,100 mm (Z-axis travel up to 5,130 mm) to machine everything from short thick flanges to long ship shafts.

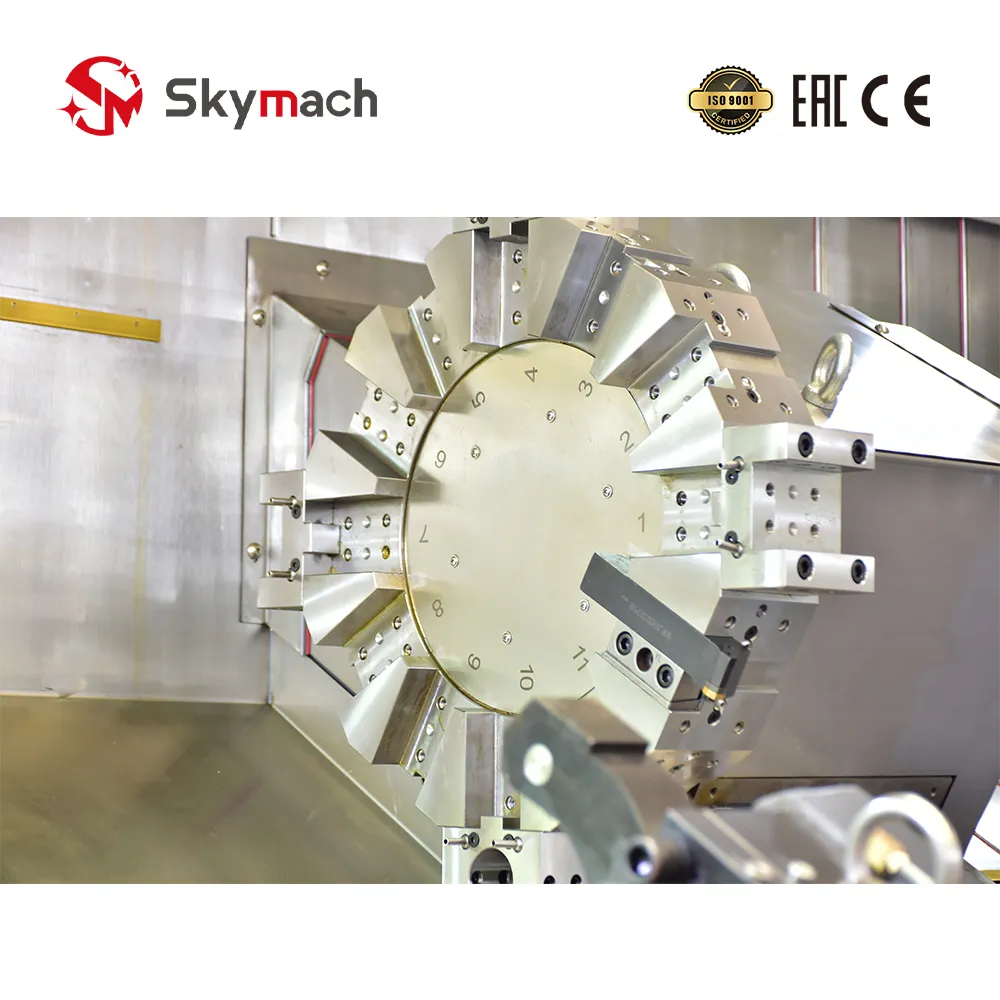

- 12-Station Heavy Tool Turret: Equipped with a Φ480 mm large-diameter turret disc accepting heavy 32 x 32 mm shank external turning tools and Φ50 mm inner boring bars, indexed seamlessly in just 0.5 seconds.

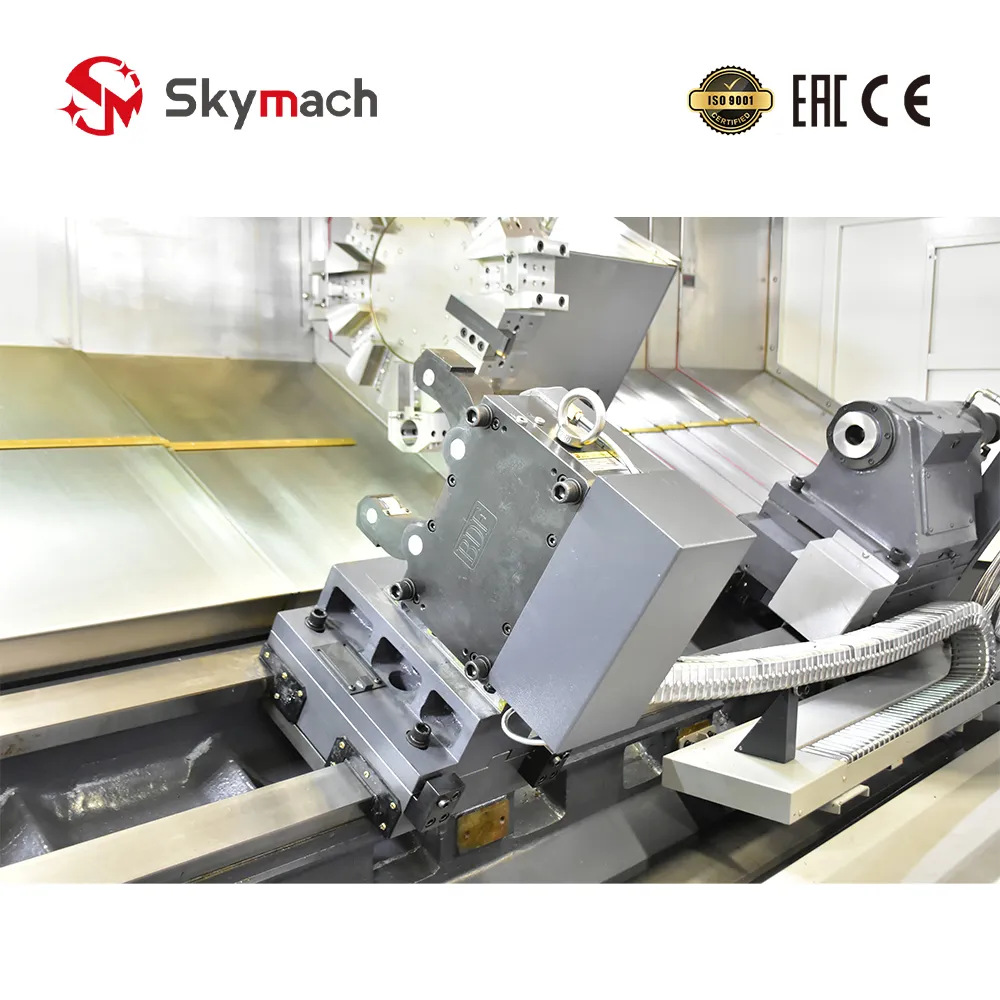

- Massive MT6 Programmable Tailstock: Massive Φ160 mm tailstock quill with MT#6 Morse taper and 180 mm travel firmly supports heavy workpieces weighing multiple tons.
Technical Parameters
| Max. Swing Dia. Over Bed | Φ850 mm |
|---|---|
| Max. Swing Dia. Over Saddle | Φ500 mm |
| Max. Turning Diameter | Φ720 mm |
| Distance Between Centers | 1100 / 1600 / 2100 / 3100 / 4100 / 5100 mm |
| X-Axis Travel | 400 mm |
| Z-Axis Travel | 1130 / 1630 / 2130 / 3130 / 4130 / 5130 mm |
| X/Z-Axis Rapid Traverse Rate | 16 / 16 m/min |
| Spindle Head Type | A2-11 |
| Spindle Bore Diameter | Φ106 mm |
| Maximum Bar Capacity | Φ90 mm |
| Max. Spindle Speed | 2000 r/min |
| Max. Spindle Torque | 580 N.m |
| Hydraulic Chuck (inch) | 15 / 18 / 21 inch |
| Tailstock Sleeve Taper | Morse Taper MT6 |
| Tailstock Sleeve Diameter | Φ160 mm |
| Tailstock Sleeve Travel | 180 mm |
| Main Motor Power | 22 - 30 kW |
| X/Z-Axis Servo Motor Power | 3 / 3 kW |
| Turret Diameter & Number of Tool Stations | Φ480 mm - 12 Stations |
| Tool-to-Tool Change Time | 0.5 s |
| Tool Size (Turning/Boring) | 32 x 32 mm / Φ50 mm |
| Machine Bed Material | One-Piece Monolithic HT300 Cast Iron |
