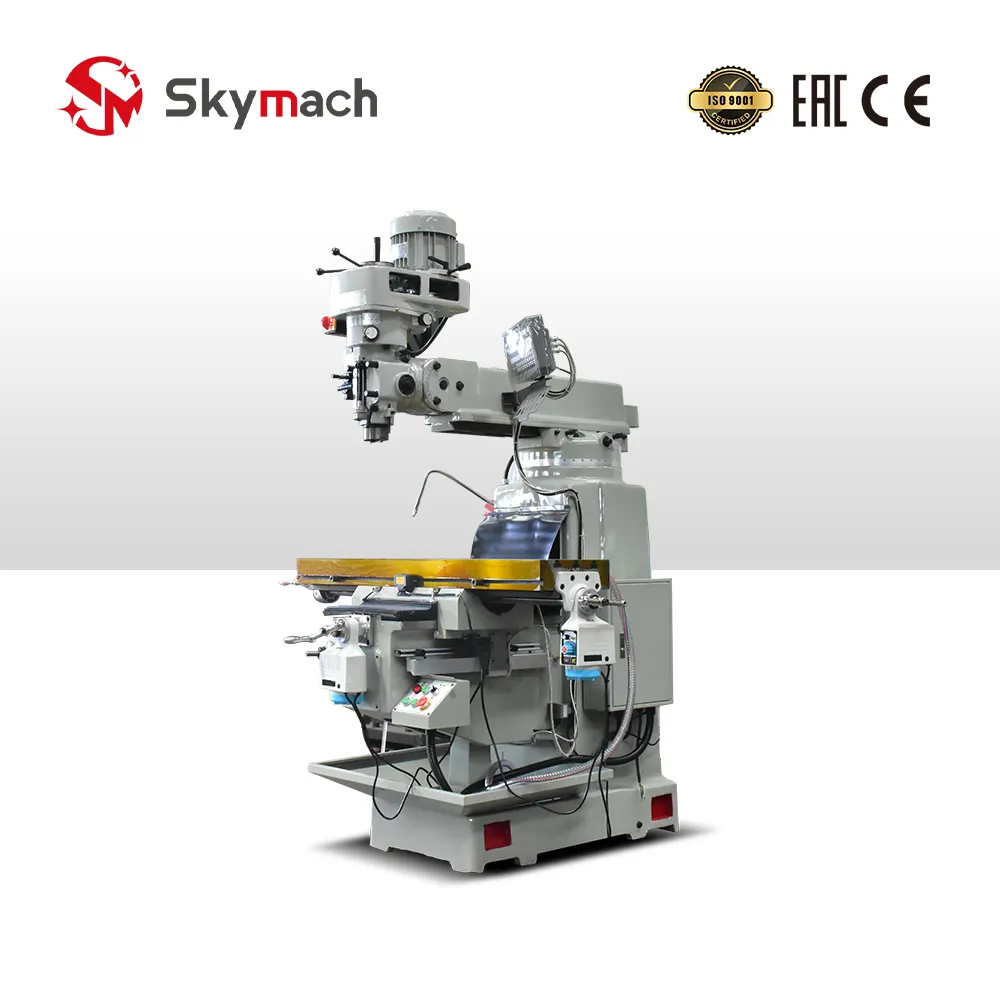

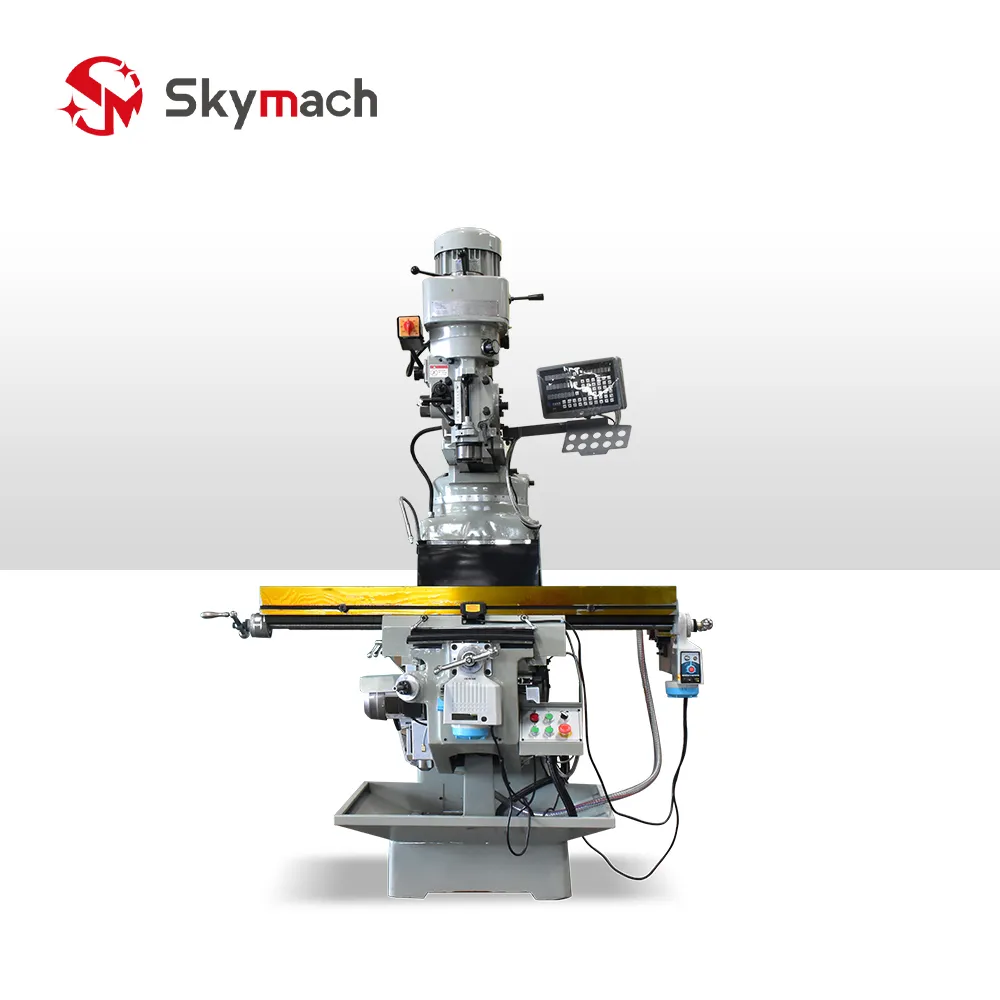

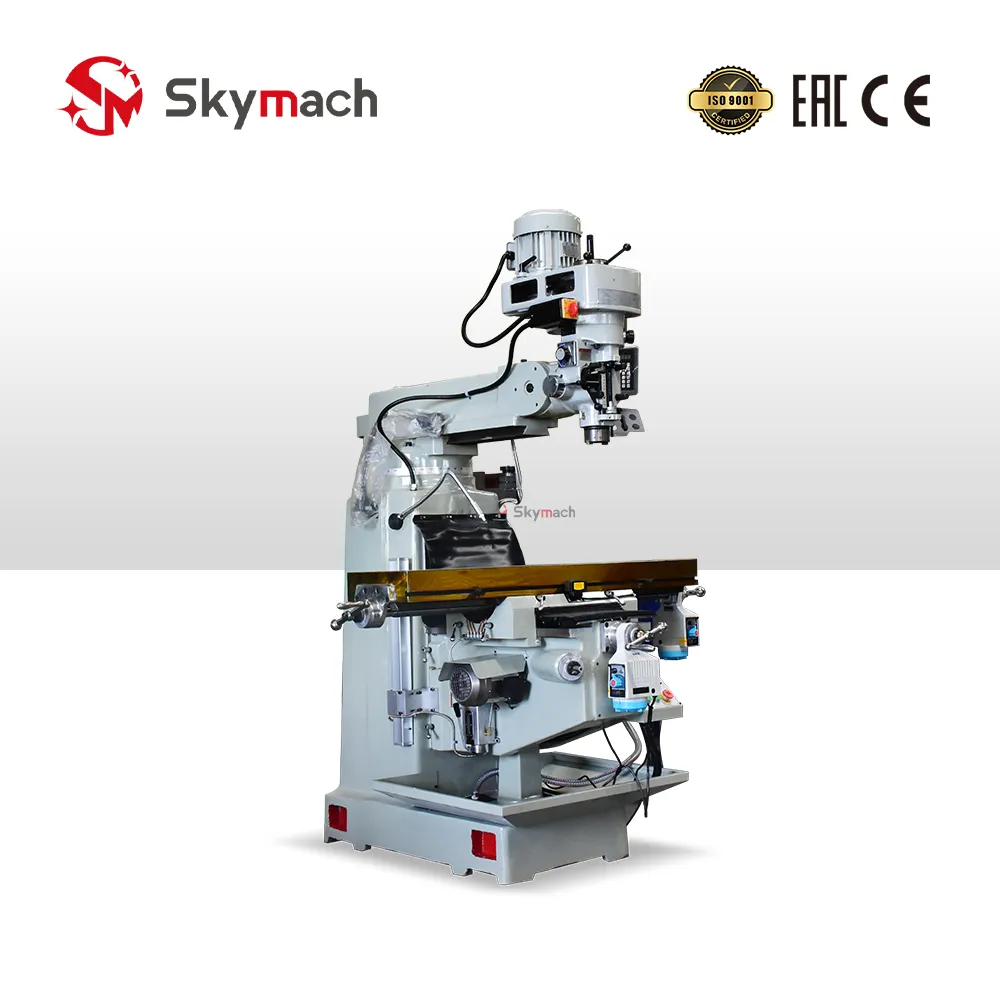

The Skymach 4H (X6325) Precision Turret Milling Machine is constructed on a high-rigidity Meehanite cast iron frame, engineered for ultra-versatile manual and semi-automatic milling, drilling, boring, and slotting operations. Featuring a 1270 x 254 mm hardened worktable, an R8 (optional ISO 40) spindle, a swiveling turret head (±90° tilt / ±45° nod), 3-speed automatic quill feed, and a 2.2 kW (optional 3.7 kW) motor, the 4H (X6325) is the benchmark machine for mold & die making, prototyping, toolrooms, and repair workshops.
Comprehensive Machining Capabilities

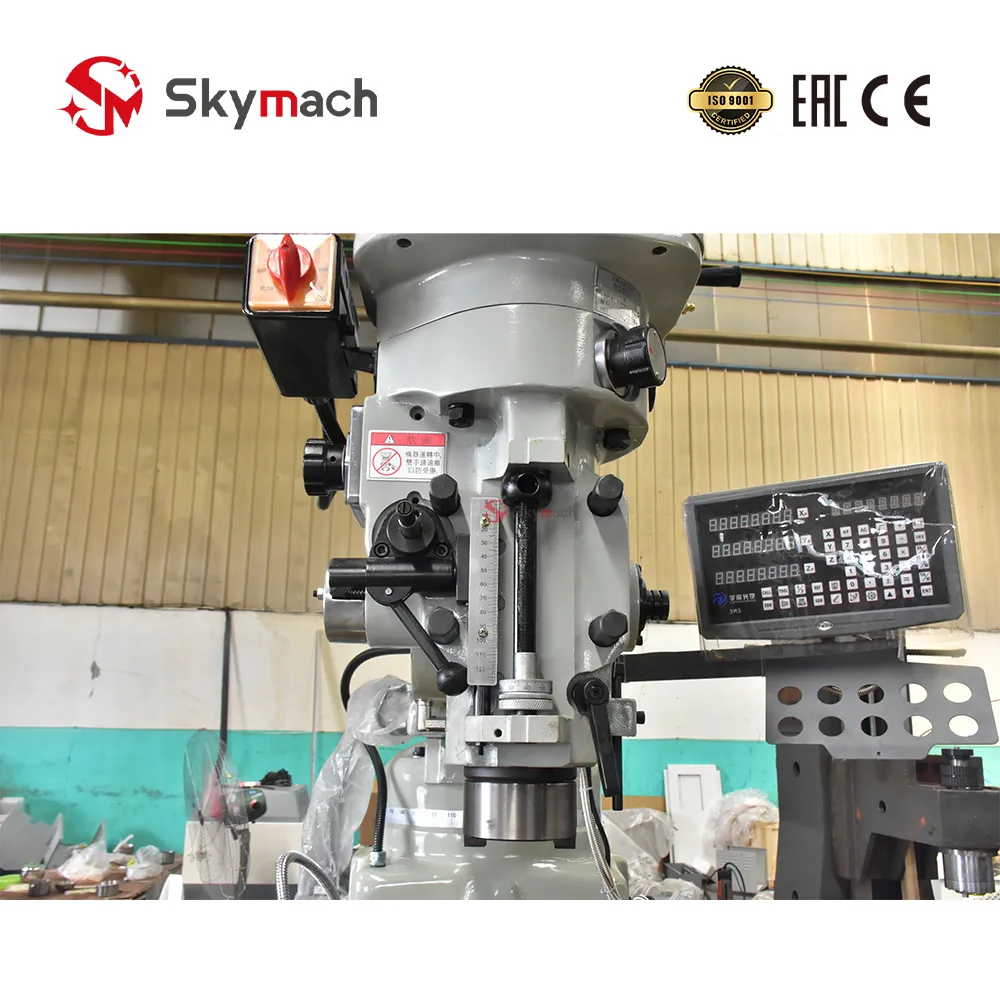

- Universal Multi-Angle Machining: Swiveling head articulates ±90° left-to-right and ±45° forward-and-backward to mill angled chamfers, compound bevels, and oblique hole patterns without reclamping.
- Precision Drilling & Boring: 127 mm quill stroke with 3 automatic downfeed rates (0.045, 0.086, 0.142 mm/rev) and micro-stop depth gauge provides sub-millimeter boring depth repeatability.
- High-Capacity Envelope: 780 x 400 x 400 mm travel range with up to 510 mm spindle-to-table clearance accommodates tall jigs, rotary tables, and dividing heads.
Key Engineering Highlights
- High-Frequency Hardened Slideways: Induction-hardened and ground table and dovetail ways lined with Turcite-B low-friction coating ensure effortless feed motion and minimal stick-slip.
- 360° Horizontal Ram Swivel: Sliding overarm ram extends, retracts, and rotates 360° on top of the column for oversized plate machining.
- Dual Speed Options: Choose between the rugged 16-step belt-pulley drive (up to 4,500/5,440 RPM) or the electronic variable inverter head (65 - 4,000 RPM) for stepless dial-in speed selection.
Technical Parameters
| Table Size | 1270 x 254 mm |
|---|---|
| Table Travel (X / Y / Z) | 780 / 400 / 400 mm |
| T-Slot (Number - Width x Pitch) | 3 - 16 x 50 mm |
| Spindle Taper | R8 (Optional ISO40) |
| Spindle Speed Range (Steps) | 50Hz: 65-4500 rpm, 60Hz: 80-5440 rpm (16 steps) | Opt. Variable 65-4000 rpm |
| Spindle Travel (Quill Stroke) | 127 mm |
| Spindle Feed Range (Steps) | 0.045, 0.086, 0.142 mm/rev (3 steps) |
| Distance Between Spindle Nose and Table Surface | 90 - 510 mm |
| Main Motor Power | 2.2 kW (Optional 3.7 kW) |
| Head Rotation (Left - Right) | ±90° |
| Head Rotation (Front - Rear) | ±45° |
| Machine Weight | 1400 kg |
| Overall Dimension (L * W * H) | 1550 x 1650 x 2250 mm |
