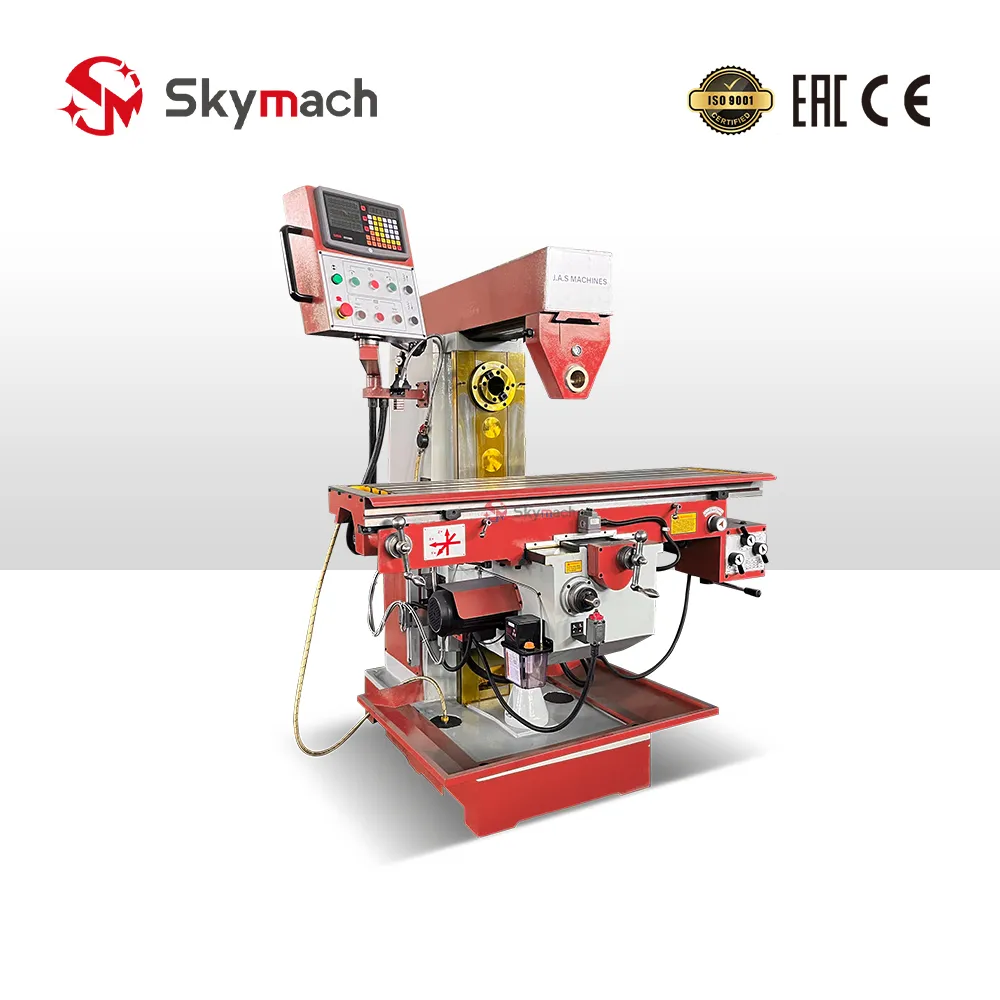

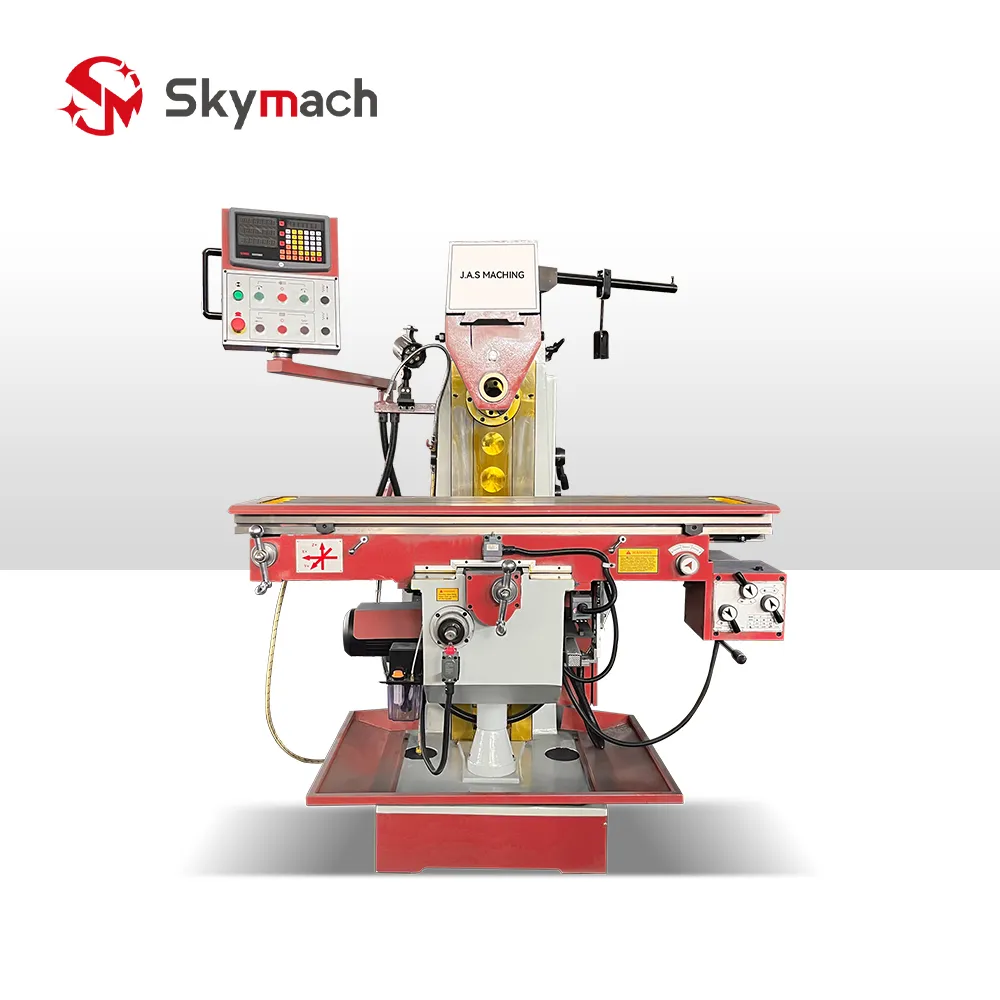

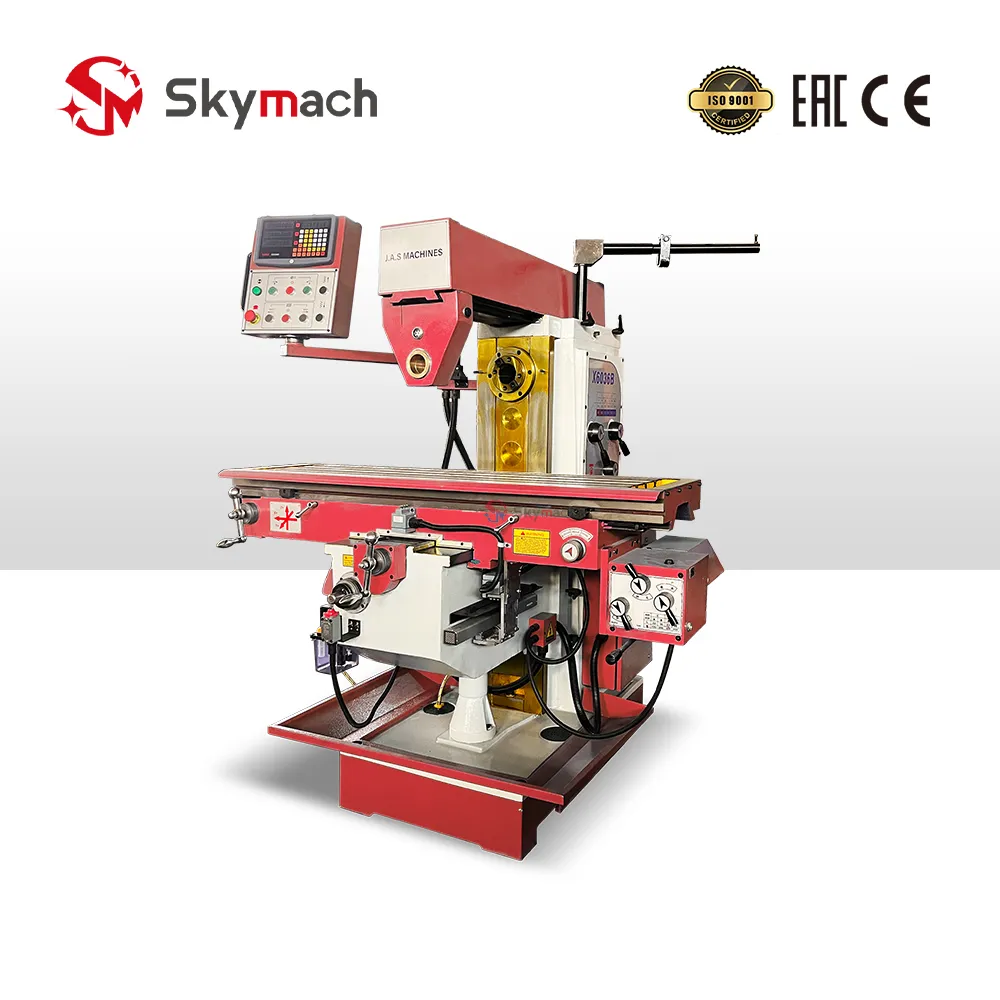

The Skymach X6036 Heavy-Duty Horizontal Knee-Type Milling Machine is built on a monolithic high-density cast iron knee and column frame, engineered for heavy-duty horizontal face milling, gang milling with multiple disc cutters, deep slotting, and gear/spline cutting. Featuring a 1500 x 360 mm hardened worktable with 1,000 mm X-axis travel, an ISO50 / ISO40 (7:24) spindle, a 12-speed geared transmission (60 - 1,800 RPM), and a 4 kW motor, the X6036 delivers formidable cutting performance in industrial workshops and production lines.
Comprehensive Machining Capabilities
- Heavy Gang & Arbor Milling: Rigid overarm with twin bearing arbor supports enables simultaneous multi-cutter gang milling of complex profiles and steps.
- Deep Slotting & Keyway Cutting: High-torque horizontal spindle handles deep parting and wide slotting in tough structural steels without chatter.
- Splines, Gears & Spiral Surfaces: Readily interfaces with universal dividing heads and rotary tables for gear hobbing, helical slotting, and spline milling.
Key Engineering Highlights
- 12-Speed Mechanical Gearbox: Delivers massive torque across the 60 - 1,800 RPM range, optimizing metal removal rates for both carbide and HSS tooling.

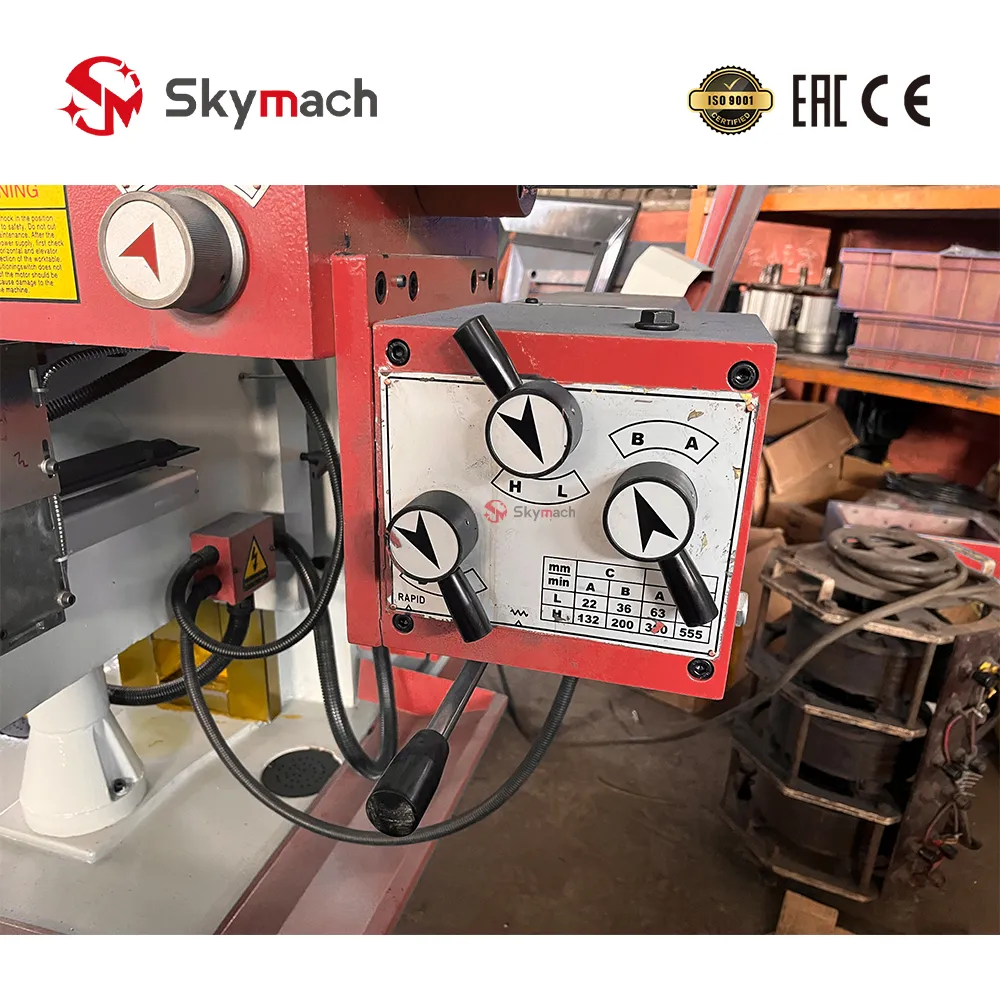

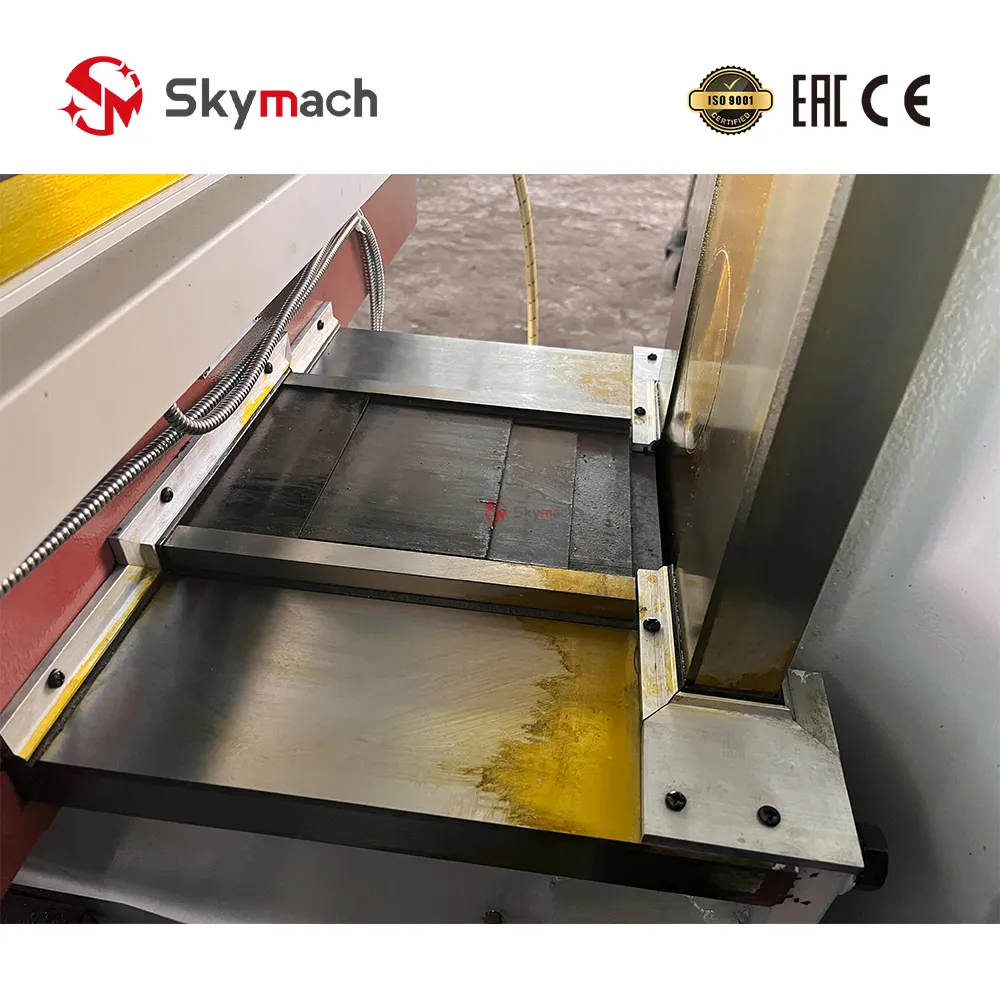

- Hardened & Ground Slideways: Wide rectangular dovetail ways with manual/power feeds ensure smooth table travel and strict geometric accuracy.
- Massive 2,400 kg Structure: Heavy cast iron column absorbs cutting shocks and prevents harmonic resonance during heavy interrupted cuts.
Technical Parameters
| Table Size | 1500 x 360 mm |
|---|---|
| Table Travel (X / Y / Z) | 1000 / 320 / 450 mm |
| T-Slot (Number - Width x Pitch) | 3 - 18 x 80 mm |
| Spindle Taper | ISO50 7:24 / ISO40 7:24 |
| Spindle Speed Range (Steps) | 60 - 1800 rpm (12 steps) |
| Distance from Spindle Center to Column Surface | 0 - 450 mm |
| Main Motor Power | 4 kW |
| Machine Weight | 2400 kg |
| Overall Dimension (L * W * H) | 2220 x 1790 x 1860 mm |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
