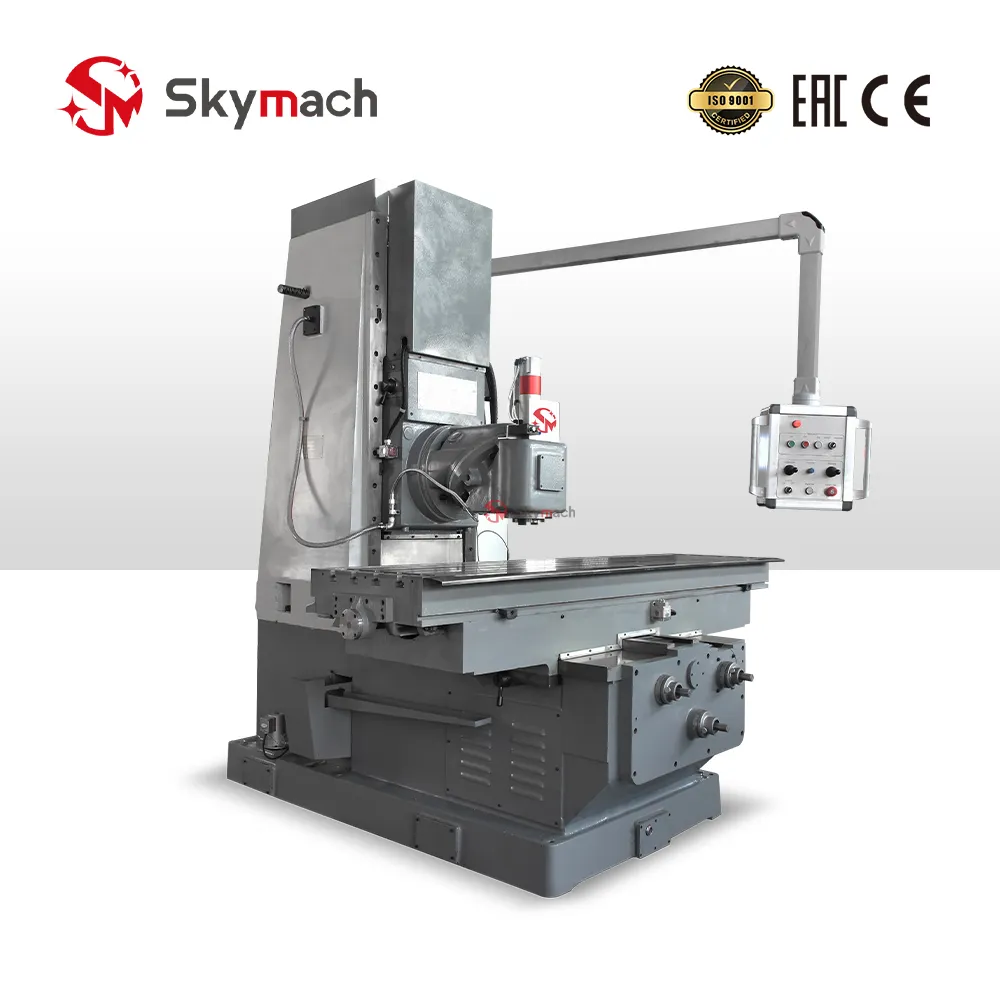

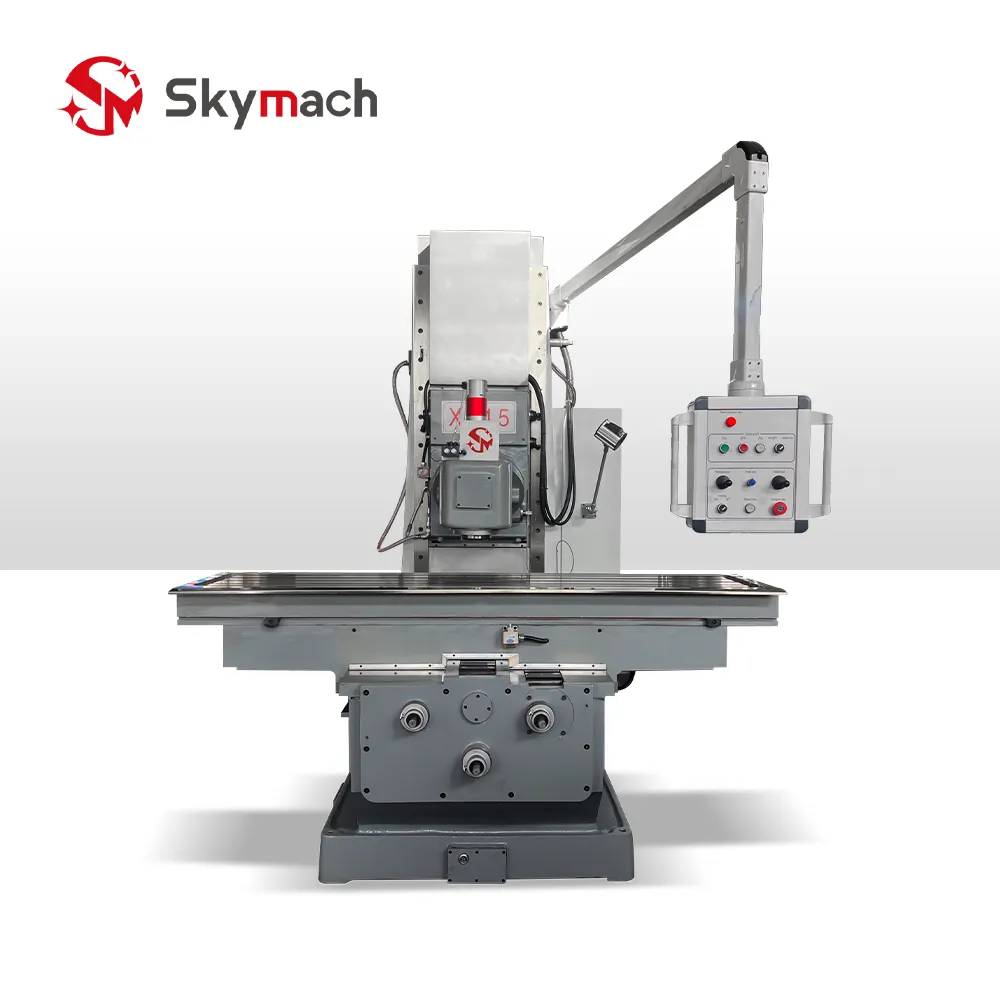

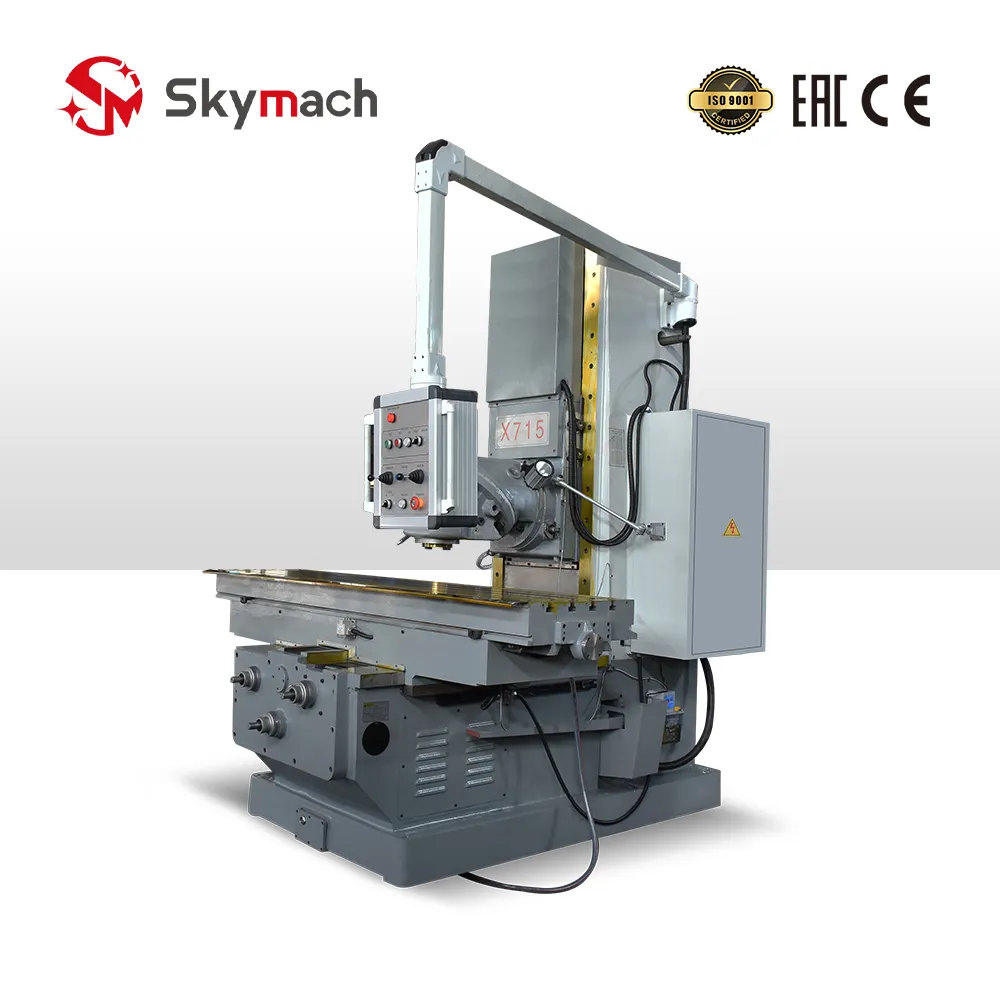

The Skymach X715 Heavy-Duty Bed Type Milling Machine is built on an ultra-rigid 7,360 kg Meehanite monolithic fixed-bed structure, engineered specifically for high-capacity face milling, heavy slotting, boring, and squaring of large forging dies, injection mold bases, and heavy industrial fabrications. Featuring a massive 2100 x 500 mm worktable (1,500 x 670 mm travel), a heavy ISO 50 spindle, an efficient 7.5 kW geared spindle transmission (35 - 1,345 RPM), and a versatile 0 - 670 mm throat distance, the X715 guarantees extraordinary metal removal rates and geometric stability under multi-ton workpiece loads.
Comprehensive Machining Capabilities
- Fixed-Bed Stability for Heavy Loads: The worktable rests fully supported on the heavy machine foundation throughout its entire travel, preventing table sag or bending moments under heavy workpieces.
- Large 1500 x 670 mm Machining Envelope: Expansive 2100 x 500 mm table with 4 heavy 20 mm T-slots accommodates oversized plates, multi-cavity mold bases, and multiple clamping vises.

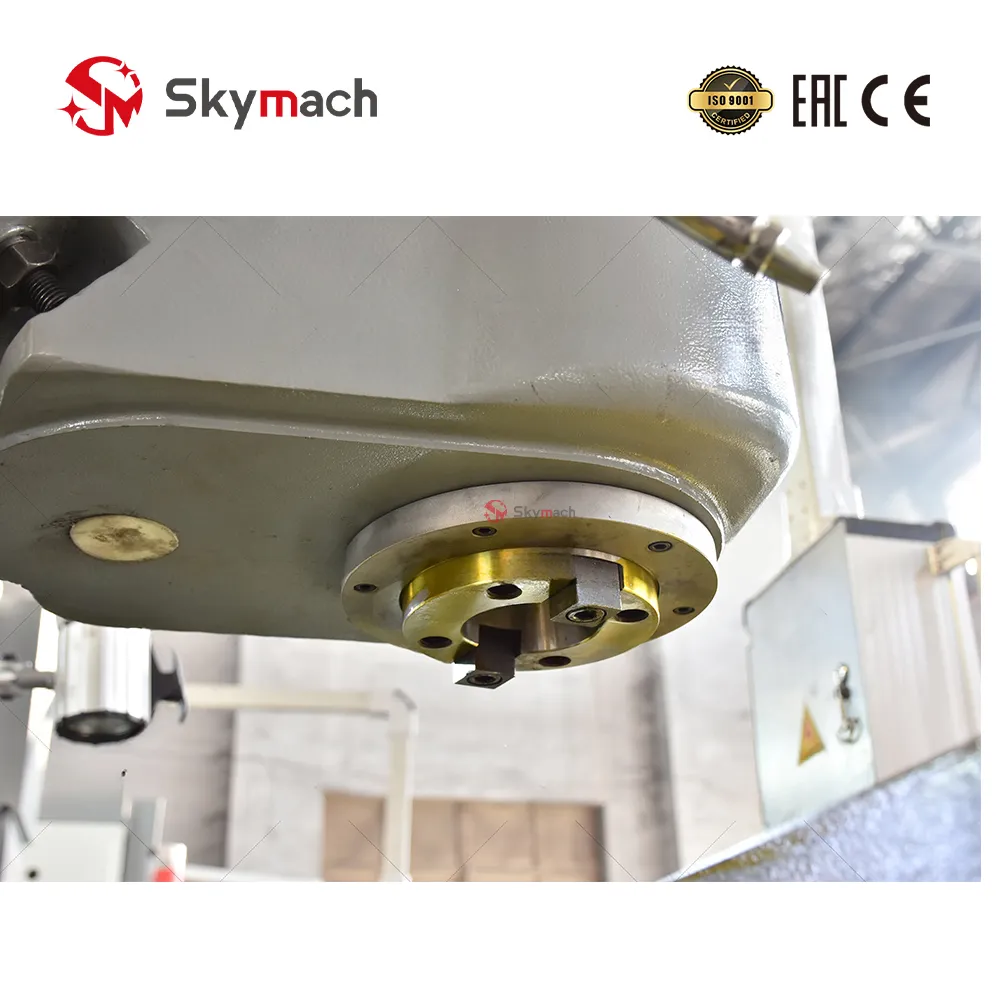

- Powerful Heavy Metal Removal: 7.5 kW ISO 50 geared head easily drives large-diameter indexable face mills, deep parting cutters, and heavy boring bars.
Key Engineering Highlights
- Heavy Geared Drive System: Multi-step mechanical gearbox delivers enormous low-speed torque across the 35 - 1,345 RPM range, ideal for cutting tough alloy steels and cast iron.

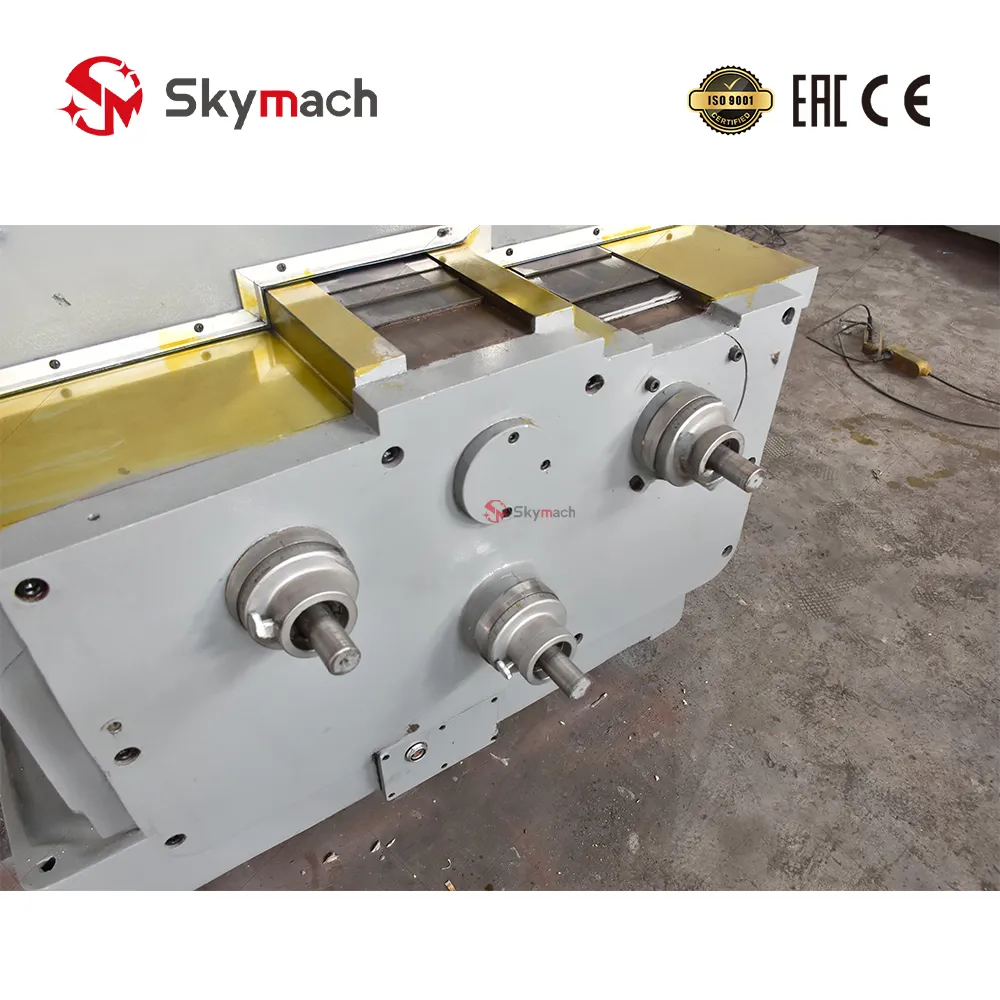

- Hardened Rectangular Guideways: Precision-ground, induction-hardened guideways coated with Turcite-B ensure smooth power feeds and zero stick-slip.
- Heavy 7,360 kg Machine Frame: Exceptional dynamic mass absorbs heavy cutting shock loads, protecting cutting tooling and delivering superior surface finish.
Technical Parameters
| Table Size | 2100 x 500 mm |
|---|---|
| Table Travel (X / Y) | 1500 x 670 mm |
| T-Slot (Number - Width x Pitch) | 4 - 20 x 100 mm |
| Spindle Taper | ISO 50 |
| Spindle Speed Range (Steps) | 35 - 1345 rpm |
| Distance from Spindle Axis to Column Surface | 0 - 670 mm |
| Distance Between Spindle Nose and Table Surface | 610 mm |
| Main Spindle Motor Power | 7.5 kW |
| Machine Weight | 7360 kg |
| Overall Dimension (L * W * H) | 3300 x 2380 x 2750 mm |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
