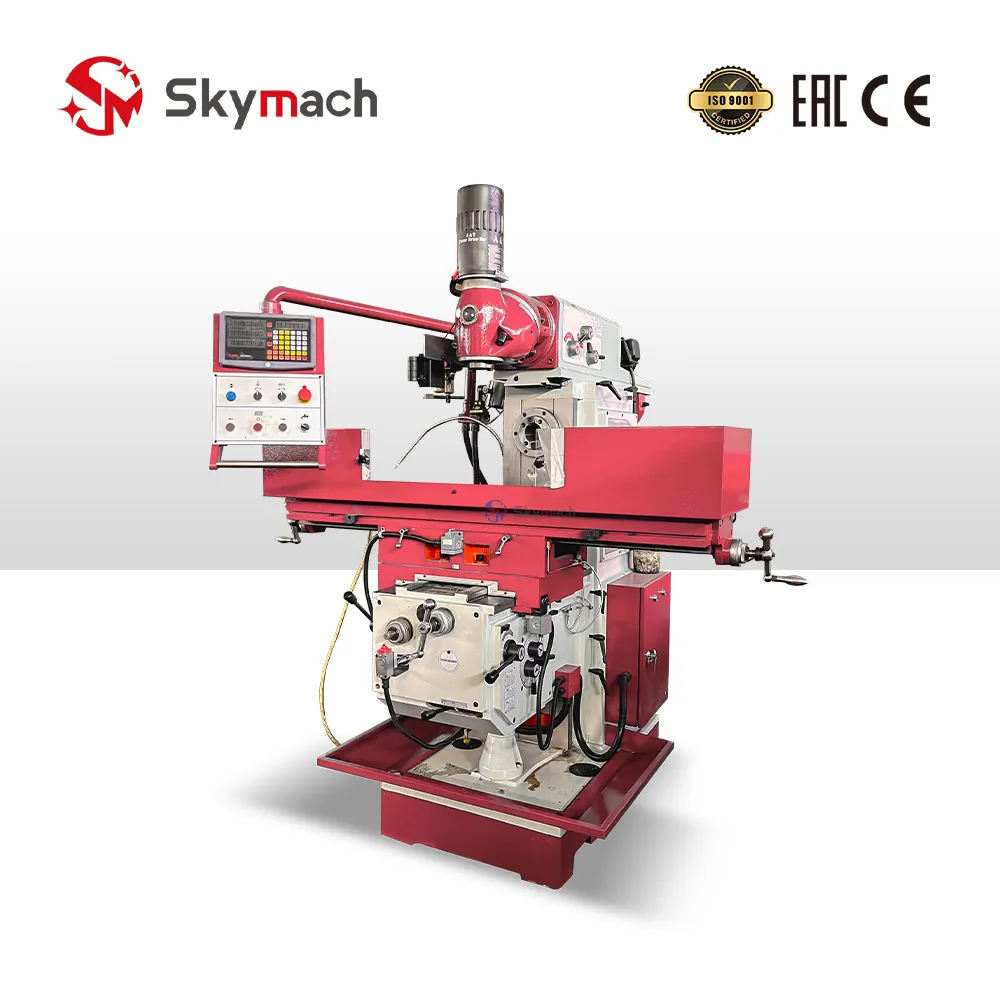

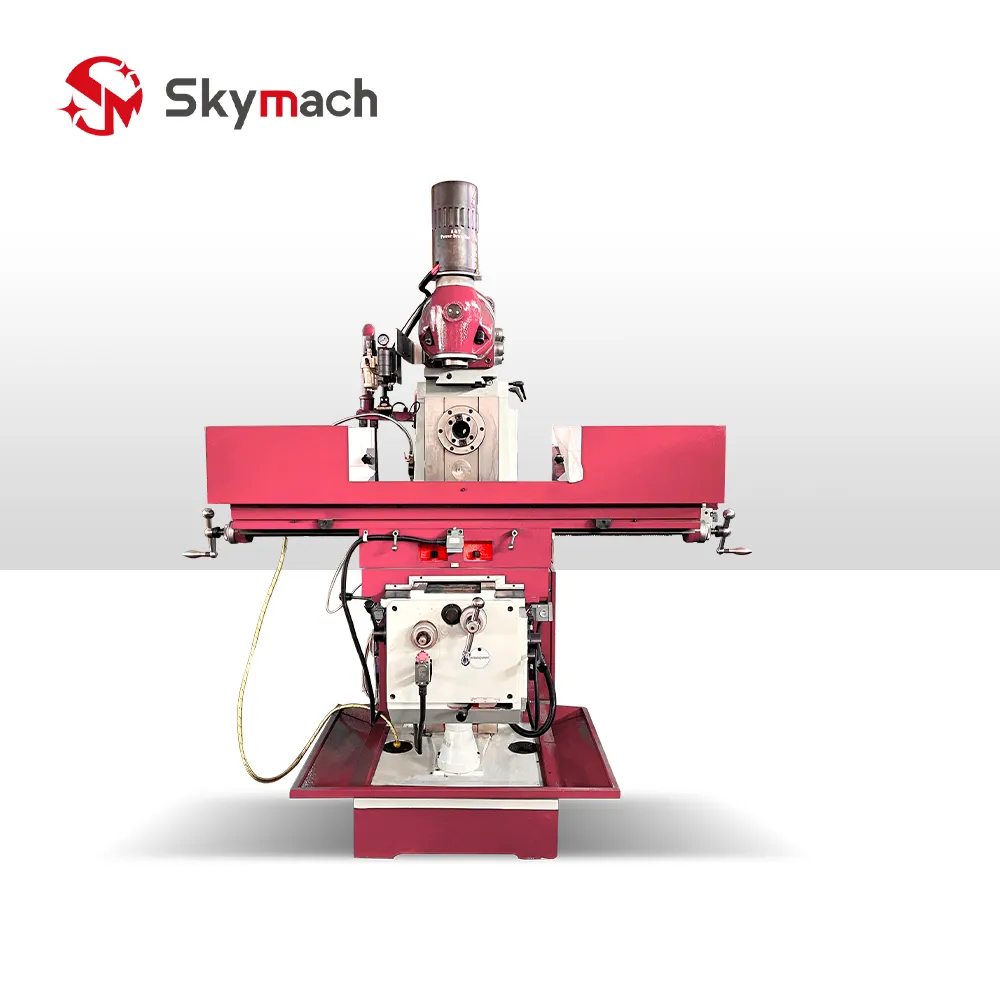

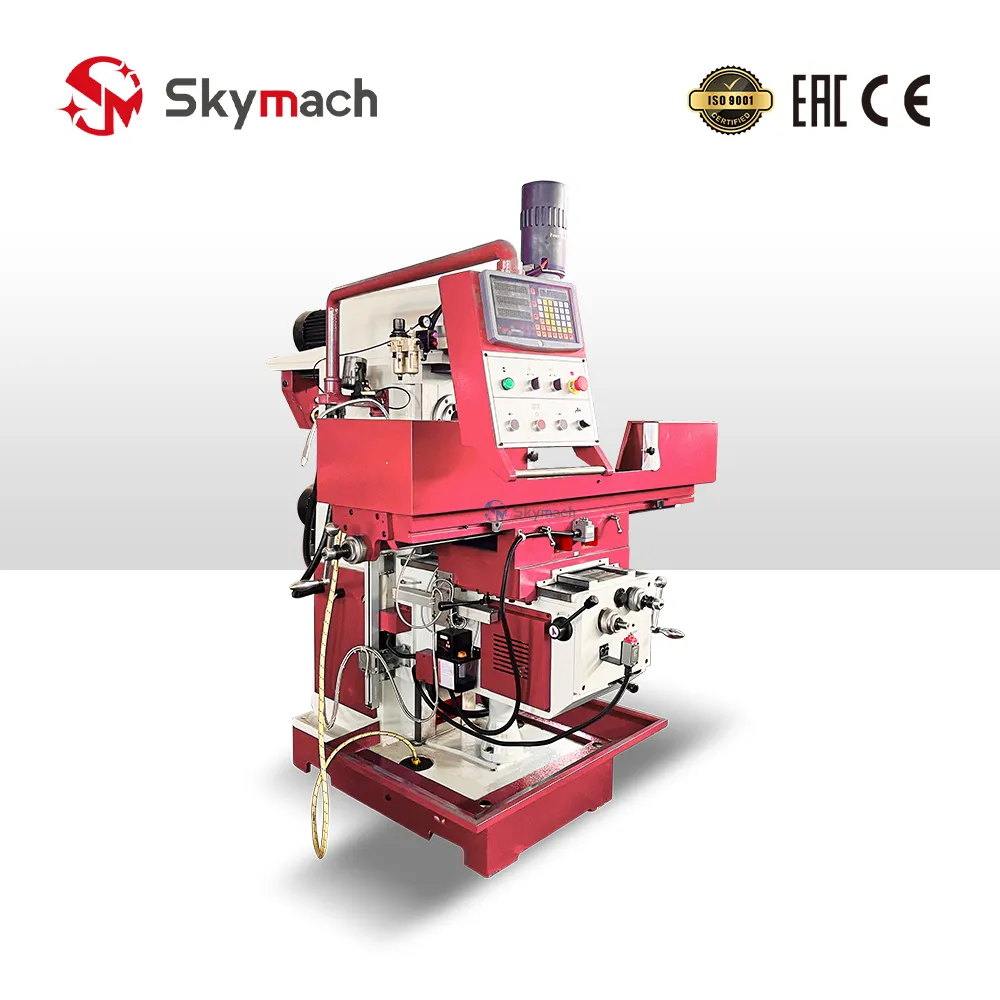

The Skymach X6436 Universal Rotary Head Vertical & Horizontal Milling Machine delivers industrial dual-spindle capability on a massive 2,580 kg Meehanite cast iron structure. Engineered with an independent 4 kW 360° full-swivel vertical milling head (ISO 40) and a dedicated 4 kW horizontal milling spindle (ISO 40), alongside an expansive 1500 x 360 mm worktable (1,000 mm X-axis travel) and an 8-step motorized power feed gearbox (1.1 kW), the X6436 represents the ultimate in workshop versatility for mold & die making, heavy machine maintenance, and customized mechanical production.
Comprehensive Machining Capabilities
- Dual Spindle Productivity: Seamlessly switch between 360° multi-angle vertical end milling and heavy horizontal arbor gang milling without unmounting setups.
- 360° Rotary Head Flexibility: Head rotates 360° in the vertical plane, allowing compound angular machining, horizontal boring, and oblique surface surfacing.
- Heavy Metal Removal: Dual 4 kW independent drive motors and 12-speed geared transmissions deliver maximum torque across both vertical and horizontal spindles.
Key Engineering Highlights

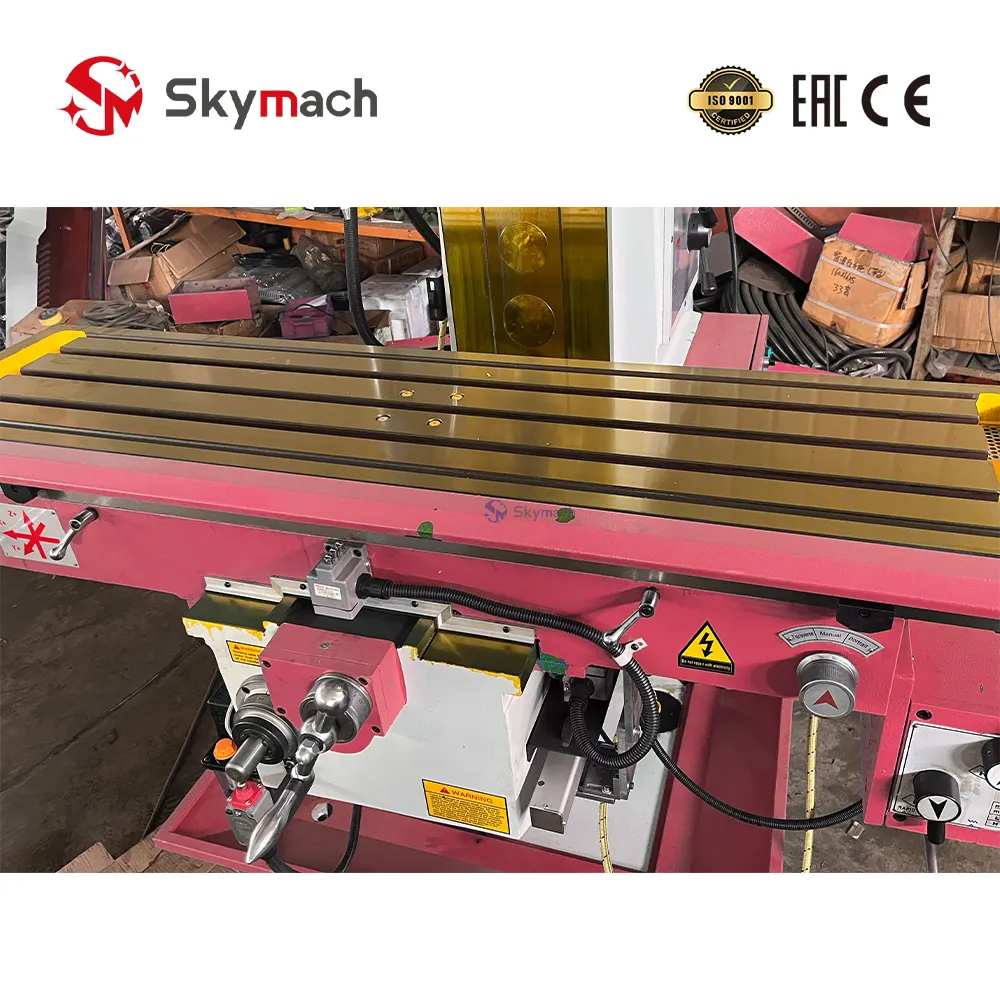

- 1,000 mm Long X-Travel: Spacious 1500 x 360 mm table easily accommodates oversized plate components, long shafts, and multiple vises.
- Hardened Rectangular Guideways: Precision-ground and induction-hardened guideways ensure smooth feeds and long-term geometric accuracy under heavy cutting loads.
- Heavy 2,580 kg Monolithic Frame: High dynamic rigidity dampens interrupted cutting chatter, ensuring superior surface finish and extended tool life.
Technical Parameters
| Table Size | 1500 x 360 mm |
|---|---|
| Table Travel (X / Y / Z) | 1000 / 320 / 400 mm |
| T-Slot (Number - Width x Pitch) | 3 - 18 x 80 mm |
| Vertical Spindle Taper | ISO 40 |

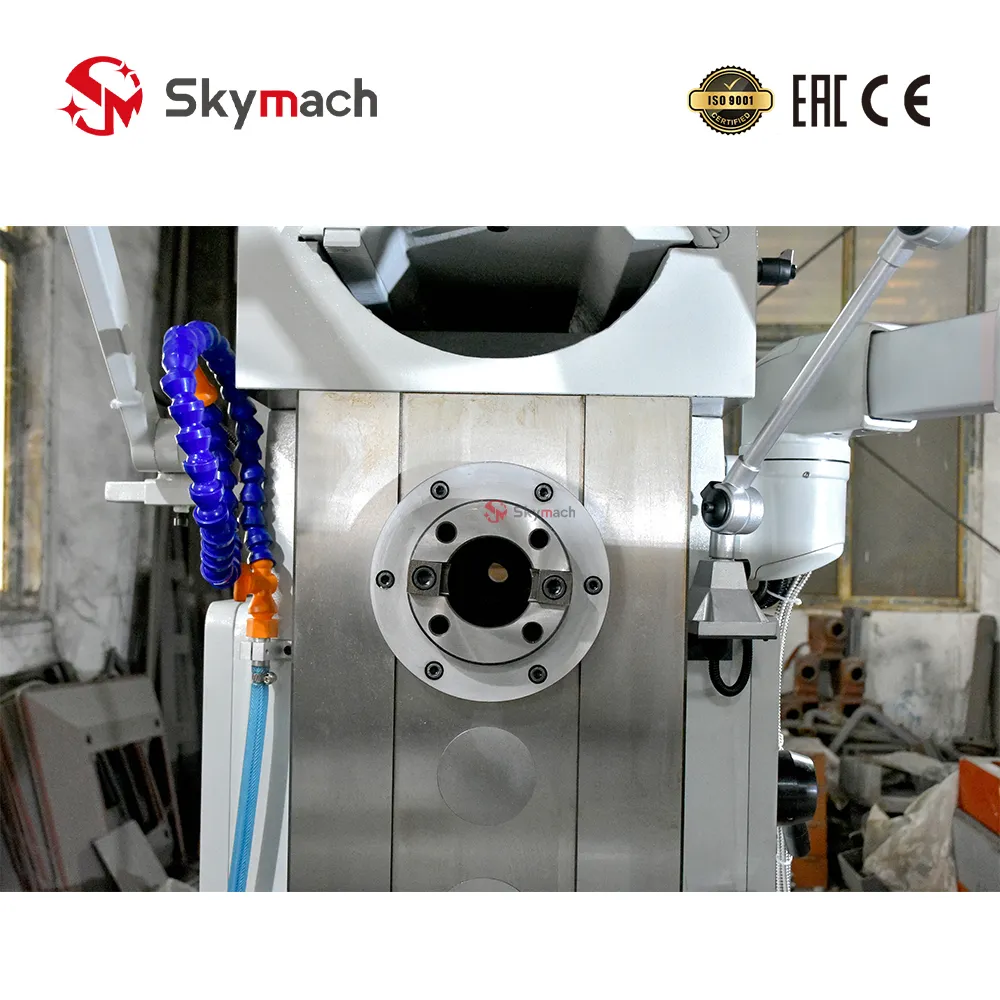

| Horizontal Spindle Taper | ISO 40 |
| Vertical Spindle Speed Range (Steps) | 48 - 1660 rpm (12 steps) |
| Horizontal Spindle Speed Range (Steps) | 40 - 1300 rpm (12 steps) |
| Distance Between Spindle Nose and Table Surface | 150 - 550 mm |
| Distance Between Horizontal Spindle Axis and Table | 0 - 400 mm |
| Table Feed Range (Steps) | XY: 22 - 555 mm/min (8 steps) | Z: Electric Motorized |
| Maximum Rotary Angle of Vertical Milling Head | 360° |
| Main Motor Power | 4 kW (Vertical) / 4 kW (Horizontal) |
| Feed Motor Power | 1.1 kW |
| Machine Weight | 2580 kg |
| Overall Dimension (L * W * H) | 2550 x 2050 x 2050 mm |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
