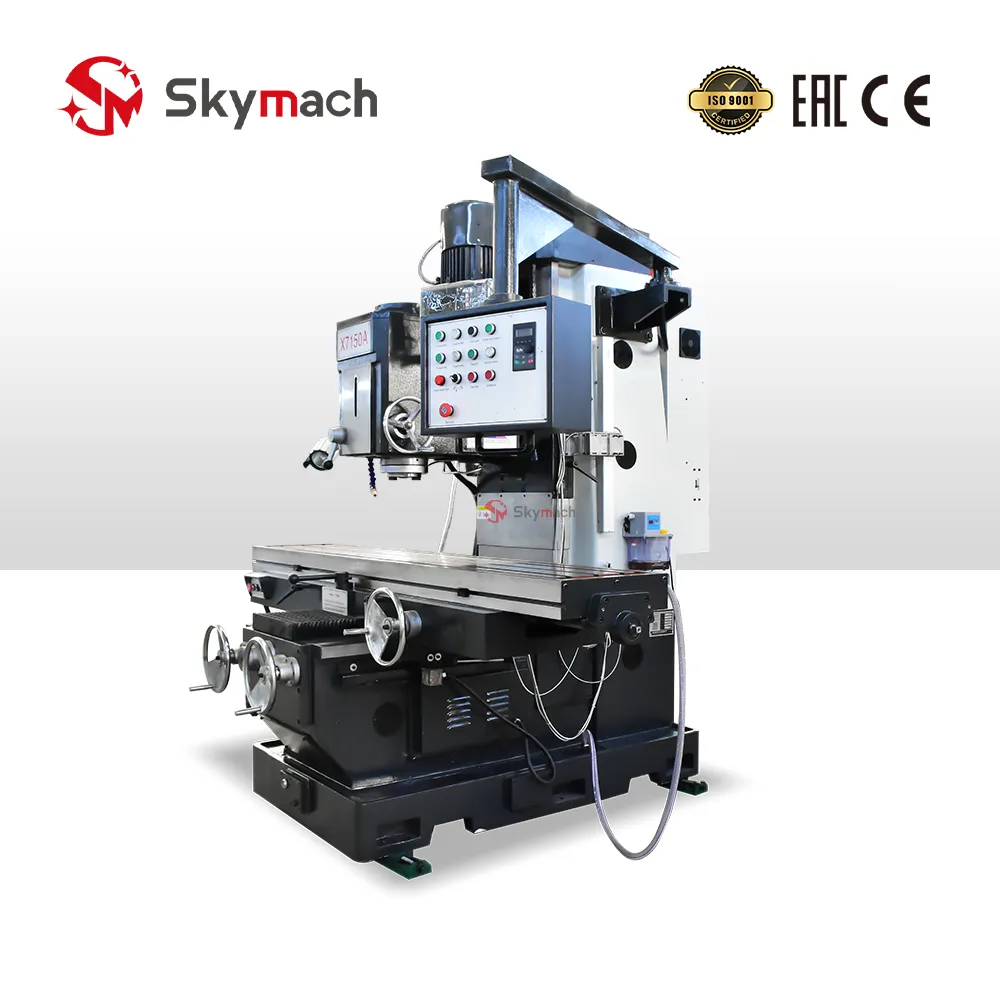

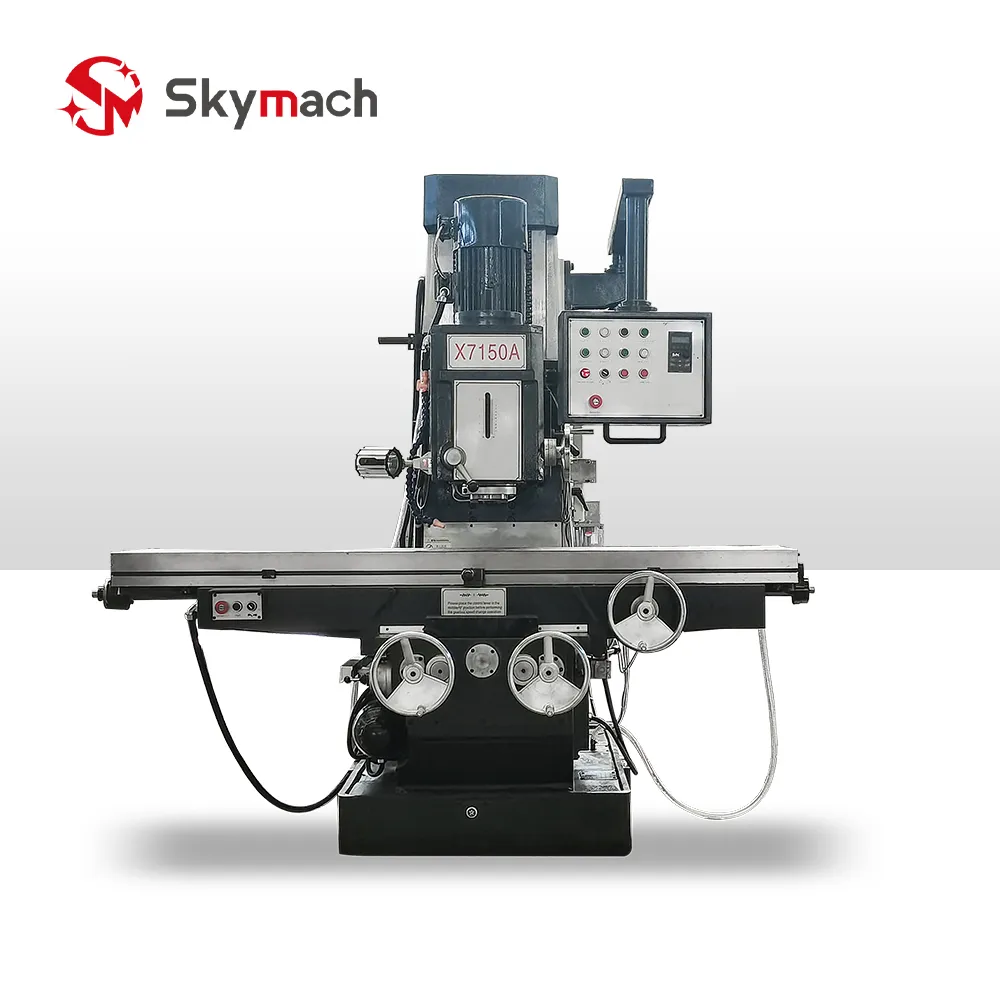

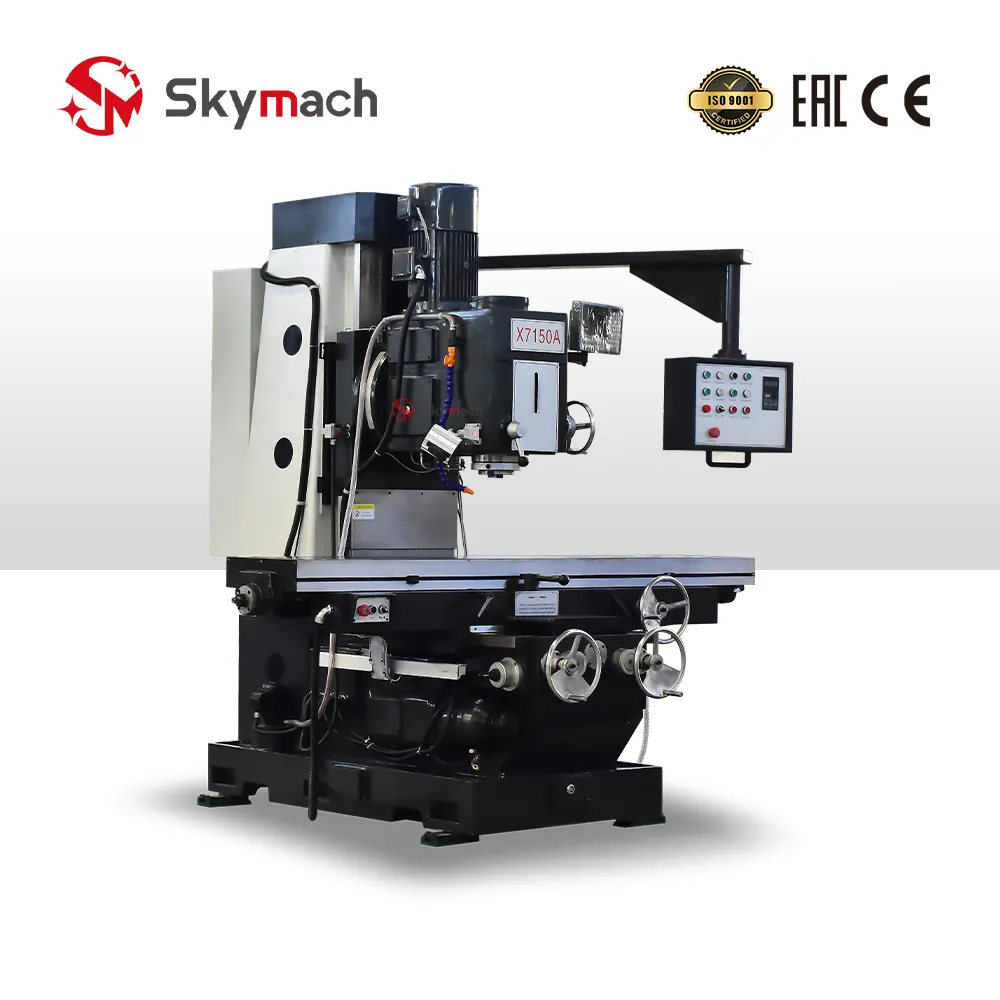

The Skymach X7150A Heavy-Duty Bed Type Milling Machine is constructed on a monolithic 5,000 kg Meehanite fixed-bed frame, specifically engineered to eliminate the table overhang and deflection common to knee-type machines when processing heavy workpieces. Equipped with a 2000 x 400 mm ground cast iron table (1,500 mm X-travel), a heavy ISO 50 spindle, an efficient 7.5 kW geared motor (66 - 1,440 RPM), and a generous 600 mm throat clearance, the X7150A delivers immense metal removal rates and high accuracy in mold base manufacturing, die squaring, and heavy machinery fabrication.
Comprehensive Machining Capabilities
- Heavy-Duty Fixed Bed Rigidity: The worktable rides directly on the machine’s heavy base rather than a cantilevered knee, allowing heavy mold blocks and multi-ton fabrications without table tilt.
- Expansive 1,500 mm Longitudinal Travel: 2000 x 400 mm table provides ample clamping area for long structural beams, engine blocks, and multiple clamping vises.

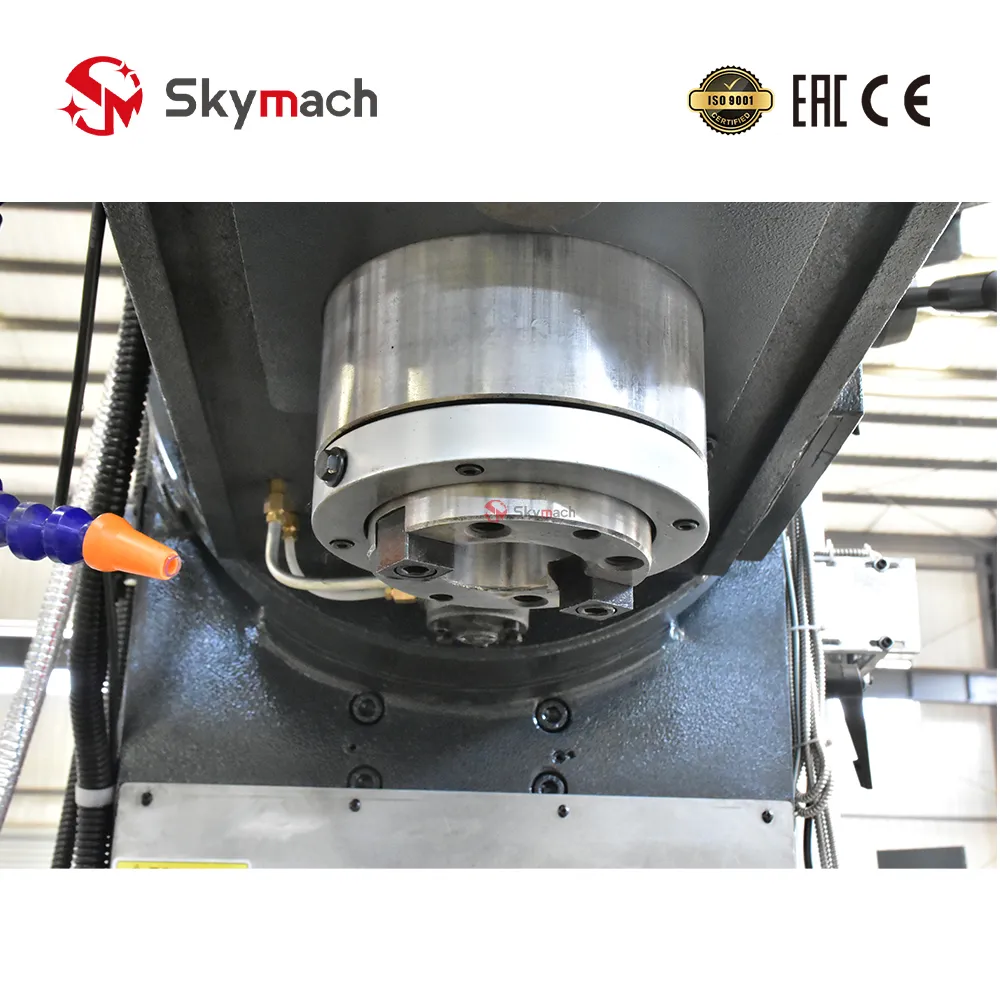

- Deep Milling & Face Squaring: Powerful 7.5 kW ISO 50 spindle head easily drives large-diameter indexable face mills for heavy surface facing, step squaring, and slotting.
Key Engineering Highlights
- Geared 7.5 kW Spindle Drive: Multi-speed mechanical gearbox produces exceptional torque at low speeds to cut tough alloy steels, cast iron, and forged titanium.
- Hardened Rectangular Guideways: Precision-ground, induction-hardened slideways coated with Turcite-B ensure ultra-smooth feed motion and long operational life.
- Rigid 5,000 kg Structure: High structural mass dampens interrupted cutting harmonics, protecting cutting inserts and producing superior surface finishes.
Technical Parameters
| Table Size | 2000 x 400 mm |
|---|---|
| Table Travel (X / Y) | 1500 x 500 mm |
| T-Slot (Number - Width x Pitch) | 3 - 18 x 100 mm |
| Spindle Taper | ISO 50 |
| Spindle Speed Range (Steps) | 66 - 1440 rpm |
| Distance from Spindle Axis to Column Surface | 600 mm |
| Distance Between Spindle Nose and Table Surface | 100 - 650 mm |
| Main Spindle Motor Power | 7.5 kW |
| Machine Weight | 5000 kg |
| Overall Dimension (L * W * H) | 3000 x 2285 x 2340 mm |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
