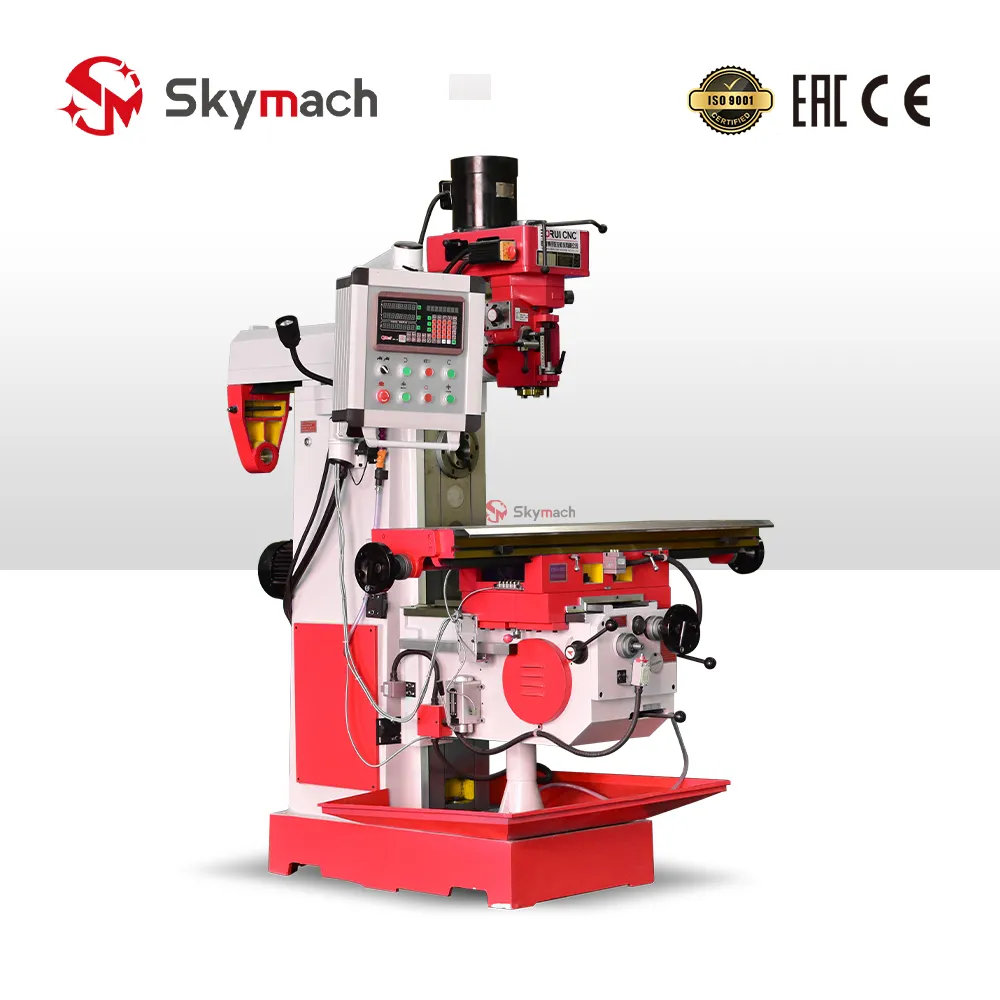

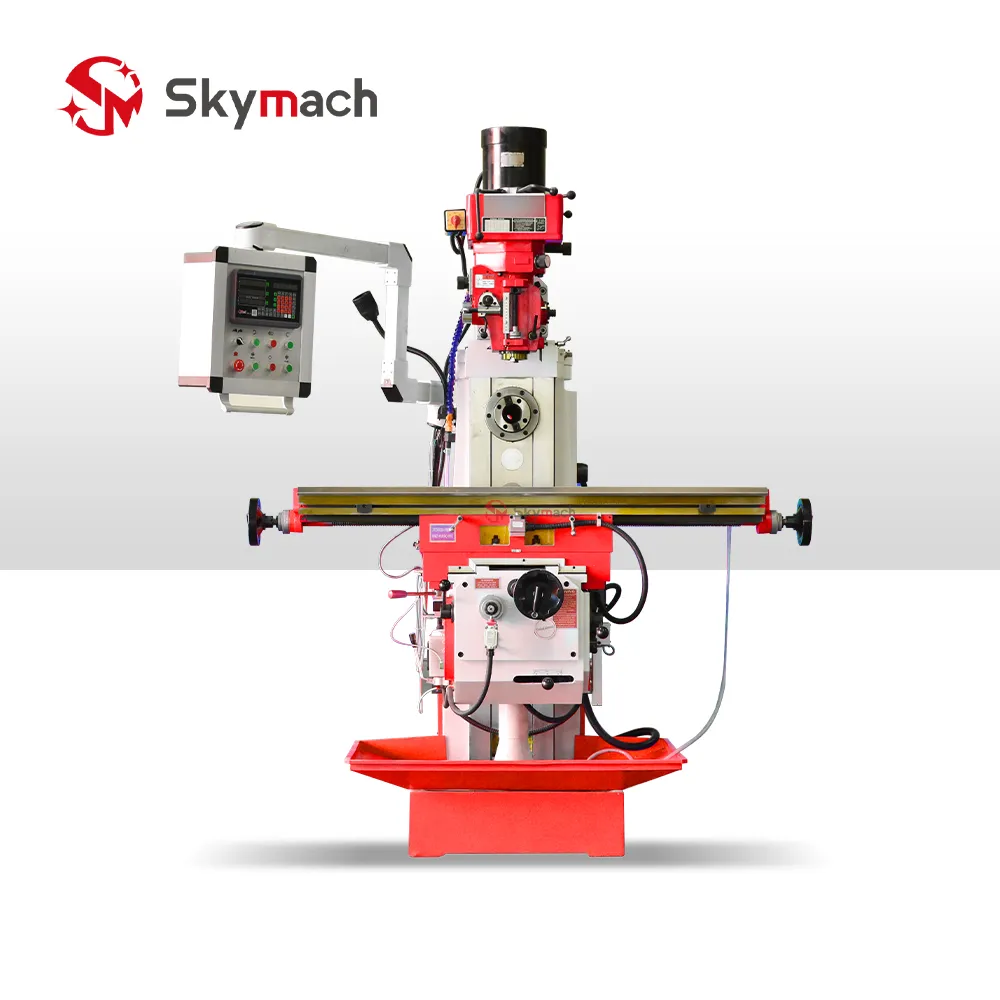

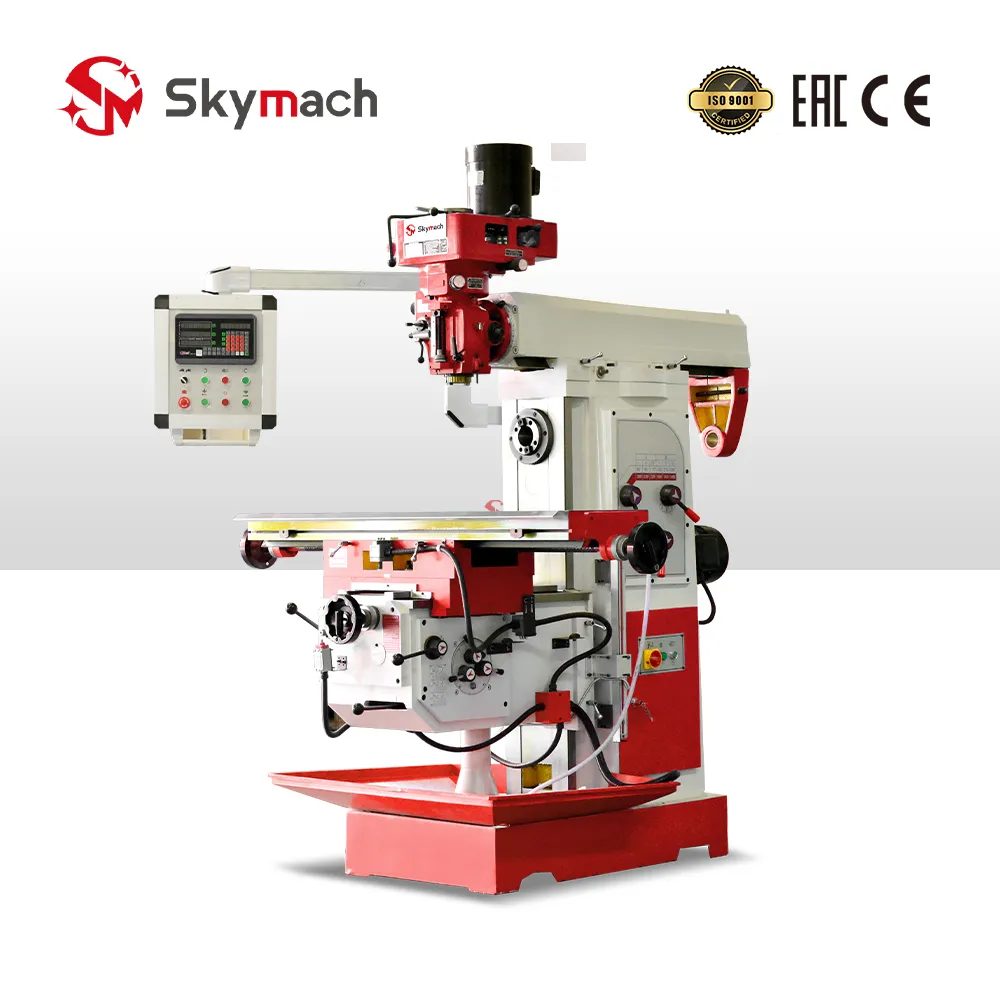

The Skymach X6336 Universal Vertical & Horizontal Turret Milling Machine integrates an independent 3.7 kW vertical turret milling head (R8/ISO40) and a dedicated 4 kW horizontal milling spindle (ISO40) on a massive 2,400 kg Meehanite cast iron frame. Featuring an extended 1500 x 360 mm worktable with 1,000 mm X-axis travel, the X6336 provides extreme flexibility for large component face milling, horizontal arbor gang milling, angular drilling, and gear cutting in heavy machinery, mold manufacturing, and maintenance operations.
Comprehensive Machining Capabilities
- Dual Spindle Versatility: Perform heavy horizontal gang milling and arbor slotting simultaneously or sequentially alongside high-speed vertical milling and angular drilling.

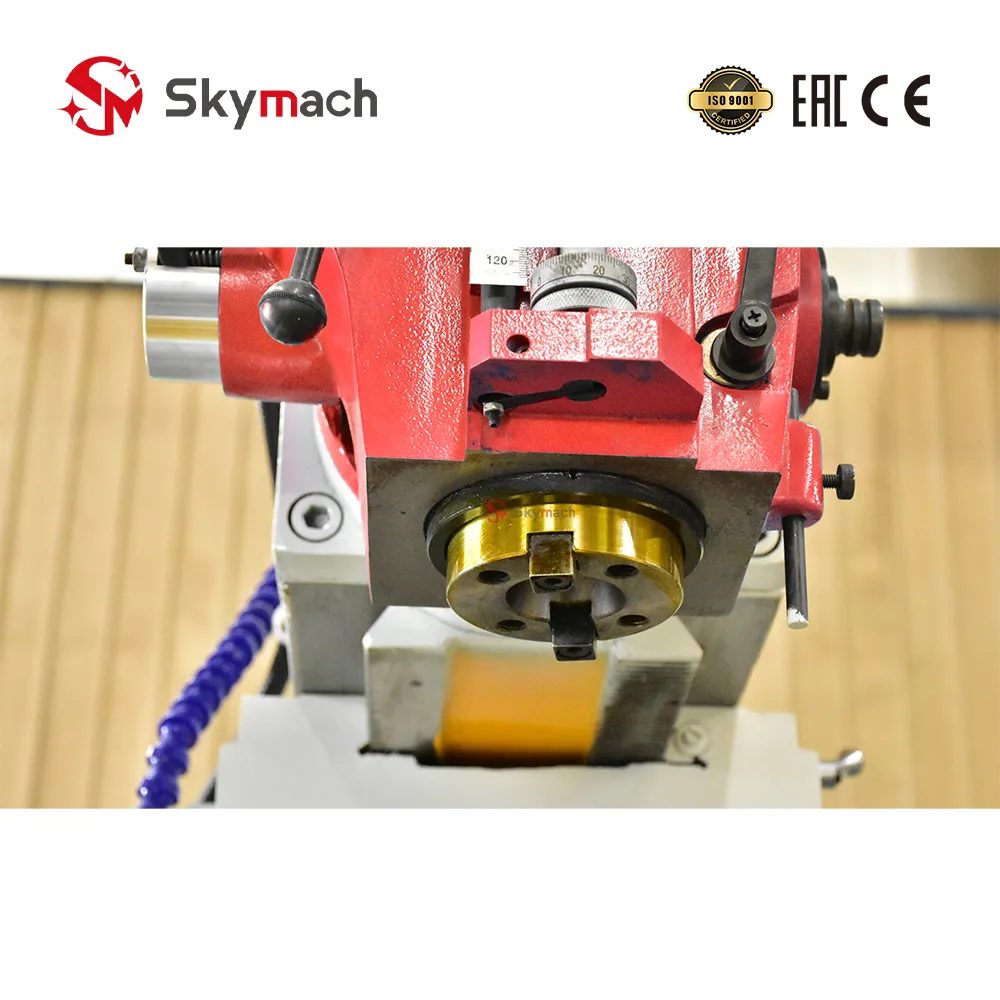

- Universal Multi-Angle Articulation: The vertical head swivels ±90° left/right and ±45° forward/backward for compound angle bevels and chamfers.
- Long 1,000 mm Travel: Extra-wide 1500 x 360 mm table allows clamping of multiple workpieces or long structural plates and shafts.
Key Engineering Highlights
- Independent High-Torque Drives: 3.7 kW vertical head with 16 belt speeds and 4 kW horizontal spindle with 12-step heavy gear transmission (60 - 1,800 RPM).
- Hardened & Ground Slideways: Wide rectangular guideways lined with Turcite-B ensure smooth feeds and long-term geometric precision under heavy cutting loads.
- Heavy 2,400 kg Structure: High dynamic mass and wide column base eliminate chatter during deep cuts in hardened alloys and cast iron.
Technical Parameters
| Table Size | 1500 x 360 mm |
|---|---|
| Table Travel (X / Y / Z) | 1000 / 320 / 450 mm |
| T-Slot (Number - Width x Pitch) | 3 - 18 x 80 mm |
| Vertical Spindle Taper | R8 / ISO 40 |
| Horizontal Spindle Taper | ISO 40 |
| Vertical Spindle Speed Range (Steps) | 50Hz: 65-4500 rpm, 60Hz: 80-5440 rpm (16 steps) | Opt. Variable 65-4000 rpm |
| Horizontal Spindle Speed Range (Steps) | 60 - 1800 rpm (12 steps) |
| Spindle Travel (Quill Stroke) | 127 mm |
| Distance Between Spindle Nose and Table Surface | 90 - 510 mm |
| Distance Between Horizontal Spindle Axis and Table | 0 - 450 mm |
| Main Motor Power | 3.7 kW (Vertical) / 4 kW (Horizontal) |
| Head Rotation (Left - Right) | ±90° |
| Head Rotation (Front - Rear) | ±45° |
| Machine Weight | 2400 kg |
| Overall Dimension (L * W * H) | 2600 x 2200 x 2550 mm |
