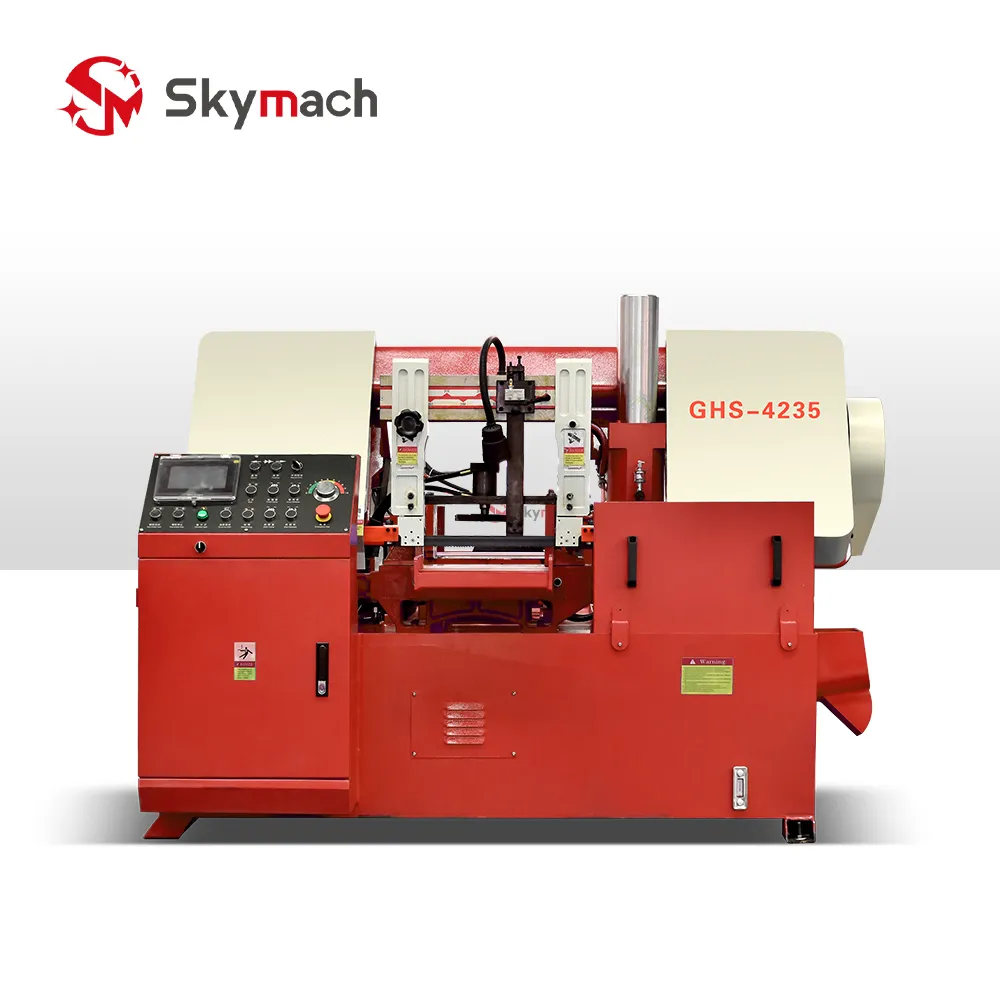

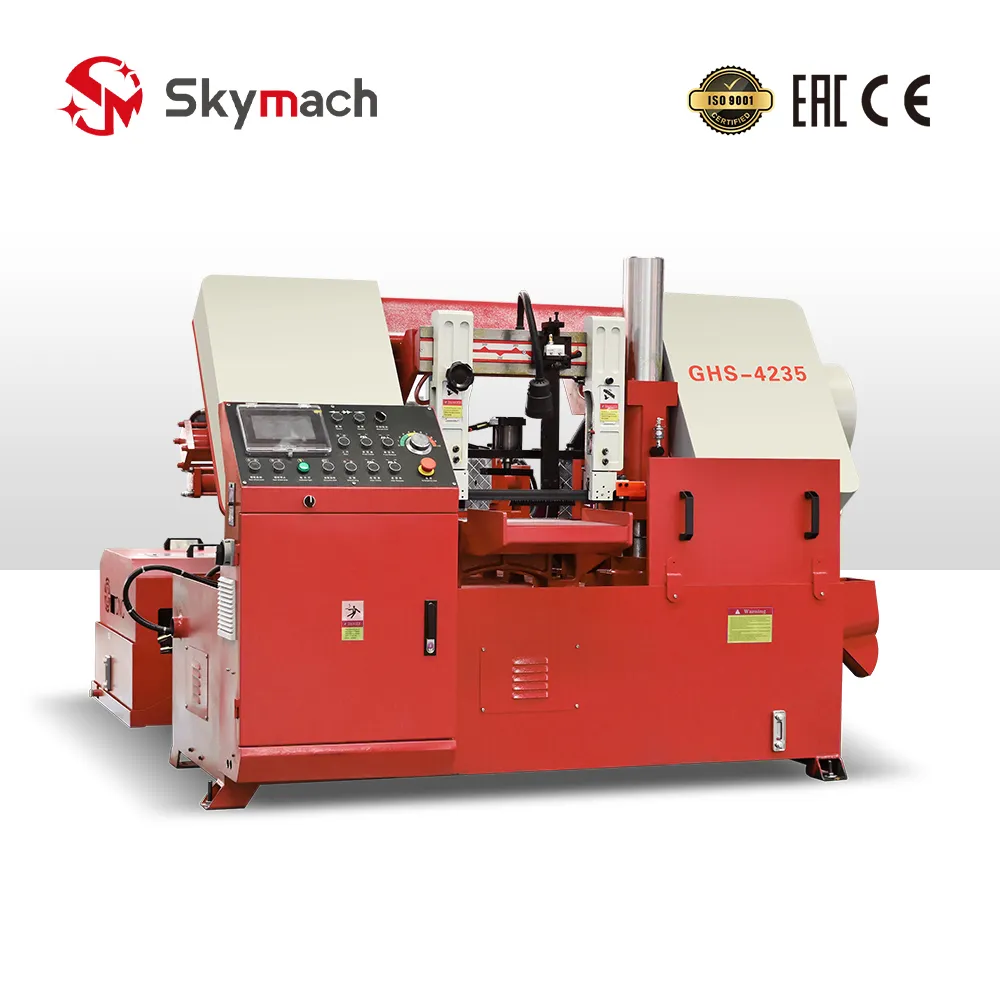

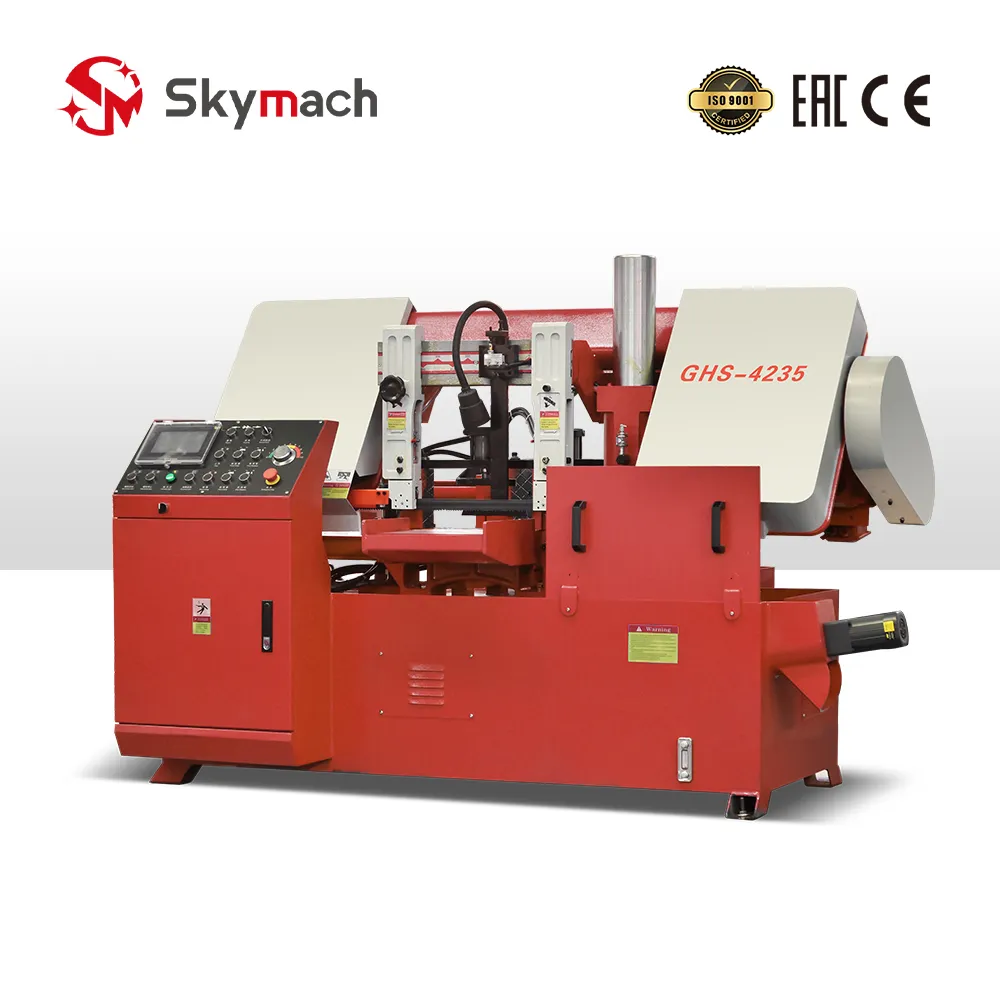

The Skymach GHS4235 CNC Fully Automatic Double-Column Metal Band Sawing Machine combines intelligent PLC automation with a 7-inch touch screen interface, designed for unmanned, high-precision batch cutting of solid steel bars, structural beams, and bundled materials up to 350 x 350 mm. With hydraulic automatic multi-pass feeding, programmable batch counters, powerful 4 kW worm gear transmission, and rigid double-column guideways, the GHS4235 maximizes throughput while maintaining exceptional cut perpendicularity and surface finish.
Technical Parameters
| Cutting Capacity | 350 x 350 mm |
|---|---|
| Blade Speed | 27, 45, 69 m/min |
| Blade Size | 4115 x 34 x 1.1 mm |
| Main Motor Power | 4 kW |
| Hydraulic Motor Power | 0.75 kW |
| Cooling Pump Power | 0.04 kW |
| Worktable Clamping Type | Hydraulic |
| Main Driving Structure | Worm Gear Transmission |
| Feeding Type | Hydraulic Automatically |
| Overall Dimension (L * W * H) | 2220 x 2200 x 1800 mm |
| Machine Weight | 1450 kg |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
