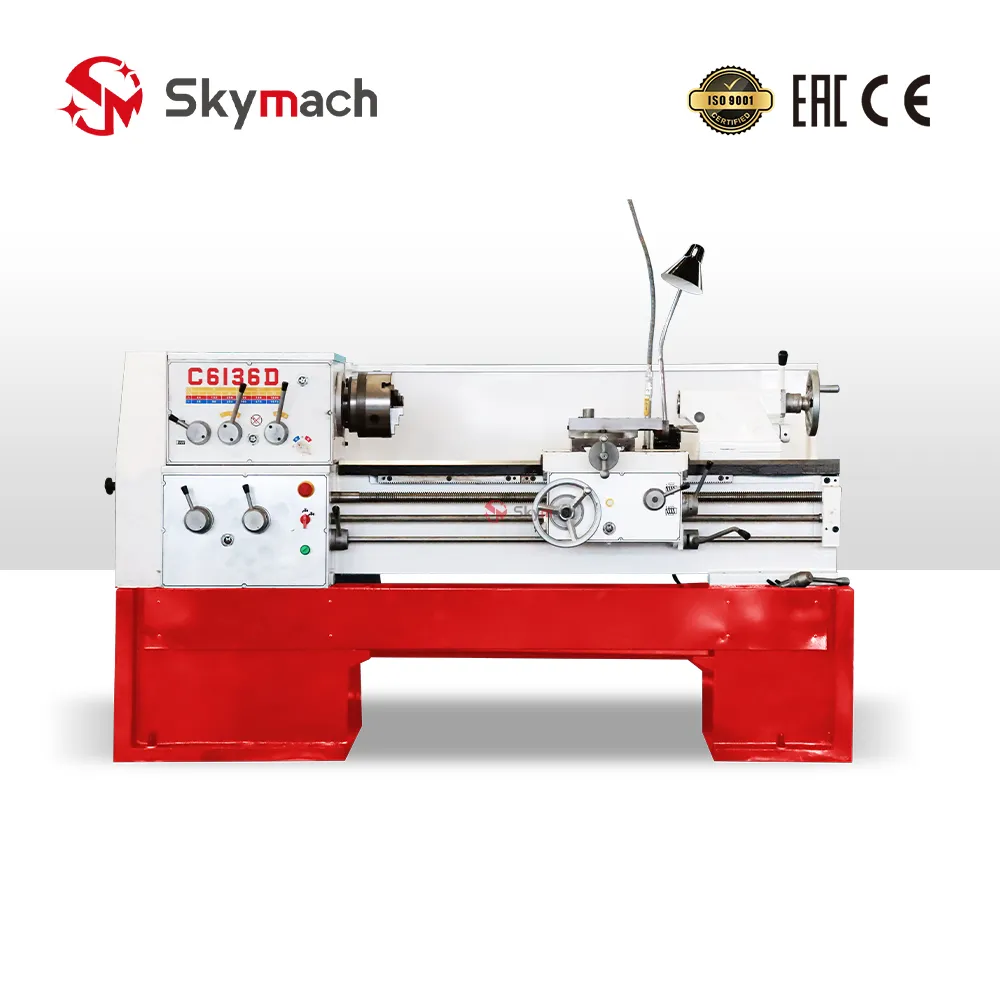

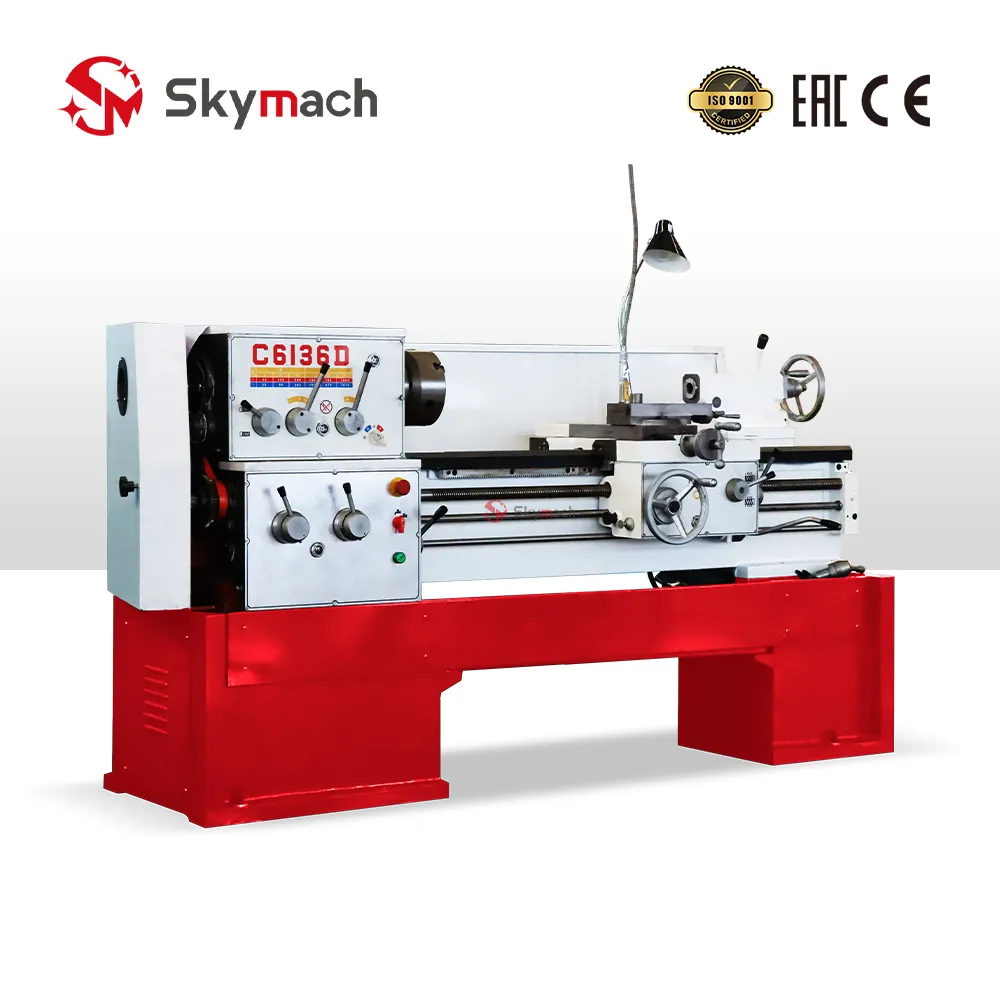

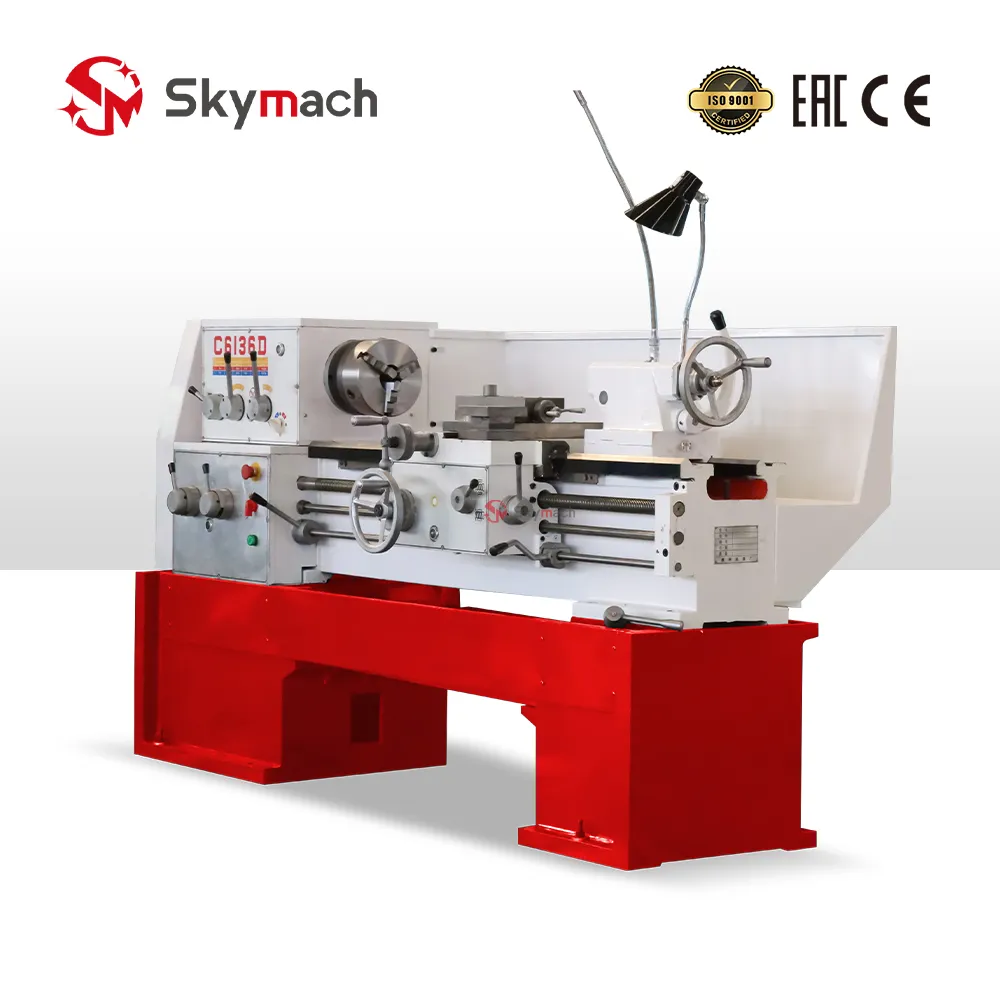

The Skymach C6136D Horizontal Conventional Lathe is a versatile and robust manual metal-turning machine engineered for machine shops, toolrooms, and repair maintenance departments. Delivering an impressive 800 mm swing over carriage with a 1000 mm maximum workpiece turning length, the C6136D provides generous turning capacity for medium and large diameter workpieces without sacrificing cutting sensitivity or operational convenience.
Exceptional Machining Versatility
- Large 800 mm Swing Over Carriage: Accommodates large-diameter flanges, short discs, and cylindrical workpieces with ample clearance above the carriage and bedways.
- 1000 mm Turning Length: Generous distance between centers handles shafts, pipes, and threaded rods with outstanding longitudinal support.

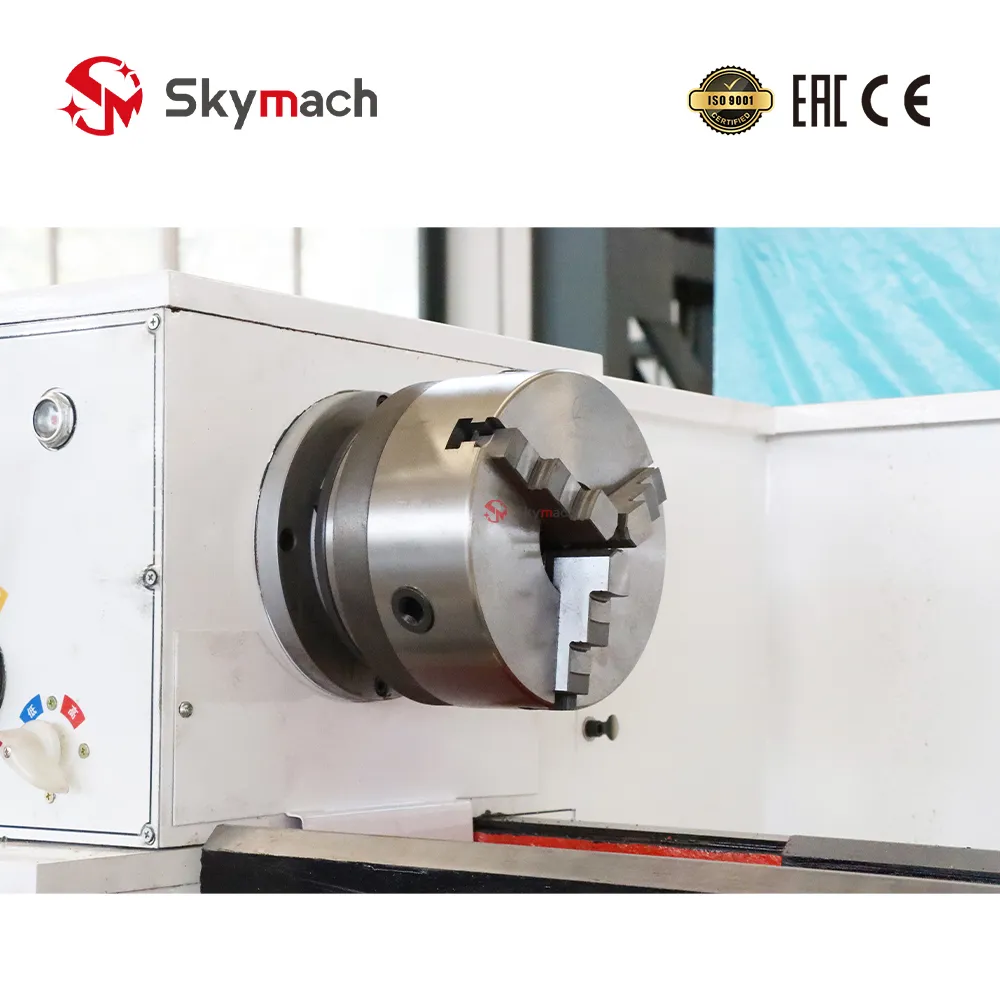

- Spindle Flexibility: Standard Φ52 mm bore with MT6 spindle taper (or optional Φ80 mm large bore) accommodates direct through-spindle bar feeding.
- Broad Speed Range (40 - 1400 RPM): Geared headstock transmission provides low-speed high torque for heavy roughing cuts and high speeds for fine surface finishing.
Heavy-Duty Construction & Tailstock Stability
- Precision Induction-Hardened Bedways: Ground cast iron bed ensures maximum structural rigidity, vibration dampening, and long-term geometric accuracy.

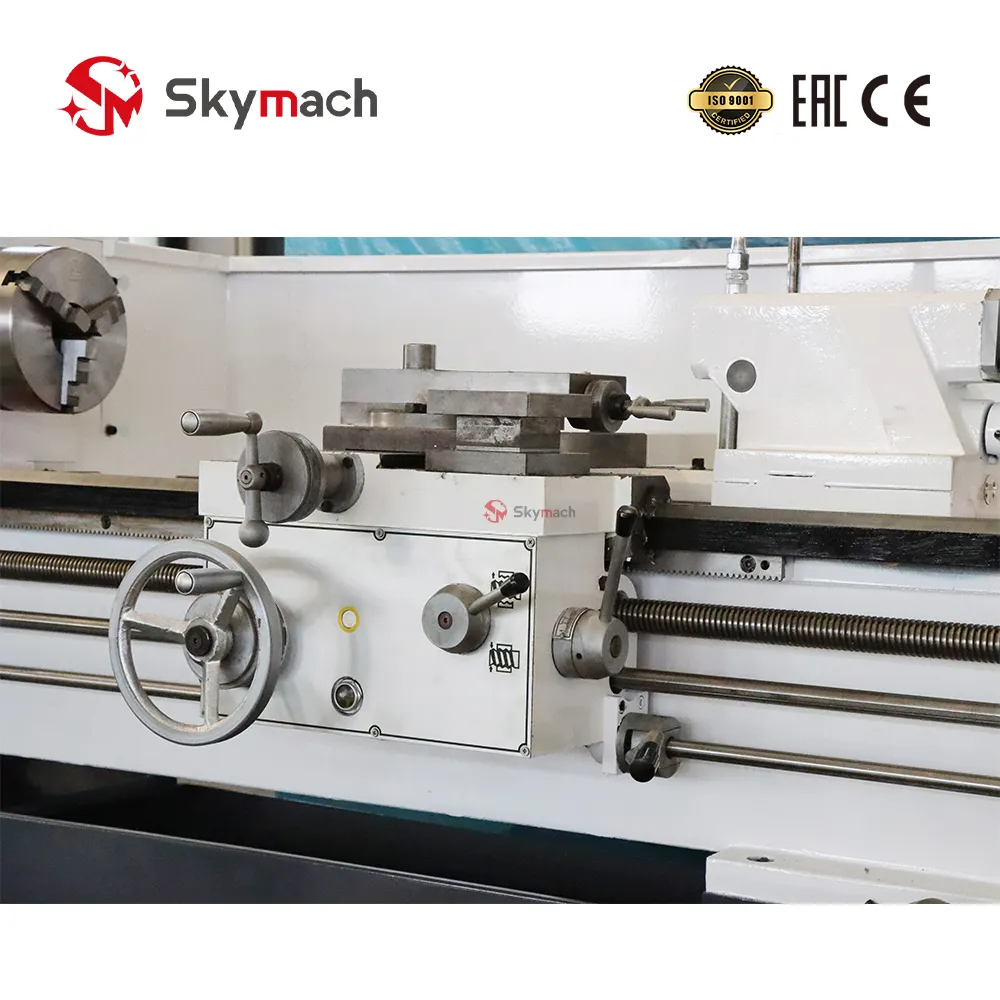

- Heavy Carriage & Compound Slide: 180 mm cross slide stroke and 95 mm top tool post stroke support 20 x 20 mm standard lathe tool holders for precise cylindrical and taper turning.
- Rigid MT4 Tailstock: Features an enlarged Φ65 mm quill diameter with 130 mm quill travel and MT4 taper socket, providing solid workpiece center support and reliable drilling capability.
- Integrated Cooling System: High-efficiency 0.09 kW coolant pump supplies continuous cutting fluid directly to the cutting zone, extending tool life and improving surface finish.
Technical Parameters
| Swing Over Carriage | 800 mm |
|---|---|
| Max. Workpiece Length | 1000 mm |
| Spindle Bore | 52 mm (Optional 80 mm) |
| Spindle Taper | MT6 |
| Spindle Speed Range | 40 - 1400 rpm |
| Cross Slide Travel | 180 mm |
| Top Tool Post Travel | 95 mm |
| Tool Size | 20 x 20 mm |
| Quill Diameter | 65 mm |
| Tailstock Quill Taper | MT4 |
| Quill Travel | 130 mm |
| Coolant Pump Motor Power | 0.09 kW |
| Main Motor Power | 4 kW / 5.5 kW |
| Machine Weight | 1200 kg |
| Overall Dimensions (L * W * H) | 2150 x 1050 x 1500 mm |
