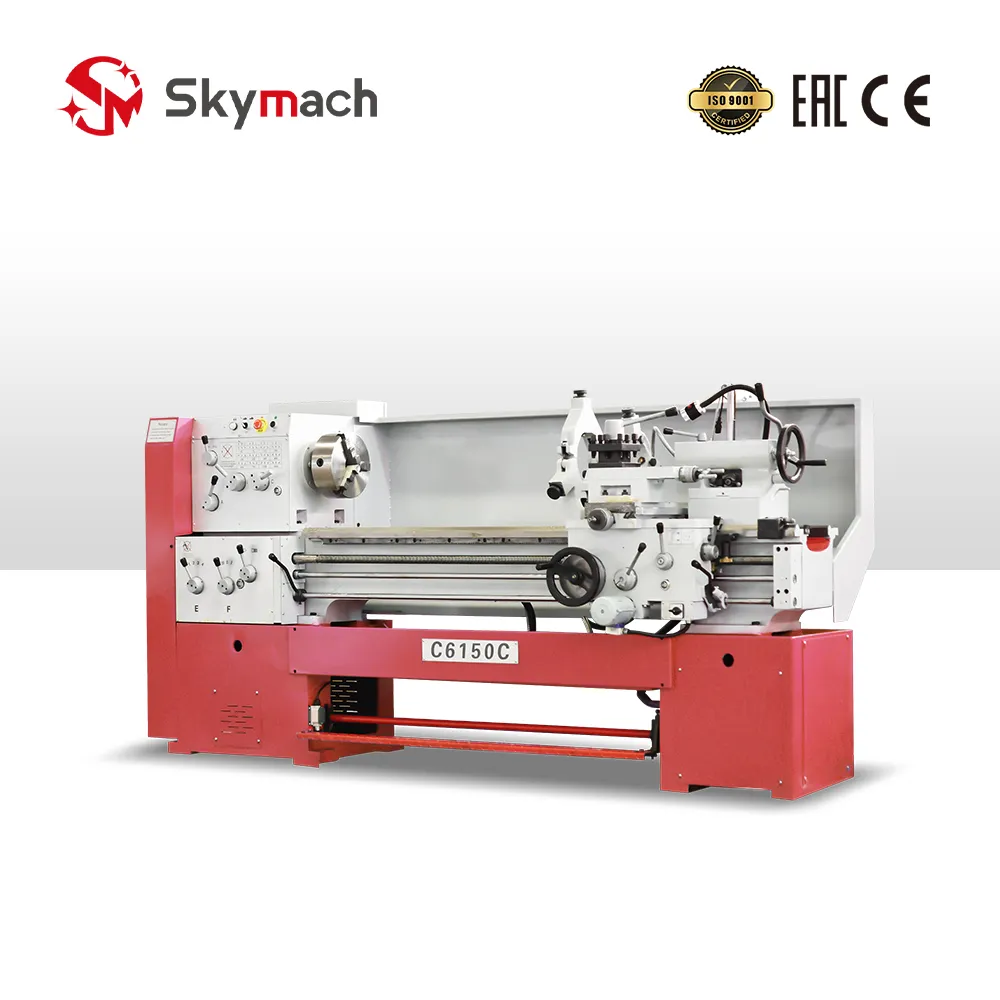

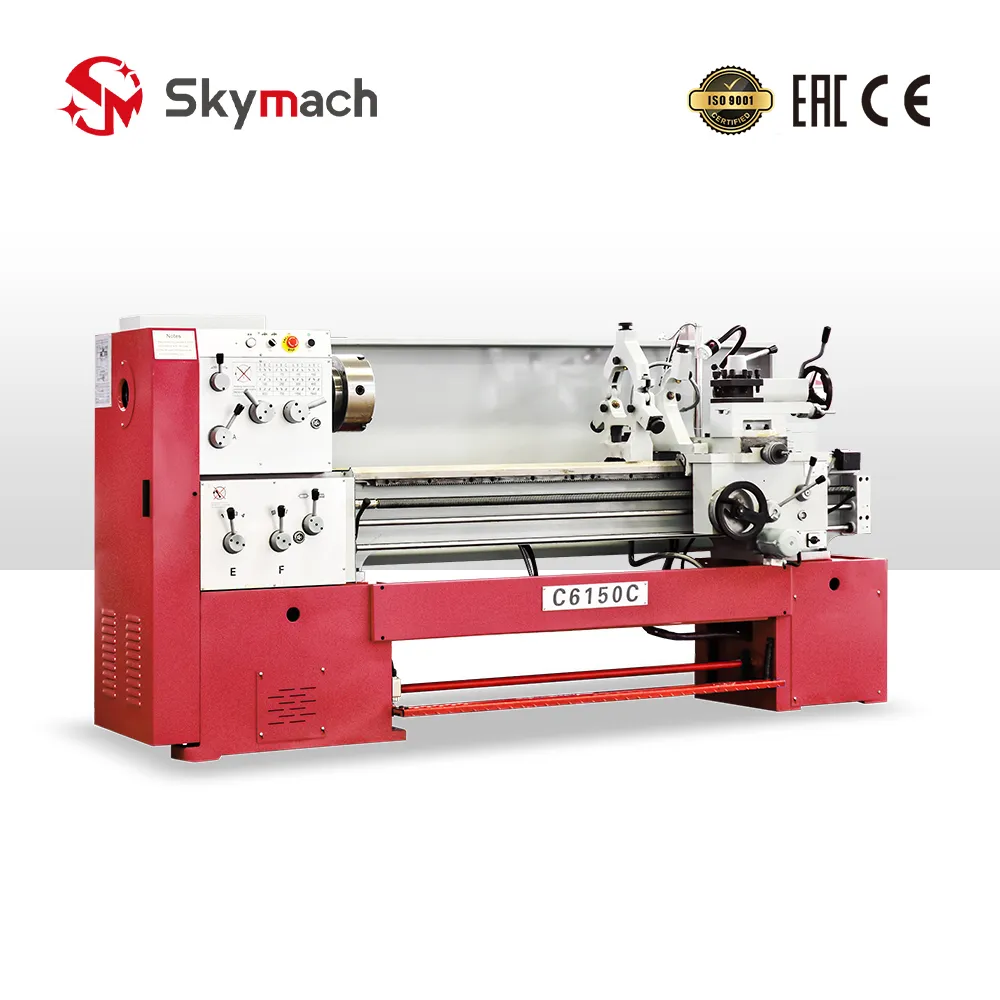

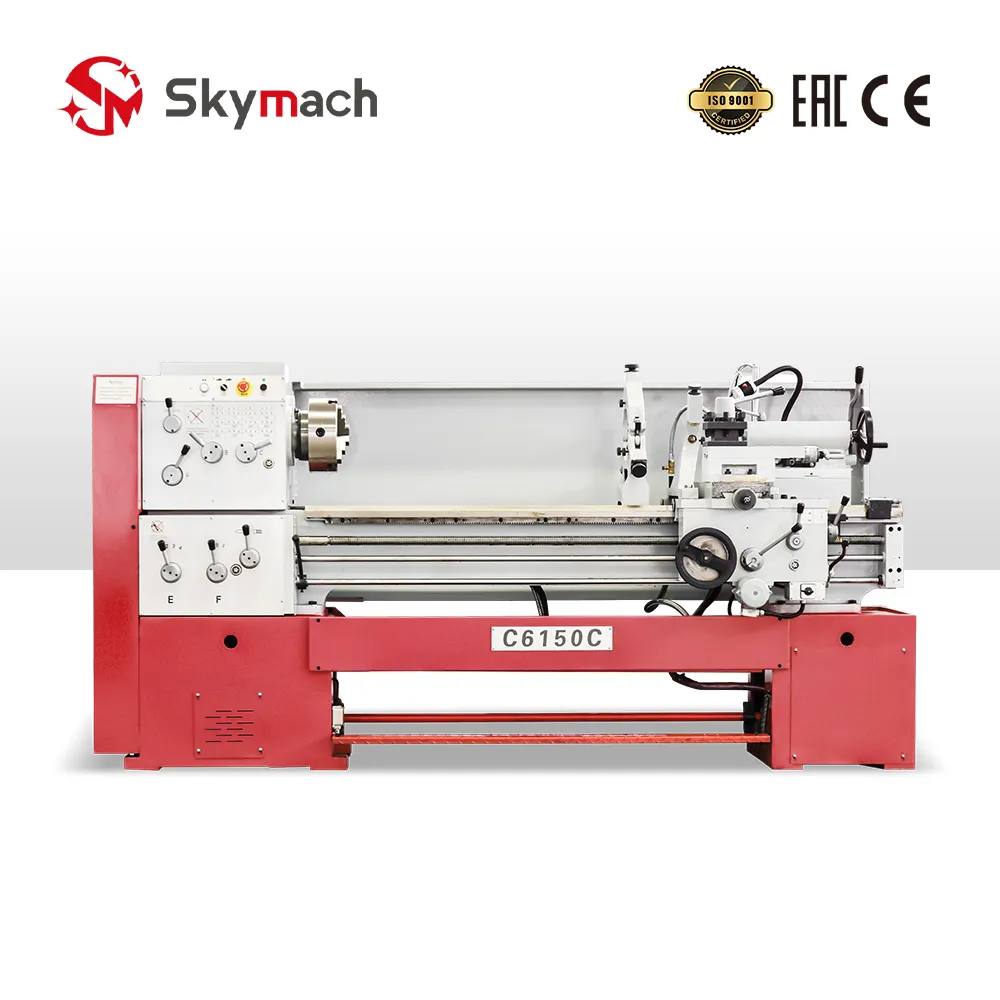

The Skymach C6150C Horizontal Conventional Lathe is an industrial metal turning lathe specifically designed for workshops, repair facilities, and maintenance departments requiring an enlarged 800 mm maximum swing over bed combined with the ease of operation and versatility of a manual lathe. Driven by a 5.5 kW main motor through a 9-speed geared headstock (40 - 1,400 RPM), the C6150C handles large-diameter disc turning, shaft turning, and multi-standard thread cutting with superior rigidity and accuracy.
Outstanding Machining Capabilities
- Expanded 800 mm Swing Over Bed: Allows turning of large flanges, valves, pipe fittings, and wheel components that standard 500 mm lathes cannot accommodate.
- Flexible Bed Length Options: Available in center distance options of 750, 1000, 1500, 2000, and 3000 mm, accommodating everything from compact workpieces to long industrial shafts.

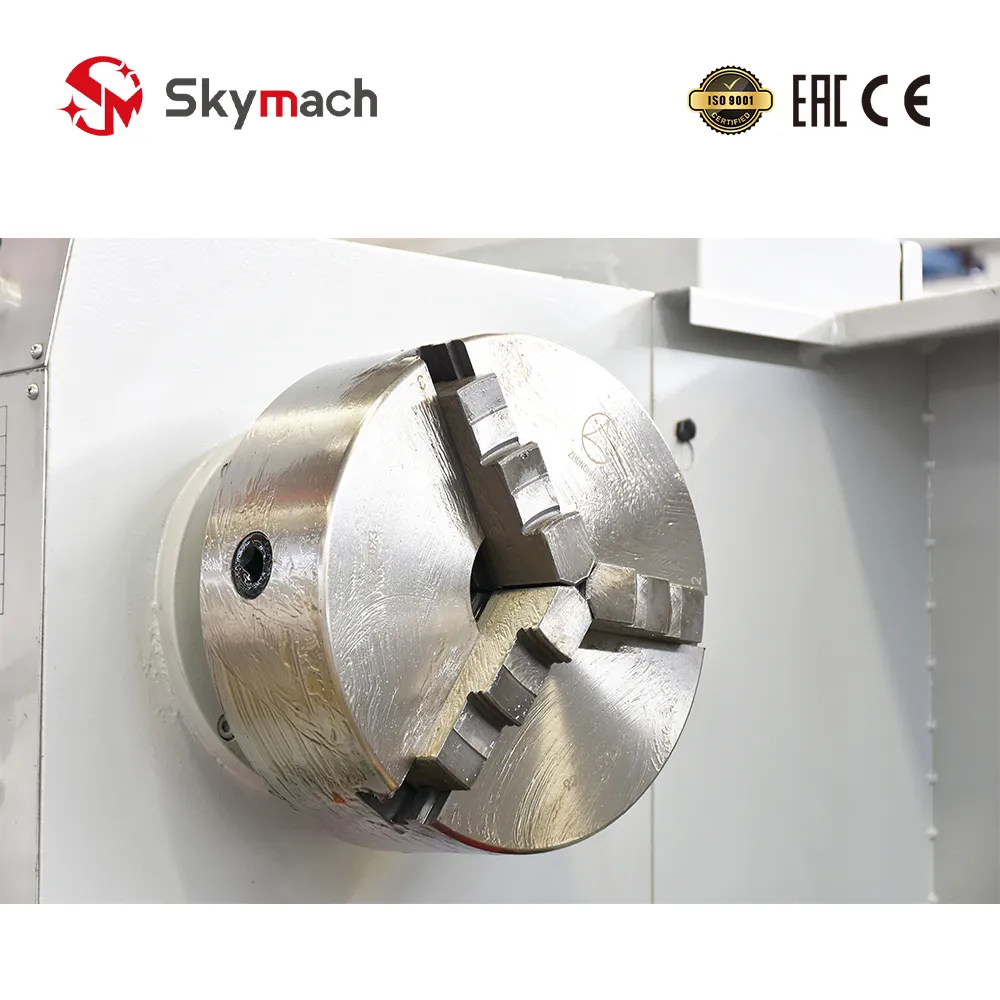

- Versatile Spindle Options: Standard Φ52 mm bore (MT6 taper) or optional Φ80 mm large bore configuration allows feeding large-diameter bars and tubing through the spindle headstock.
- Comprehensive Thread Cutting: The feed gearbox handles 19 Metric thread pitches (0.25 - 14 mm), 28 Imperial/Inch threads (2 - 40 TPI), and 17 Module pitches (0.25 - 3.5) without complicated change-gear swaps.
Rugged Construction & High-Precision Operation
- Induction-Hardened Bedways: Ground and hardened guideways maintain high alignment accuracy and wear resistance under continuous metal cutting operations.

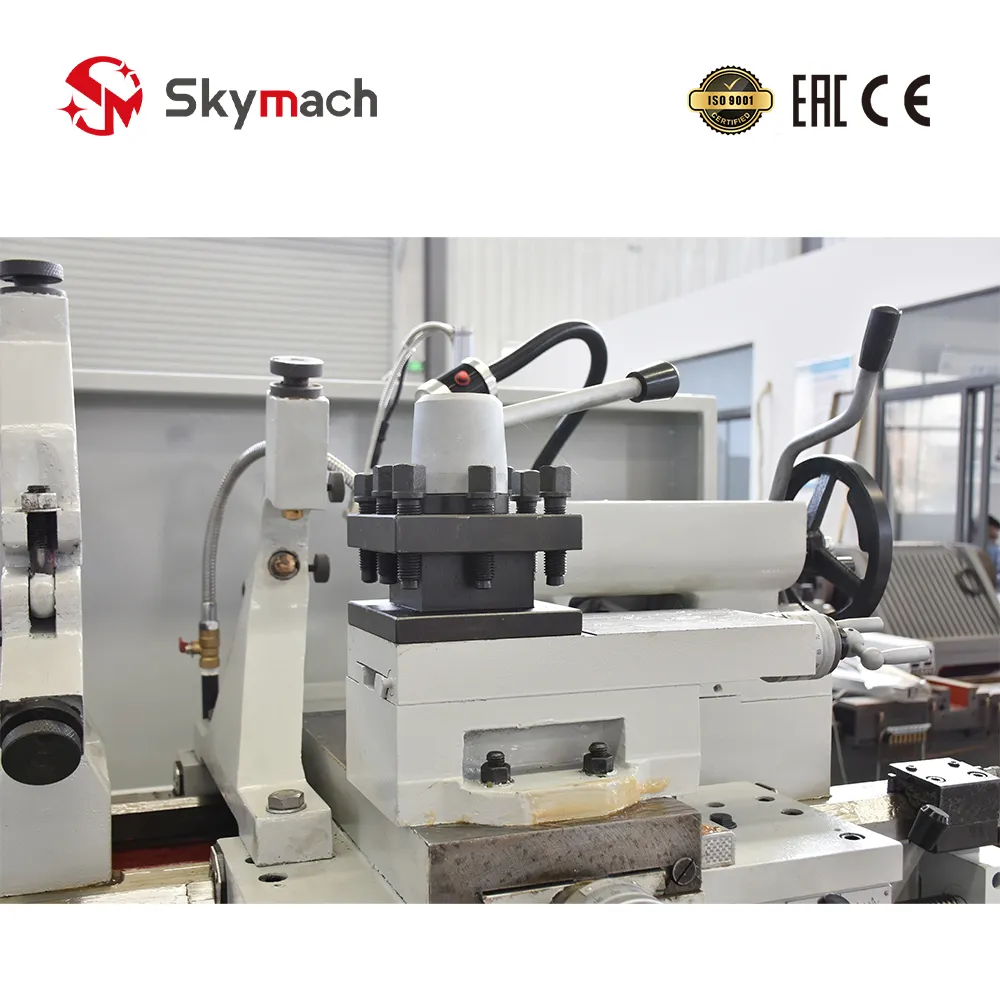

- Rigid Apron & Compound Slide: Features 200 mm cross slide travel and 95 mm top tool post travel with a 4-way indexing tool post supporting 20 x 20 mm tooling shanks.
- Heavy-Duty Tailstock: MT4 Morse taper quill provides rigid workpiece centering support and heavy drilling capability.
Technical Parameters
| Max. Swing Over Bed | 800 mm |
|---|---|
| Max. Workpiece Length | 750 / 1000 / 1500 / 2000 / 3000 mm |
| Spindle Bore | 52 mm (Optional 80 mm) |
| Spindle Taper | MT6 (Optional Metric 1:20) |
| Spindle Speed Range | 40 - 1400 rpm |
| Spindle Speed Steps | 9 steps |
| Cross Slide Travel | 200 mm |
| Top Tool Post Travel | 95 mm |
| Tool Size | 20 x 20 mm |
| Longitudinal Feed Range | 0.0632 - 4.6569 mm/rev |
| Cross Feed Range | 0.048 - 2.688 mm/rev |
| Metric Thread (Types / Range) | 19 types (0.25 - 14 mm) |
| Inch Thread (Types / Range) | 28 types (2 - 40 TPI) |
| Module Thread (Types / Range) | 17 types (0.25 - 3.5 Module) |
| Main Motor Power | 5.5 kW |
| Coolant Pump Motor Power | 0.09 kW |
| Tailstock Taper | MT4 |
| Machine Weight | 1250 kg |
| Overall Dimensions (L * W * H) | 2200 x 1140 x 1650 mm |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
