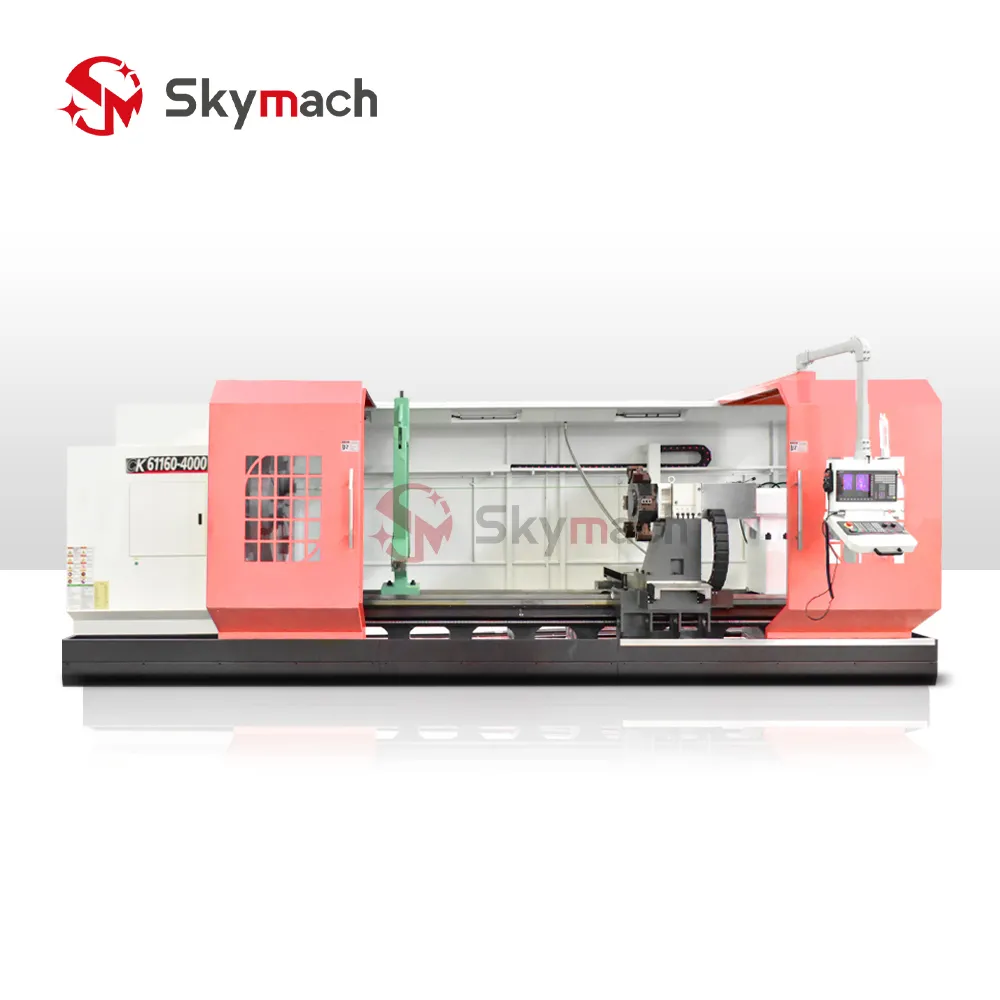

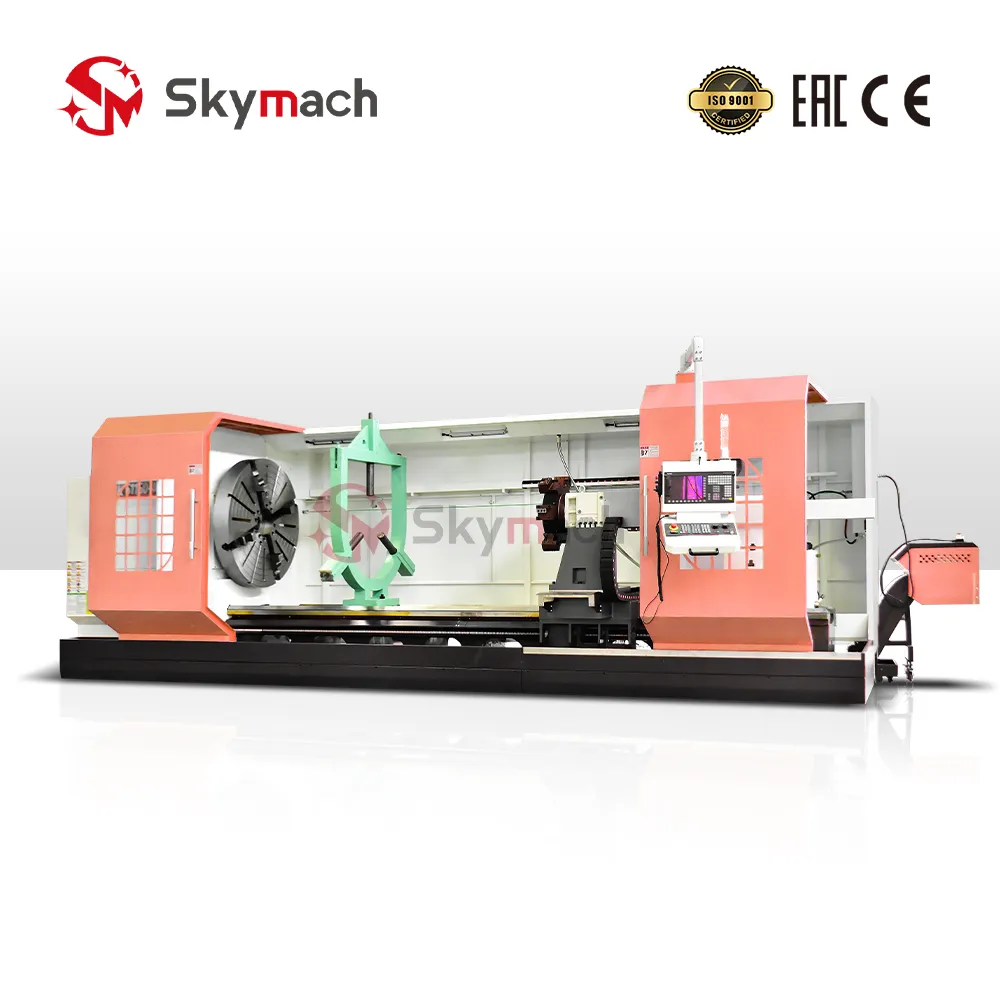

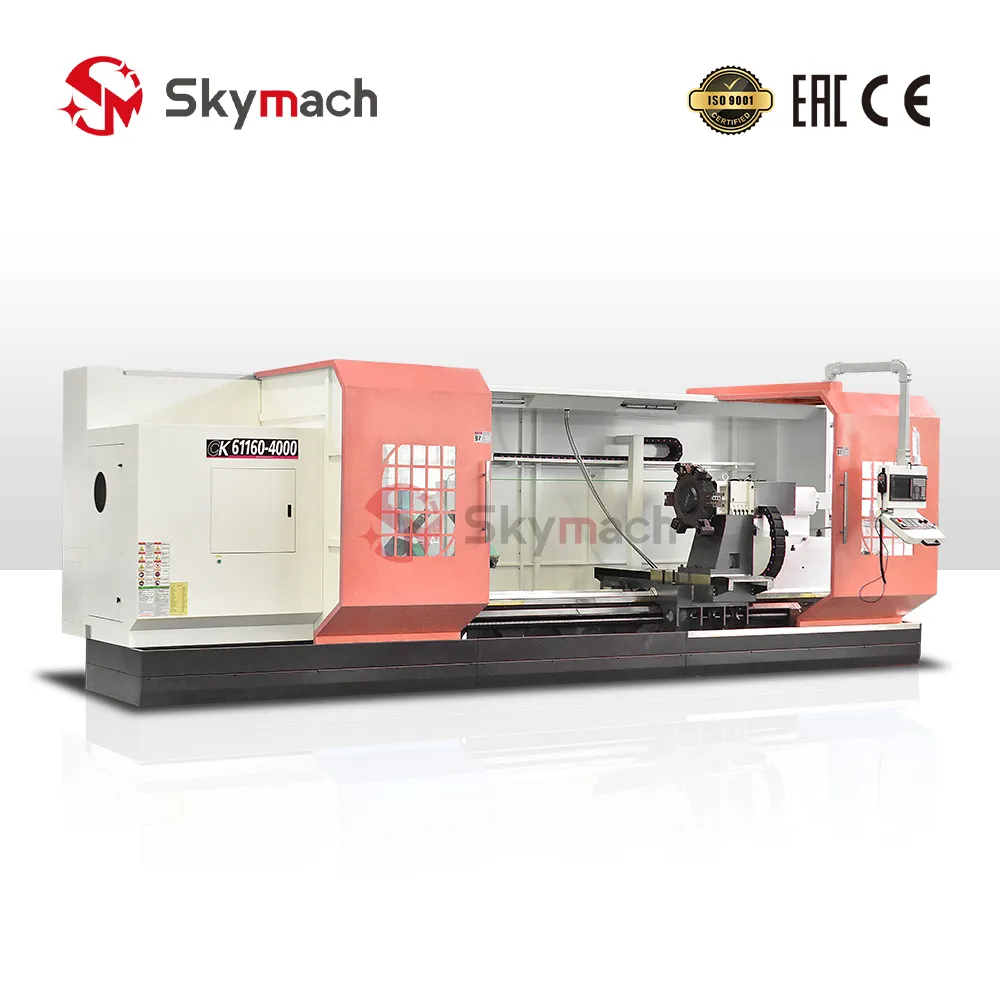

The Skymach CK61160 Heavy-Duty Flat Bed CNC Horizontal Lathe is built on an ultra-wide 1,100 mm monolithic induction-hardened cast iron bed, engineered specifically for large-diameter, extra-heavy workpiece turning. Featuring a massive Φ1600 mm swing over bed, a 22 kW 6-pole high-torque motor, an ISO A2-15 spindle nose with Φ130 mm through-bore, a 100/16 heavy-duty Z-axis ball screw, and an electric-driven motorized tailstock, the CK61160 delivers maximum metal removal rates and high contouring precision for heavy industrial machining.
Comprehensive Machining Capabilities
- 1,100 mm Ultra-Wide Heavy Monolithic Bed: Unrivaled structural rigidity and high dynamic mass absorb heavy cutting impacts during interrupted rough turning of large forgings and castings.
- Massive Spindle Torque: 22 kW 6-pole motor paired with a 4-step gearbox and external oil shower lubrication produces enormous low-end torque for large diameter turning.
- 100 mm Diameter Z-Axis Ball Screw: Nanjing Technology 100/16 ball screw driven by a 30 N.m servo with a 1:5 planetary reducer ensures effortless feeding of heavy tool slides.
Key Engineering Highlights
- Heavy Tailstock System: Features a massive Φ240/Φ265 mm quill with Metric 100/80 taper and motorized electric carriage drive for fast setup.
- High Working Capacity: Handles lengths from 1,500 mm up to 8,000 mm (customizable to 20,000 mm) with steady rests up to Φ800 mm.
- IT6-IT7 Long-Term Precision: Hardened slideways and high-grade bearings ensure surface finish Ra 1.6 μm and strict dimensional repeatability.
Technical Parameters
| Max. Swing Diameter Over Bed | Φ1600 mm |
|---|---|
| Max. Swing Over Cross Slide | Φ1180 mm |
| Max. Cutting Diameter | Φ1600 mm |
| Max. Processing Length | 1500 / 2000 / 3000 / 4000 / 5000 / 6000 / 8000 mm (Customizable up to 20,000 mm) |
| Max. Cutting Length | 1300 / 1800 / 2800 / 3800 / 4800 / 5800 / 7800 mm |
| Max. Diameter Through the Bar | Φ130 mm |
| Bed Foot Structure | Integral Bed |
| Guideway Width | 1100 mm |
| Spindle Speed | 3.15 - 315 r/min |
| Main Spindle Motor | 22 kW (Level 6) |
| Spindle Nose Type | ISO A2-15 |
| Spindle Bore | Φ130 mm |
| Spindle Taper Hole Specification | Φ140 (1:20) |
| Number of Spindle Speed Steps | Manual 4 steps, stepless speed changing |
| Main Spindle Bearing | NN3040K/P5, NN3034K/P5, 51144M/P5, 12736/P5 |
| Height From Spindle Center to Ground | 1450 mm |
| X Axis Travel | 800 mm |
| Z Axis Travel | 800 / 1300 / 1800 / 2800 / 3800 / 4800 / 5800 / 7800 mm |
| X-Axis Rapid Feed | 3 m/min (Add 1:3 planetary reducer) |
| Z-Axis Rapid Feed | 4 m/min (Add 1:5 planetary reducer) |
| X-Axis Screw Diameter / Pitch | 40/06 (Nanjing Technology) |
| Z-Axis Screw Diameter / Pitch | 100/16 (Nanjing Technology) |
| X / Z Axis Motor Torque | 15 N.m / 30 N.m |
| Tailstock Quill Diameter / Travel | 240/300 mm (1000-3000) / 265 mm built-in top / 300 mm (Above 4000) |
| Tailstock Quill Taper | Metric 100 (1000-3000) / Metric 80 (Above 4000) |
| Sleeve Drive System | Manual |
| Tailstock Drive | Electric Powered |
| Turret Type | 300 x 300 Vertical 4 Station |
| External Turning Tool Shank Specification | 40 x 40 mm |
| Max. Diameter of Boring Tool Holder | Φ40 mm |
| X-Axis Positioning Accuracy | 0.03 mm |
| Z-Axis Positioning Accuracy | 0.03 mm (1000) / 0.05 mm (1500) |
| X-Axis Repeated Positioning Accuracy | 0.009 mm |
| Z-Axis Repeated Positioning Accuracy | 0.014 mm (1000) / 0.018 mm (1500) |

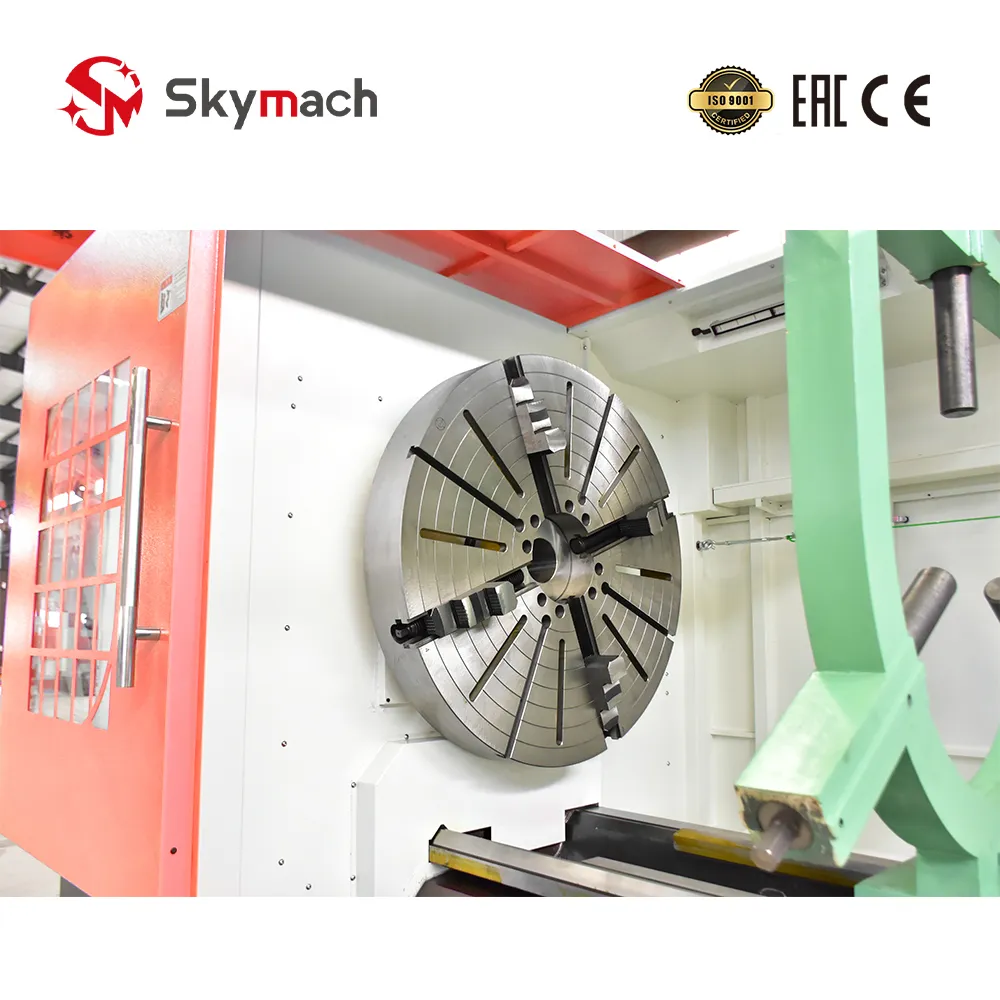

| Manual Chuck Diameter | Φ1250 mm Four-jaw single-action chuck |
| Steady Rest & Follow Rest | Above 3000 length includes steady rest Φ200-Φ800 and follow rest Φ50-Φ260 |

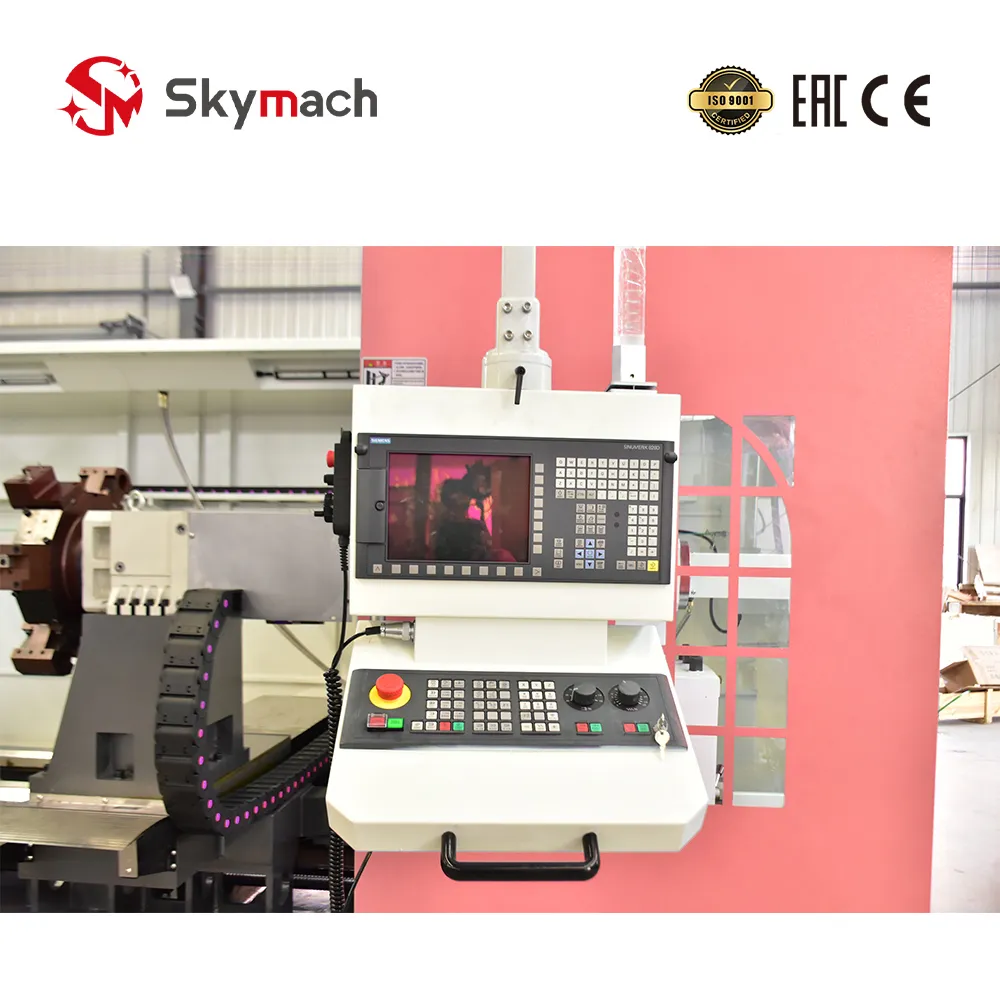

| CNC System | GSK980TDi |
| Total Electrical Capacity | 60 kVA |
| Machine Weight | 19000(1500) / 20000(2000) / 21800(3000) / 22800(4000) / 23800(5000) / 24800(6000) / 27300(8000) kg |
