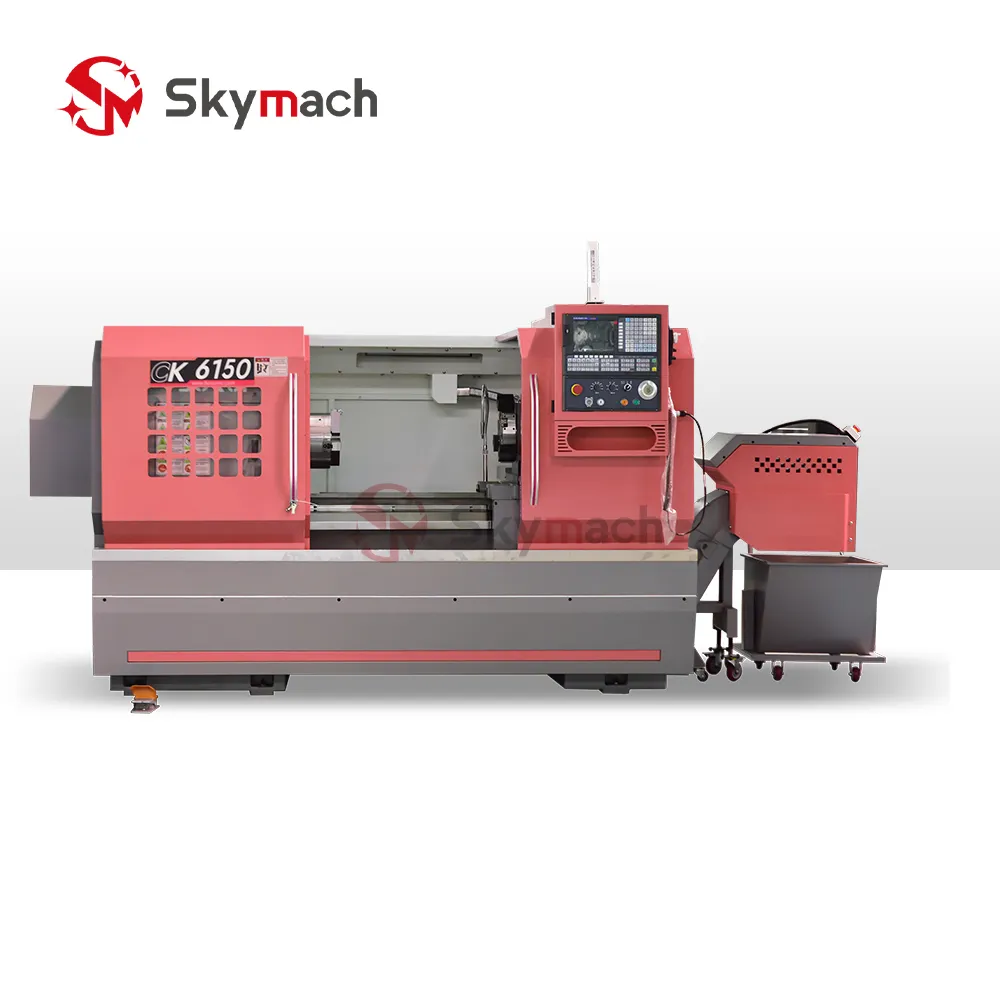

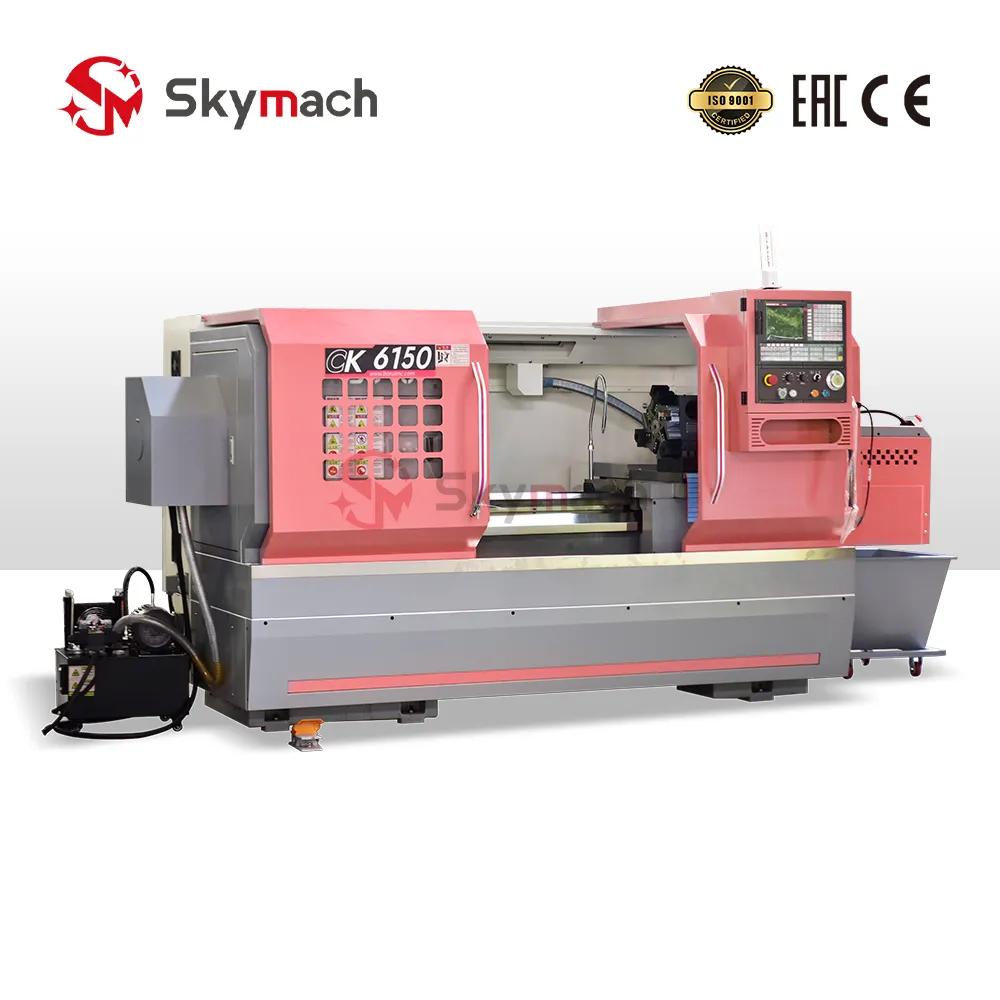

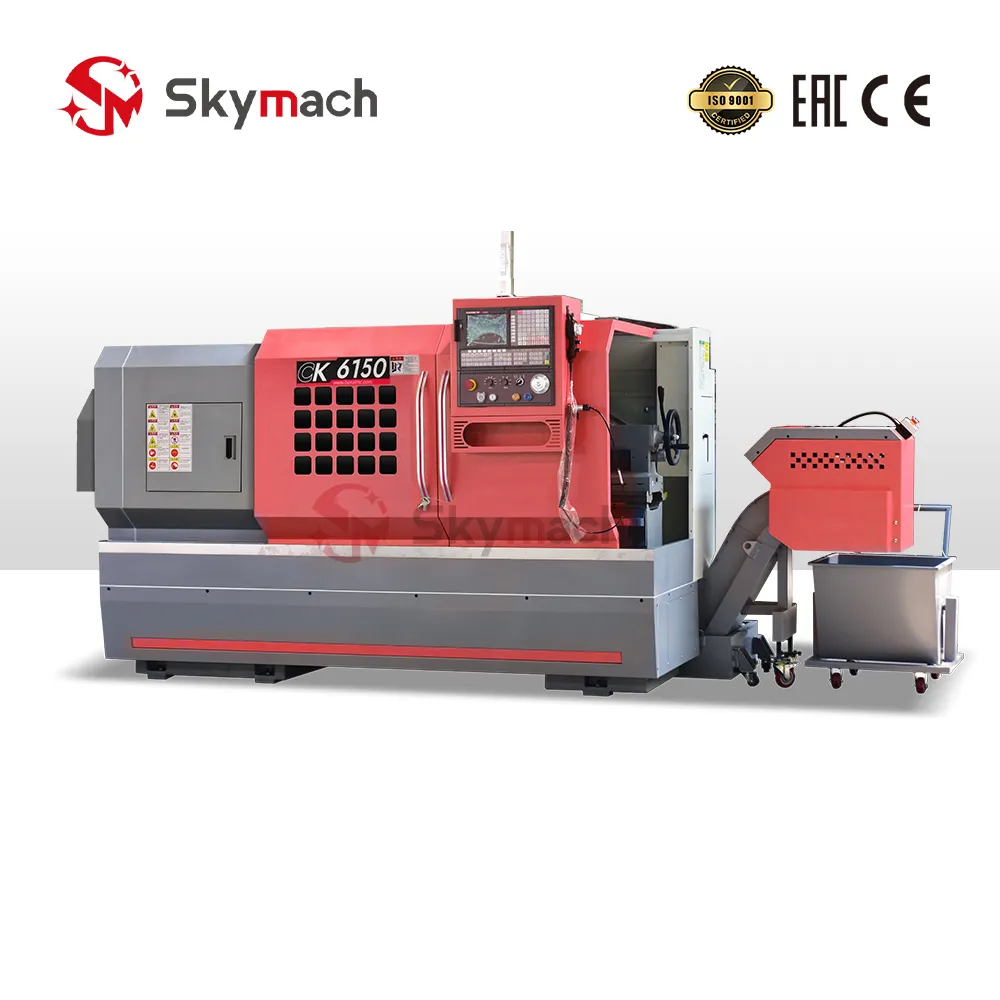

The Skymach CK6150 Flat Bed CNC Lathe Machine is engineered on a high-rigidity induction-hardened cast iron flat bed, featuring a 500 mm max swing over bed, a 7.5 kW main motor, an A2-6 (optional A2-8) spindle with MT6 taper, and a 4-position electric tool post. Available in multiple center distances from 750 mm to 2,000 mm, the CK6150 delivers exceptional precision, ease of operation, and versatile turning performance for general engineering, shafts, flanges, and maintenance machining.
Comprehensive Machining Capabilities
- Robust Heavy-Duty Bed: High-strength casting with hardened and ground slideways provides superior stability for heavy external turning and internal boring.
- Versatile Distance Between Centers: Configurable bed lengths (750mm, 1000mm, 1500mm, 2000mm) match a wide range of workpiece dimensions.
- Electric 4-Position Tool Post: Provides fast indexing, rigid tool clamping (25 x 25 mm), and reliable positioning repeatability.
Key Engineering Highlights
- Spindle Flexibility: Standard 52 mm through-hole with MT6 taper, with optional 80 mm large bore and A2-8 spindle nose.

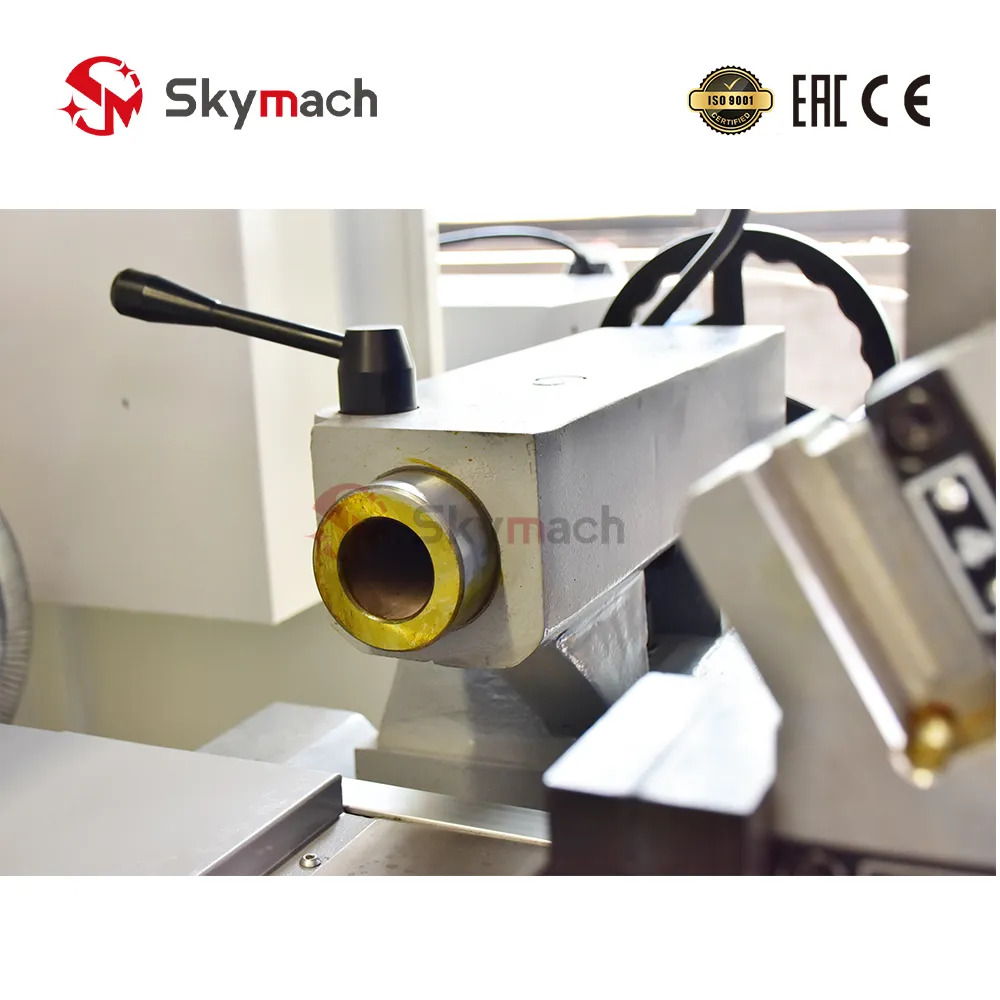

- Rigid MT5 Tailstock: 65 mm diameter quill with 130 mm stroke provides steady centering support during long shaft turning.
- Complete Protective Enclosure: High-visibility sliding door and integrated chip pan ensure clean, safe workshop operation.
Technical Parameters
| Max. Swing Diameter Over Bed | 500 mm |
|---|---|
| Max. Swing Over Cross Slide | 260 mm |
| Distance Between Centers | 750 / 1000 / 1500 / 2000 mm |
| Spindle Bore | 52 mm (Optional 80 mm) |
| Spindle Taper | MT6 |
| Spindle Nose Type | A2-6 (Optional A2-8) |
| Spindle Speed Steps | Stepless |
| Spindle Speed Range | 1800 rpm |
| Turret / Tool Post | Electric 4 Position |
| Tool Size | 25 x 25 mm |
| X Axis Travel | 280 mm |
| Z Axis Travel | 750 / 1000 / 1500 / 2000 mm |
| X Axis Rapid Traverse | 6000 mm/min |
| Z Axis Rapid Traverse | 8000 mm/min |
| Diameter of Tailstock Quill | 65 mm |
| Tailstock Quill Taper Hole | MT5 |
| Tailstock Quill Travel | 130 mm |
| Main Motor Power | 7.5 kW |
| Coolant Motor Power | 0.09 kW |
| Weight for 750 / 1000 / 1500 / 2000 | 1800 / 1900 / 2000 / 2100 kg |
| Dimension for 750 | 2200 x 1700 x 1750 mm |
| Dimension for 1000 | 2500 x 1700 x 1750 mm |
| Dimension for 1500 | 3000 x 1700 x 1750 mm |
| Dimension for 2000 | 3500 x 1700 x 1750 mm |
| Standard Configuration | Electric turret 4 position, 3-jaw manual chuck, Spindle bore 52mm, High-low two steps |

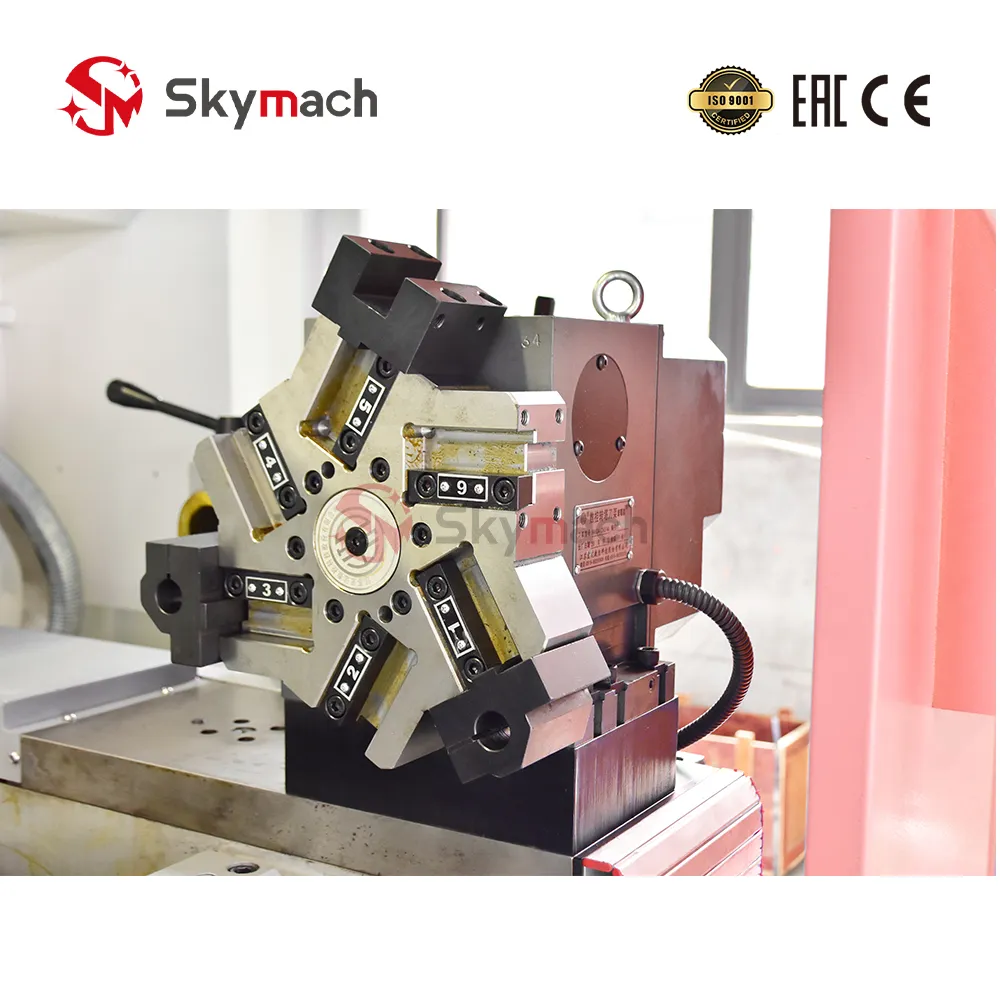

| Optional Configuration | Hydraulic chuck, Electric turret 6/8 position, Hydraulic tailstock, Stepless speed |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
