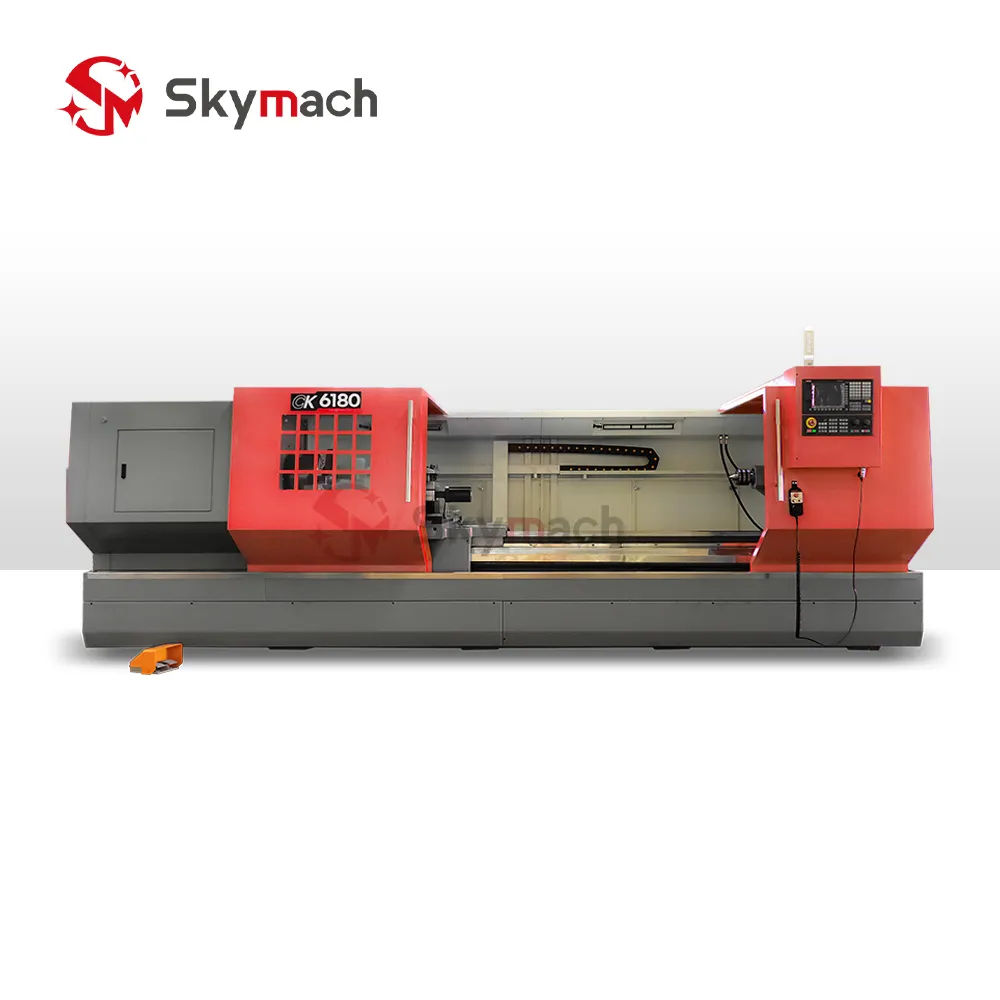

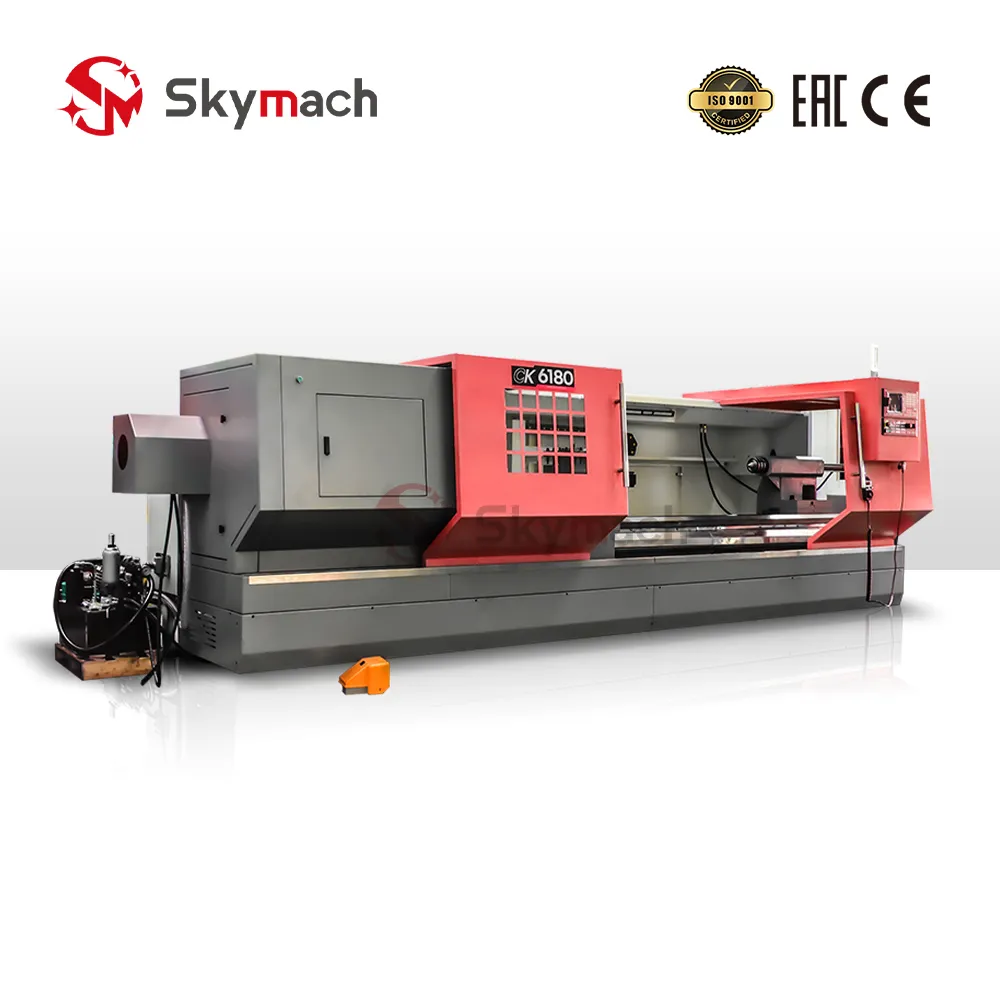

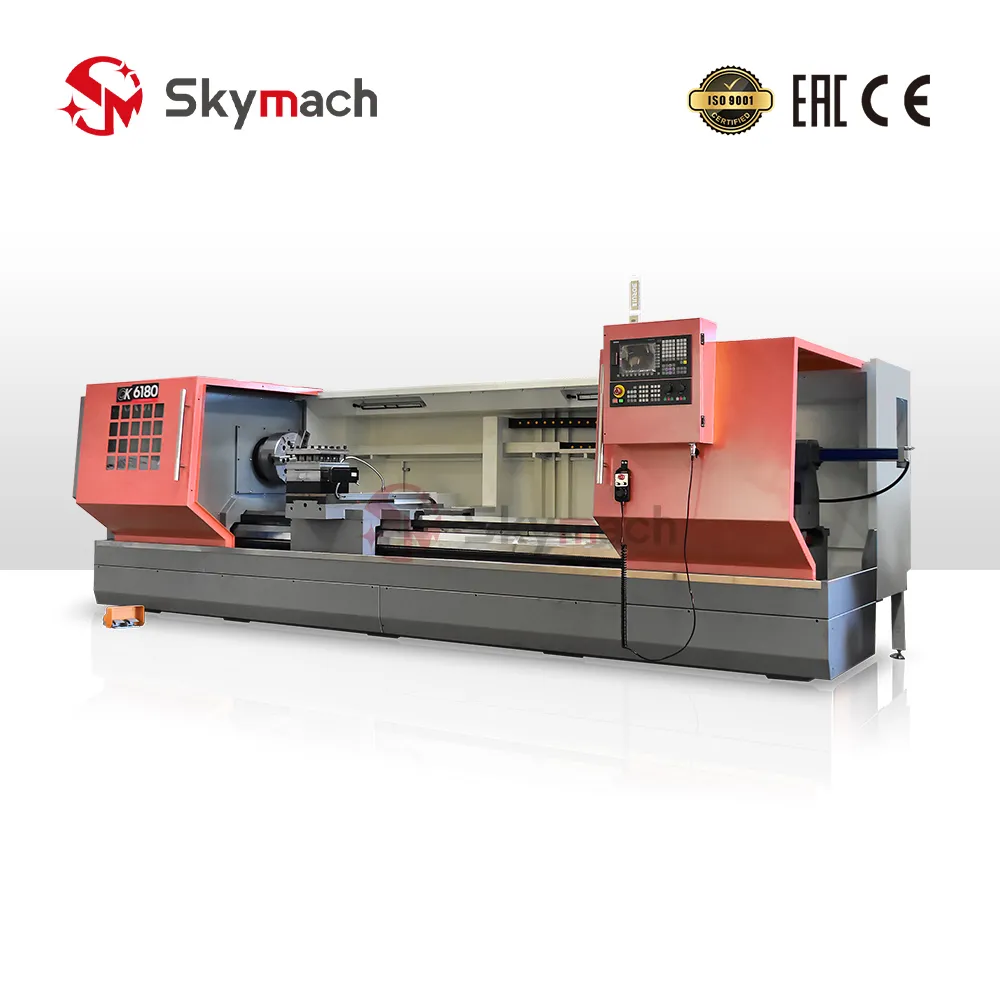

The Skymach CK6180 Heavy-Duty Flat Bed CNC Lathe Machine is engineered for heavy metal cutting, featuring a monoblock cast iron bed with 600 mm extra-wide induction-hardened guideways (HRC50). With an impressive 800 mm max swing over bed, a 480 mm max swing over carriage, an A2-11 spindle with Φ100 mm bore, and a mechanical 3-speed gearbox (40 - 950 RPM), the CK6180 delivers massive torque for turning large shafts, heavy flanges, valves, and mining machinery parts.
Outstanding Heavy Turning Features
- Rigid Monoblock Cast Bed: One-piece casting with 600 mm guideway width provides exceptional structural rigidity, superior vibration damping, and smooth chip evacuation.

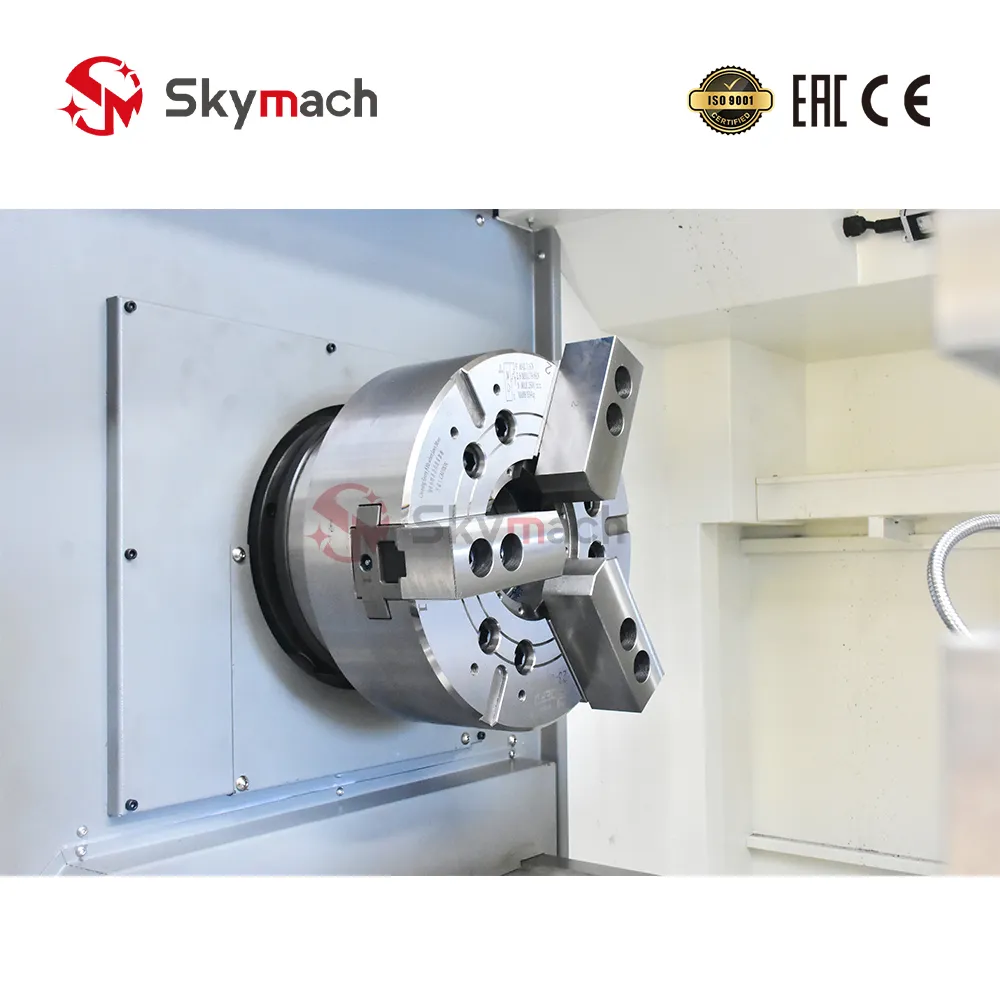

- High-Torque A2-11 Spindle: The 100 mm through-hole bore accepts large bars up to 98 mm diameter, coupled with a 3-step gearbox for heavy roughing and precision finishing.
- Heavy-Duty MT6 Tailstock: Built with a Φ120 mm quill diameter and 250 mm travel to ensure maximum centering stability when machining heavy shafts between centers up to 3,000 mm.
Precision Control & Reliability
- Direct AC Servo Drive: Both X and Z axes feature direct-coupled AC servo motors and high-precision ground ballscrews (3205 on X-axis, 6310 on Z-axis).
- Comprehensive Protection: Fully enclosed ergonomic enclosure with high-visibility sliding operator doors, integrated chip troughs, and automatic lubrication.
Technical Parameters
| Max. Swing Diameter Over Bed | 800 mm |
|---|---|
| Max. Swing Over Cross Slide | 480 mm |
| Max. Turning Length | 600 / 1350 / 1850 / 2850 mm |
| Max. Distance Between Centers | 1500 / 2000 / 3000 mm |
| Max. Bar Capacity Through Spindle | 98 mm |
| X Axis (Cross) Max. Travel | 560 mm |
| Z Axis (Longitudinal) Max. Travel | 750 / 1500 / 2000 / 3000 mm |
| Construction Type | Monoblock Cast Bed |
| Guideway Width | 600 mm |
| Cross Slide Width | 330 mm |
| Spindle Nose Type | A2-11 |
| Spindle Bore Taper | Metric 120 (1:20) |
| Spindle Bore Diameter | 100 mm |
| Spindle Speed Range (3-step) | 3-Speed Gearbox: 40-115 / 110-350 / 290-950 rpm |
| X-axis Leadscrew Specification | 3205 |
| Z-axis Leadscrew Specification | 6310 |
| Tailstock Sleeve Diameter | 120 mm |
| Tailstock Sleeve Travel | 250 mm |
| Tailstock Center Taper | MT6 |
| Overall Length (L) | 2800 / 3700 / 4200 / 5200 mm |
| Overall Dimensions (W x H) | 1600 x 1600 mm |
| Net Weight | 3400 / 4000 / 4500 / 5100 kg |
| Standard Configuration | Electric turret 4 position, Monoblock cast bed (600mm guideway), 3-jaw manual chuck, Spindle bore 100mm, MT6 heavy tailstock |
| Optional Configuration | Hydraulic chuck, Hydraulic tailstock, Steady rest, Follow rest, 6/8 position turret |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
