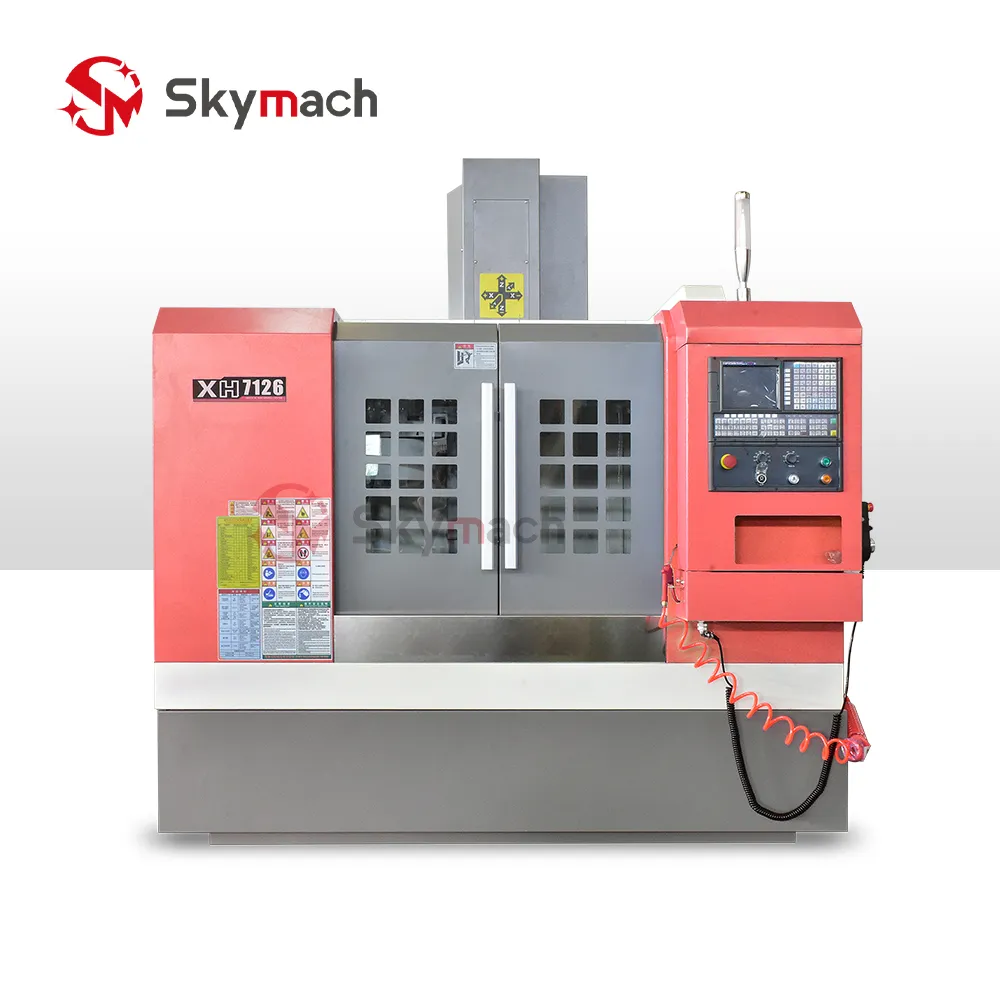

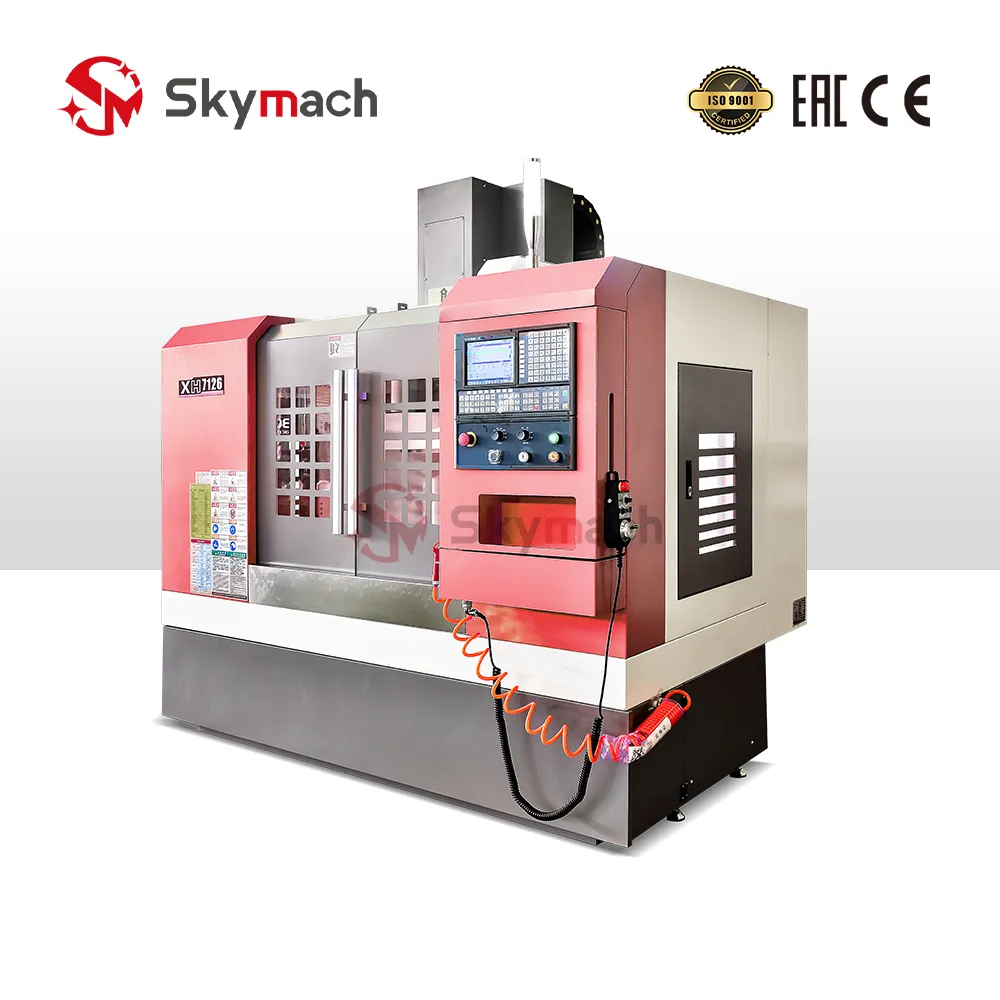

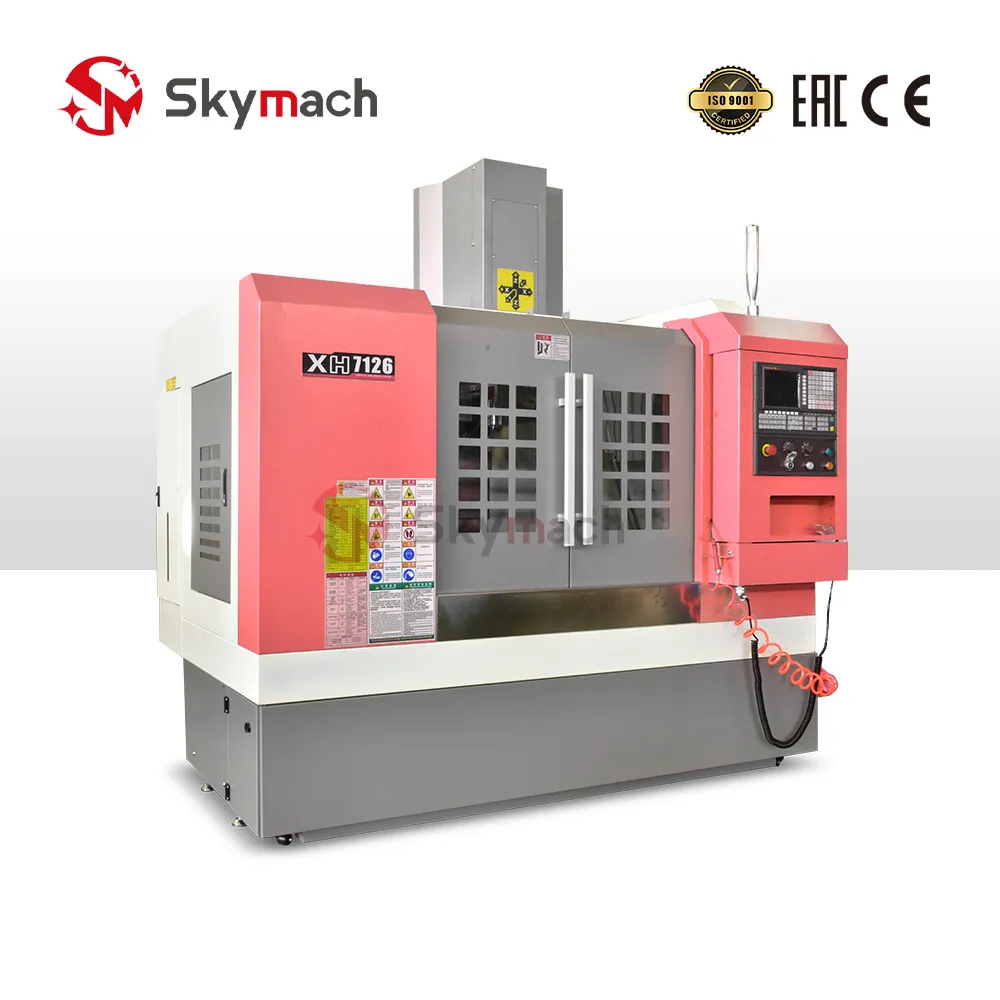

The Skymach XH7126 is a heavy-duty, high-precision vertical CNC milling machine and compact machining center. Engineered for high rigidity and thermal stability, this machine excels at milling complex planes, keyways, dovetail grooves, gear components, spiral surfaces, and intricate 3D contoured molds.
Comprehensive Machining Capabilities
- Multi-Surface Milling: Capable of processing horizontal and vertical planes, keyways, T-slots, dovetail grooves, and precision step faces.
- Complex Profile Machining: High-precision interpolation for spline shafts, gears, sprockets, threads, and complex 3D curved surfaces.
- Boring, Drilling & Tapping: Rigid structure supports high-precision inner hole boring, reaming, drilling, and rigid tapping in single setup operations.
Key Engineering Advantages

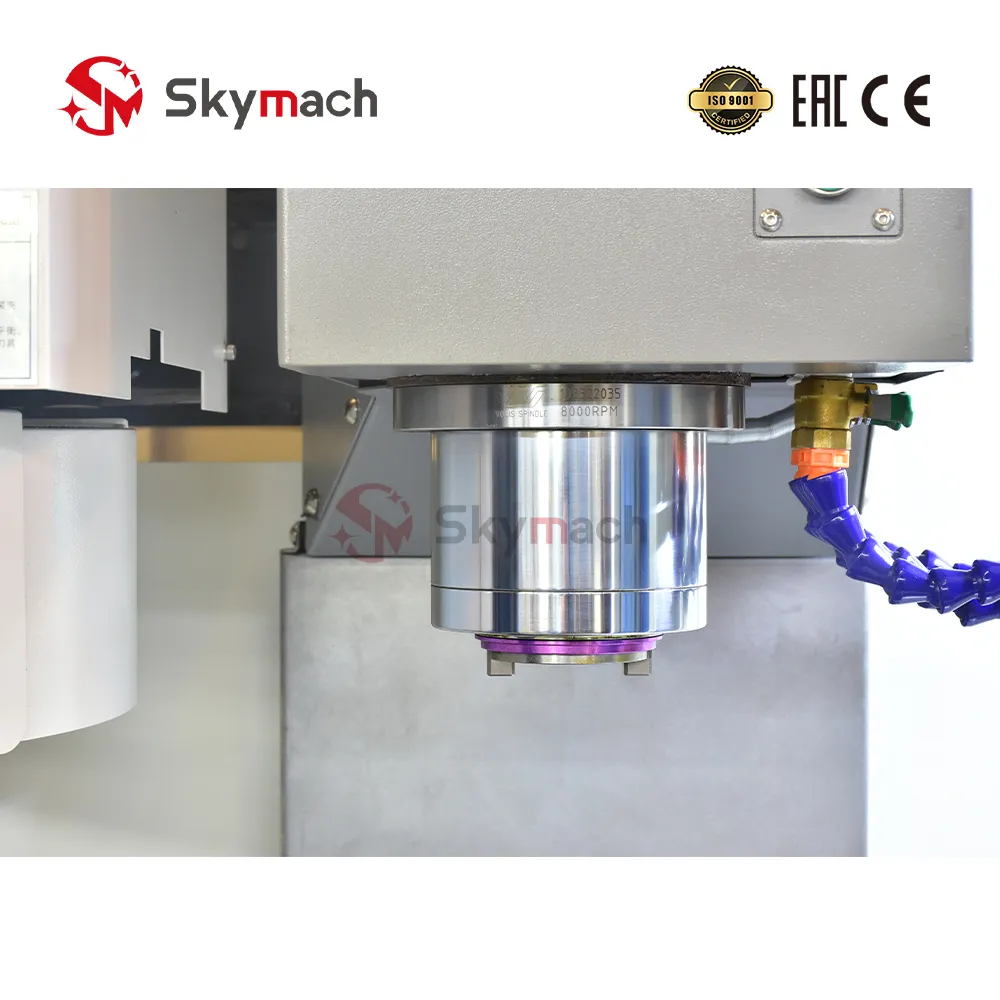

- BT40 Precision Spindle: 8,000 RPM high-torque direct or belt-driven spindle with dynamic balancing to ensure mirror-like surface finishes.
- High Dynamic Response: Equipped with a 3.7 kW AC servo motor and precision ball screws, delivering rapid traverse feeds of 15/15/15 m/min.
- Industrial Stability & HT300 Cast Iron: Solid cast-iron base dampens vibrations during heavy intermittent cutting and ensures long-term micron-level accuracy.
- Full Enclosure Safety Guarding: Ergonomic full-cabin enclosure with safety interlock doors and high-capacity chip evacuation.
Technical Parameters
| Model | XH7126 |
|---|---|

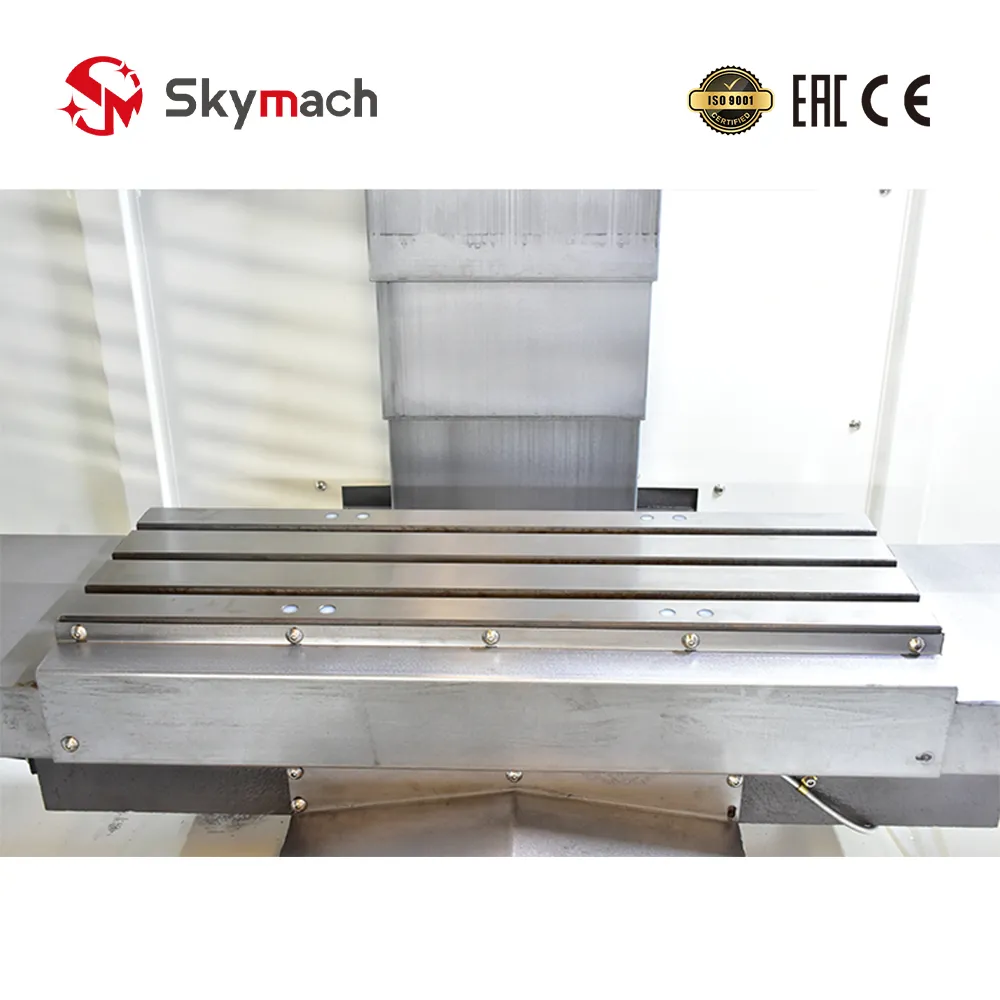

| Table Size (X x Y) | 800 x 260 mm |
| Max. Table Load | 200 kg |
| T-Slot (Qty x Width x Distance) | 3-16 x 75 mm |
| Spindle Speed | 8,000 RPM |
| Spindle Nose to Table Surface | 100 - 500 mm |
| Spindle Center to Column Surface | 315 mm |
| Spindle Taper | BT40 |
| Main Motor Power | 3.7 kW (Servo Motor) |
| X Axis Travel | 500 mm |
| Y Axis Travel | 300 mm |
| Z Axis Travel | 450 mm |
| Rapid Feed (X/Y/Z) | 15/15/15 m/min |
| Positioning Accuracy | ±0.012 mm |
| Repeat Positioning Accuracy | ±0.010 mm |
| Overall Dimensions | 2400 x 1900 x 2300 mm |
| Net Weight | 2,200 kg |
Frequently Asked Questions
What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
