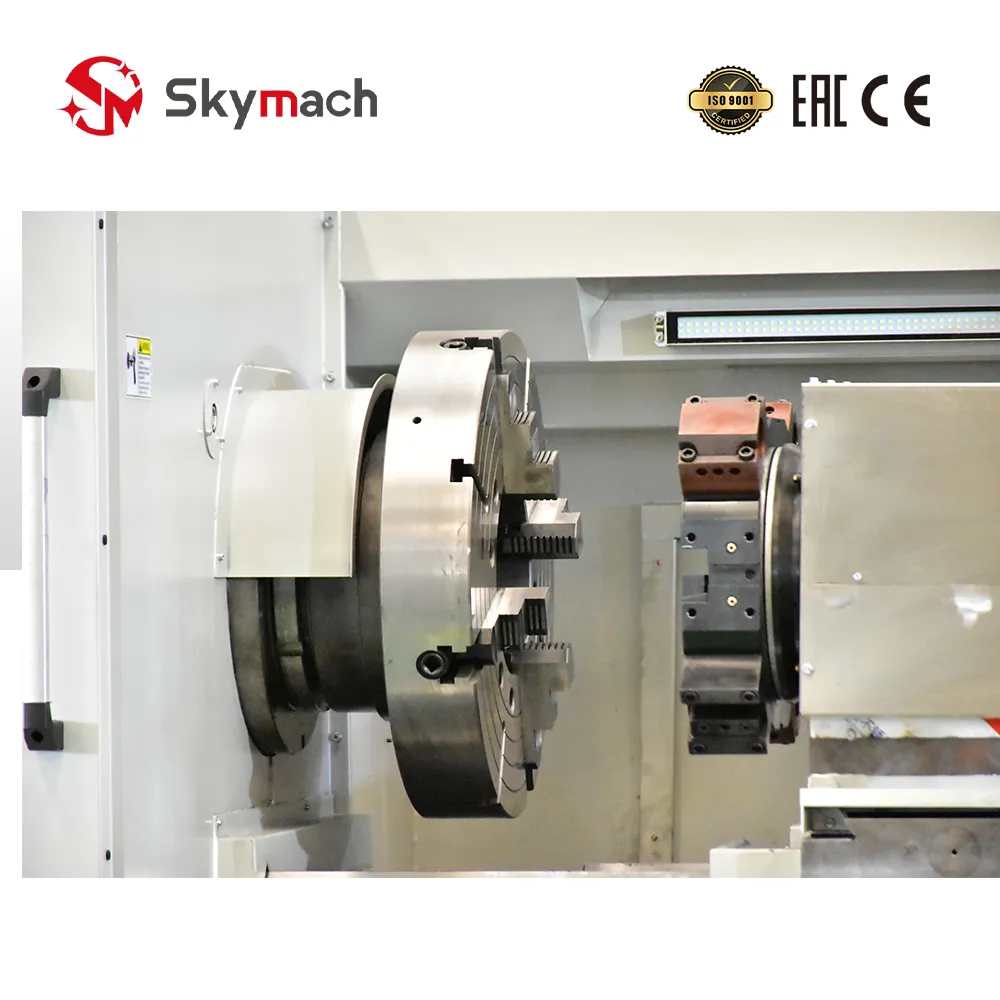

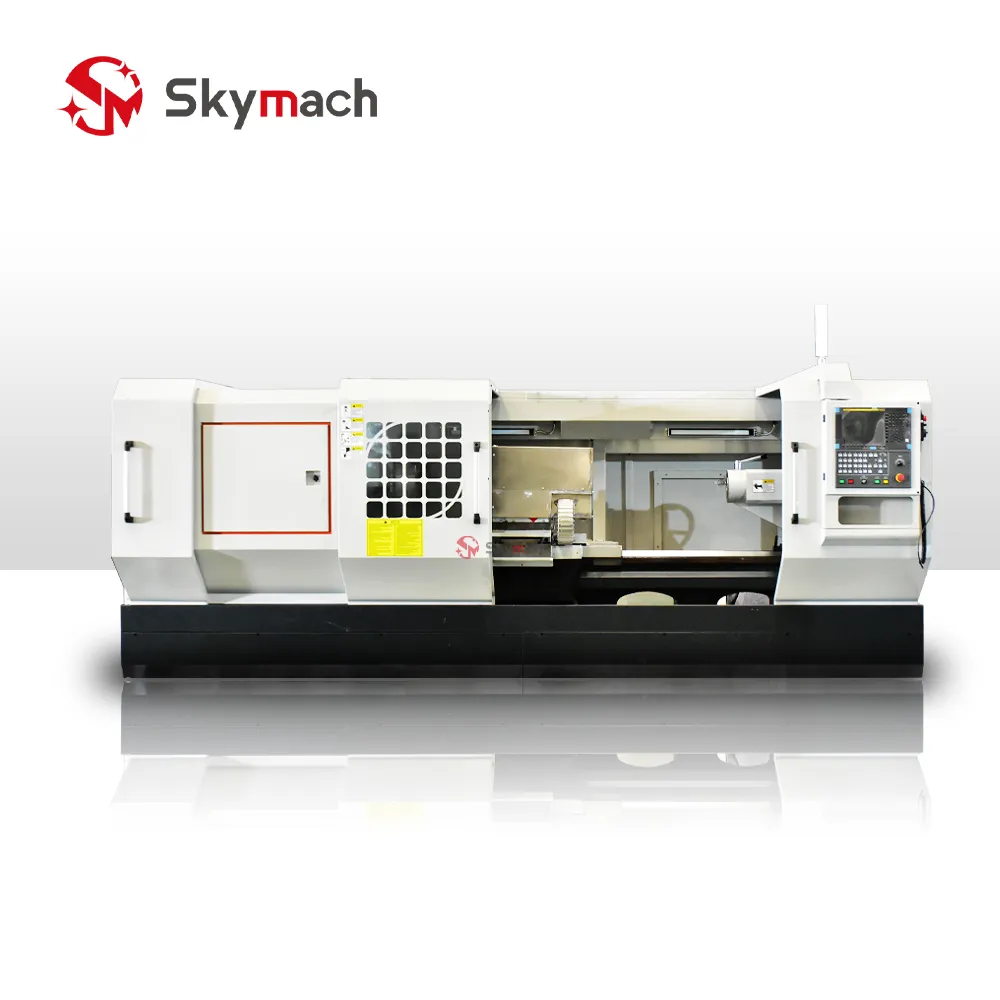

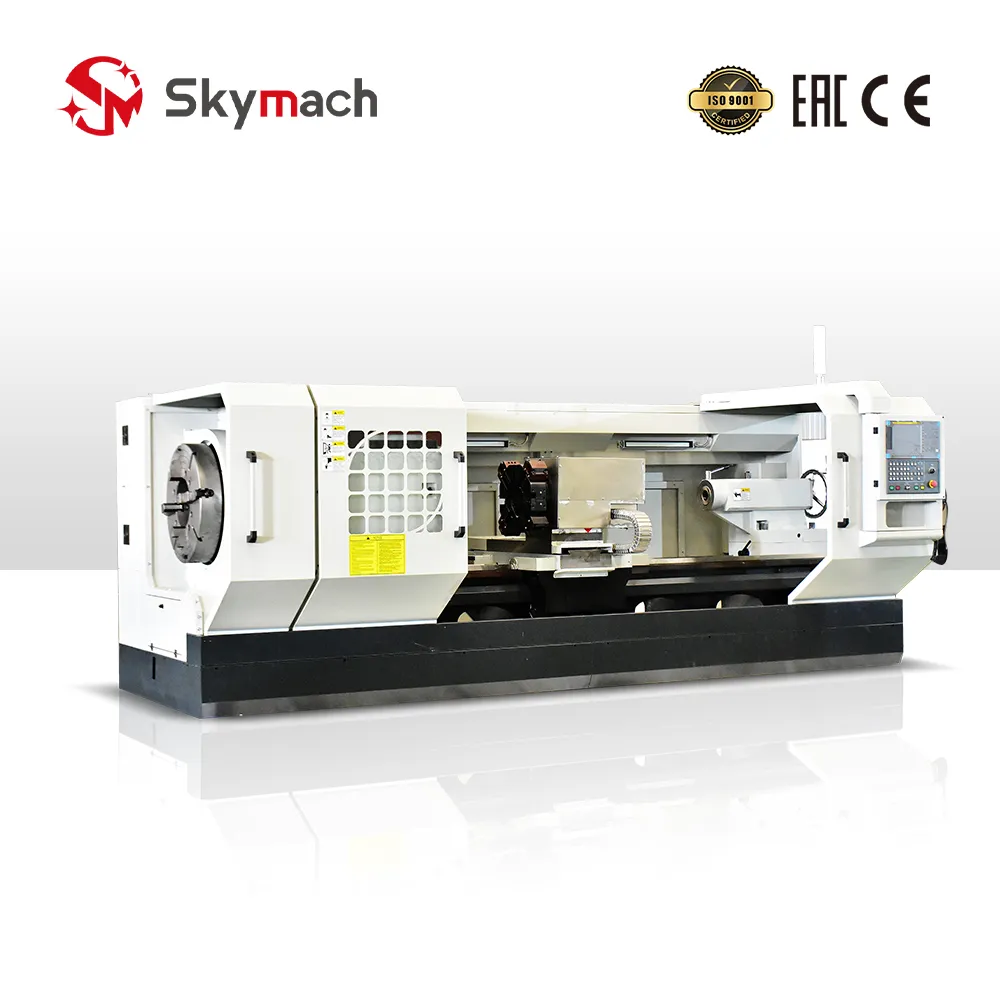

As a premier CNC pipe threading lathe machine manufacturer and factory-direct supplier, Skymach offers the QK1313 CNC pipe threading lathe machine for sale with transparent direct-factory pricing and worldwide delivery. Purpose-built on a 550 mm wide induction-hardened cast iron flat bed to process internal and external threads on tubular workpieces, this high-precision pipe threading lathe is equipped with a Φ130 mm big-bore spindle (11 kW, 30-800 RPM), a Φ400 mm 3-jaw manual chuck, a 4-station electric tool post (32x32 mm shanks), and an MT6 heavy tailstock (Φ100 mm quill). The QK1313 delivers high-efficiency threading of metric, inch, module, DP, and API taper threads for drill pipes, thread couplings, casing tubes, hydraulic cylinders, and chemical pipelines. Request an immediate CNC pipe threading lathe machine price quotation from our engineering team today.

Comprehensive Machining Capabilities

  • Precision Pipe Threading Cycles: Specialized CNC macro routines for single-point chasing of API taper, metric, inch, and buttress pipe threads on pipes from Φ30 mm to Φ126 mm.

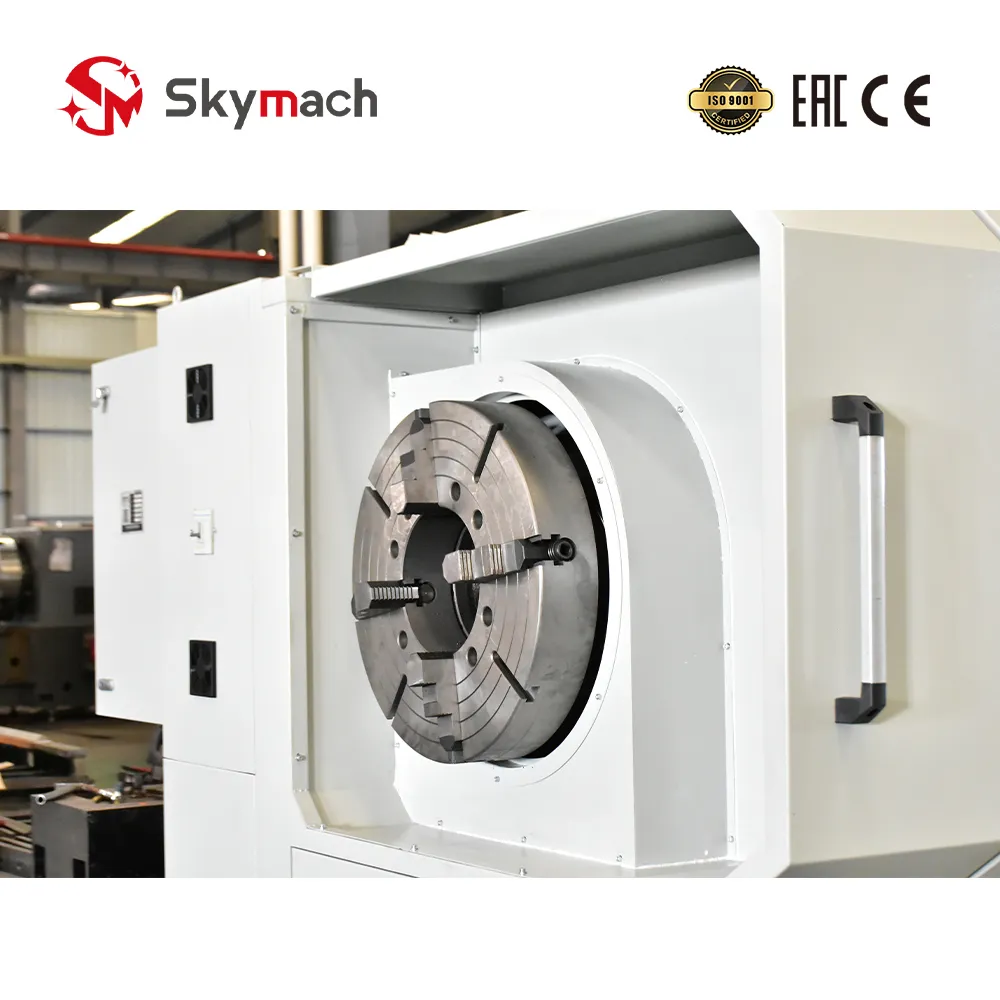

  • Big-Bore 130 mm Spindle: High-rigidity spindle design handles long drill rods and tubes passing straight through the headstock with optional dual front/rear chucking.
  • General CNC Turning Versatility: In addition to threading, performs standard external turning, boring, facing, and contouring of shafts and heavy disc workpieces.

Key Engineering Highlights

  • 550 mm Extra-Wide Flat Bed: High-strength casting with wide induction-hardened ways supports up to 3-ton workpiece loads without vibration.

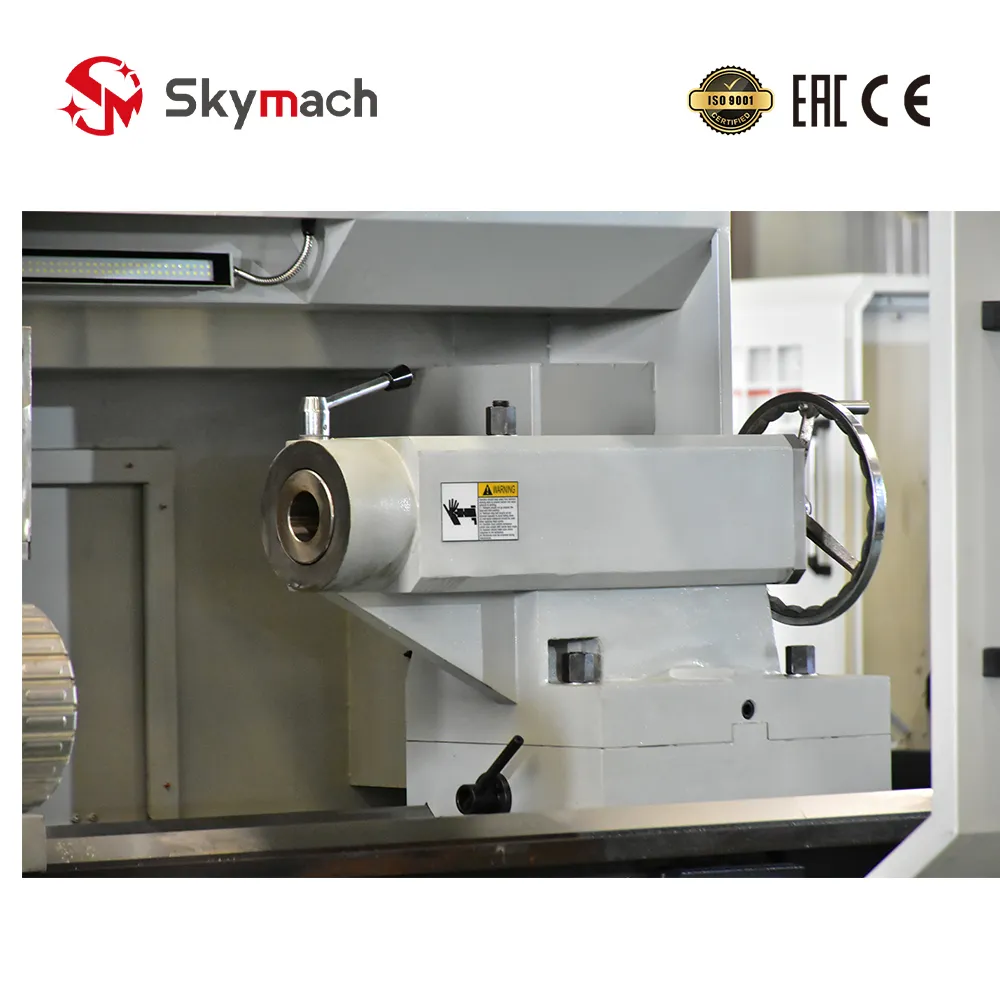

  • Robust MT6 Tailstock: Φ100 mm quill diameter with 250 mm stroke provides rock-solid centering stability on heavy drill pipes and long shafts.
  • High-Torque 11 kW Drive: 3-step frequency conversion gearbox produces formidable cutting force during deep thread-cutting passes in tough alloy steels.

Technical Parameters

Max. Swivel Diameter on Bed630 / 800 mm
Max. Swivel Diameter on Cross Slide340 / 520 mm
Max. Workpiece Length1000 - 6000 mm
Pipe Thread Diameter Range30 - 126 mm
Guideway Width550 mm
Max. Load Capacity3 T
Spindle Bore130 mm
Spindle Speed StepsVF 3 Steps (Variable Frequency)
Spindle Speed Range30 - 800 rpm
Chuck SpecificationsΦ400 mm 3-Jaw Manual Chuck
Turret / Tool Post Type4-Station Electric Tool Holder
Tool Shank Size32 x 32 mm
X Axis Travel340 / 420 mm
Z Axis Travel1000 - 6000 mm
X-Axis Rapid Feed Speed4000 mm/min
Z-Axis Rapid Feed Speed6000 mm/min
Tailstock Quill DiameterΦ100 mm
Tailstock Quill TaperMT6
Tailstock Quill Travel250 mm
Main Spindle Motor11 kW
Coolant Pump Motor0.25 kW
Width x Height (W x H)1800 x 1850 mm
Length (L)3000 / 8300 mm
Net Weight4 - 8 T

Frequently Asked Questions

What is the warranty period for your machines?
We offer a standard 12-month warranty on all our CNC machines, covering the spindle assembly, ball screws, linear guides, CNC controller, and servo drive motors. Extended warranties and customized service plans are available upon request.
Do you provide overseas installation and training?
Yes. Our engineers are available for overseas dispatch to assist with machine installation, commissioning, and comprehensive operator training at your facility. Every machine also ships with English manuals, circuit diagrams, and video setup guides.
What is the typical lead time for an order?
Standard catalog machines ship within 30 days. Custom configurations — such as oversized spindle bores, extended bed lengths, or integrated 4th-axis rotary tables — typically ship within 60 days.
How do you handle spare parts requests?
We maintain a comprehensive inventory of standard spare parts. Genuine replacement components are dispatched via international express (DHL/FedEx) within 48 hours, ensuring minimal downtime for your production line.
